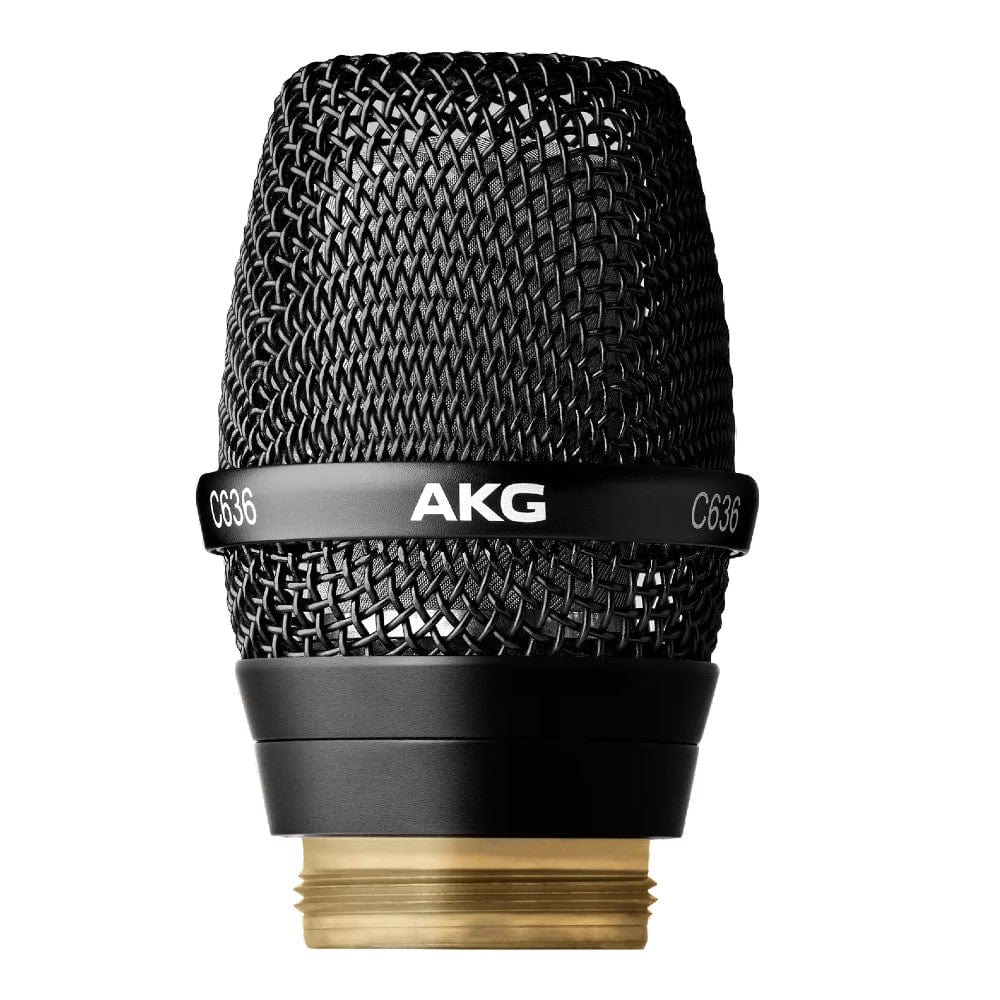

AKG C636 WL1 Master Reference Condenser Vocal Microphone Head Overview:

Step on stage with a studio legend. Offering the pure studio sound you’ve grown to love, the AKG C636 WL1 head is housed in a worry-free durable housing, you can now focus on your vocal performance—not on the performance of your microphone. Its proprietary double shock suspension system provides unparalleled rejection of handling noise. And the C636 WL1 doubles-down on keeping your performance flawless by incorporating a state-of-the-art, multi-layer pop noise rejection system that eliminates plosives and a road-tested, cardioid polar pattern that eliminates feedback.

Made with hand-selected components and manually tuned for a pure transparent tone, the new C636 WL1 head retains the spirit of the classic AKG C535 condenser microphone, while being re-engineered to meet the demands of today’s top vocal performers. The C636 WL1 is designed to fit the DMS800 and WMS4500 wireless systems.

Be aggressive, the C636 can take it

If you’ve ever tried to bring a studio mic on stage, you know they’re too delicate to stand up to the task. The C636 WL1 proprietary double shock suspension system greatly reduces handling noise, even during the most energetic on-stage performances. Its capsule sits on a highly absorbent rubber bearing, eliminating any structure-based noise, while an adjustable balancing network cancels vibrations over a wide frequency range. In addition, a substantial brass layer below the capsule serves as a counterweight that increases stability and delivers cleaner acoustics.

A new approach to broad-spectrum feedback rejection

A consistent cardioid polar pattern eliminates troublesome feedback. A triple layer noise-rejection system lets you sing without vocal pops. And its robust double-shock suspension lets you carry the mic with zero handling noise. So join the ranks of legends. Sing into the C636 WL1 and experience your own legendary vocal performances.

Rugged construction

With its spring steel grille, the C636 WL1 stands up to the most demanding tour schedules. And its 24-karat gold-plated capsule protects the microphone against moisture and corrosion.

Specifications:

• AKG Wireless System Compatibility: DMS800 and WMS4500 wireless systems (DHT800 and HT4500 handheld transmitters)
• Type: Custom-tuned 3/4" back electret condenser
• Polar Pattern: Cardioid
• Capsule: 24-carat gold-plated capsule
• Isolation: Proprietary double shock suspension system and multilayer pop noise protection
• Grille: Spring-steel wire-mesh
• Frequency Response: 20Hz-20kHz
• Sensitivity: 5.6 mV/Pa
• Maximum SPL: 150 dB (A) @ 1%
• Equivalent Noise Level: 20 dB(A) to IEC 60268-4

Design

• Body: metal
• Finish: matte black

Application

• Live Vocal: Yes
• Live Instrument: Yes
• Pro Studio: Yes
• Project Studio: Yes

Made in China
