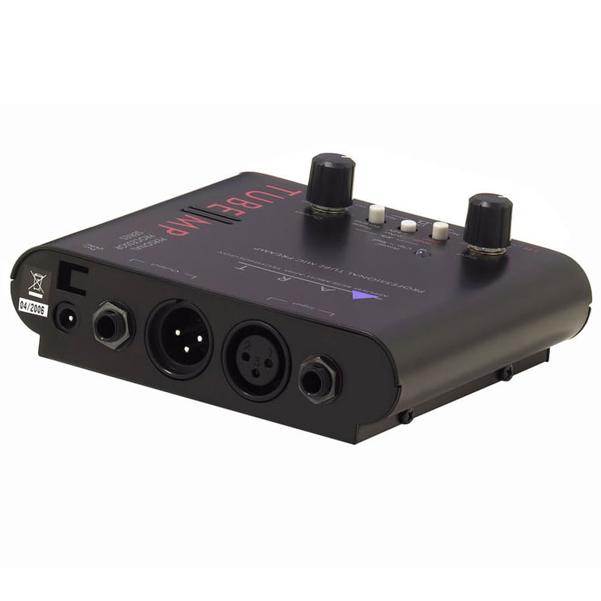

ART Tube MP Tube Microphone Preamp Overview:

The Original
The Tube MP is the world's most popular external tube microphone preamp. Whether you're working with a digital, computer or analog recording system, the Tube MP's TEC award nominated design will allow you to obtain professional recording studio results at a fraction of the cost of comparable equipment. The hybrid design of the Tube MP allows it to add warmth and fatness to a signal while maintaining exceptionally low-noise and high quality. While its primary application is to be used with a microphone, the Tube MP is an exceptional direct box - impedance matching, amplifying and improving the sound of any instrument plugged into it.

The usage of external mic/line preamps has become increasingly popular over the past several years. The Tube MP offers superior performance and sound quality to the "on-board" preamps found in today's low-cost mixers and multi-trackers. It's sound has been consistently favored over other products costing upwards to ten-times its price. Professional quality sound combined with professional features like: a hand-selected 12AX7a tube, phantom power and phase reverse are what have made the Tube MP a staple in thousands of studios worldwide. For a minimal investment, a Tube MP can provide the single largest improvement to the sound of your studio.

Features:

• Provides Superior Preamplification for: Microphones, Instruments and Line Level Sources
• Hand Selected 12AX7a Provides 70dB of Gain Smooth, Warm and Fat Sound Quality
• Variable Input and Output Gain Controls
• Excellent as a Tube DI
• XLR and 1/4" Inputs and Outputs +48 volts
\n
• Phantom Power
\n
• Phase Reversal Switch
\n
• Superior Sonic Performance to On-Board Preamps
\n
• TEC-Award Nominated Design
\n
• Portable, All Steel Construction
\n

\nSpecifications:
\n

\n
• Frequency Response: 10Hz to 20kHz (+0,-1dB)
\n
• Total Harmonic Distortion: <0.1% (typical)
\n
• CMMR: > 75dB (typ @1kHz)
\n
• Dynamic Range: > 100dB (20Hz to 20kHz)
\n
• Equivalent Input Noise: -129dBu ('A' weighted XLR to XLR)
\n
• Input Impedance: 2k Ω (XLR), 840K Ω (1/4")
• Maximum Gain: 70dB (XLR to XLR typical)
• Maximum Input Level: +14dBu (XLR), +22dBu (1/4")
\n
• Maximum Output Level: +28dBu (XLR), +22dBu (1/4")
• Output Impedance: 600 Ω (XLR), 300 Ω (1/4")
\n
• Power Requirements: 9 VAC @ 700ma (typ)
\n
• Dimensions: 5.0"D x 5.5"W x 2.0"H
• Weight: 1.5 lbs
