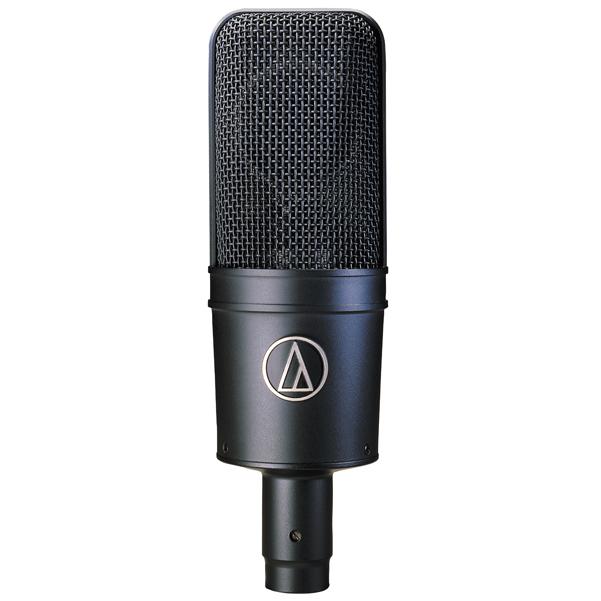

Audio-Technica AT4033a Cardioid Condenser Microphone Overview:

The latest edition of the legendary AT4033 microphone, the side-address AT4033a offers low-noise, symmetrical, transformerless circuitry that results in exceptional transient response and clean output signals. A studio classic and bluegrass favorite, the AT4033 cardioid studio condenser is the microphone that broke the US$1000-barrier in its class. A strong up-front presence characterizes the sonic signature of this 40 Series pro-audio classic. The AT4033a’s 80Hz high-pass filter easily switches between flat frequency response and a low-end roll-off that diminishes ambient noise and popping with closely-miked vocals. Includes the AT8449a shock mount for superior isolation.

Features:
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
The 2-micron-thick, vapor-deposited gold diaphragm undergoes a five-step aging process so that the optimum characteristics achieved remain constant over years of use
Floating-construction capsule assembly provides isolation from noise and vibration
Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

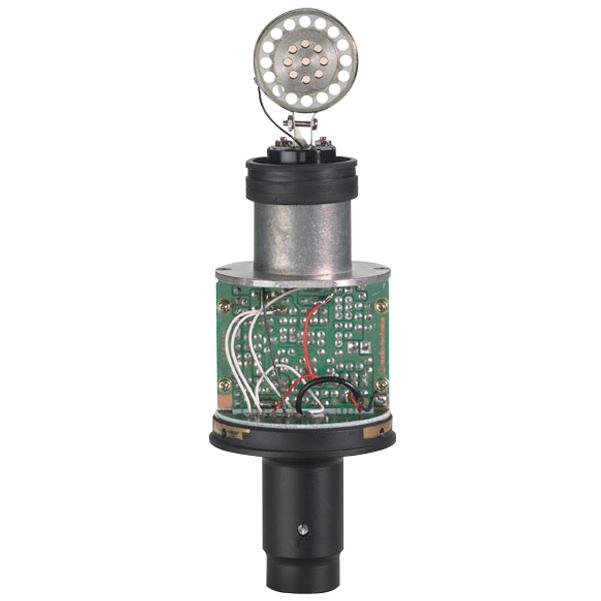

State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards

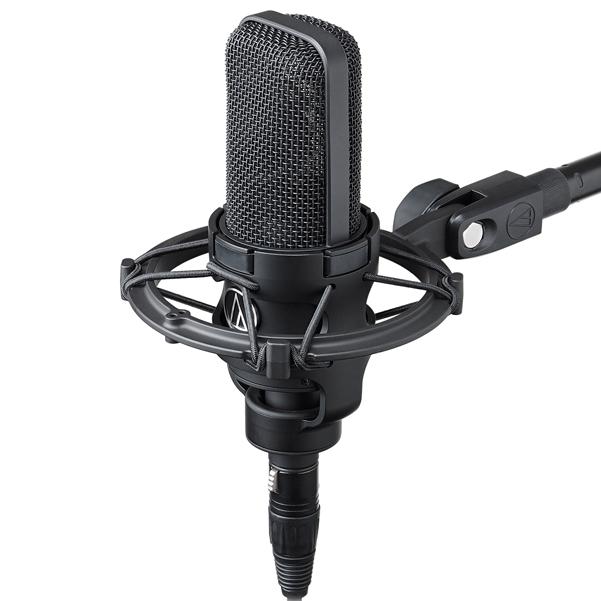

Custom shock mount provides superior isolation

Specifications:

• ELEMENT: Fixed-charge back plate, permanently polarized condenser
• POLAR PATTERN: Cardioid
• FREQUENCY RESPONSE: 30-20,000 Hz
• LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave
• OPEN CIRCUIT SENSITIVITY: -32 dB (25.1 mV) re 1V at 1 Pa
• IMPEDANCE: 100 ohms
• MAXIMUM INPUT SOUND LEVEL: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)
• NOISE: 17 dB SPL
• DYNAMIC RANGE (typical): 128 dB, 1 kHz at Max SPL
• SIGNAL-TO-NOISE RATIO: 77 dB, 1 kHz at 1 Pa
• PHANTOM POWER REQUIREMENTS: 48V DC, 3.2 mA typical
• SWITCHES: Flat, roll-off; 10 dB pad (nominal)
• WEIGHT: 13.4 oz (380 g)
• DIMENSIONS: 6.69" (170.0 mm) long, 2.10" (53.4 mm) maximum body diameter
• OUTPUT CONNECTOR: Integral 3-pin XLRM-type

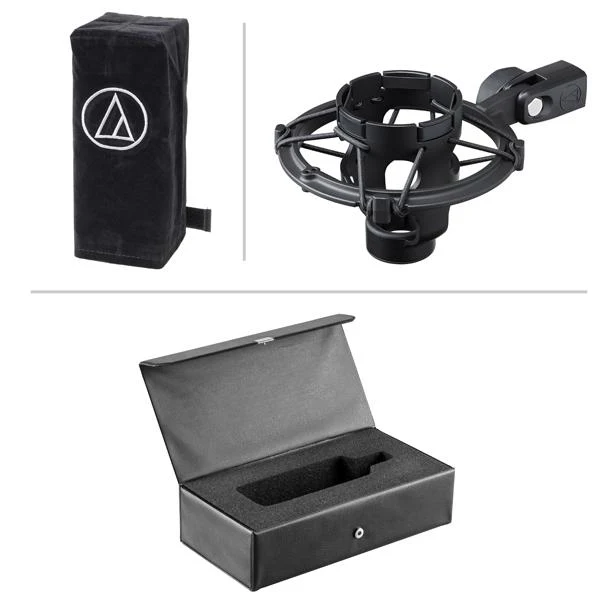

• ACCESSORIES FURNISHED: AT8449a shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case
• AUDIO-TECHNICA CASE STYLE: R1

Country of Origin: Japan
