Bassboss DiaMon-MK3 Single 12" Loudspeaker Overview:

Sweet sound, signature shape, simply smashing sophistication.

Co-Axial Powerhouse
You're looking for an edge. You like to be able to load in and load out alone. You need a system that will cover a large area. You need more sound from less space and less weight.

Hot Thing
Miniscule cabinet, massive sound! The DiaMon will blow your mind with its power and intensity - this lil cab can easily hang with a double-driver sub and not break a sweat.

Shine Bright
The DiaMon doesn't waste any energy or space trying to deliver the lows that the subs can handle perfectly well. Its power is concentrated on the very important job of delivering loud, clear mids and highs. Enough to keep up with several large subs.

Perfect Pairs
A high-efficiency 12" midrange/woofer with a 3" compression driver tweeter firing through the middle is loaded into a cabinet that's as small as possible, just big enough to hold the driver, the 1200W amp, and the DSP electronics.

Power of MK3

MK3 Amp Update
There are all-new amplifiers in the MK3 series. Total power has increased, however power allocated to woofers increased substantially. The higher output voltages provide more impact. Universal input voltage compatibility of 90-250V provides more flexibility. Waterproof connections provide more peace of mind.

MK3 Enhanced DSP
The MK3 features an all-new 96kHz DSP. The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN. The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.

ControlBASS Software
ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups. The latest in DSP programming developments can be added via easy remote updating.

Specifications:

• Loudspeaker Description: 2-Way Single 12" Self-Powered Direct Radiating Co-axial Point Source Mid-High

• Frequency Response (±3 dB): 50Hz - 19kHz (Full Range - Preset 1)

• Maximum Sustained Output: 123 dB SPL 1m half-space

• Max SPL (Peak)*: 126 dB SPL 1m half-space (Limited in full-range)

• Nominal Dispersion (H° x V°): 80 x 80 (Conical)

• Amplification: 1200 W Class D, 2 Channel

• Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8
• pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage apacity for up to 100 presets

• Electrical Connector Amp: USA 3-pin grounding 120V electrical plug: NEMA 5-15; Outside USA alternate connectors provided

• Electrical Connector Mains: Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)

• Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)

• Current Draw 120V: 1.4A (nominal)

• Current Draw 240V: 0.7A (nominal)

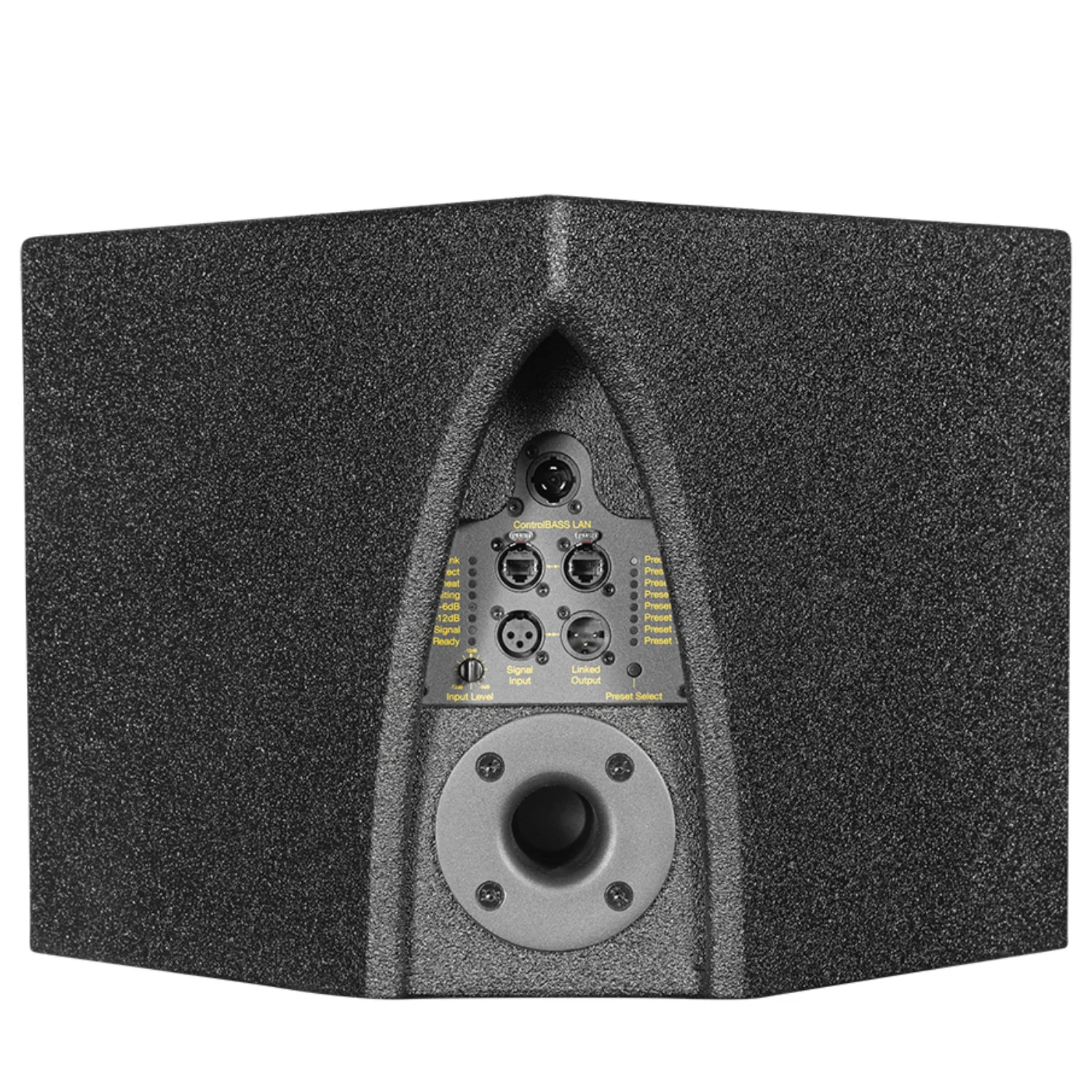

• Signal Input Connector: XLR-F

• Signal Output Connector: XLR-M (direct pass-through only)

• Enclosure Type: 2-way active mid-high. Direct radiating sealed 12″ LF, co-axial horn-loaded HF

• Transducer Low Frequency: 1 x 12 in. diameter (300mm) neodymium motor woofer with 3 in. (76 mm) copper winding voice coil

• Transducer High Frequency: 1 x 3 in. (76mm) diameter diaphragm compression driver with 1.4" (35mm) exit through 80 degree conical wave guide machined from aluminum ploe piece in the center of the midrange driver

• Cabinet Construction: CNC machined 18 and 15mm Birch plywood with dado joinery. 1 x 35mm steel pole socket

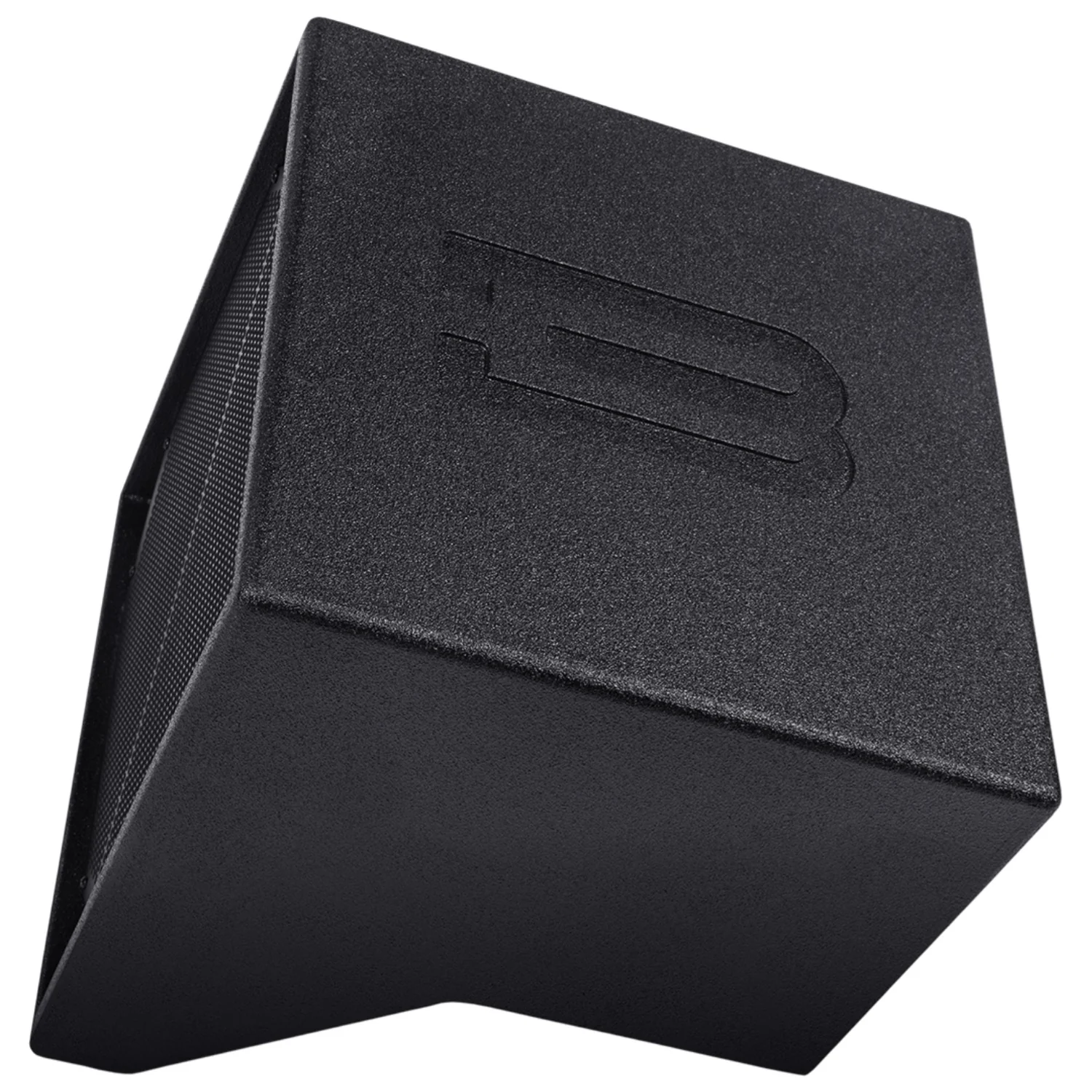

• Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black

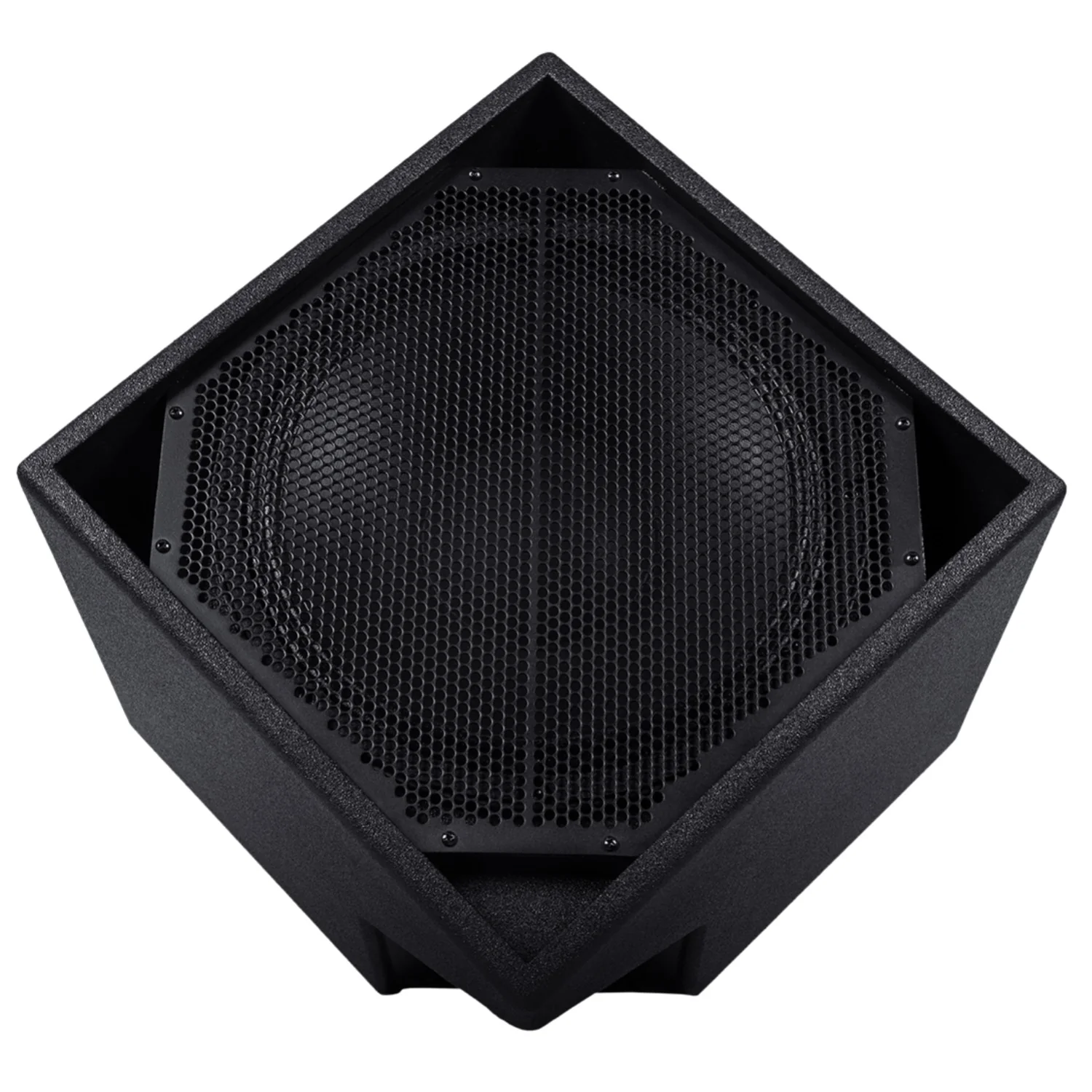

• Grille: Perforated, powder-coated steel

• Dimensions (HxWxD): 14 in. x 14 in. x 13.5 in.

• Net Weight: 30 lbs (13.5kg)

• Shipping Weight: 35 lbs (16kg)

• What's Included: Loudspeaker, 15' (5m) Power Cable, Manual, Warranty Card

• Optional Covers: Heavy-duty padded nylon transport cover

• Optional Hardware: Ceiling Mounts, Wall Mounts


True Specifications

At BASSBOSS, with the MK3 line we have stopped using “Peak” and “RMS” power ratings for our amplifiers because those numbers alone are not an accurate representation of the real-world performance you can expect from our powered loudspeaker systems.



‍Peak Watts:

• Essentially a theoretical maximum that the amplifiers could output for an instantaneous moment under ideal conditions with no load.

• However, this peak power is not sustainable and has little practical relevance for how the loudspeakers will actually perform.‍

RMS (root mean square) Watts:

• A measure of continuous power output, but even this figure doesn’t account for the true efficiency of how that power is converted into acoustic output by the transducers and overall speaker design.

• The number of watts a loudspeaker “uses” is constantly fluctuating based on the impedance curve, frequency response, and heat generated in the voice coils.

• Simply looking at how many watts an amplifier can produce on a test bench doesn’t translate to its real-world sound output capability.


What matters most is the complete integrated loudspeaker system and how efficiently it can convert the amplifier’s power into acoustic output while maintaining flat frequency response and headroom. Two loudspeakers with the same wattage ratings could have vastly different real-world sound pressure levels and clarity.

For these reasons, we believe wattage ratings alone are not a reliable metric. Listening tests and measurements of the overall system’s output capabilities like maximum SPL and distortion are far more telling than any peak or RMS wattage number viewed in isolation.

Our goal is to provide outstanding performance through intelligent system design, not just big wattage numbers.
