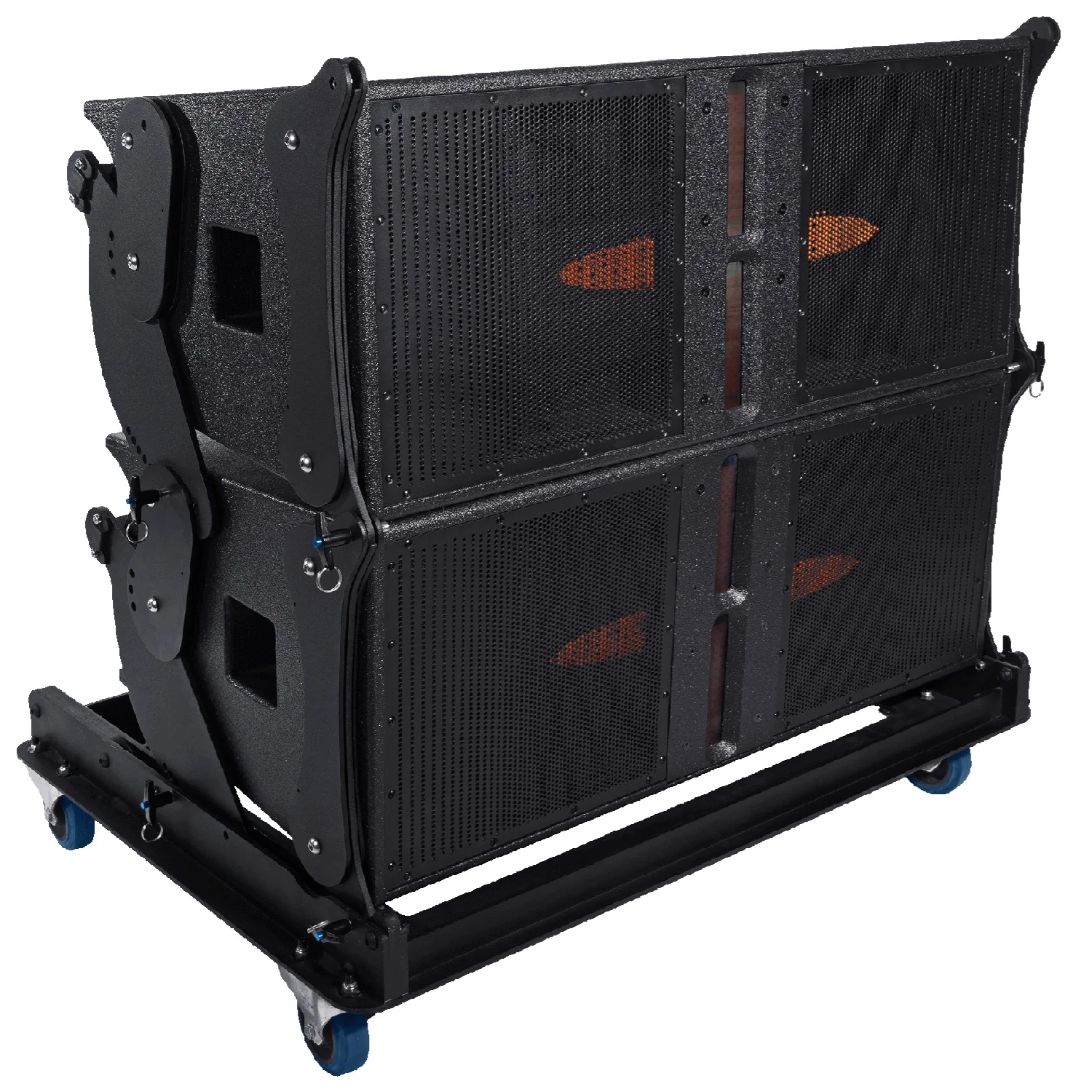

Bassboss MFLA-MK3 Dual 12" Line Array Overview:

Simply indescribable output, pristine clarity, and exceptional expandability.

Major Mojo
You don't follow the crowd, you wow the crowd. You seek out the best, not the best known. You're known for breaking new ground. You probably have some choice words for anyone who tells you what to do.

Machine Lean-In
Magnificent power and monster output. With an almost unbelievable amount of sound from each cabinet, the MFLA-MK3 will allow you to cover enormous crowds with a very small rig.

Max Headroom
The performance of the MFLA is the result of breaking from convention, following only the laws of physics, and making unorthodox choices. Most line-array marketing is intended to make the manufacturer look smart without telling you anything. Let's make you look smart instead.

Diffraction Matrix
A line array that provides so much output that you certainly won't need as many of them as anything else. Loaded with Neodymium 12" woofers and 3" VC compression drivers, featuring fixed-hinge flyware that also facilitates ground-support deployment and a DSP-equipped 3200 Watts of amplification with remote control.

Power of MK3

MK3 Amp Update
There are all-new amplifiers in the MK3 series. Total power has increased, however power allocated to woofers increased substantially. The higher output voltages provide more impact. Universal input voltage compatibility of 90-250V provides more flexibility. Waterproof connections provide more peace of mind.

MK3 Enhanced DSP
The MK3 features an all-new 96kHz DSP. The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN. The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.

ControlBASS Software
ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups. The latest in DSP programming developments can be added via easy remote updating.

Specifications:

• Loudspeaker Description: Horizontally Symmetrical 2-way Dual 12”, Self-powered, Vented, direct-radiating Line Array

• Frequency Response (±3 dB): 60 – 18,000Hz

• Maximum Sustained Output: 136 dB SPL 1m half-space

• Max SPL (Peak)*: 142 dB SPL 1m half-space

• Nominal Dispersion (H° x V°): 120 Horizontal, Array Dependent vertical

• Amplification: 3200 W Class D, 2 channel; 2400W LF - 800W HF

• Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage apacity for up to 100 presets

• Electrical Connector Amp: Linking Cable, True 1 TOP - Order Mains Connector Separately

• Electrical Connector Mains: Linking Cable, True 1 TOP - Mains Connector Ordered Separately

• Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)

• Current Draw 120V: 4.6A (nominal)

• Current Draw 240V: 2.3A (nominal)
  Signal Input Connector: XLR-F

• Signal Output Connector: XLR-M (direct pass-through only)

• Transducer Low Frequency: 2 x 12 in. diameter (300mm) Neodymium motor woofer with 3.5 in. (88mm) voice coils, waterproof cone

• Transducer High Frequency: 2 x 3 in. (76mm) diameter diaphragm compression drivers with 1.4" (35mm) exits mounted to isophasic wave guides

• Cabinet Construction: CNC machined 15mm Birch plywood with extensive bracing and dado joinery. External flyware and linking mechanism with 2 x integrated Handles

• Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black

• Grille: Perforated, powder-coated steel

• Dimensions (HxWxD): 16.125 in. x 40.5 in. x 20.375 in. (Including Flyware)

• Net Weight: 104 lbs. (47 kg)

• Shipping Weight: 120 lbs. (54 kg)

• What's Included: Loudspeaker, 4 x 10mm ball-lock pins, manual, and linking power cable

• Optional Covers: Multi-box soft covers for up to 4 cabinets when on a rolling cart

• Optional Dollies: Aluminum Transport and Deployment Cart for transporting up to 5 cabinets or 4 cabinets and 1 bumper

• Optional Hardware: Rigging Frame/Bumper Bar, Interlink Hardware for VS21 subwoofer


True Specifications

At BASSBOSS, with the MK3 line we have stopped using “Peak” and “RMS” power ratings for our amplifiers because those numbers alone are not an accurate representation of the real-world performance you can expect from our powered loudspeaker systems.

Peak Watts:

• Essentially a theoretical maximum that the amplifiers could output for an instantaneous moment under ideal conditions with no load.

• However, this peak power is not sustainable and has little practical relevance for how the loudspeakers will actually perform.


RMS (root mean square) Watts:

• A measure of continuous power output, but even this figure doesn’t account for the true efficiency of how that power is converted into acoustic output by the transducers and overall speaker design.

• The number of watts a loudspeaker “uses” is constantly fluctuating based on the impedance curve, frequency response, and heat generated in the voice coils.

• Simply looking at how many watts an amplifier can produce on a test bench doesn’t translate to its real-world sound output capability.


What matters most is the complete integrated loudspeaker system and how efficiently it can convert the amplifier’s power into acoustic output while maintaining flat frequency response and headroom. Two loudspeakers with the same wattage ratings could have vastly different real-world sound pressure levels and clarity.

For these reasons, we believe wattage ratings alone are not a reliable metric. Listening tests and measurements of the overall system’s output capabilities like maximum SPL and distortion are far more telling than any peak or RMS wattage number viewed in isolation.

Our goal is to provide outstanding performance through intelligent system design, not just big wattage numbers.
