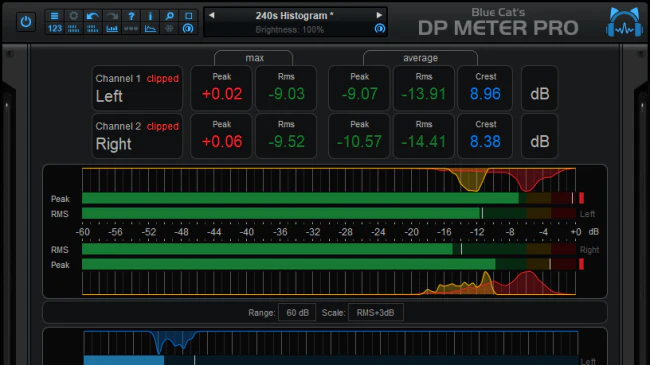

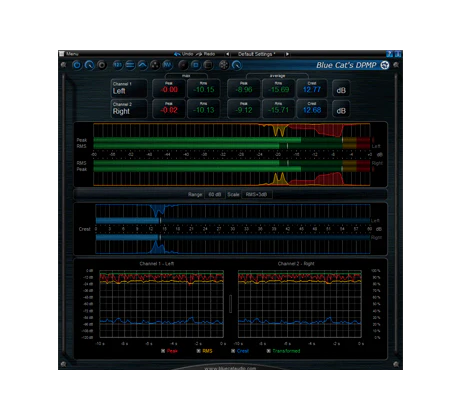

Blue Cat's DP Meter Pro (DPMP) is a unique audio analysis tool that combines very flexible and customizable audio meters with advanced side chaining control capabilities thanks to its MIDI and automation outputs. The metering capabilities of the DPMP plug-in let you control and monitor audio signals exactly the way you want: almost every aspect of the peak RMS and crest factor meters can be customized. It proposes five different scales by default including Bob Katz's popular K-System scales (K-12 K-14 K-20) and you can create your own. Large colored statistics displays following your own scales are included for an overview of a track while histograms give you a precise measurement of the dynamic range of the track. The graphs show the evolution of the audio envelopes over time and the mid-side switch lets you verify mono compatibility problems and check the "stereoness" of your audio sources very easily. Whether you are working with mono stereo or surround tracks this plug-in will fit into your workflow. All envelopes (peak RMS crest factor...) can be reused for additional monitoring or side chaining purposes: combined together reversed modified and recorded as automation curves or sent as MIDI CC messages they can control other effects in real-time. The DP Meter Pro Tutorials explain how to use these unique capabilities in your favorite host. Possibilities are endless from voice-over and ducking to side chain compression multiple tracks monitoring or dynamic stereo enhancement. It is also possible to control external MIDI hardware (such synths MIDI effects) video effects or lighting systems with an audio signal.

Blue Cat Audio Standards:

List:

• Available in most plug-in formats for Mac and Windows.
• Full MIDI control and automation support MIDI Learn.
• No CPU load on idle: processing shuts down when fed with silence (optimal CPU usage).
• Customizable user interface with transparency & zoom.

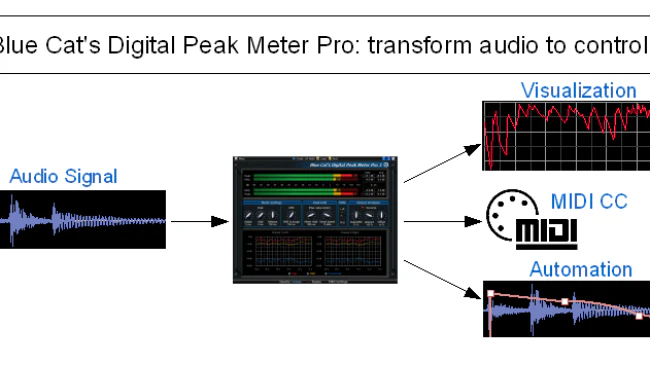

• Automation and MIDI output: record output parameters as automation curves or send MIDI CC messages to other plug-ins for powerful side chain effects.
• Smooth Bypass: noiseless plug-in activation / deactivation.
• Undo/Redo.
• Full featured integrated presets manager.
• Copy/paste the state of the plug-in between instances.
• Any sample rate supported.

Version 4.32

• Fixed layout issue with some controls introduced in previous update
• Added Apple Silicon support for AAX Plug-in Format.
• Fixed VST3 version not always loading properly in Ableton Live 11.
• Improved VST parameter value display in some host applications.
• Added an option in global & preset input settings to send MIDI events when MIDI-enabled parameters are modified in the plug-in (to update control surfaces accordingly).
• Improved undo management and automation when using the mouse wheel to move knobs.
• Fixed VST & VST3 automation not recording properly in some hosts for output parameters (Cubase 11 Ableton Live).
• AAX: Fixed erratic mouse behavior in Pro Tools on Mac.
• Mac: installers and plug-ins have been notarized to avoid security warnings on Mac OS Catalina and newer.

Features:

• Multichannel peak RMS & crest factor meter.
• True dynamic range measurement with levels histograms.
• Instant average and maximum audio levels.
• Modular user interface to fit into your workflow with multiple screen sizes.
• Total control over the metering characteristics including attack/release shape.
• Bob Katz's K-System scales support (K-12 / K-14 / K-20 and custom)
• Mono stereo mid-side or surround analysis.
• Record measurements (peak RMS crest factor clip etc.) as automation curves.
• Control in real time any MIDI-compatible plug-in or external MIDI device with the generated envelopes thanks to the plugin's MIDI CC output. See the Tutorials section for more examples.
• Manage the shape of the output envelope: record reversed envelope change amount of signal and offset the generated envelope. This lets you use the plug-in for side chain ducking compression and much more.
• Easy 'stereoness' and phase cancelation measurement.

Requirements:

Platform	CPU	RAM	Disk	Notes	Additional Requirement	Audio Card	Ports	Internet Required	32 Bit Support	64 Bit Support	Plugins
mac	An Intel or Apple Silicon processor.	0	0					0	1	1	VST-2 VST-3 AU AAX
windows	An SSE2-enabled processor (Pentium 4 or newer).	0	0					0	1	1	VST-2 VST-3 AAX
