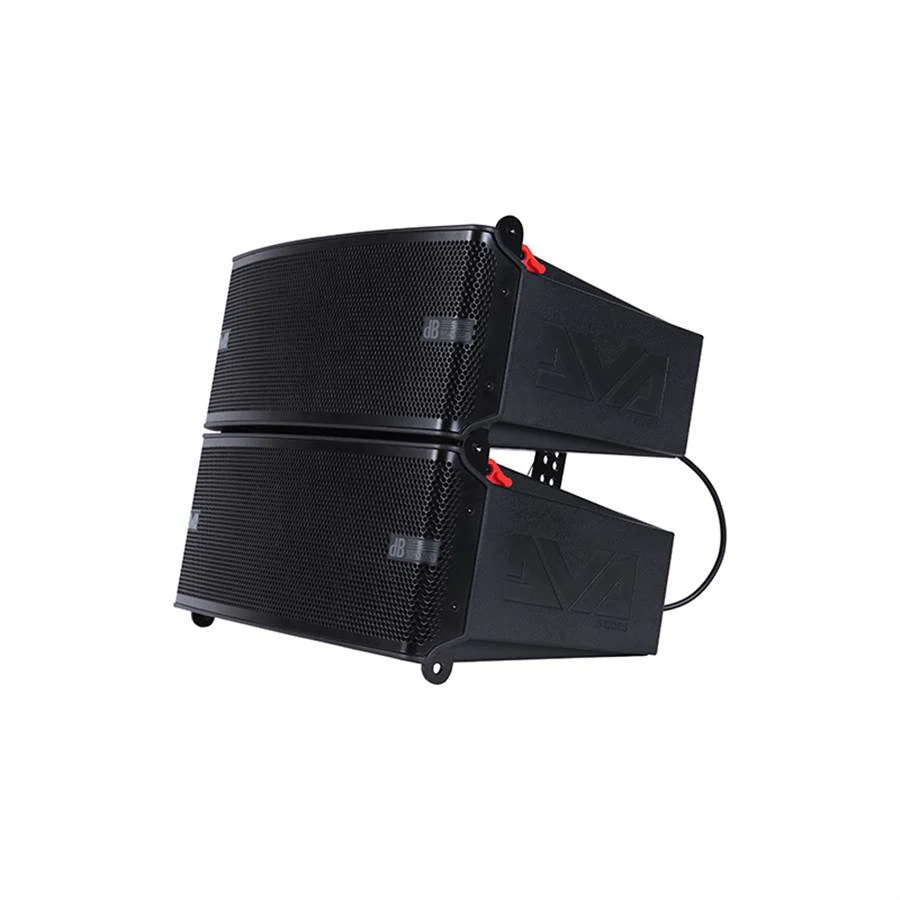

dB Technologies DVA M2M+DVA M2S-Way Active Line Array System

Remember the DVA T8 launch? As hard as it was to believe, all that power and performance came packed in an incredibly compact, lightweight speaker. Now the DVA MINI is about to set a new standard (again).

Offering the same hallmark user-friendliness and sound quality of its DVA predecessors, the MINI series sets the new benchmark for easy-to-use systems with top-range sound performance.

The innovative Master + Slave design makes for simplified system wiring and less total weight, making this series equally ideal for permanent installation in theatres, places of worship, convention centres, and for concert tours and live music performances.
Low-mid range constant coverage
The low and mid-range reproduction is performed by the two 6,5" neodymium woofers, whose disposition and efficiency is extremely optimized thanks to a custom dual phase-plug.
The choice of neodymium magnets ensures even more value to the module, because it contributes to contain the overall weight of the M2M speaker under 7.6 kg/16.8 lbs (7,1 kg/15,7 lbs for the M2S model).

Clear and assertive top end
The two 1" drivers, finely tuned for the DVA M2 custom designed array horns, deliver a crystalline clear sound in high frequency, in order to provide to the audience the same intelligibility of the DVA line array systems.
Furthermore, the premium quality Neodymium magnets are synonym of reliability, performance and lightness.

Light weight. Heavy duty
The high quality reinforced Polypropylene enclosure, and the internal hard-wearing anti-vibration structure, makes the M2M and M2S boxes very tough and able to work as heavy duty professional tools.
These features, together with neodymium transducers and the lightest amplifier ever engineered by dBTechnologies R&D, contributes to realize an exceptionally light, durable and powerful line array module for the well-known DVA Series.

Premium design
DVA Mini is characterized by a very clean aesthetic and a very discreet look.
Even the mechanics are hidden behind the frontal panel, and the elegant curvature of the frontal hexagonal grille contributes to create a very nice looking system for any kind of fixed installation purposes or live music events where the system should be totally invisible.

Consistent coverage pattern
Low and mid-range reproduction has been extremely optimized by a custom dual phase-plug. This technology significantly improves the mid-range efficiency of the speaker and, most of all, makes the horizontal coverage really homogeneous and consistent.

Download telemetry from USB
An integrated USB B-type port on the M2M amplifier allows the user to access the complete telemetry of the speaker, monitoring the status of every single element of the line array, including total playing hours, temperatures and performances reports.
Furthermore it is possible to download a file log as a status report, and upgrade the Firmware of the DVA M2M using the same USB port.

Fast lock mechanics
DVA mini is an incredibly versatile system, and you will find out this when youí_ll have your hands-on it. dBTechnologies engineers have provided a way to simplify the process of installation and rigging by completely removing the pins and mechanics, in favor of a quick-locking system.
Youí_ll simply have to place one module below the previous one, and slide it towards one side until the red lever is up. Mounting the system in a flash has never been so easy!

Single rear mechanics
A single mechanic is provided on the back of every single DVA M module. Using incremental angles steps dBTechnologies has greatly improved the precision of the mechanics. Smaller steps between the modules mean more precision in the aiming of your DVA linear array system.

Ground stacking options
Every time it is not possible to fly the system, the DVA mini can serve you as a ground stacked system. Indeed this system can be easily mounted on the top of the MS12 sub without any additional frame or mechanic.
As an optional, DSA-M2 pole mount adapter can handle the line arrays modules, helping the user to elevate the system to a reasonable height through a standard pole.

Features:

• Speaker Type M2M: 2-Way Active Master Line Array Module
• Speaker Type M2S: 2-Way Slave Line Array Module
• Frequency Response [-6dB]: 78 - 19.000 Hz
• Frequency Response [-10dB]: 68 - 20.000 Hz
• Max SPL: 126 dB per unit
• HF: 2x1"
• Type HF: Neodymium
• Amp Technology: DigiproŒ¬ G3
• Amp Class: Class D
• RMS Power HF Amp: 200 W (100 W + 100 W)
• RMS Power LF Amp: 200 W (100 W + 100 W)
• Cooling: Convection
  Processor
• Controller: DSP 56 bit
• AD/DA Converter: 24 bit/48 kHz
