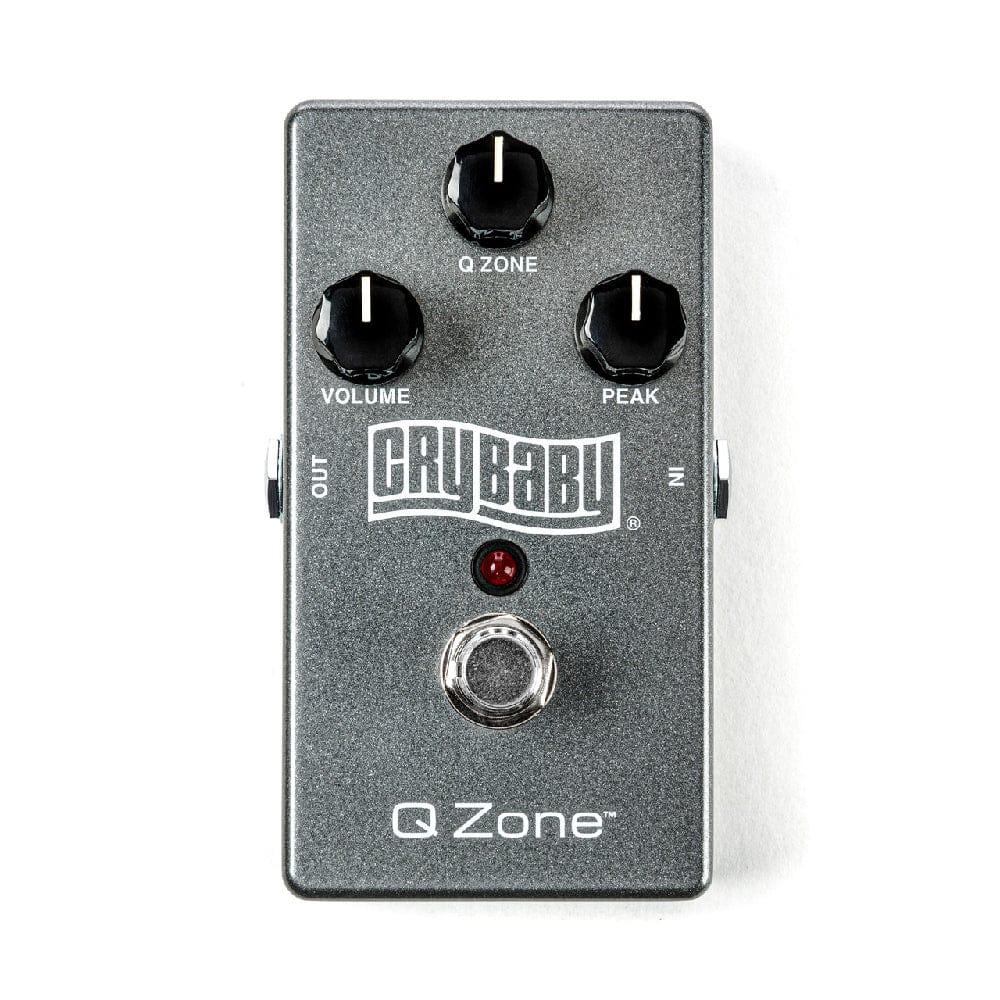

Dunlop QZ1 QZone Cry Baby Fixed Wah Pedal Overview:

Get the rich, resonant vocality of a fixed-position Cry Baby Wah in a standard pedal box with this reissue of the Cry Baby Q Zone Fixed Wah.

This pedal can be powered by a Dunlop ECB003 9-volt adapter, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included).

Specifications

• Input Impedance: 1 MΩ
• Output Impedance: < 2.2 KΩ
• Peak Range: 380 - 2000 Hz
• Max Gain @ Center Freq: +16 dBV
• Volume: 0 dBV to 20 dBv
• Bypass: True Hardwire
• Noise Floor: -91 dBV
• Power Supply: 9 volts DC
• Current Draw: 4 mA
