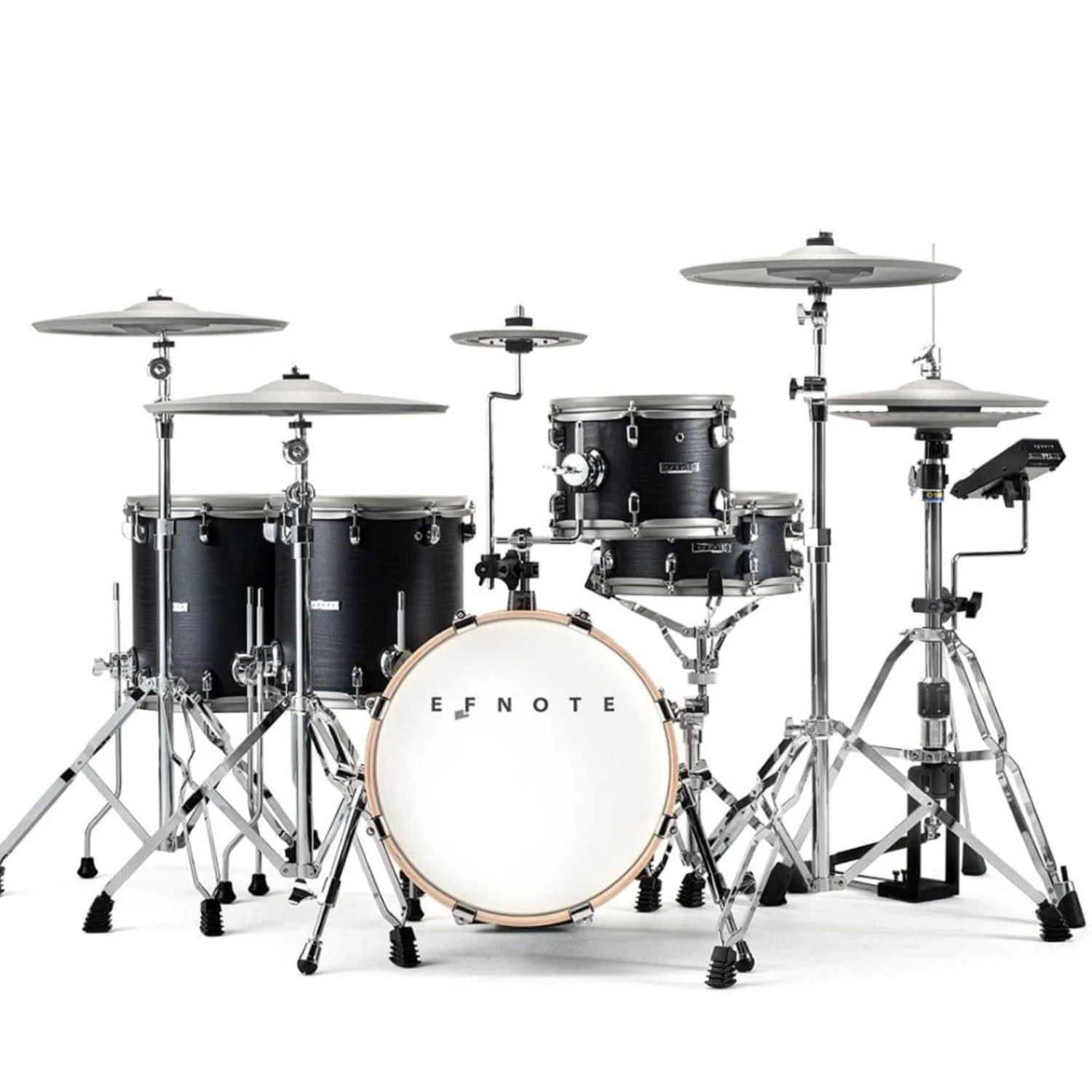

EFNOTE 5X Acoustic Designed Electronic Drum Kit Overview:

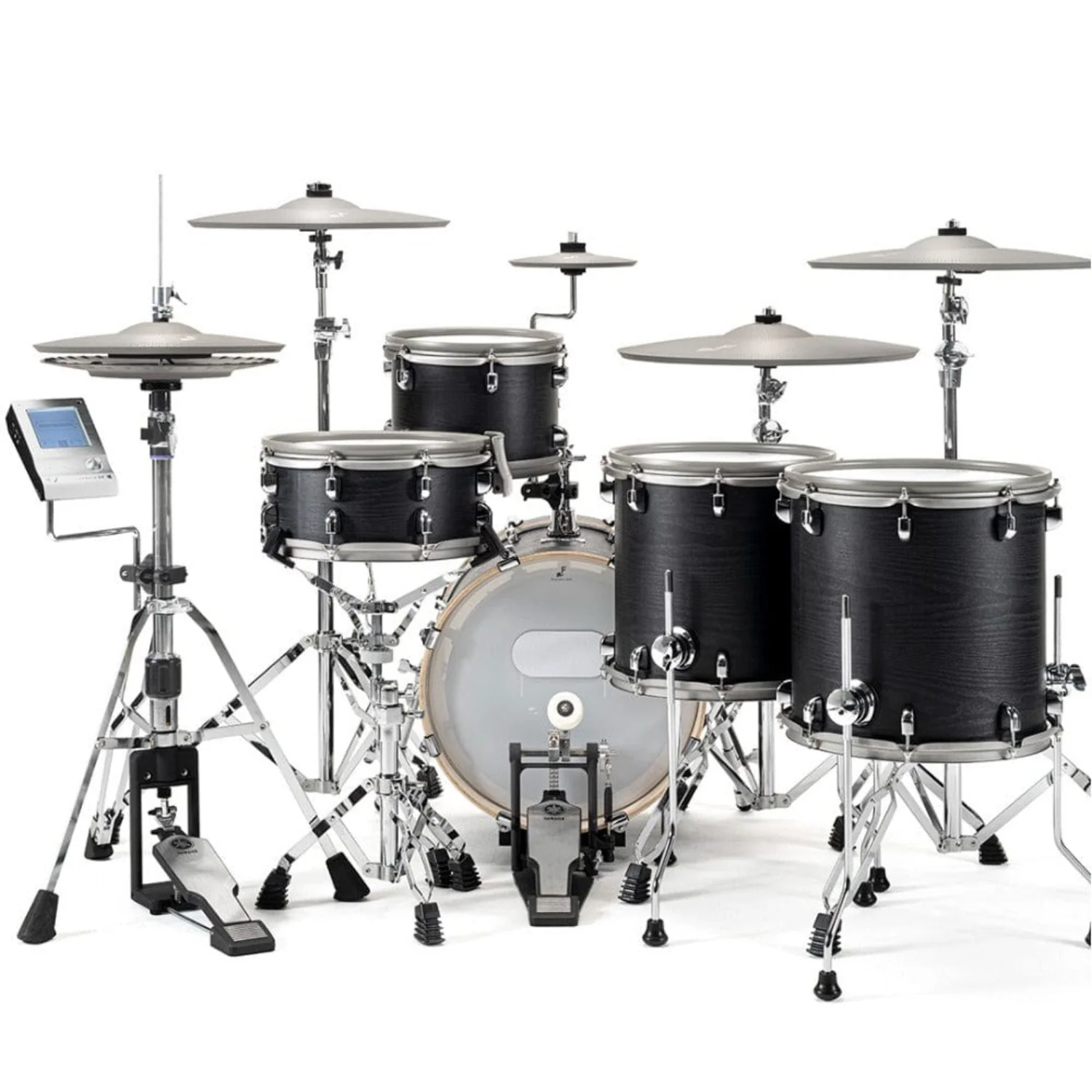

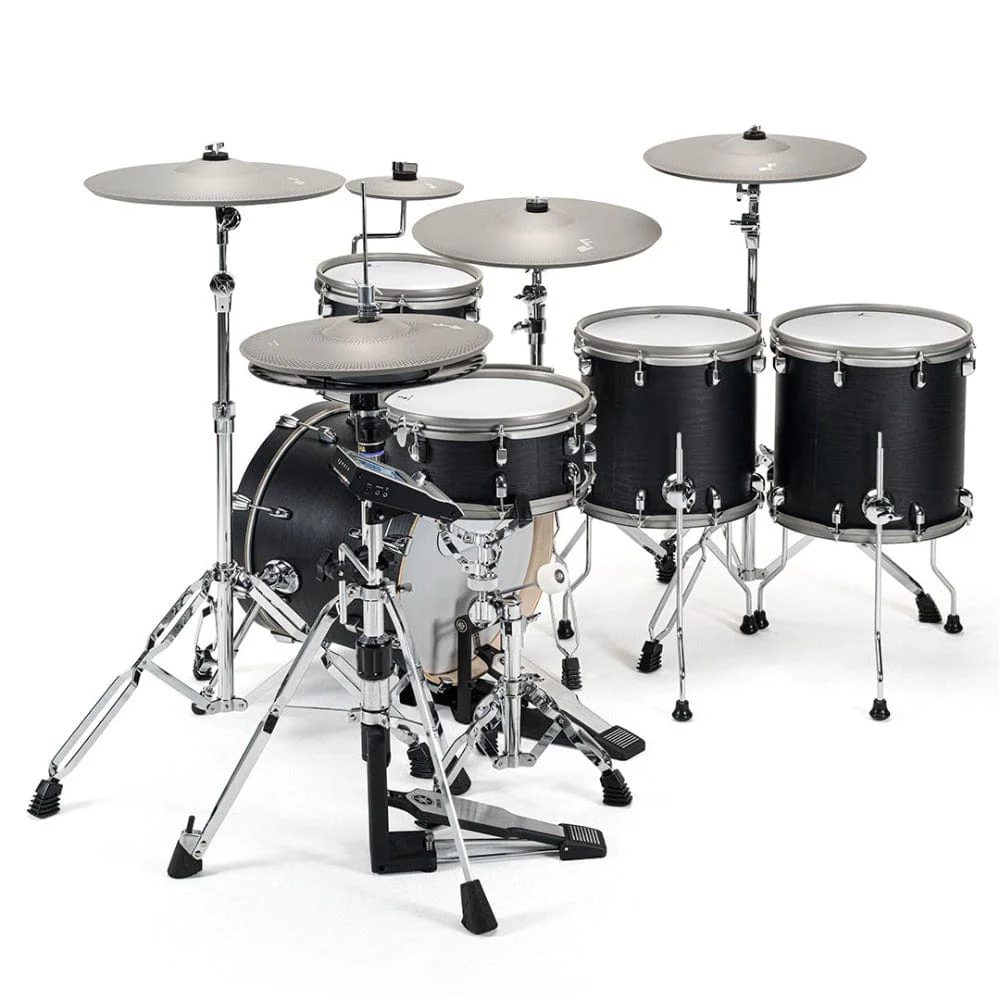

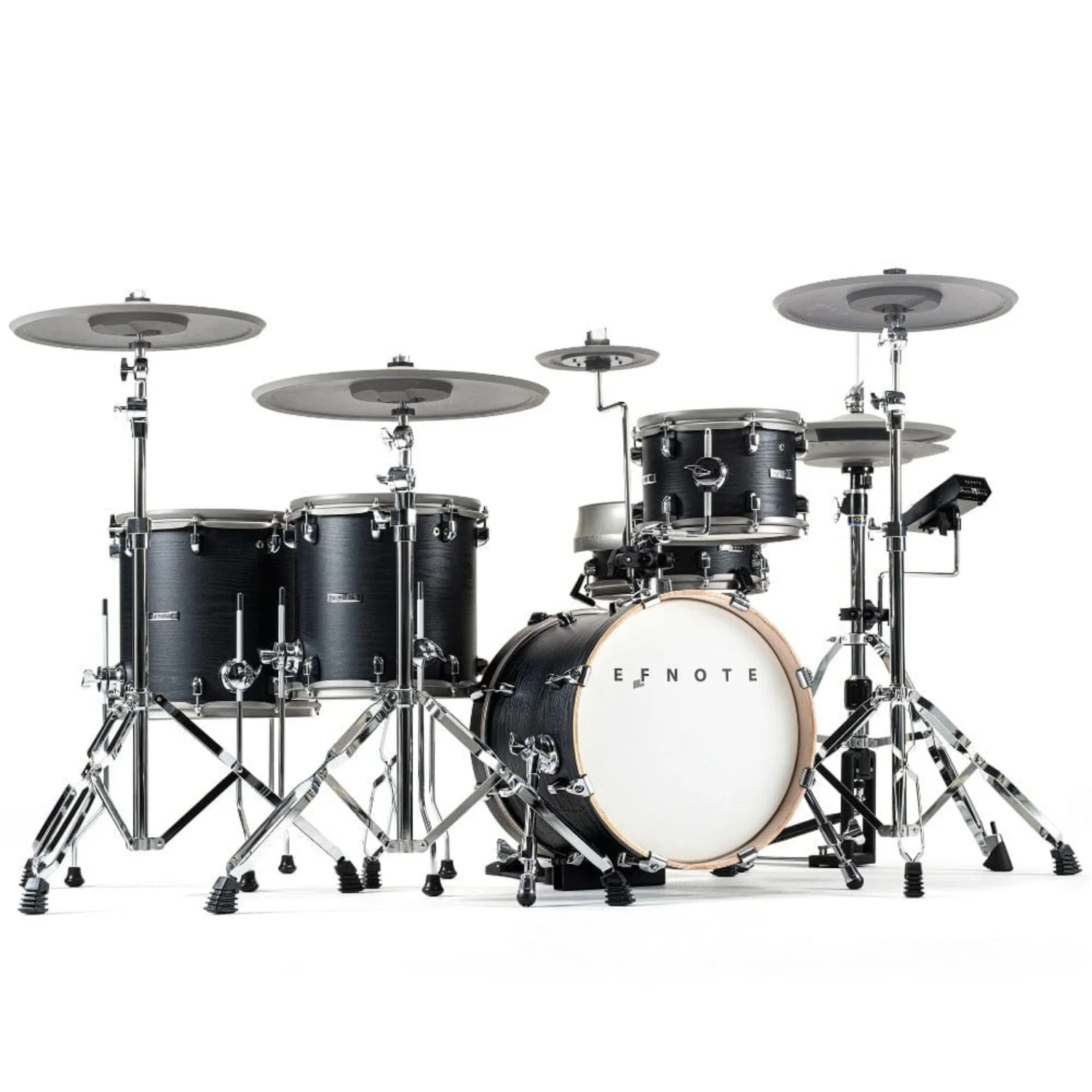

EFNOTE 5X : The Complete Experience

• Specially full-expanded based on EFNOTE 5
• 5-piece shell and 5-piece cymbal set
• Dignified black oak-ish finish
• Player centric design

Playability and Musicality

• Redefines compact drums by the completed playability
• Pre-expanded for adapting to a variety of musical styles
• 360° flat sensing with multi-sensor technology
• One more rack tom can be expanded from this picture.

Specializes in Acoustic

• Beautiful acoustic drum sounds
• 99% capacity is used for acoustic drum sound
• Includes rich ambient that reinforces the drum sound

Drums & Cymbals
7-Sensor Snare Drum

• 12 x 5", 8 lugs, birch wood shell, 2ply mesh drum head
• Multi-sensor for hotspotless and high-resolution sounding
• High head tension tuning available

Independent Side-Rim

• Easy, intuitive and reliable
• No switch operation required
• Elegant arc design

16" Kick, More Than the Size

• 16 x 12", 8 lugs, birch wood shell, 2ply mesh drum head
• Comfortable feeling and stability over its size
• Stable multi-sensing for single/double beater(s)

Modern Two Floor Toms Style

• 12 x 12", 8 lugs / 13 x 13", 8 lugs
• Birch wood shells, 2ply mesh drum heads
• Multi-sensor for hotspotless and high-resolution sounding
• Low head tension tuning available

Finest Hi-Hat Cymbals

• 14" top/bottom cymbals
• World's first multi-optical sensing to capture the motions in 3D
• Tru-Motion™ technology for expressiveness leap
• 360° free-swinging top/bottom cymbal design

Full Size Cymbals

• 2x 16" crash cymbal, 3-zone (Bow/Edge/Cup)
• 1x 18" ride cymbal, 3-zone (Bow/Edge/Cup)
• Multi-sensored 360° play/choke area
• 360° free-swinging design
• Responsive thin edge
• EFNOTE 5X does not support the Crash 2 cup when the Crash 3 is used.

Splash!

• 8", 2-zone (Bow/Edge)
• Ultra thin and light weight design
• Multi-sensored 360° play/choke area
• 360° free-swinging design
• Responsive thin edge

Beautiful Cymbal Surface

• Elegant warm-gray surface with fine engravings
• Clean silicone rubber surface that is resistant to drumstick marks

Sound Module

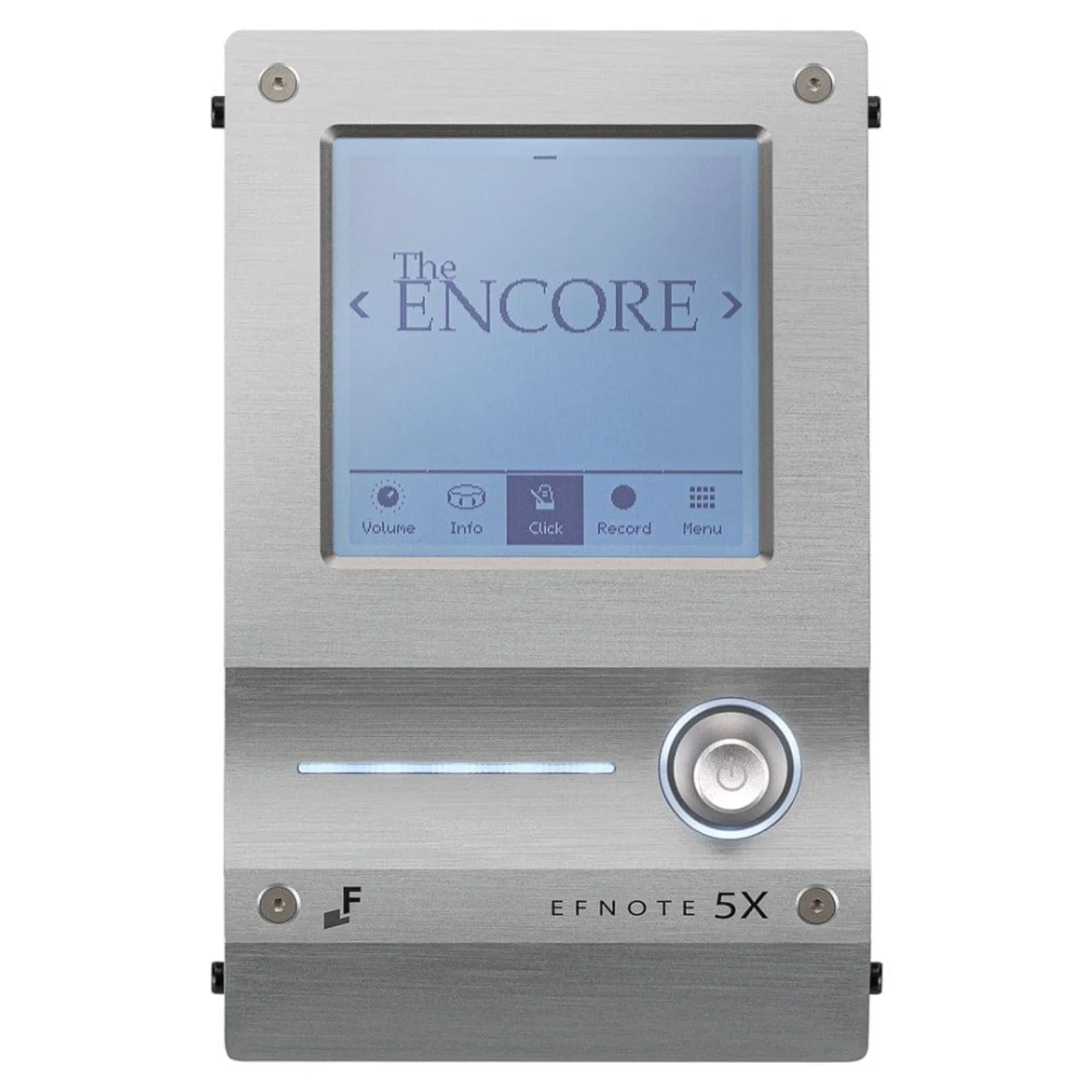

Ultra-Compact Sound Module

• Ultra-small form factor with uncompromised features
• Metal chassis and aluminum finish
• High quality DAC and audio circuit
• High power headphone amplifier
• Touch screen intuitive user interface

ELISE Sensing Processor

• Capturing drummer's intentions from each stroke
• Low latency, wide dynamic-range, consistent and stable sensing
• Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads

Full-Scale Acoustic Sound

• Full stereo acoustic drum/cymbal samples recorded by EFNOTE
• Tru-Aco sound technology provides real drum/cymbal sound behaviors
• Raw sound without resynthesis

For Training

• Multi-function metronome with beat LED indicator
• Built-in metronome speaker for daily training without headphones
• On-board drum recording function (15 tracks)
• Stroke Analyzer
• Rhythm Box feature provides over 90 basic drum beats

For Recording

• USB 8-ch individual audio outputs with Mac / Windows (ASIO)
• USB 2-ch audio inputs for playback
• Analog 4-ch audio outputs
• USB MIDI in/out with individual MIDI channels
• MIDI output (5-pin DIN)

For Small Gigs

• Setlist feature enables you to configure kit order with tempo for each song
• Kick and Snare can be output individually with analog 4-ch outputs
• Click and Audio-In can be assigned only for headphones
• High-power headphones output
• MIDI output (5-pin DIN)

Stroke Analyzer

• "Stroke Scope" displays your strike points on time-line
• "Accuracy Score" estimates your strike accuracy

Sound Edit

• Tuning, Muffling, 2-band EQs for each pad
• Pad layer function can overlay two sounds
• User Inst Library enables you to store 128 customized instruments
• On-board reverb
• Dedicated level control screen

Flexible Audio Routing

• 10-ch output buses
• Flexible output routing for each pad
• Output assignable click
• Output: 4-ch analog / 8-ch USB
• Input: Analog / Bluetooth / 2-ch USB

Bluetooth

• Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
• Bluetooth MIDI
• EFNOTE Tools App for control remotely

Various Optional Components

• Full compatible various Optional Components
• Off-the-shelf drum hardware available

EFNOTE Tools App
EFNOTE Tools
- Carry Data with You

• You can backup, restore, and share drum kit data and trigger settings with your smartphone.

EFNOTE Tools
- Get New Drum Kits

• Visit the official Kit Library to get the new drum kit data.
• There you will surely find ideas that inspire your creativity.

EFNOTE Tools
- Adjust Remotely

• For small gigs, drummers often cannot rely on FOH engineers.
• Now you can remotely adjust the each pad level while playing back your beat with the built-in recorder.

EFNOTE Tools
- Swap Sounds

• The Swap feature makes it easy to swap each sound of toms or cymbals.
• It helps you changing the set up and editing kits.

Specifications:
Drum / Cymbal Pads

• Kick EFD-K1612
• Size: 16 x 12"
• Finish: Black oak-ish
• Zone: Head
• Sensor: Multi
• Head: Double-layered mesh with beater patch
• Connector: Head (TRS Phones)
• Features:Bass drum riser, Wood hoop

Snare EFD-S1250

• Size: 12 x 5"
• Finish: Black oak-ish
• Zone: Head / Rim / Side-Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim, Side-Rim (2x TRS Phones)
• Features: Birch shell, Colored hoop rubber, Side-Rim

Tom EFD-T1070

• Size: 10 x 7"
• Finish: Black oak-ish
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber

Floor Tom 1 EFD-T1212

• Size: 12 x 12"
• Finish: Black oak-ish
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber

Floor Tom 2 EFD-T1313

• Size: 13 x 13"
• Finish: Black oak-ish
• Zone: Head / Rim
• Sensor: Multi
• Head: Double-layered mesh
• Connector: Head/Rim (TRS Phones)
• Features: Birch shell, Colored hoop rubber

Hi-Hat EFD-H14

• Size: 14" (Top/Bottom)
• Color: Warm gray
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke) / Optical
• Connector: 6-pin
• Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
• General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used.
• EFNOTE 5X sound module does not support hi-hat cup zone.

Crash 1 / 2 EFD-C16

• Size: 16"
• Color: Warm gray
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface
• In the EFNOTE 5X configuration, the Crash 2 cup is not supported when the Crash 3 is used.

Ride EFD-C18

• Size: 18"
• Color: Warm gray
• Zone: Bow / Edge / Cup
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge, Cup (2x TRS Phones)
• Features: Weight simulation, Fine engraved surface

Splash EFD-C08

• Size: 8"
• Color: Warm gray
• Zone: Bow / Edge
• Sensor: Multi (360° flat sensing + choke)
• Connector: Bow/Edge (TRS Phones)
• Features: Weight simulation, Fine engraved surface

Sound Module: EFD-5X Trigger Interface

• 3-Zone: Snare, Crash 1/2*, Ride
• 2-Zone: Tom 1/2/3/4, HH, Crash 3
• 1-Zone: Kick
• Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.
• In the EFNOTE 5X configuration, the Crash 2 cup is not supported when the Crash 3 is used.

Audio / MIDI Interface

• Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
• Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
• Audio Input: Stereo Mini-Phone (+2dBu Max)
• USB Audio: 8-ch Output / 2-ch Input (Mac/Windows ASIO)
• USB MIDI In/Out
• Bluetooth Audio Input
• Bluetooth MIDI In/Out
• MIDI Out: 5-pin DIN

Drum Kits / Instruments

• Preset Drum Kits: 17 (Editable)
• User Drum Kits: 83
• Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), Attack Elements
• User Inst Library: 128 (Can be stored customized instruments)

Edit Parameters

• Level, Pan, Tuning, Muffling (for each pad)
• 2-Band EQ (for each pad)
• Ambience Effect (8 Types)
• Pad Layer

Dimensions

• 172 (W) x 106 (D) x 47 (H) mm
• 700 g
• Excluding protrusions

Power

• DC 12 V, 500 mA (Nominal) / 800 mA (Max)

Hardware Tom Holder

• 1x Tom holder arm
• Geared L-rod tilter
• Knurled carbon steel rod
• L-rod diameter: φ11.5 mm (7/16")
• Tube diameter: φ22.2 mm (7/8")
• Height adjustment range: 700 -- 900 mm

Splash Cymbal Arm

• 1x Z-rod short
• 1x Z-rod long

Sound Module Arm

• 1x Sound module arm
• 1x Smartphone tray

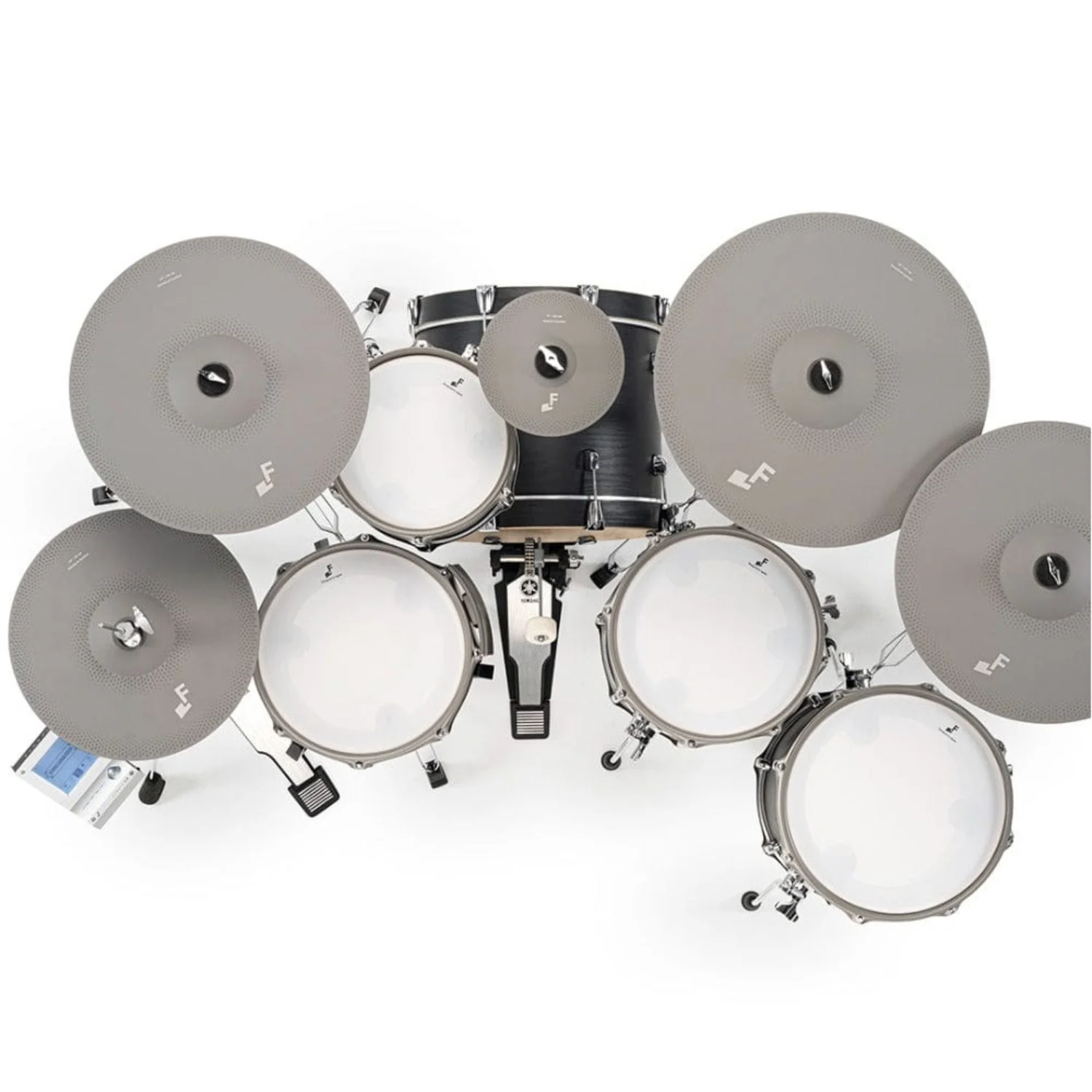

Drum Kit Placement Size

• Approx. 170 (W) x 110 (D) cm
• Approx. 5.6 (W) x 3.6 (D) feet


Package Accessories

• Brake-out cable: EFD-MULTI-AX
• Brake-out cable: EFD-MULTI-B
• 4x Trigger cable 3.0 m: EFD-TRS-LL3
• Cable ties
• Quickstart guide
• Snare drum stand and cymbal stand are not included.
• Bass Drum Pedal, hi-hat stand and drum throne are not included.
