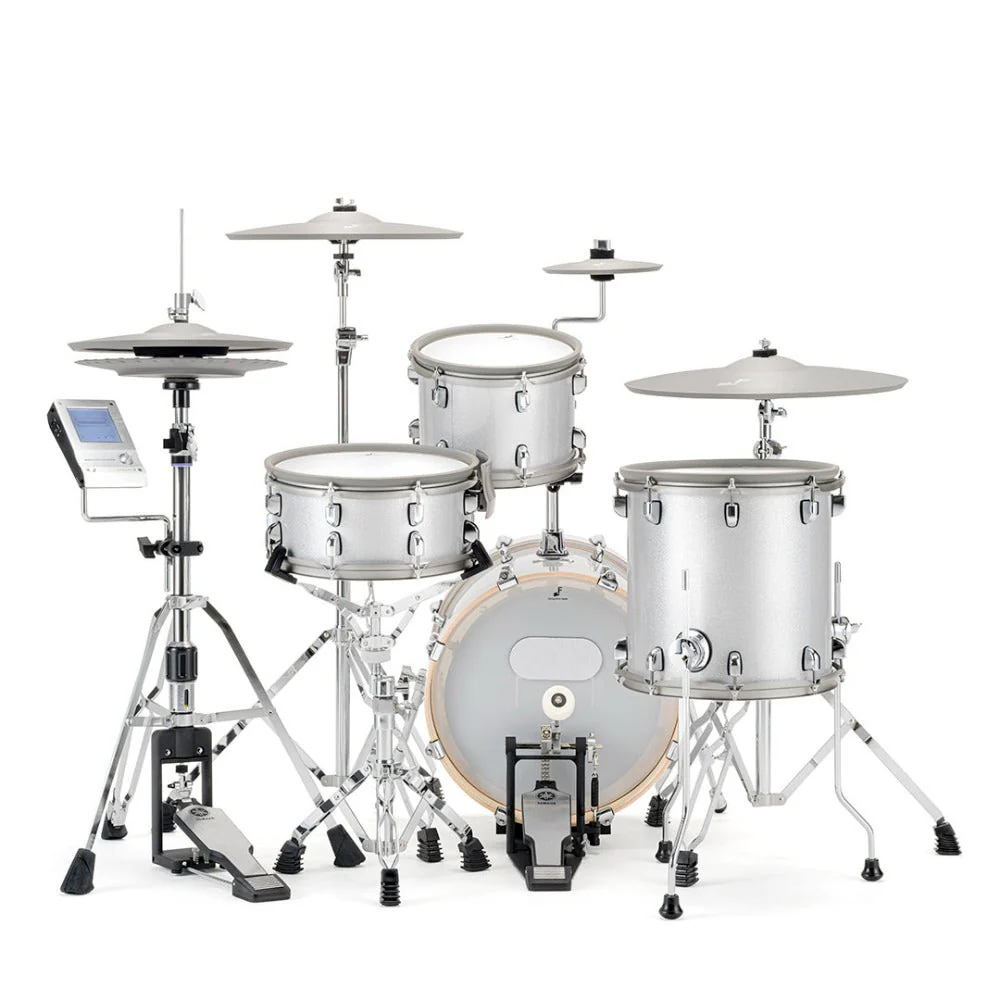

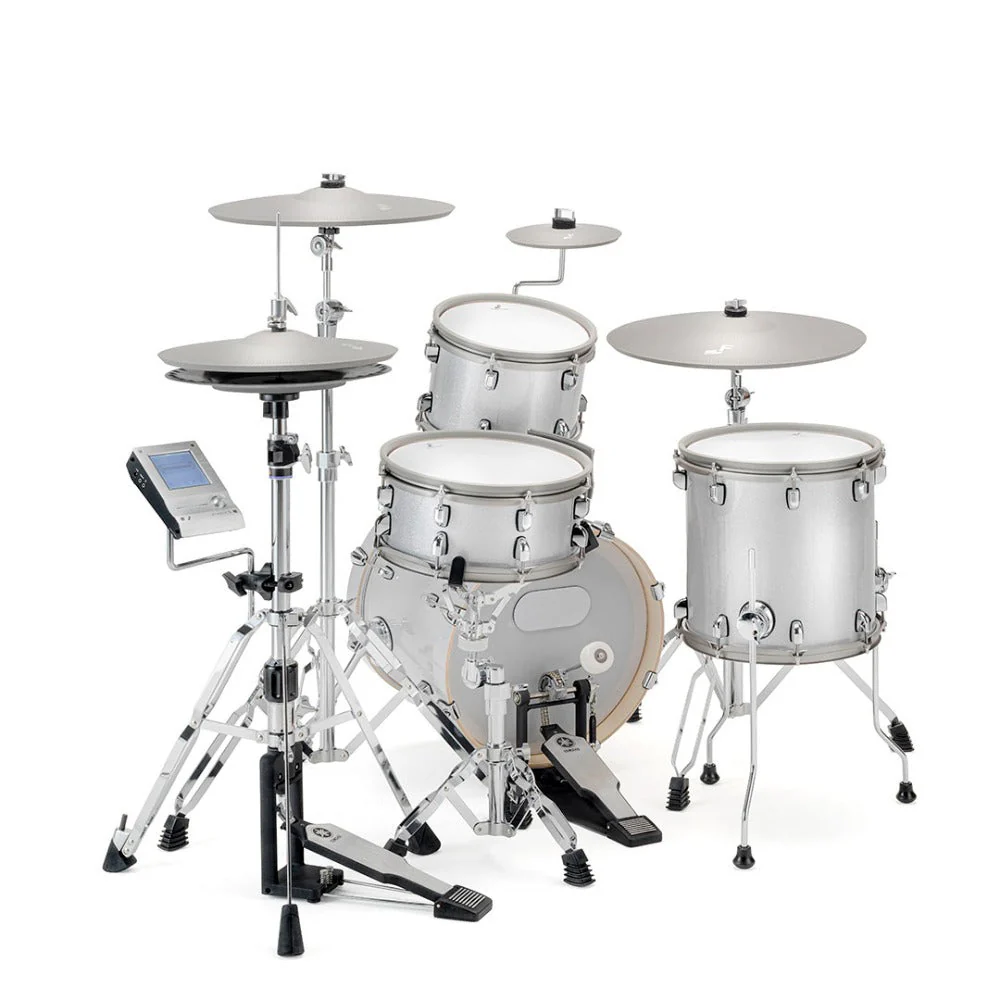

EFNOTE 5 Acoustic Designed Electronic Drum Kit Overview:

Beauty and Quality

• Matches in interior design perfectly

• Authentic shell proportion

• Clean pure white sparkle finish

• Elegant warm-gray colored cymbals

• Player centric design


The Small Giant

• Maximum expressiveness with minimum setup

• 360° flat sensing with multi-sensor technology

• Expandable to 5-piece shell and 5-piece cymbal set


Specializes in Acoustic

• Beautiful acoustic drum sounds

• 99% capacity is used for acoustic drum sound

• Includes rich ambient that reinforces the drum sound


Drums & Cymbals
7-Sensor Snare Drum

• 12 x 5", 8 lugs, birch wood shell, 2ply mesh drum head
  \n
\n
• Multi-sensor for hotspotless and high-resolution sounding
  \n
\n
• High head tension tuning available
  \n
\n

\n

Independent Side-Rim

\n

\n
• Easy, intuitive and reliable
  \n
\n
• No switch operation required
  \n
\n
• Elegant arc design
  \n
\n

\n

16" Kick, More Than the Size

• 16 x 12", 8 lugs, birch wood shell, 2ply mesh drum head
  \n
\n
• Comfortable feeling and stability over its size
  \n
\n
• Stable multi-sensing for single/double beater(s)
  \n
\n

\n

Multi-Sensored Toms

\n

\n
• 10 x 7", 6 lugs / 12 x 12", 8 lugs
  \n
\n
• Birch wood shells, 2ply mesh drum heads
  \n
\n
• Multi-sensor for hotspotless and high-resolution sounding
  \n
\n
• Low head tension tuning available
  \n
\n

\n

Finest Hi-Hat Cymbals

\n

\n
• 14" top/bottom cymbals

• World's first multi-optical sensing to capture the motions in 3D

• Tru-Motion™ technology for expressiveness leap

• 360° free-swinging top/bottom cymbal design


18" Full Ride Cymbal

\n

\n
• 18" ride cymbal, 3-zone (Bow/Edge/Cup)

• Multi-sensored 360° play/choke area

• 360° free-swinging design

• Responsive thin edge


3-Zone Crash Cymbal

• 16" crash cymbal, 3-zone (Bow/Edge/Cup)
  \n
\n
• Multi-sensored 360° play/choke area
  \n
\n
• 360° free-swinging design
  \n
\n
• Responsive thin edge
  \n
\n

\n

Splash!

\n

\n
• 8", 2-zone (Bow/Edge)

• Ultra thin and light weight design

• 360° free-swinging design

• Responsive thin edge

• 360° free-swinging responsive thin edge

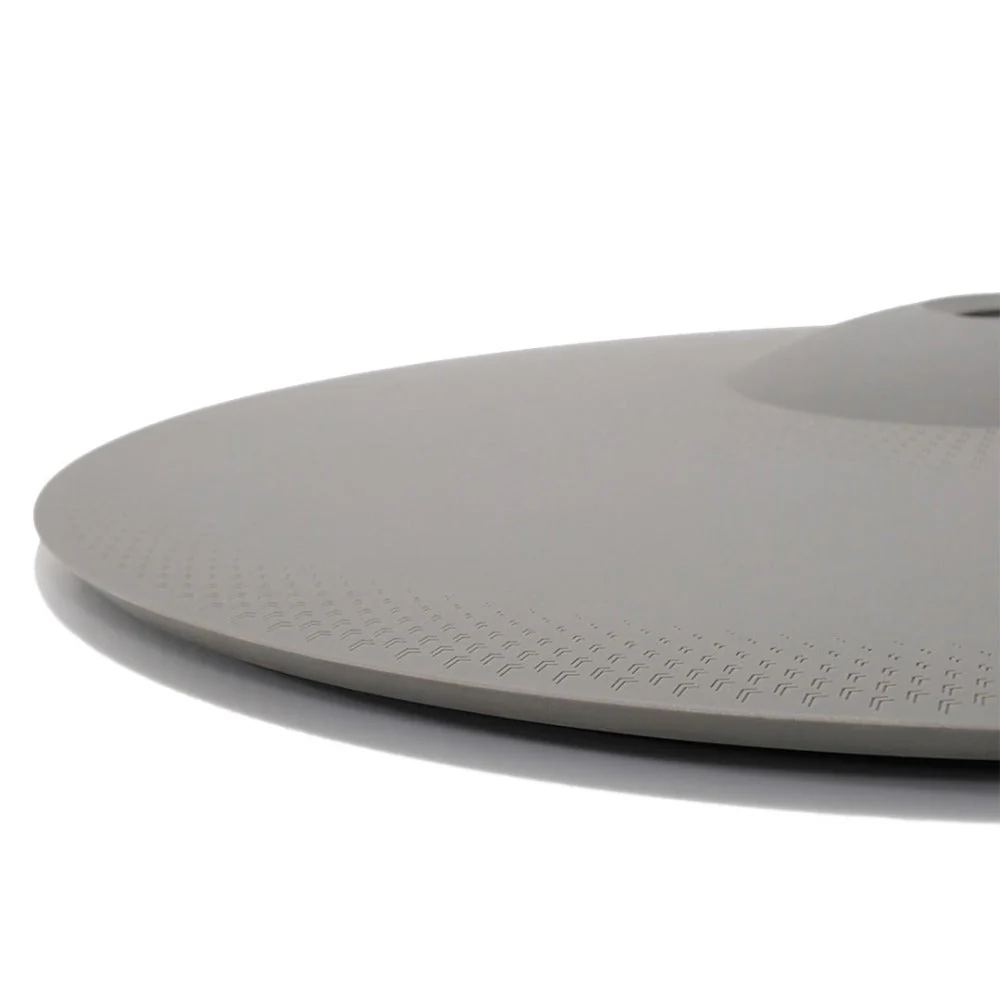

Beautiful Cymbal Surface

• Elegant warm-gray surface with fine engravings

• Clean silicone rubber surface that is resistant to drumstick marks


Sound Module

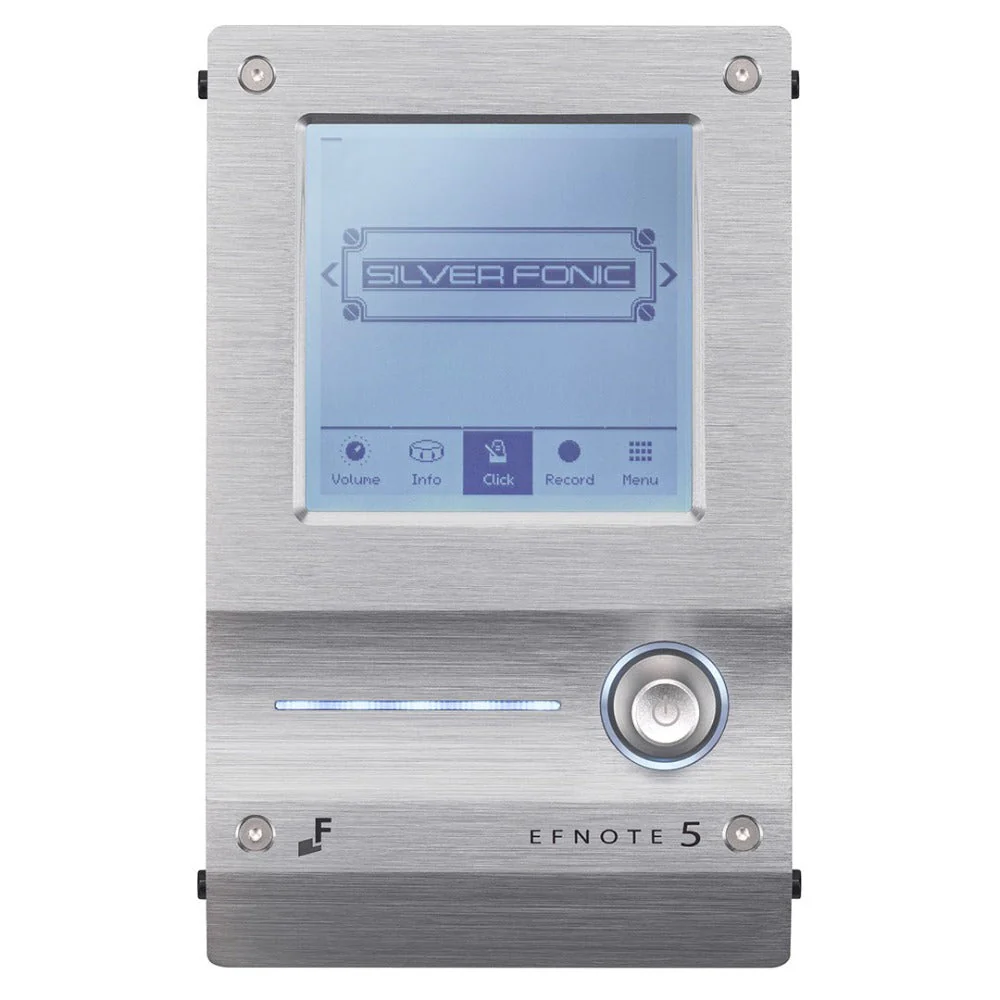

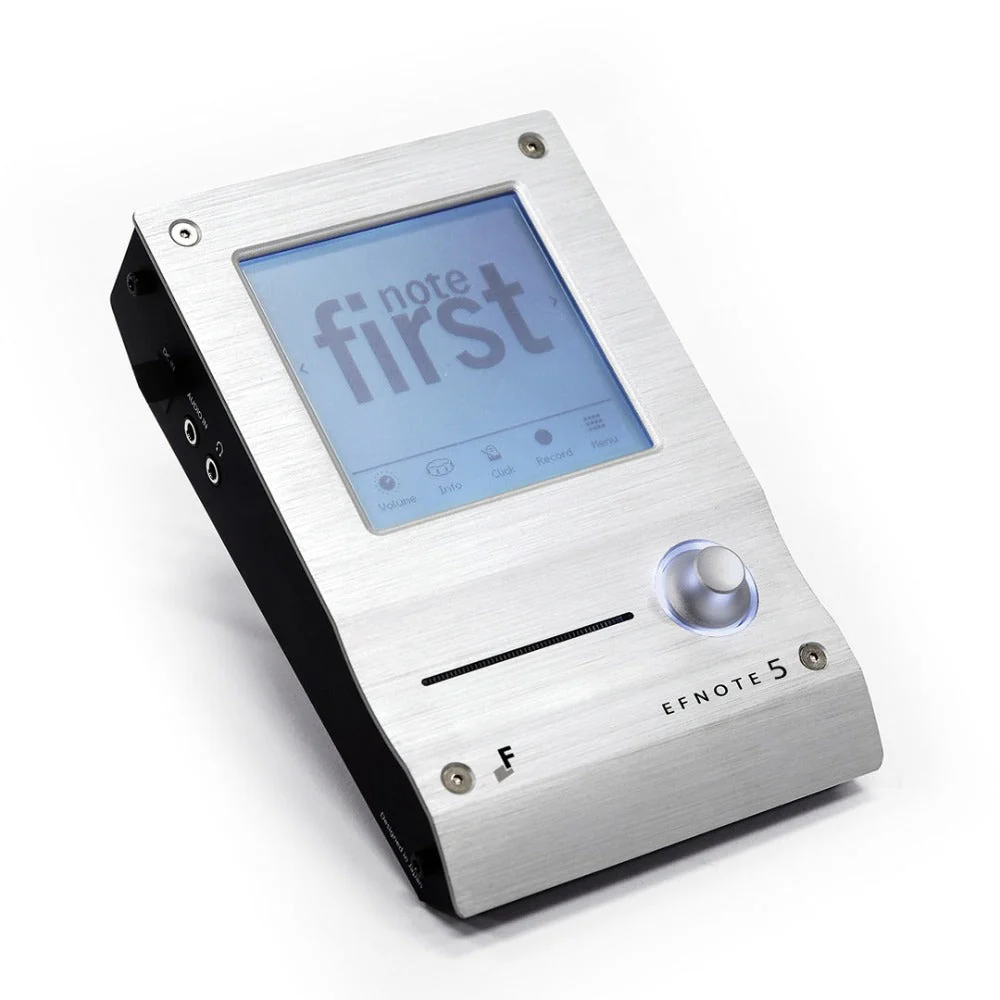

Ultra-Compact Sound Module

• Ultra-small form factor with uncompromised features

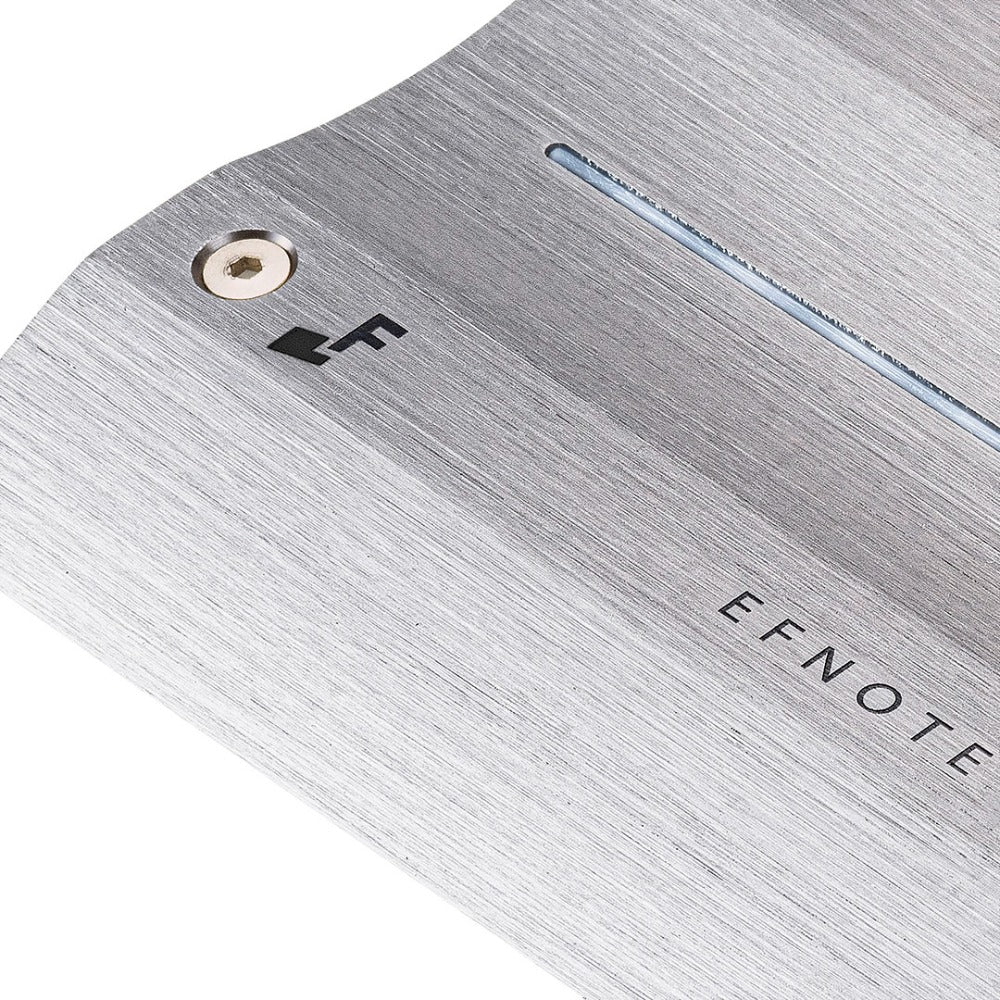

• Metal chassis and aluminum finish

• High quality DAC and audio circuit

• High power headphone amplifier

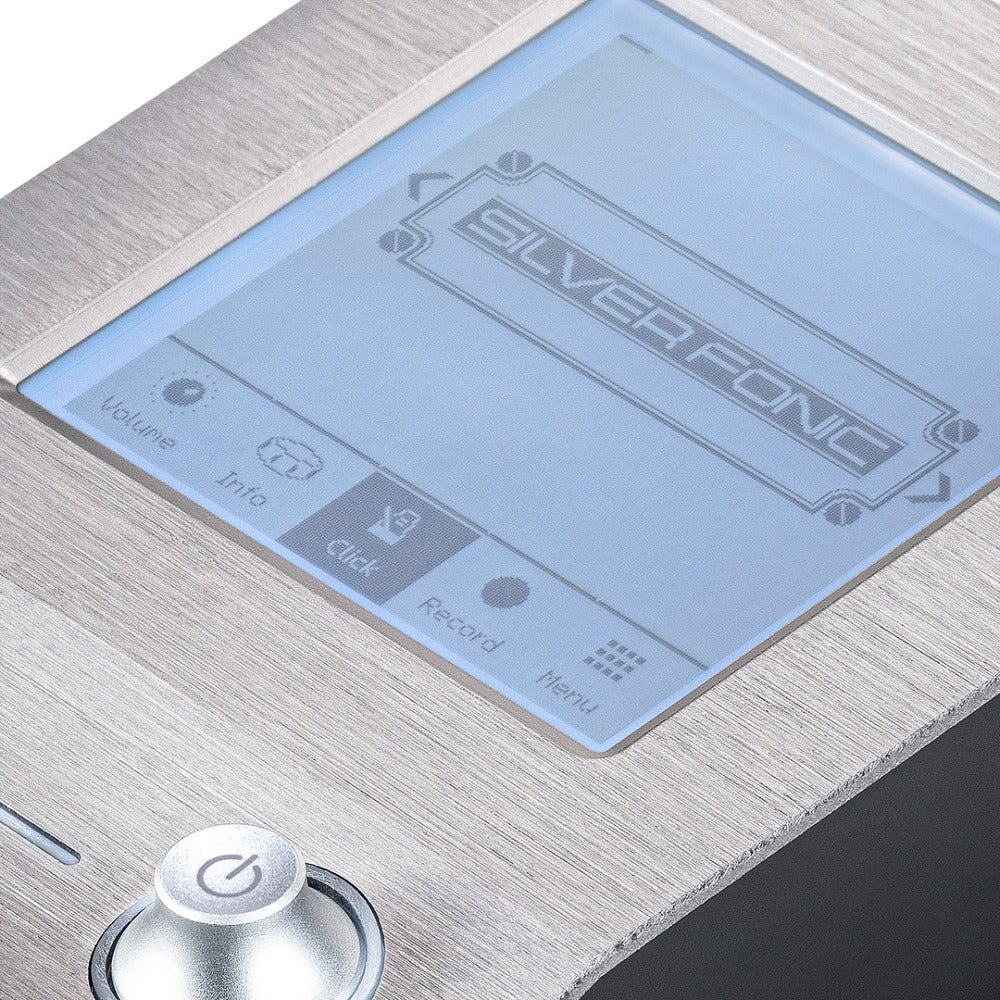

• Touch screen intuitive user interface


ELISE Sensing Processor

• Capturing drummer's intentions from each stroke

• Low latency, wide dynamic-range, consistent and stable sensing

• Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads


Full-Scale Acoustic Sound

• Full stereo acoustic drum/cymbal samples recorded by EFNOTE

• Tru-Aco sound technology provides real drum/cymbal sound behaviors

• Raw sound without resynthesis


For Training

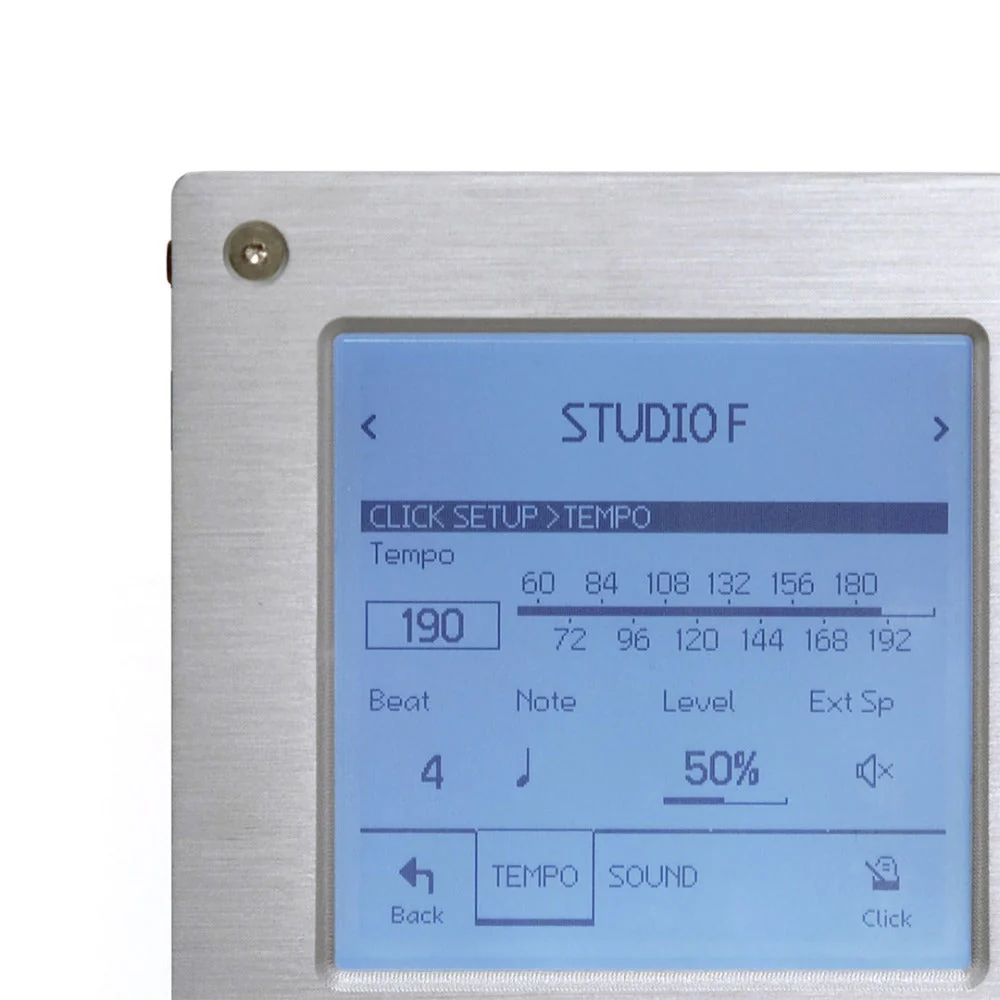

• Multi-function metronome with beat LED indicator

• Built-in metronome speaker for daily training without headphones

• On-board drum recording function (15 tracks)

• Stroke Analyzer

• Rhythm Box feature provides over 90 basic drum beats


For Recording

• USB 8-ch individual audio outputs with Mac / Windows (ASIO)

• USB 2-ch audio inputs for playback

• Analog 4-ch audio outputs

• USB MIDI in/out with individual MIDI channels

• MIDI output (5-pin DIN)


For Small Gigs

• Setlist feature enables you to configure kit order with tempo for each song

• Kick and Snare can be output individually with analog 4-ch outputs

• Click and Audio-In can be assigned only for headphones

• High-power headphones output

• MIDI output (5-pin DIN)


Stroke Analyzer

• "Stroke Scope" displays your strike points on time-line

• "Accuracy Score" estimates your strike accuracy


Sound Edit

• Tuning, Muffling, 2-band EQs for each pad

• Pad layer function can overlay two sounds

• User Inst Library enables you to store 128 customized instruments

• On-board reverb

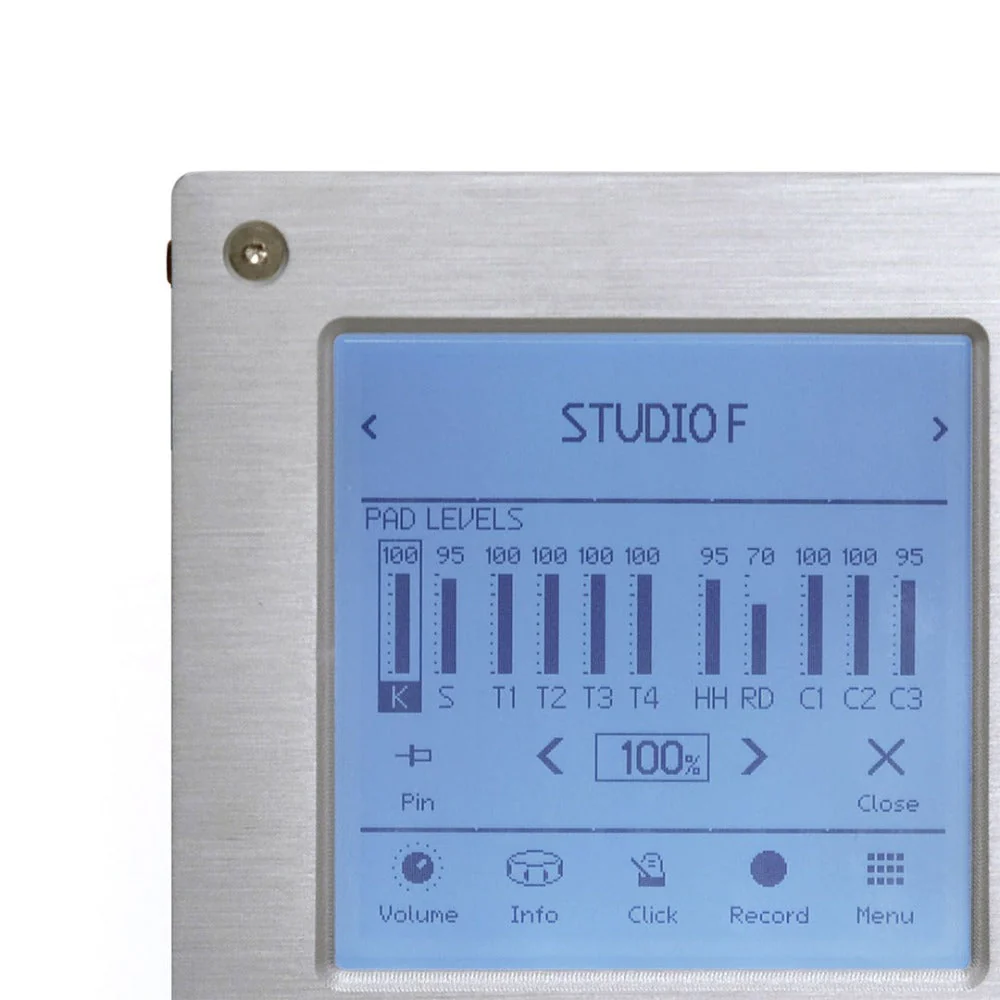

• Dedicated level control screen


Flexible Audio Routing

• 10-ch output buses

• Flexible output routing for each pad

• Output assignable click

• Output: 4-ch analog / 8-ch USB

• Input: Analog / Bluetooth / 2-ch USB


Bluetooth

• Bluetooth audio-in provides you to play along with Spotify / YouTube with your smartphone

• Bluetooth MIDI

• EFNOTE Tools App for control remotely

EFNOTE Tools App

EFNOTE Tools
- Carry Data with You
You can backup, restore, and share drum kit data and trigger settings with your smartphone.

EFNOTE Tools
- Get New Drum Kits
Visit the official Kit Library to get the new drum kit data.

There you will surely find ideas that inspire your creativity.

EFNOTE Tools
- Adjust Remotely
For small gigs, drummers often cannot rely on FOH engineers.

Now you can remotely adjust the each pad level while playing back your beat with the built-in recorder.

EFNOTE Tools
- Swap Sounds
The Swap feature makes it easy to swap each sound of toms or cymbals.

It helps you changing the set up and editing kits.

Specifications:

Drum / Cymbal Pads
Kick
EFD-K1612

• Size: 16 x 12"
  \n
\n
• Finish: White sparkle
  \n
\n
• Zone: Head
  \n
\n
• Sensor: Multi
  \n
\n
• Head: Double-layered mesh with beater patch
  \n
\n
• Connector: Head (TRS Phones)
  \n
\n
• Features:Bass drum riser, Wood hoop
  \n
\n

\n

Snare
EFD-S1250

\n

\n
• Size: 12 x 5"

• Finish: White sparkle

• Zone: Head / Rim / Side-Rim

• Sensor: Multi

• Head: Double-layered mesh

• Connector: Head/Rim, Side-Rim (2x TRS Phones)

• Features: Birch shell, Colored hoop rubber, Side-Rim


Tom

EFD-T1070

• Size: 10 x 7"
  \n
\n
• Finish: White sparkle
  \n
\n
• Zone: Head / Rim
  \n
\n
• Sensor: Multi
  \n
\n
• Head: Double-layered mesh
  \n
\n
• Connector: Head/Rim (TRS Phones)
  \n
\n
• Features: Birch shell, Colored hoop rubber
  \n
\n

\n

Floor Tom
EFD-T1212

\n

\n
• Size: 12 x 12"

• Finish: White sparkle

• Zone: Head / Rim

• Sensor: Multi

• Head: Double-layered mesh

• Connector: Head/Rim (TRS Phones)

• Features: Birch shell, Colored hoop rubber


Hi-Hat
EFD-H14

• Size: 14" (Top/Bottom)
  \n
\n
• Color: Warm gray
  \n
\n
• Zone: Bow / Edge / Cup
  \n
\n
• Sensor: Multi (360° flat sensing + choke) / Optical
  \n
\n
• Connector: 6-pin
  \n
\n
• Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
  \n
\n

\n

Crash
EFD-C16

\n

\n
• Size: 16"

• Color: Warm gray

• Zone: Bow / Edge / Cup

• Sensor: Multi (360° flat sensing + choke)

• Connector: Bow/Edge, Cup (2x TRS Phones)

• Features: Weight simulation, Fine engraved surface


Ride
EFD-C18

• Size: 18"
  \n
\n
• Color: Warm gray
  \n
\n
• Zone: Bow / Edge / Cup
  \n
\n
• Sensor: Multi (360° flat sensing + choke)
  \n
\n
• Connector: Bow/Edge, Cup (2x TRS Phones)
  \n
\n
• Features: Weight simulation, Fine engraved surface
  \n
\n

\n

Splash
EFD-C08

\n

\n
• Size: 8"

• Color: Warm gray

• Zone: Bow / Edge

• Sensor: Multi (360° flat sensing + choke)

• Connector: Bow/Edge (TRS Phones)

• Features: Weight simulation, Fine engraved surface


Sound Module: EFD-5

Trigger Interface

• 3-Zone: Snare, Crash 1/2*, Ride

• 2-Zone: Tom 1/2/3/4, HH, Crash 3

• 1-Zone: Kick

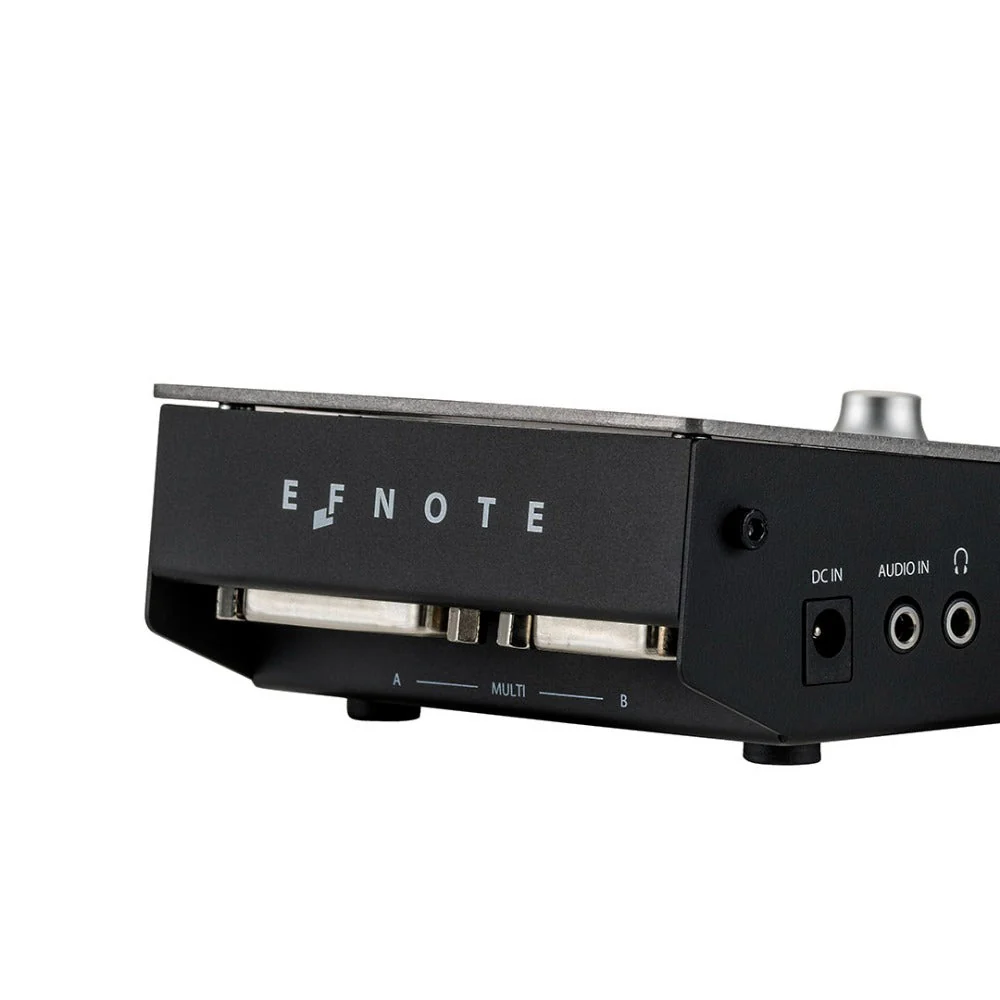

Audio / MIDI Interface

• Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)

• Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)

• Audio Input: Stereo Mini-Phone (+2dBu Max)
• USB: Micro-B Type USB 2.0 Hi-Speed

• Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO

• MIDI: In/Out

• Bluetooth Audio Input

• Bluetooth MIDI In/Out

• MIDI Out: 5-pin DIN


Drum Kits / Instruments

• Preset Drum Kits: 17 (Editable)

• User Drum Kits: 83

• Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), Attack Elements

• User Inst Library: 128 (Can be stored customized instruments)


Edit Parameters

• Level, Pan, Tuning, Muffling (for each pad)

• 2-Band EQ (for each pad)

• Ambience Effect (8 types)

• Pad Layer


Dimensions

• 106 (W) x 172 (D) x 47 (H) mm

• 700 g


Power

• DC 12 V, 500 mA (Nominal) / 800 mA (Max)


Hardware

Tom Holder

• 1x Tom holder arm

• Geared L-rod tilter

• Knurled carbon steel rod

• L-rod diameter: φ11.5 mm (7/16")
  \n
\n
• Tube diameter: φ22.2 mm (7/8")

• Height adjustment range: 700 -- 900 mm


Splash Cymbal Arm

• 1x Z-rod short

• 1x Z-rod long


Sound Module Arm

• 1x Sound module arm

• 1x Smartphone tray


Notes:

• No bass drum pedal, no drum throne, no snare stand, no 2 cymbal stands, no HiHat stand
