EFNOTE Mini 4 Piece Electronic Drum Kit Overview:

Welcome to the "mini-Verse"
EFNOTE mini, even more downsized than our EFNOTE 5 compact drums. We’ve packed the best performance into the smallest size, making it irresistible.

You will be amazed and in love with mini.

No Compromises
Experience the sound and playability of EFNOTE, the new market leader.

We have designed these tiny little drums using our many forward technologies and high quality, shared in our professional lines.

FUN Measures Up
EFNOTE mini is also the perfect way for kids to really enjoy drumming.

Let them touch real musical instruments from an early age to develop their sensitivities and musical taste. Set an early standard of quality, scaled to fit their smaller frames.

Small Drum Life
We believe beautiful drums can put a smile on your face, and the graceful presence of EFNOTE mini will change your everyday space into an inspiration.

Young or old, you will always long for your happy place.

Features

For Skilled Drummers

• EFNOTE playability with the highest ratings on the market

• Non-virtual, real drum/cymbal sounds with the highest quality

• Beautiful shells will never be cutdown like pancakes because of cost

• Clean warm-gray 12" 2-piece hi-hat and 16" ride cymbal

Recommended for Kids!

• Hardware can be set lower for children

• Adjustable pad sensitivity

• Prevents hearing loss that can occur with acoustic drums

• Mesh drumhead and silicone rubber cymbal surface reduce arm fatigue

Full-Scale Sound from the mini

• From 18" to 22" bass drum sound

• From 6" to 16" tom sound

• From 8" splash to 21" ride cymbal sound

True Sound Collection

• Newly recorded vintage drum/cymbal collections, including 12" maple snare drum and 10" crispy hi-hat

• Reproduces raw drum sounds and ambient perfectly

• All of acoustic drum/cymbal sounds are delicately recorded and mastered by EFNOTE ourselves

0.8m2 Changes Everyday Life

• 115 cm x 70 cm = 0.8 m2
  (3.8 ft. x 2.3 ft. = 10.6 sq.ft.)

  • Without drum throne.
  • The installation size depends on the setting.
• An irresistible experience in a tiny space

• Great for small stage such as cafe, bar, party

• Smaller than conventional entry-level e-drums

Ready to Go!

• Easier, Lighter, Faster

• Simple and minimal, but the best for your special moments

• For all small stages, such as wedding parties and café concerts

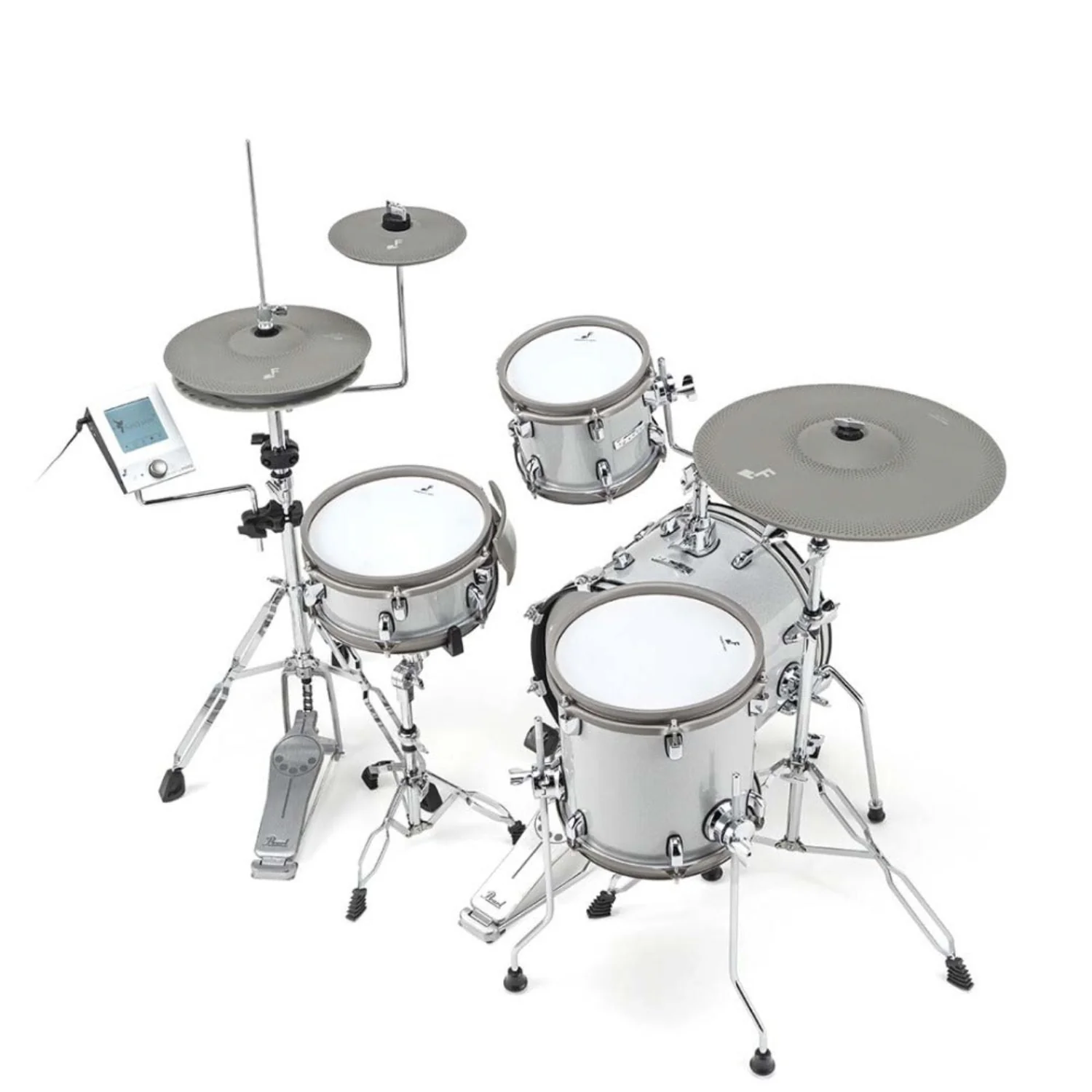

Glamorous White Sparkle Shells

• Real birch wood shells

• Multi-sensor for hotspotless and high-resolution sounding

• 14x10" kick drum

• 10x4.5" snare drum (head/rim/side-rim)

• 8x6.5" rack tom (head/rim)

• 10x10" floor tom (head/rim)

Gentle Colored Cymbals

• Elegant warm-gray surface with fine engravings

• Multi-sensored 360° play/choke area

• 12" hi-hat cymbals (360° bow/edge)

• 8" splash/crash cymbal (360° bow/edge)

• 16" ride cymbal (360° bow/edge/cup)

2nd Crash Upgradable

• + 18" Cymbal
  16" crash & 18" ride combo
• + 14" Cymbal
  14" crash & 16" ride combo
• + 8" Tom
  Two-up / one-down style

  • One additional pad can be connected.
  • Additional pad is sold separately.

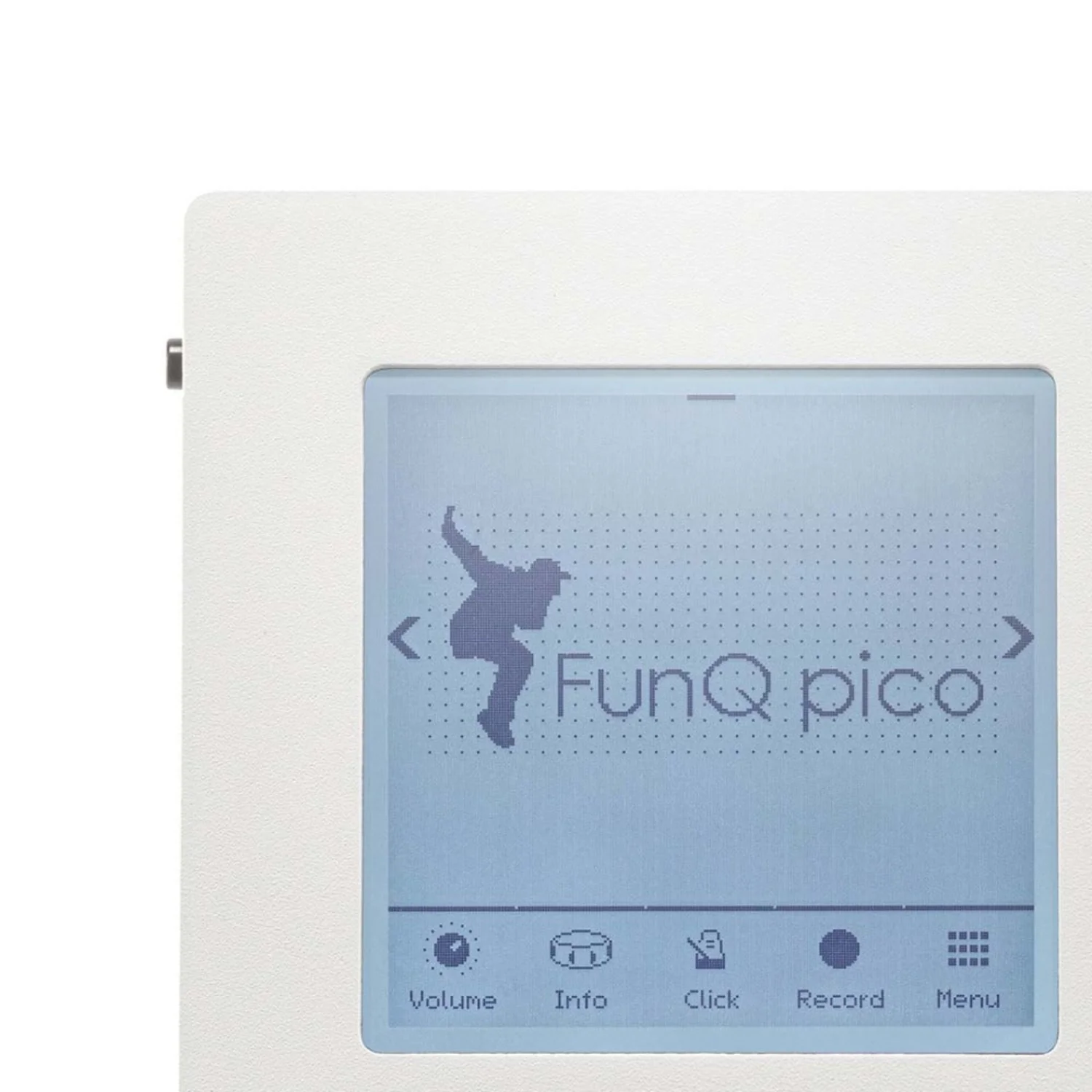

Easy Operation

• Touch screen intuitive user interface

• Graphical preset kit themes that inspire performance

• Simple and clean design

The Key to Your Skill Improvement

• ELISE, the accurate EFNOTE sensing processor

• "Stroke Scope" displays your strike points on time-line

• "Accuracy Score" estimates your strike accuracy

Connectivity

• Bluetooth audio-in allows you to play along to Spotify / YouTube with your smartphone

• USB (C type) supports 2-in/8-out audio and 16ch MIDI for multi-track recording on your Mac/PC

• 3.5mm (1/8") headphones output

• 3.5mm (1/8") audio input for audio players

• 2x 1/4" phone line-out for loud speakers

Specifications:

Kick:

EFD-K1410

• Size: 14 x 10"

• Finish: White Sparkle

• Zone: Head

• Sensor: Multi

• Head: Double-layered mesh with beater patch

• Connector: Head (TRS Phones)

• Features: Steel hoop

Snare

EFD-S1045

• Size: 10 x 4.5"

• Finish: White Sparkle

• Zone: Head / Rim / Side-Rim

• Sensor: Multi

• Head: Double-layered mesh

• Connector: Head/Rim, Side-Rim (2x TRS Phones)

• Features: Birch shell, Colored hoop rubber, Side-Rim

Tom

EFD-T0865

• Size: 8 x 6.5"

• Finish: White Sparkle

• Zone: Head / Rim

• Sensor: Multi

• Head: Double-layered mesh

• Connector: Head/Rim (TRS Phones)

• Features: Birch shell, Colored hoop rubber

Floor Tom

EFD-T1010

• Size: 10 x 10"

• Finish: White Sparkle

• Zone: Head / Rim

• Sensor: Multi

• Head: Double-layered mesh

• Connector: Head/Rim (TRS Phones)

• Features: Birch shell, Colored hoop rubber

Hi-Hat

EFD-H12

• Size: 12" (Top/Bottom)

• Color: Warm gray

• Zone: Bow / Edge / Cup

• Sensor: Multi (360° flat sensing + choke) / Optical

• Connector: 6-pin

• Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface

• General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used.
• EFNOTE mini sound module does not support hi-hat cup zone.

Splash/Crash

EFD-C08

• Size: 8"

• Color: Warm gray

• Zone: Bow / Edge

• Sensor: Multi (360° flat sensing + choke)

• Connector: Bow/Edge (TRS Phones)

• Features: Weight simulation, Fine engraved surface

Ride

EFD-C16

• Size: 16"

• Color: Warm gray

• Zone: Bow / Edge / Cup

• Sensor: Multi (360° flat sensing + choke)

• Connector: Bow/Edge, Cup (2x TRS Phones)

• Features: Weight simulation, Fine engraved surface

Sound Module: EFD-MINI

Trigger Interface:

• 3-Zone: Snare, Ride

• 2-Zone: Tom 1/2*/3, HH, Crash 1/2*

• 1-Zone: Kick

  • As an option, one additional pad can be connected with the "TOM 2/CRASH 2" cable.
  • The “TOM 2/CRASH 2” cable is a selectable input for either pad – Tom 2 or Crash 2.
  • Tom 2 or Crash 2 pad is not included.

Audio / MIDI Interface

• Line (1/2) Output: 2x 1/4” TS Phone (+4dBu, Unbalanced)

• Phones (3/4) Output: 3.5mm (1/8") Stereo Phone (320 mW + 320 mW @32Ω)

• Audio Input: 3.5mm (1/8") Stereo Phone (+2dBu Max)
• USB: C Type USB 2.0 Hi-Speed

• Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO

• MIDI: In/Out

• Bluetooth Audio Input: (A2DP)

• Bluetooth MIDI In/Out: (Bluetooth Low Energy/GATT)

• Bluetooth MTransmission Frequency: 2402--2480 MHz, Maximum Transmit Power: 2.5 mW EIRP

Drum Kits / Instruments

• Preset Drum Kits: 12 (Editable)

• User Drum Kits: 18

• Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo)

Edit Parameters

• Level, Pan, Tuning, Muffling (for each pad)

• 2-Band EQ (for each pad)

• Ambience Effect (8 types)

Dimensions

• 106 (W) x 144 (D) x 50 (H) mm

• 675 g

• Excluding protrusions

Power

• DC 12 V, 600 mA (Max)

Hardware (Included)

Tom Holder

• 1x Tom holder arm

• Geared L-rod tilter

• Knurled carbon steel rod

• L-rod diameter: φ11.5 mm (7/16")

• Tube diameter: φ22.2 mm (7/8")

• Height adjustment range: 650 -- 850 mm

Splash Cymbal Arm:

• 1x Z-rod

Sound Module Arm:

• 1x Sound module arm

• 1x Smartphone tray


Snare Drum Stand:

EFD-SS10

• For 10" diameter snare drums

• Light weight

• Geared basket tilter

• Double braced legs

• Tube diameter: φ15.9 mm (5/8")

• Height adjustment range: 450 -- 600 mm

Cymbal Stand

EFD-CS3

• Light weight

• Geared tilter

• Middle tube diameter: φ15.9 mm (5/8"), φ13.0 mm (1/2")

• Height adjustment range: 650 -- 1,300 mm

Drum Kit Placement

Placement Size

• Approx. 115 (W) x 70 (D) cm

• Approx. 3.8 (W) x 2.3 (D) feet

Package

Accessories

• AC Adapter

• Brake-Out Cable: EFD-MULTI-C

• Smartphone Tray Set

• Cable Ties

• Quickstart Guide


Note : Kick pedal, hi-hat stand and drum throne are sold separately.
