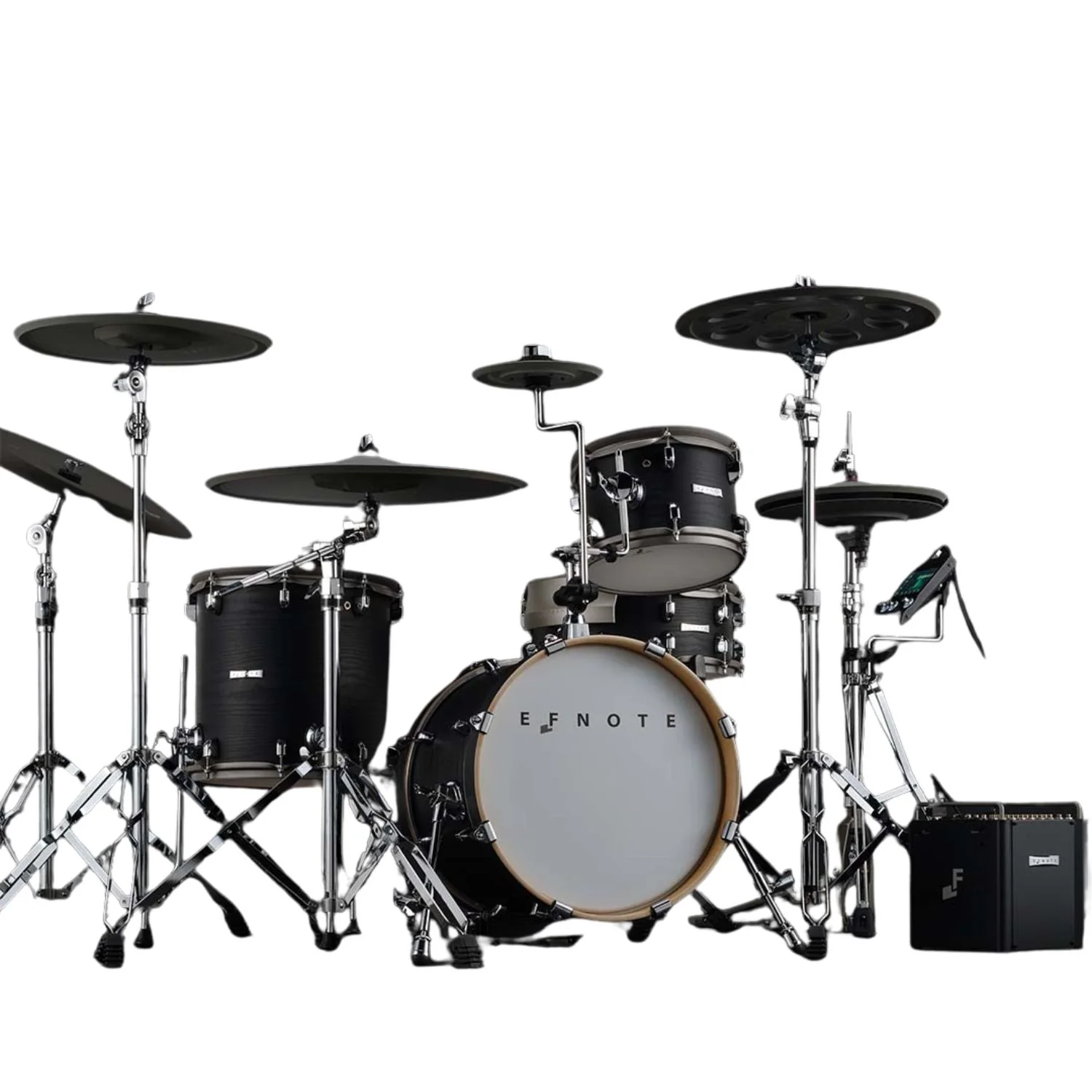

EFNOTE PRO 500X Electronic Drum Kit Overview:

EFNOTE PRO is designed to digitize your drum riser, then elevates your stage.

By simply connecting up to 12 balanced XLR outputs to your stage snake or sound-board, you will be sending and receiving the highest quality drum sounds on the market with total consistency and perfect isolation.

No More Acrylic Panel
There is no need to isolate your drummer from the choir, acoustic instruments, your audience or congregation. Your drummer is now free to connect and engage with everyone!

EFNOTE PRO has eliminated mic bleed and feedback problems on-stage, creating the ideal FOH mixing environment with clarity, balance and control.

Stage-Box Reliability
EFNOTE PRO has eliminated the need to change mics or mic placement, tuning, head replacement and maintenance at every show.

Just assign its 12-ch balanced outputs, using stereo or mono sends, such as kick, snare, toms, cymbals, click and external sampling pad.

Each channel is equipped with HPF, 2-band EQ, individual compressors for Bus 1-6, and ground lift switches.

Remote Control
EFNOTE Tools App provides faster and more reliable rehearsals.

The FOH engineer can change the settings of the output sent to the console without affecting the drummer's monitor sound.

The drummer can also adjust the front sound while playing back the recorded data.

Flexibility for All Music
EFNOTE PRO supports 7 shells and 8 cymbals. All pads are individually wired, so players can adapt to any musical environment.

All sound settings can be quickly saved and loaded, for multiple players and set-lists at any time.

In addition, with 12-ch of multitrack USB Audio and 16-ch USB MIDI running simultaneously, a drummer, producer or mixer have quick access to editing, in order to meet artist’s budget requirements.

USER TONE
UT (User Tone) is a custom tone that can be created with your favorite wave files.
Supports a dynamic-responsive tone with multiple wave files.
All User Tones can also be used as an Overlay Tone to overlay on any preset drum sounds.
Easy to create a UT using the new EFNOTE Desktop Tools app.

14" Snare & 20" Ride

• Specially expanded to the size of a real acoustic drum set to maximize playability, based on the PRO 500 compact kit

• Upsized the 14x5.5" snare drum provides a comfortable, realistic feel and greater playing width and depth

• The biggest 20" ride cymbal offers a huge 360° playing area for accurate expression of your stick work

Pre-Expanded Potential

• Includes 16" crash / 17" effect / 18" china / 8" splash cymbals

• Firmware version 2.0 available in the near future

• Special matte black finish

• 3 additional toms expandable

• 2 additional cymbals expandable

Design

Innovative Two-Piece Design

• The two-piece sound module provides both operability and expandability required by professionals

• Low-profile and compact control surface with touch-screen full-color LCD

• Floor-standing base unit with robust enclosure and reliable cable connections

Designed for Worship Concerts

• "Its ability to produce crisp, clear drum tones while keeping stage volume to a minimum has been a game-changer for us." - Rock Harbor Church

• Visit Churchfront to learn the real voices of worship drummers.

Discrete Foot Stage Light

• A foot light is equipped on the bottom of the control surface to help with setup and adjustment of the stage box

• Great for dark stages

• Adjustable brightness

Beautiful Kit Images Inspire

• Kit themes that highlight the musicality of each kit

• Simple interface design for professionals

• High-definition and high-brightness screen

Easy Left Handed Setup

• Just like acoustic drums, EFNOTE Drums allow for easy left-handed setting

• The Global Pan function makes it easy to adjust sound localization for left-handed setup

Uncompromised Playability

• 16" kick, 14" snare drum, 10" and 13" toms

• 14" snare & 20" ride provide realistic feel and greater playing width and depth

• 14" hi-hat, 16" crash, 17" effect, 18" china and 8" splash, the diversity of cymbals
• expresses the artist's finely honed sensibility

• Best not only for gig, but for home recording or video streaming

Specifications:

Kick

• EFD-K1612
  • Size: 16 x 12"

  • Finish: Black Oak-ish

  • Zone: Head

  • Sensor: Multi

  • Head: Double-layered mesh with beater patch

  • Connector: Head (TRS Phones)

  • Features: Wood hoop

Snare

• EFD-S1455

  • Size: 14 x 5.5"

  • Finish: Black Oak-ish

  • Zone: Head / Rim / Side-Rim

  • Sensor: Multi

  • Head: Double-layered mesh

  • Connector: Head/Rim, Side-Rim (2x TRS Phones)

  • Features: Birch shell, Colored hoop rubber, Side-Rim

Tom

• EFD-T1070

  • Size: 10 x 7"

  • Finish: Black Oak-ish

  • Zone: Head / Rim

  • Sensor: Multi

  • Head: Double-layered mesh

  • Connector: Head/Rim (TRS Phones)

  • Features: Birch shell, Colored hoop rubber

Floor Tom

• EFD-T1313

  • Size: 13 x 13"

  • Finish: Black Oak-ish

  • Zone: Head / Rim

  • Sensor: Multi

  • Head: Double-layered mesh

  • Connector: Head/Rim (TRS Phones)

  • Features: Birch shell, Colored hoop rubber

EFNOTE PRO 500X
(EFDPRO5X-STDSET)

Hi-Hat

• EFD-H14

  • Size: 14" (Top/Bottom)

  • Color: Warm gray

  • Zone: Bow / Edge / Cup

  • Sensor: Multi (360° flat sensing + choke) / Optical

  • Connector: 6-pin

  • Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface

  • General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used.

Crash

• EFD-C16

  • Size: 16"

  • Color: Warm gray

  • Zone: Bow / Edge / Cup

  • Sensor: Multi (360° flat sensing + choke)

  • Connector: Bow/Edge, Cup (2x TRS Phones)

  • Features: Weight simulation, Fine engraved surface

Ride

• EFD-C20

  • Size: 20"

  • Color: Warm gray

  • Zone: Bow / Edge / Cup

  • Sensor: Multi (360° flat sensing + choke)

  • Connector: Bow/Edge, Cup (2x TRS Phones)

  • Features: Weight simulation, Hammered texture surface with fine engravings

Effect

• EFD-C17FX

• Size: 17" with 8 holes

• Color: Dark gray

• Zone: Bow / Edge

• Sensor: Multi (360° flat sensing + choke)

• Connector: Bow/Edge (TRS Phones)

• Features: STAK cymbal mount, Weight simulation, Hammered texture surface with fine engravings

China

• EFD-C18CH

  • Size: 18"

  • Color: Dark gray

  • Zone: Bow / Edge

  • Sensor: Multi (360° flat sensing + choke)

  • Connector: Bow/Edge (TRS Phones)

  • Features: STAK cymbal mount, Weight simulation, Hammered texture surface with fine engravings

Splash

• EFD-C08

  • Size: 8"

  • Color: Warm gray

  • Zone: Bow / Edge

  • Sensor: Multi (360° flat sensing + choke)

  • Connector: Bow/Edge (TRS Phones)

  • Features: Weight simulation, Fine engraved surface

Note:

Not included:

• Hi-stand

• Drum throne

• Kick pedal

• Drum stick
