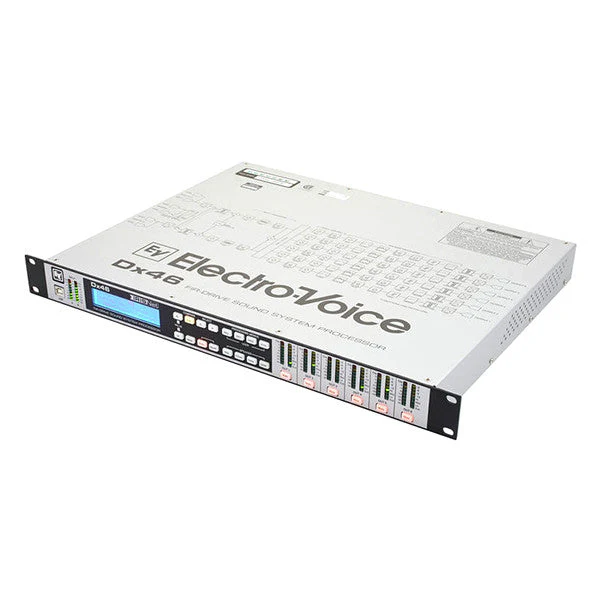

Electro-Voice DX 46 FIR-Drive Sound System Processor
The EV DX 46 IRIS-Net software provides complete supervision and monitoring of the speaker system. The Dx46 includes Finite Impulse Response (FIR) filters at each output for loudspeaker linearization. This device has 2 inputs and 6 outputs. It also has analogue inputs and digital AES and EBU inputs. The system also comes with a user friendly Ethernet and USB interface. Additionally, this software has 60 presets and 30 user presets.
- 2 Inputs
- Analogue inputs and digital AES / EBU inputs
- Full IRIS-Net control and configuration
- Ethernet and USB interface
- Inputs: 2x XLR, 2x XLR through out
- Outputs: 6x XLR
- Control Protocol: USB and Ethernet
- Data Format: 24-Bit
- Input/Output Impedance: 10/50Ohm
- Frequency Range: 20Hz to 22KHz
- Size: 19-inch/1RU
- Internal Processing: 48-Bit Double Precision
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The EV DX 46 IRIS-Net software provides complete supervision and monitoring of the speaker system. The Dx46 includes Finite Impulse Response (FIR) filters at each output for loudspeaker linearization. This device has 2 inputs and 6 outputs. It also has analogue inputs and digital AES and EBU inputs. The system also comes with a user friendly Ethernet and USB interface. Additionally, this software has 60 presets and 30 user presets.
- 2 Inputs
- Analogue inputs and digital AES / EBU inputs
- Full IRIS-Net control and configuration
- Ethernet and USB interface
- Inputs: 2x XLR, 2x XLR through out
- Outputs: 6x XLR
- Control Protocol: USB and Ethernet
- Data Format: 24-Bit
- Input/Output Impedance: 10/50Ohm
- Frequency Range: 20Hz to 22KHz
- Size: 19-inch/1RU
- Internal Processing: 48-Bit Double Precision
