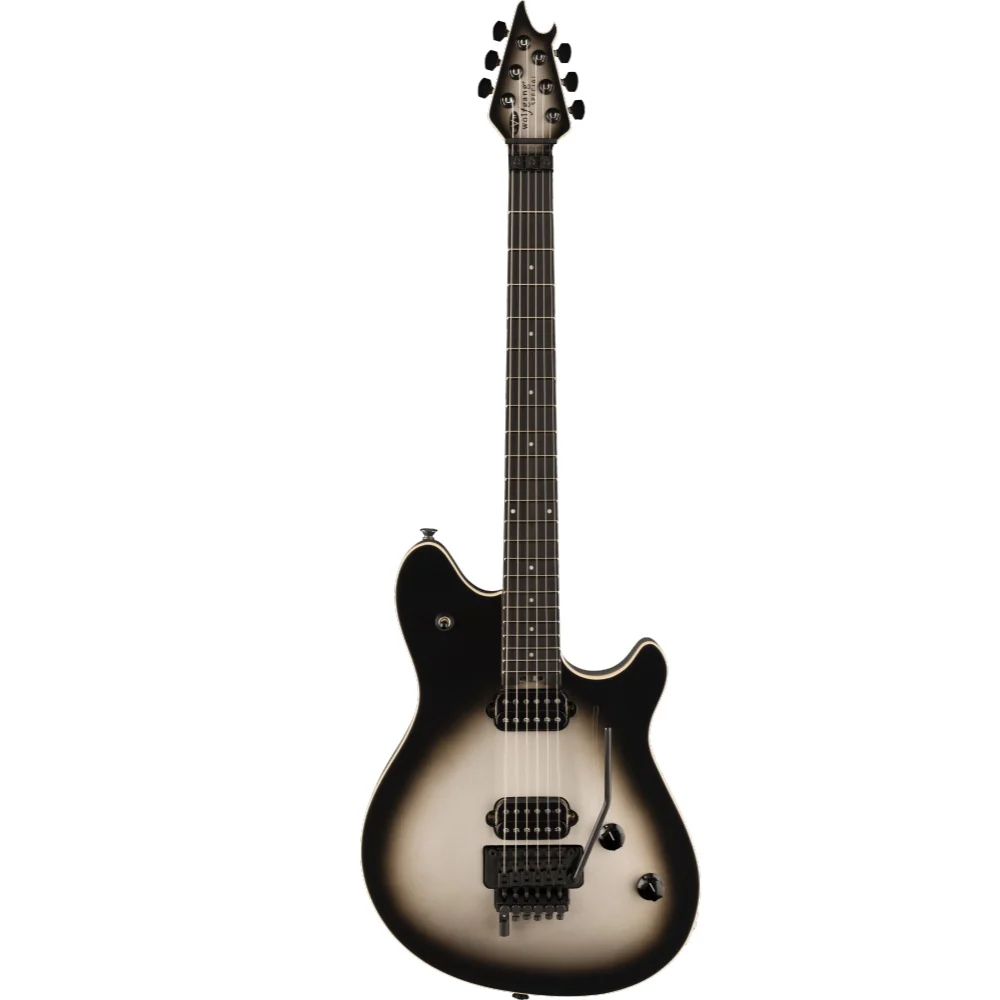

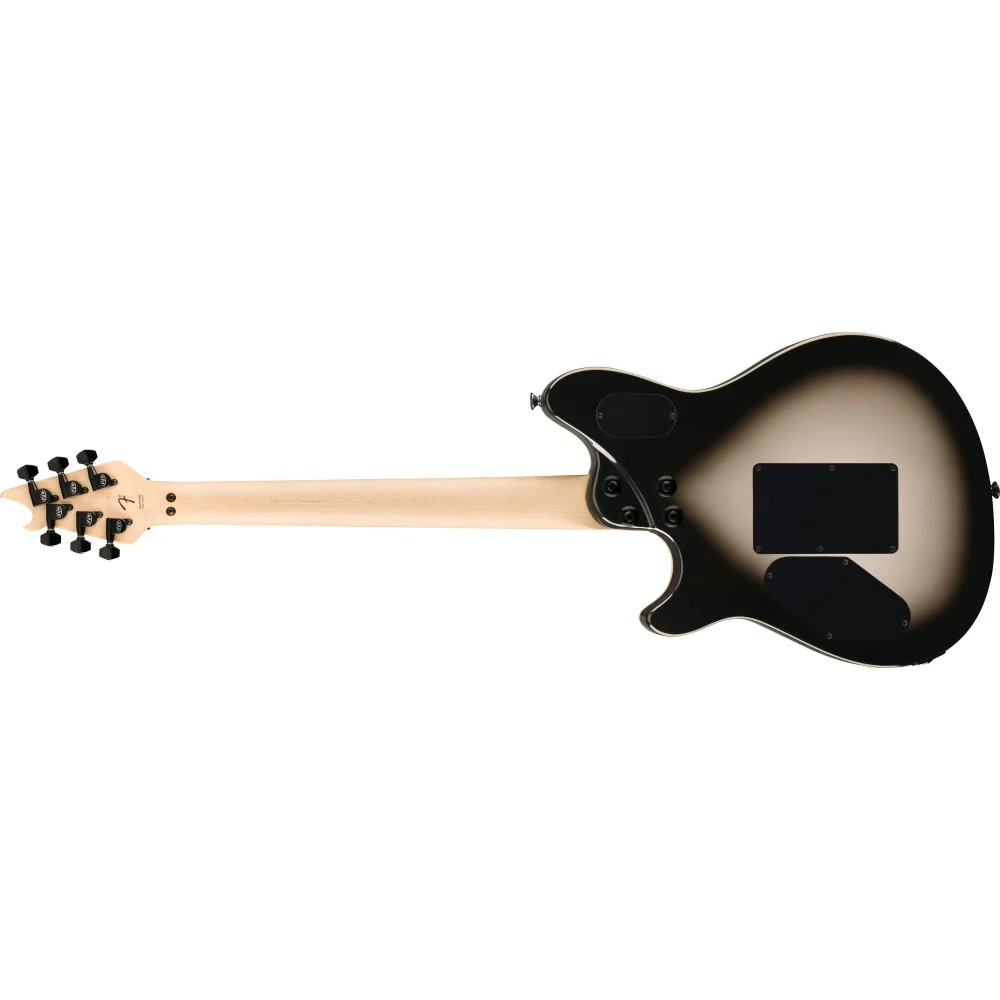

EVH Wolfgang Special 6 String Electric Guitar Overview:

Road-tested in arenas around the world, the Wolfgang Special is a purebred music-making machine, designed with stunning style, giant sound and high-speed playability.

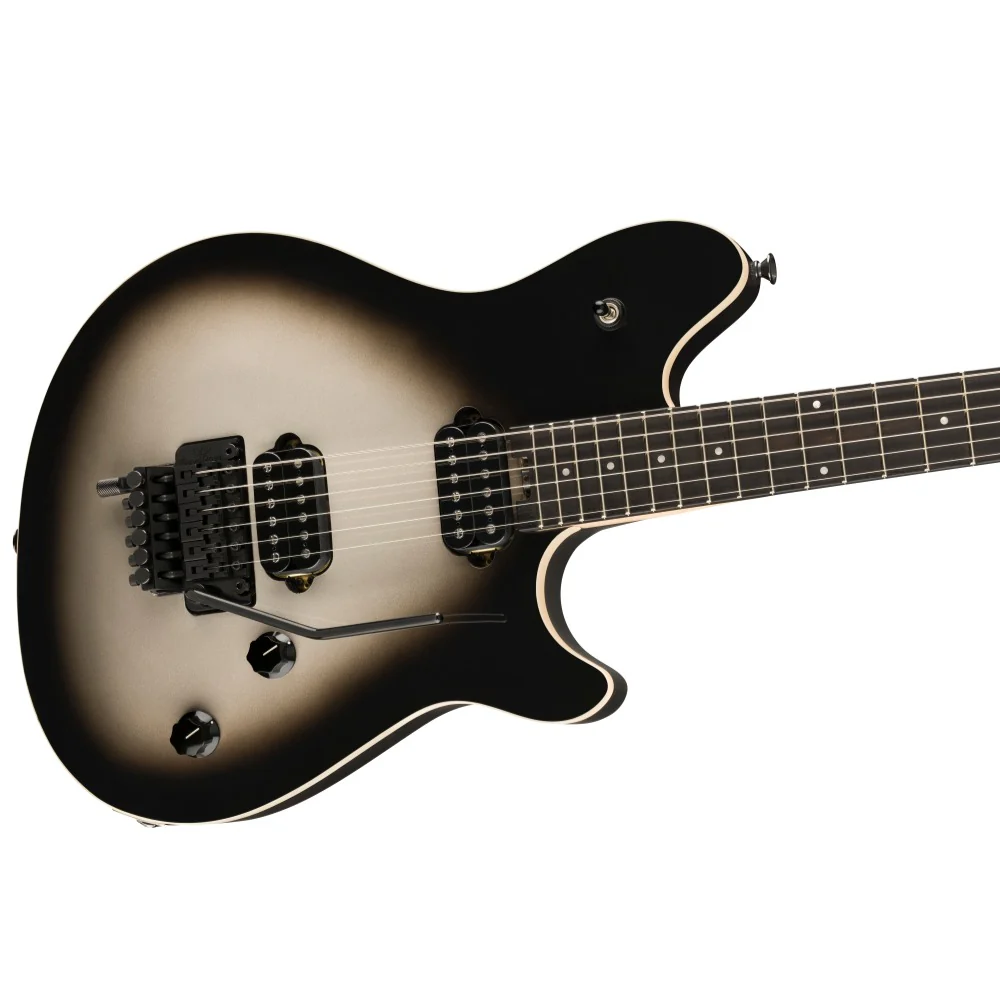

The Wolfgang Special features a basswood body with an arched top and a robust graphite-reinforced bolt-on quartersawn maple neck. The neck is carved and rolled to Eddie Van Halen's exacting specifications and features a hand-rubbed satin urethane finish on the back. Primed for high performance, energetic riffing and blazing leads, the 12"-16" compound radius ebony fingerboard has 22 jumbo frets and pearloid dot inlays. Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck.

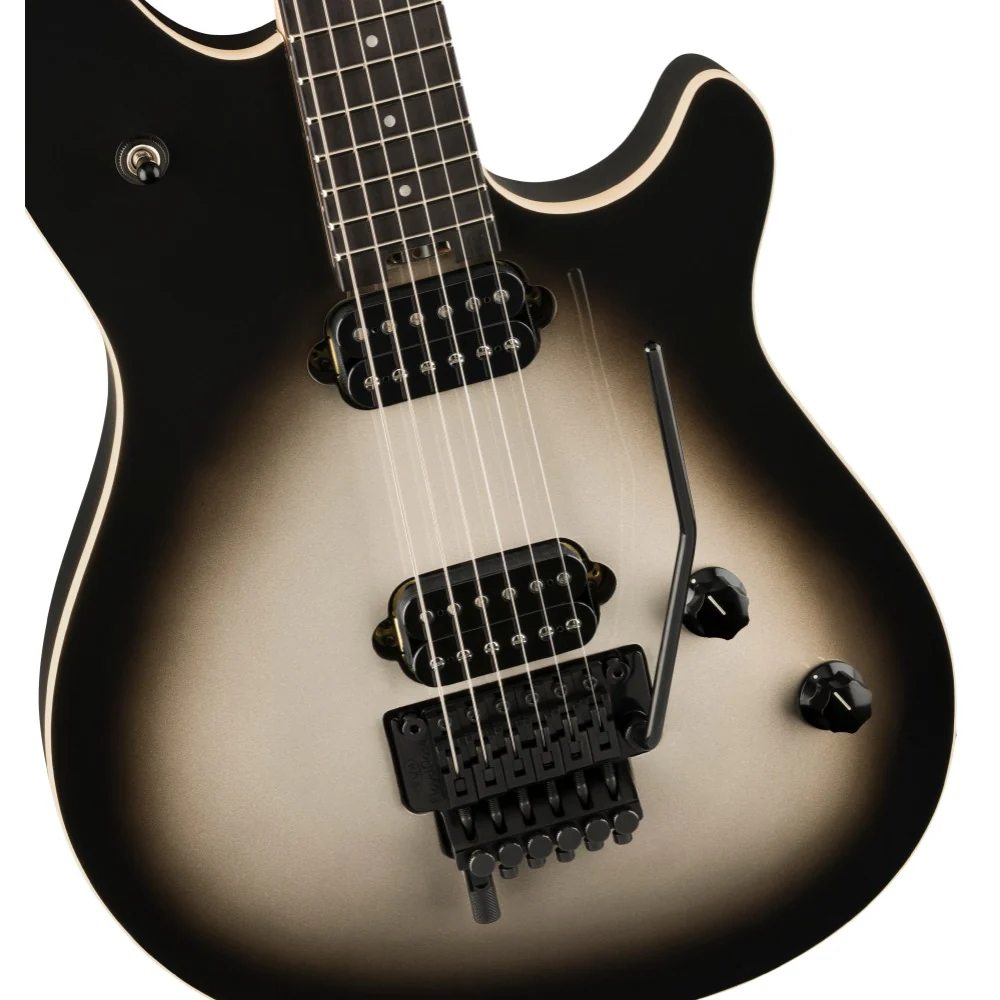

A pair of flagship custom-designed EVH Wolfgang Alnico 2 humbucking pickups are mounted directly to the body, providing dynamic yet articulate voicing, as well as endless sustain for powerful chords and melody lines. A sturdy and dependable EVH-branded Floyd Rose locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna retunes to drop-D and back with strict accuracy at the flick of a finger. The volume knob with treble bleed circuit has a 500K EVH Bourns low friction pot for smooth swells and a tone control knob with a 250K Bourns high friction tone pot that prevents accidental tone shifting.

Specifications:

General

• Model Number: 5107701521

• Series: Wolfgang Special

• Color: Silverburst

• Number of Strings: 6

• Orientation: Right-Hand

Body

• Body Finish: Gloss Urethane
  Body Shape: Wolfgang
  Body Material: Basswood
  Body Binding: 1-Ply Cream

Neck

• Neck Material: Quartersawn Maple

• Neck Construction: Bolt-On with Graphite Reinforcement

• Neck Thickness: .805" at 3rd & .890" at 12th Fret

• Neck Finish: Hand-Rubbed Satin Urethane

• Neck Shape: Wolfgang Backshape

• Scale Length: 25.5" (64.77 cm)

• Finge\n
\n
• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
  \n
\n
• Fingerboard Material: Ebony
  \n
\n
• Number of Frets: 22
  \n
\n
• Fret Size: Jumbo
  \n
\n
• Nut Material: Floyd Rose R2 Locking
  \n
\n
• Nut Width: 1.625" (41.3 mm)

• Position Inlays: Pearloid Dot

• Side Dots: Pearloid

• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel

• Truss Rod Wrench: 2.5 mm Hex

• String Trees: Floyd Rose Retainer Bar

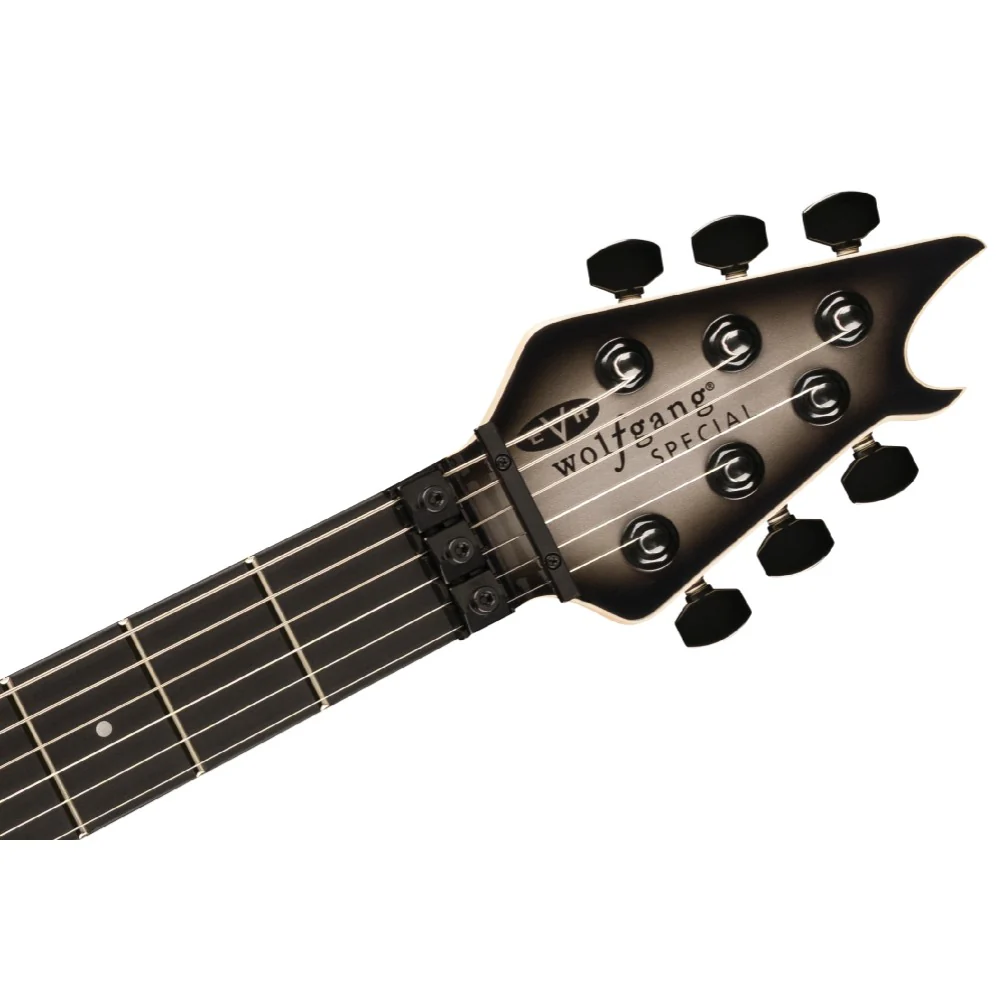

• Headstock: EVH Wolfgang

Electronics

• Bridge Pickup: Direct Mount EVH Wolfgang Humbucking

• Neck Pickup: Direct Mount EVH Wolfgang Humbucking

• Pickup Color: Black

• Controls: Volume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit,
• Tone (250K EVH Bourns High Friction Pot)

• Pickup Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge
• and Neck Pickups, Position 3. Neck Pickup

• Pickup Configuration: HH

Hardware

• Bridge: EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna

• Hardware Finish: Black

• Tremolo Arm: Floyd Rose 1000 Series Locking

• Tremolo Block: Brass

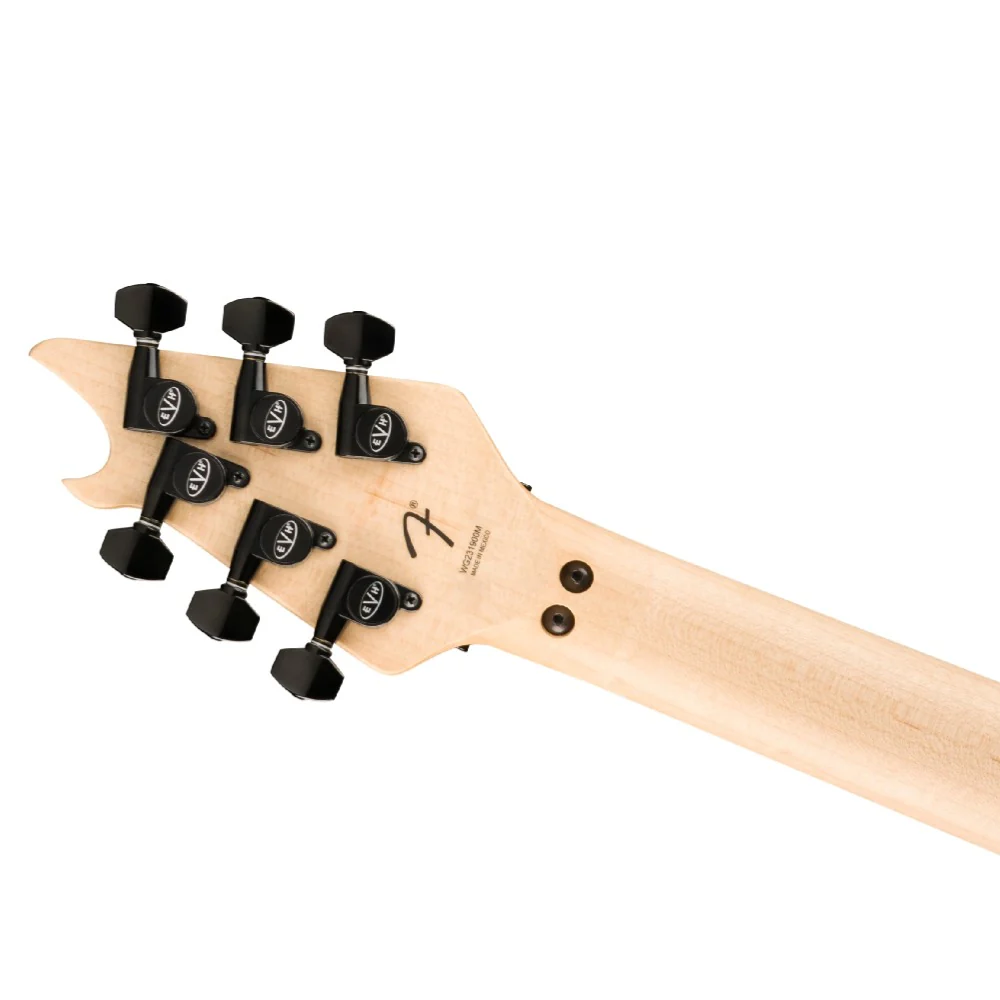

• Tuning Machines: EVH-Branded Gotoh

• Control Knobs: Black Knurled with White Indicator

• Switch Tip: Black
