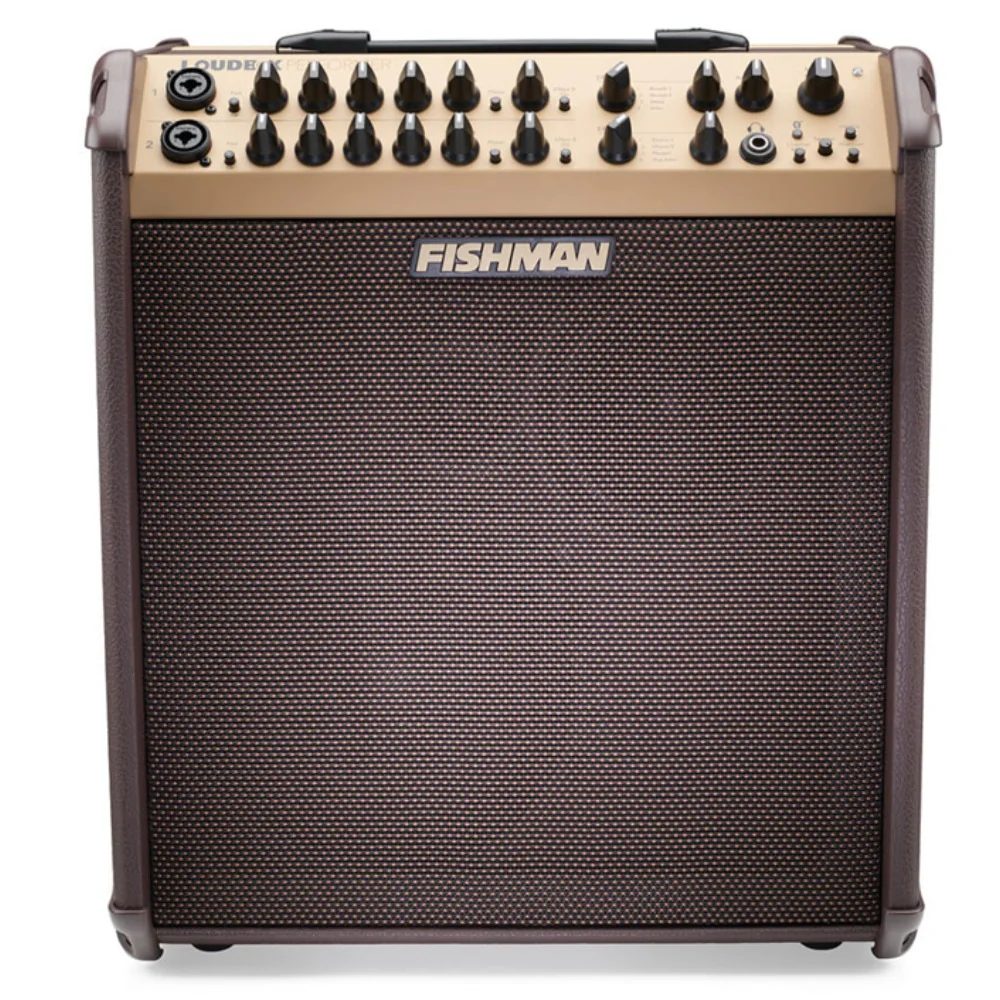

Fishman PRO-LBT-EU7 Loudbox Performer Acoustic Guitar Amplifier Overview:

Now with the addition of Bluetooth wireless connectivity! The Loudbox Performer features 180 watts of transparent bi-amplified acoustic sound and two versatile input channels that accept both 1/4” and XLR sources for instruments and microphones. Each channel includes Fishman’s renowned 3-band EQ, feedback-fighting controls, and a new effects section for more tonal options than ever before. The dedicated midrange driver provides enhanced detail and note definition over conventional 2-way designs. An improved, integrated kickstand design allows the Loudbox Performer to be tilted back 50º for better sound projection at short range.

FEATURES

• Bluetooth 4.0 Connectivity

• 180 watts of bi-amplified acoustic power

• Two mic/instrument channels accept 1/4” or XLR sources

• Input channels feature 3-band EQ and feedback controls

• Auxiliary stereo input with level control and 1/4” & 1/8” connectors

• Dual digital effects section, with independent channel & effects level

• D.I. output: balanced XLR outputs on each input channel and main mix

• Channel Mute to silence both input channels

• Headphone output

• Foot Switch input for remote muting of the input channels or Chorus, Flanger, and
• Slap Echo effects

• Three-way speaker design with built-in 10º baffle angle

• Integrated, low profile kickstand for a tilt angle of 50º

SPECIFICATIONS

• POWER: 180 watts, bi-amped

• DRIVERS: 1” soft dome tweeter, 5” midrange, 8” woofer

• SPL: 114 dB SPL at 1 meter

• SPEAKER BAFFLE: 10° built-in tilt 50° with kickstand

• CONNECTIVITY: Bluetooth® 4.0

• DIMENSIONS: 18.2” H x 15.8” W x 11.5” D (462 mm) x (401 mm) x (292 mm)

• WEIGHT:30 lbs. (13.6 kg)

INSTRUMENT & MIC CHANNELS

• Combination 1/4” & XLR input

• Shelving bass and treble

• Resonant-style midrange

• Notch filter (feedback control)

• Input gain with 10dB pad and clip indicator

• 24-Volt phantom power for condenser mics

• Reverb and Delay effects level

• Chorus, Flanger and Slap Echo on/off

• Phase switch (feedback control)

• Dedicated effects loop
