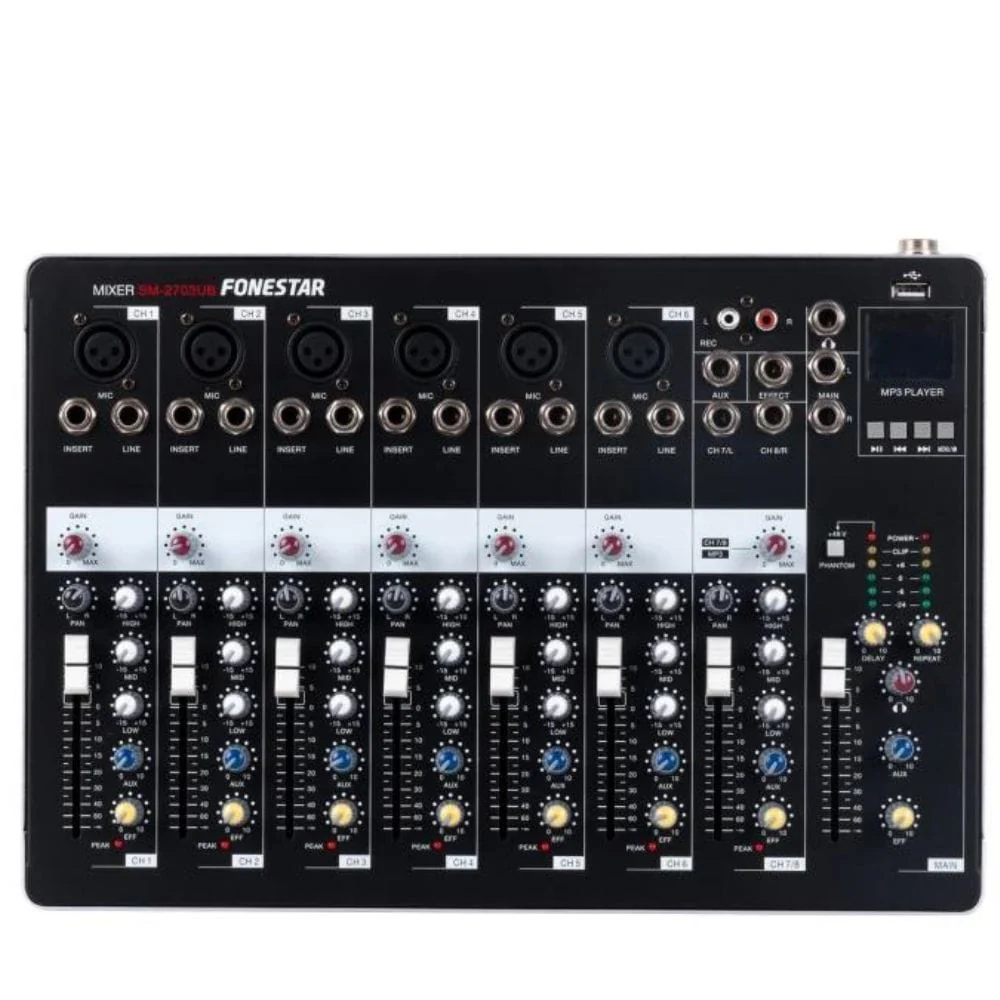

Fonestar SM-2703UB Studio Mixer Overview:

Studio 7 channel mixer (6 mono and 1 stereo channels) with USB/MP3 player and echo effect. Plays MP3, WAV and WMA files. Includes a USB port for USB memory stick connection. Supports memories up to 64 GB. ID3 tag information Ideal for bars, mini home-studio and multi-purpose rooms, among others.

Features:

• 6-channel mono and 1-channel stereo mixer.
• USB player.
• Echo effect.

Specifications:

• Usb Player: Plays Mp3, Wav And Wma Files
• Usb Port For Usb Drive Connection
• Supports Drives Of Up To 64Gb
• Id3 Tag Information
• Inputs: 6 Balanced Mic. Xlr, 4,800 Ω 4 Mv Rms Or 6 Balanced Lines, 6.3 Mm Jack, 20,000 Ω 20 Mv Rms
• 6 X 6.3 Mm Jack Inserts, 20,000 Ω 775 Mv Rms
• 1 Unbalanced Stereo Line 2 X 6.3 Mm Jack, 1,000 Ω 1.3 V Rms
• Controls: Mic/Line: Gain, Bass (±15 Db, 60 Hz), Mid (±15 Db, 2,500 Hz), Treble (±15 Db, 12,000 Hz), Aux Send, Effects Bus Send, Pan And Volume Slider
• Usb Player: Play/Pause, Stop, Repeat, Song Forward And Rewind
• Aux: Volume Control
• Eff: Volume Control, Delay And Repeat
• Main: Volume Slider
• Headphone Output: Volume Control
• Functions: 3-Band Equalizer Per Channel
• Led Excess Signal And Master Output Level Indicator
• Echo With Repeat And Time Controls
• Outputs: Main (Unbalanced 2 X 6.3 Mm Jack), Rec (2 X Rca), Mono Aux (Unbalanced 6.3 Mm Jack), Mono Effect (Unbalanced 6.3 Mm Jack) And Stereo Headphone (6.3 Mm Jack)
• Phantom: 48 V
• Response: 20-20,000 Hz
• Distortion: Harmonic < 0.01 %
• Power Supply: 2 X 17 V Ac, 420 Ma With Adapter Included
• Dimensions: 360 X 45 X 245 Mm Depth
• Weight: 3.5 Kg
