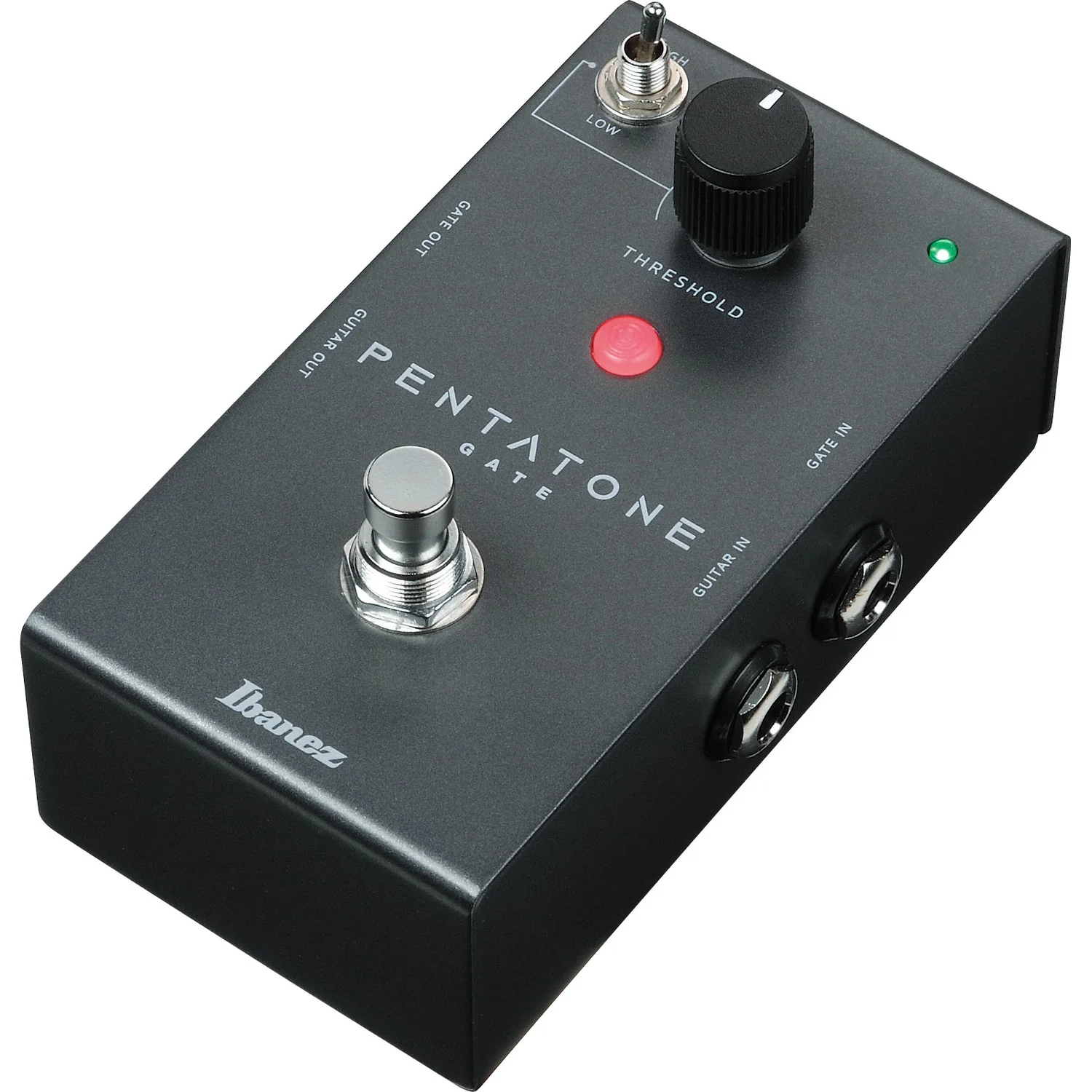

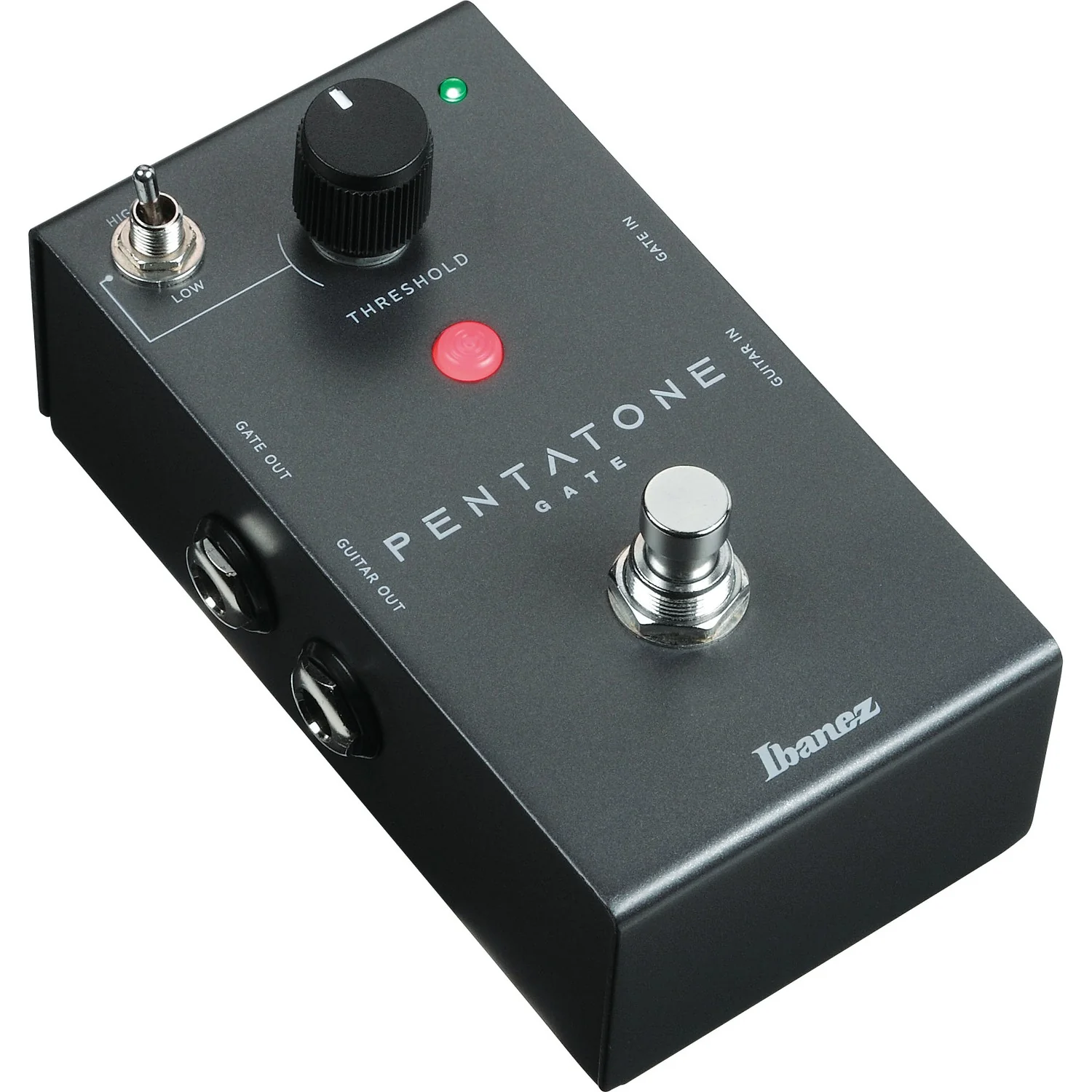

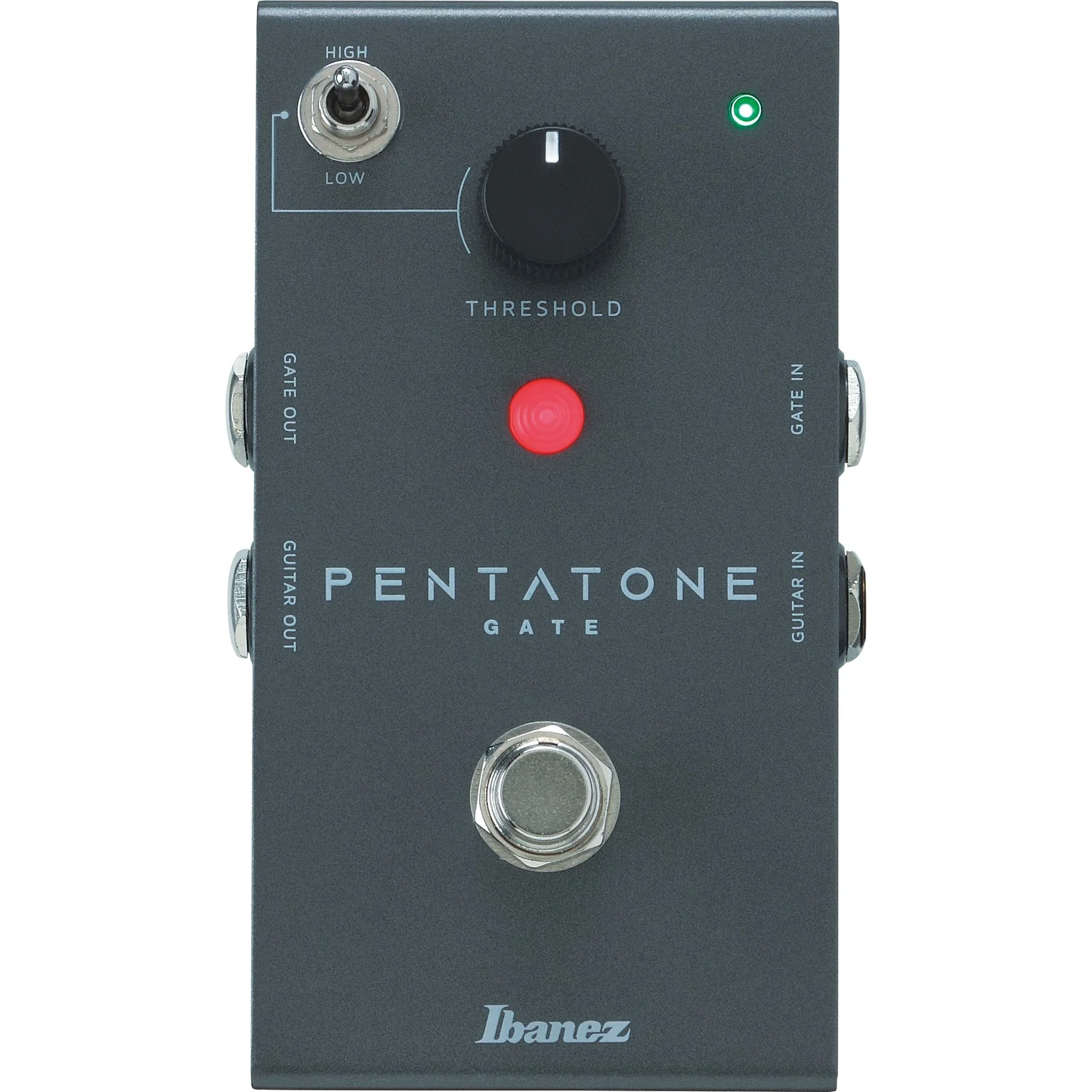

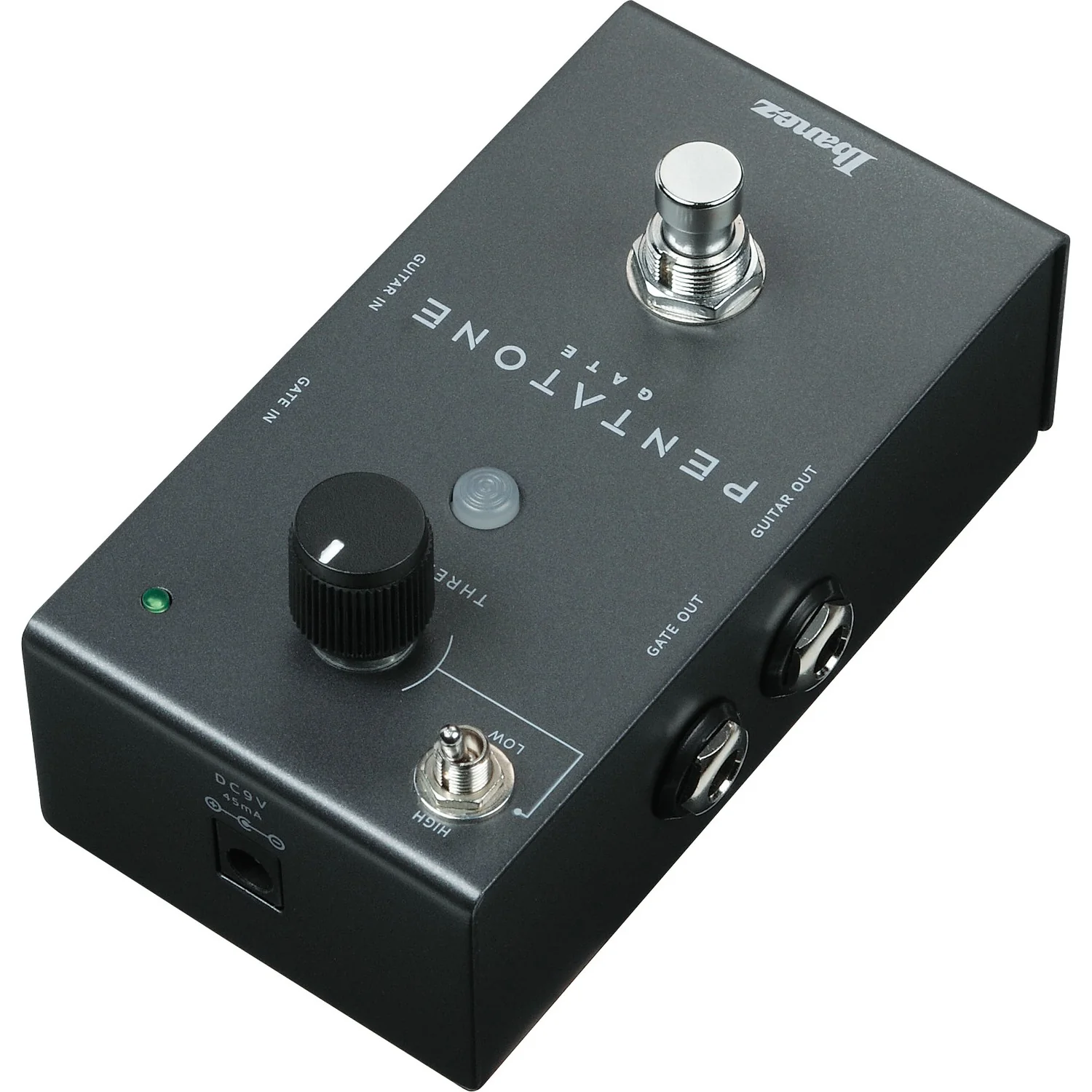

Ibanez PTGATE Pentatone Noise Gate Effect Pedal Overview:

The Pentatone Gate is a standalone version of the GATE section in the Ibanez Pentatone Preamp. This gate achieves a quick response and natural sustain and has an added threshold mode switch which allows you to adjust the threshold in the appropriate range.

Furthermore, thanks to the 4 I/O jacks, the gate circuitry can work at a proper location, such as right after distortion pedals or in between the send/return of a guitar amplifier.

• Controls: Threshold

• Switches: Threshold mode (High/Low)

• True bypass

• I/O’s: GUITAR IN, GUITAR OUT, GATE IN, GATE OUT

• Size: 70(W) x 116(D) x 63(H) (mm)

• Size: 2.8(W) x 4.6(D) x 2.5(H) (inch)

• Weight: 455g, 1.0lb (including Battery)

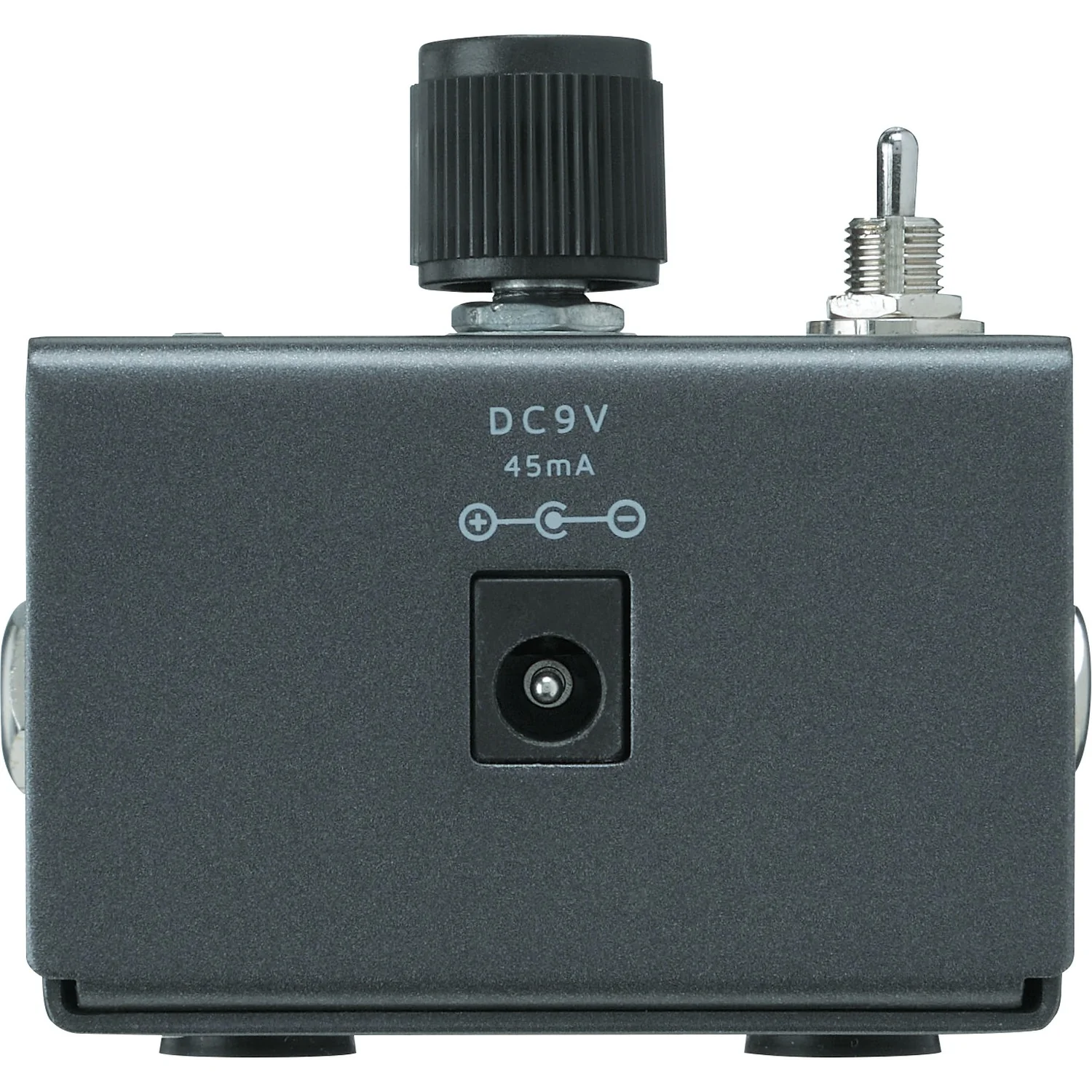

• Required Current: 45mA@9V

• Power Supply: One 9V battery (006P) or external AC adapter

Features:





Simple operation
Quick response and natural sustain with a single knob control.







Threshold mode switch
Switchable threshold range.









4 I/O jacks
Allows you to run an additional loop out to a specific section of a signal chain for noise reduction.
