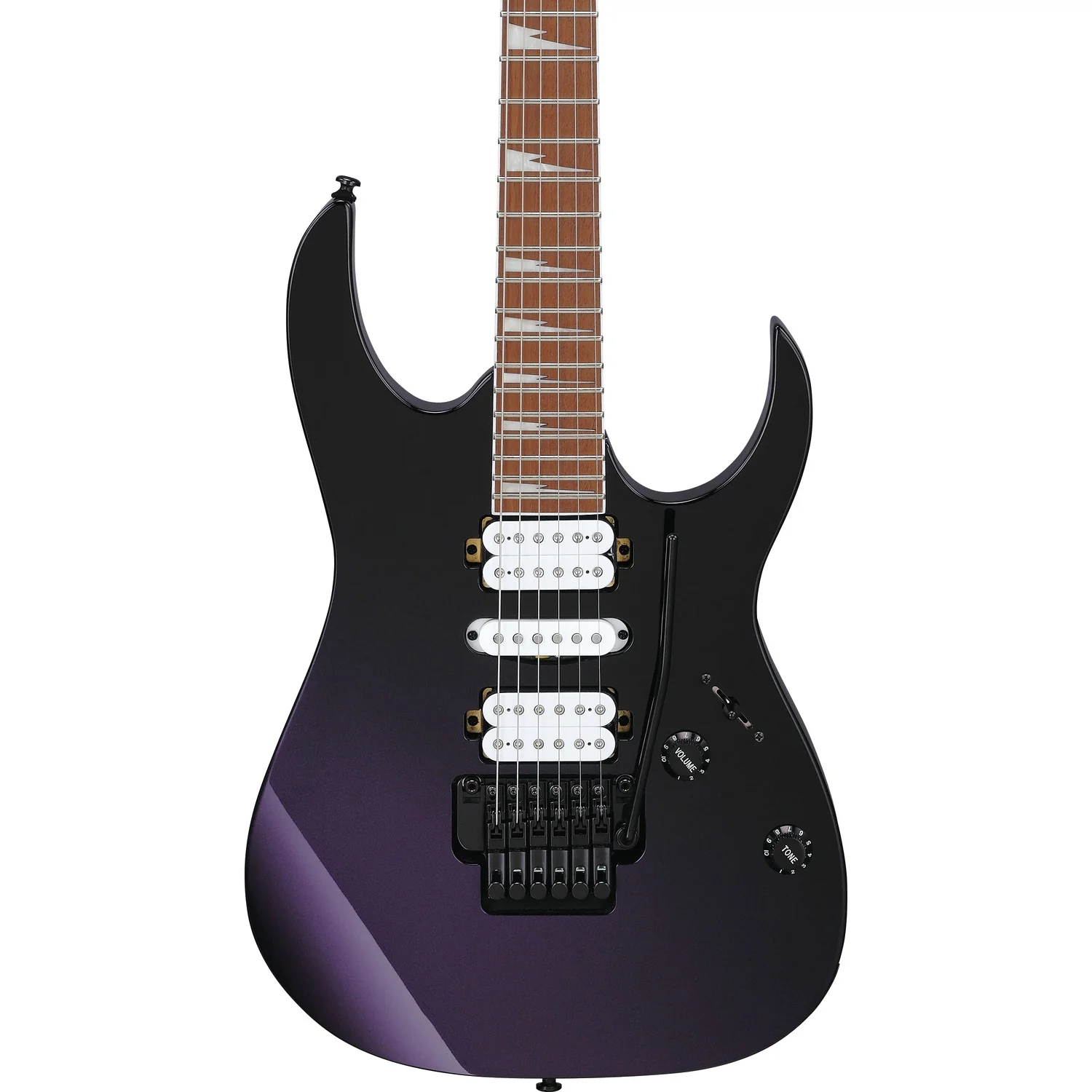

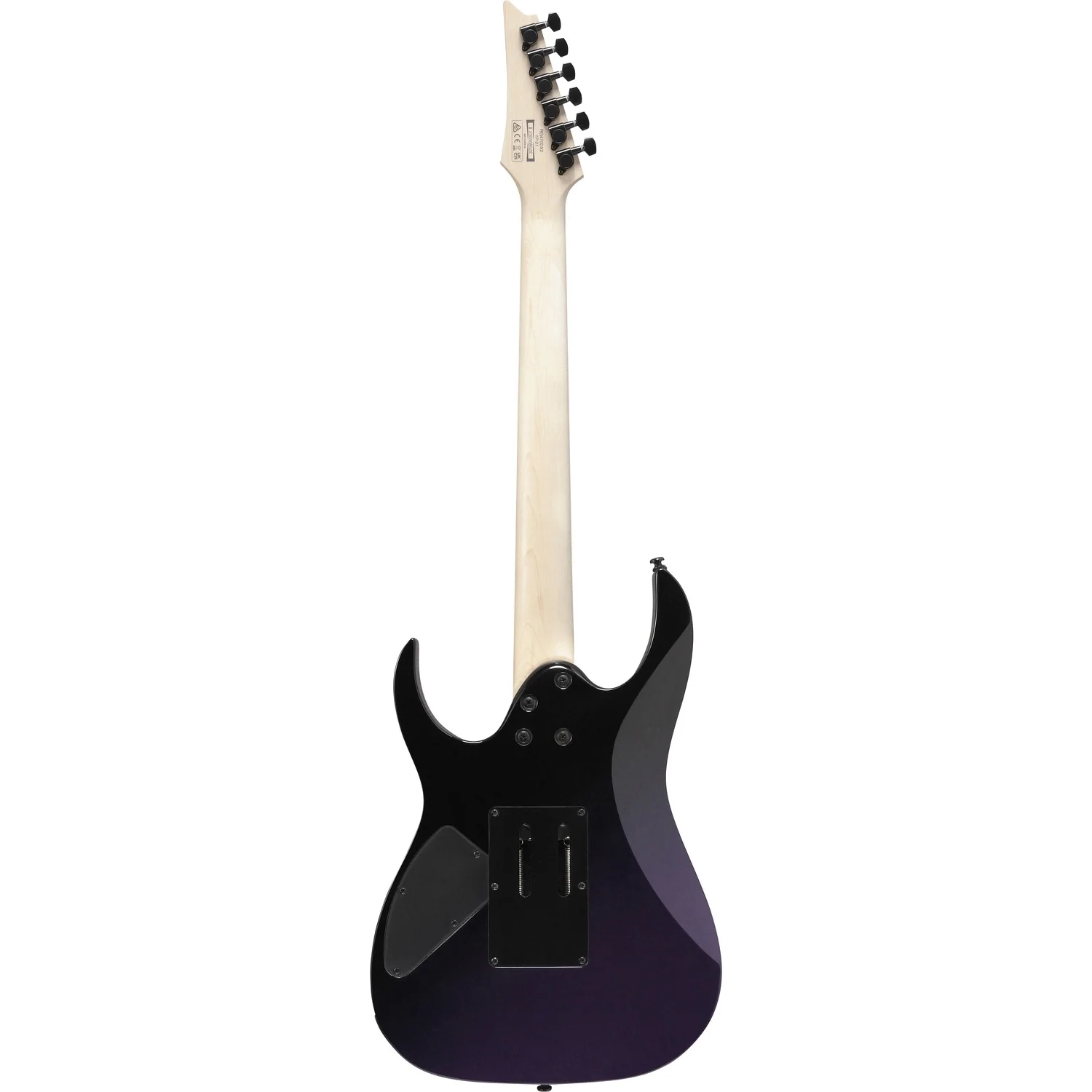

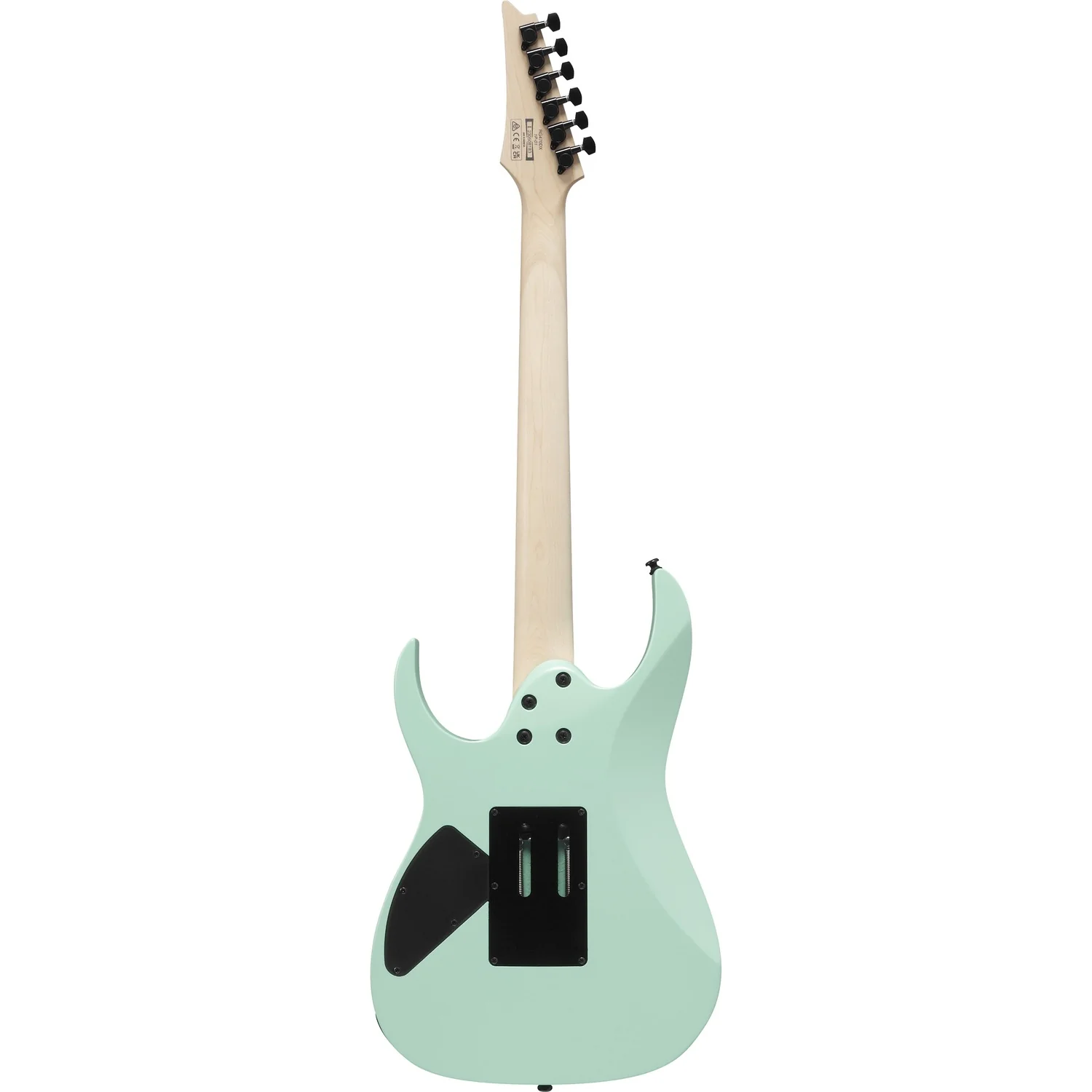

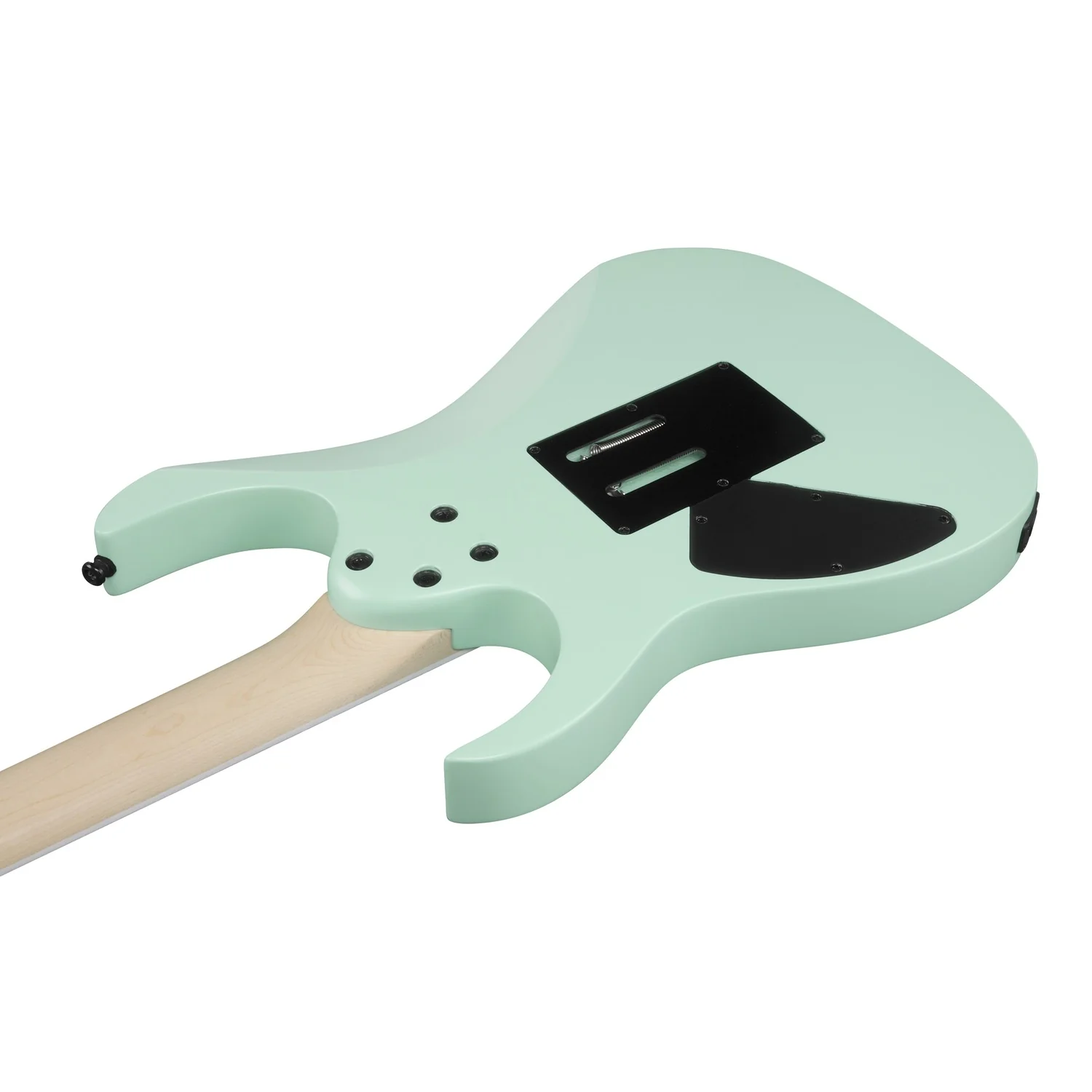

Ibanez RG470DX RG 6 String Electric Guitar Overview:

Jatoba Fretboard
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.

Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.

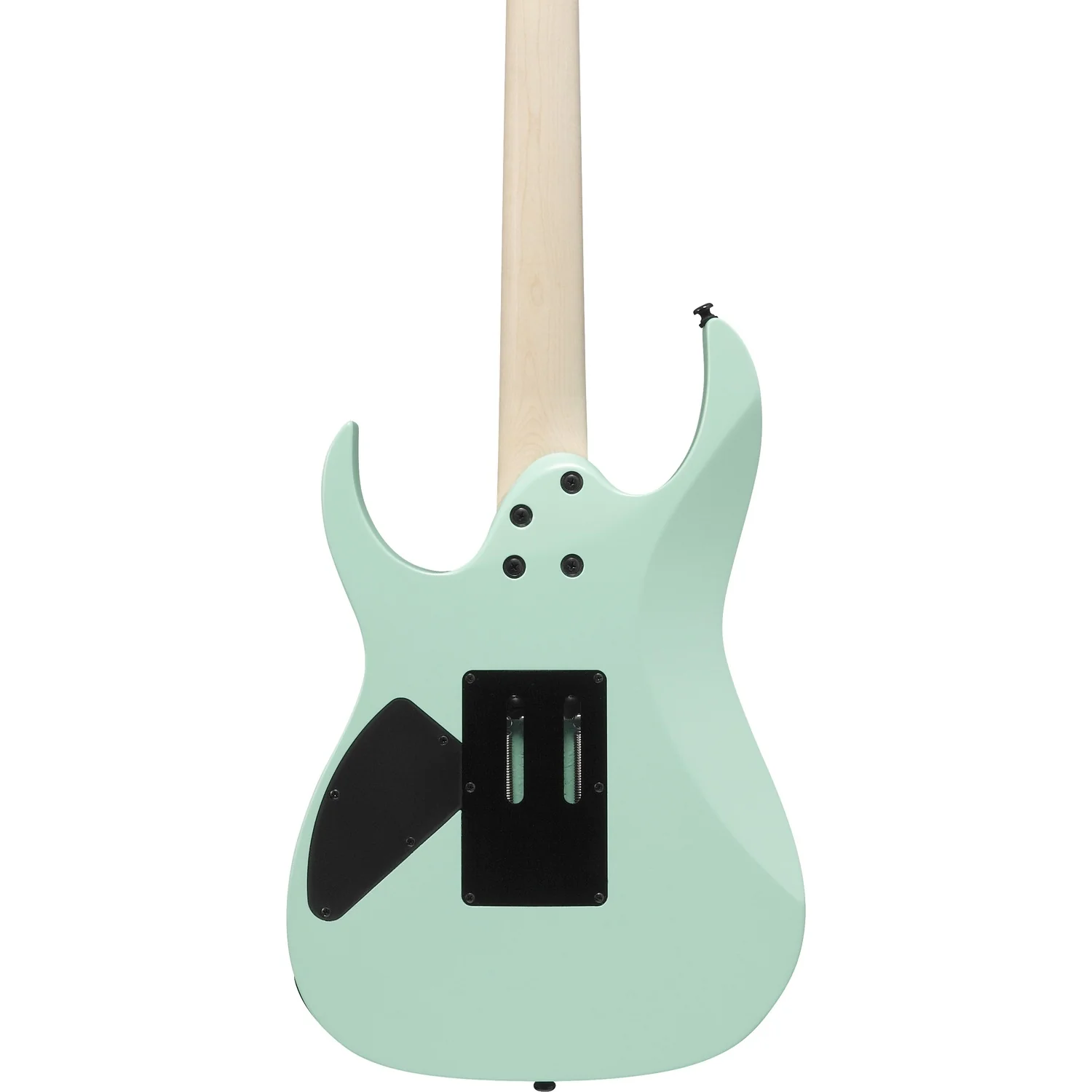

Edge-Zero II tremolo bridge
The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.

Quantum pickups
The Quantum pickups provide accelerated bass response for exceptionally fast tracking of high-speed staccato riffing with crushing mid range and precise high-end articulation.

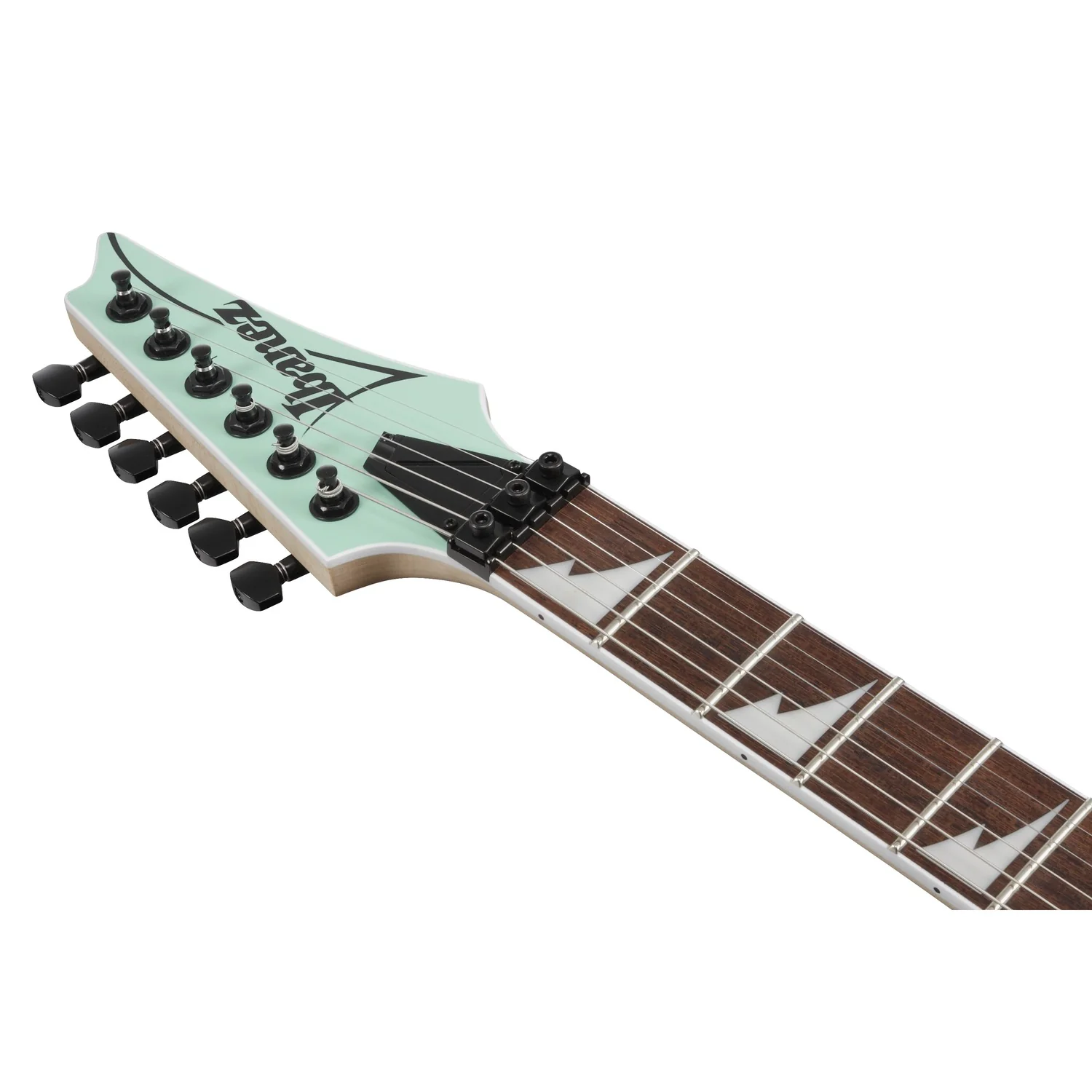

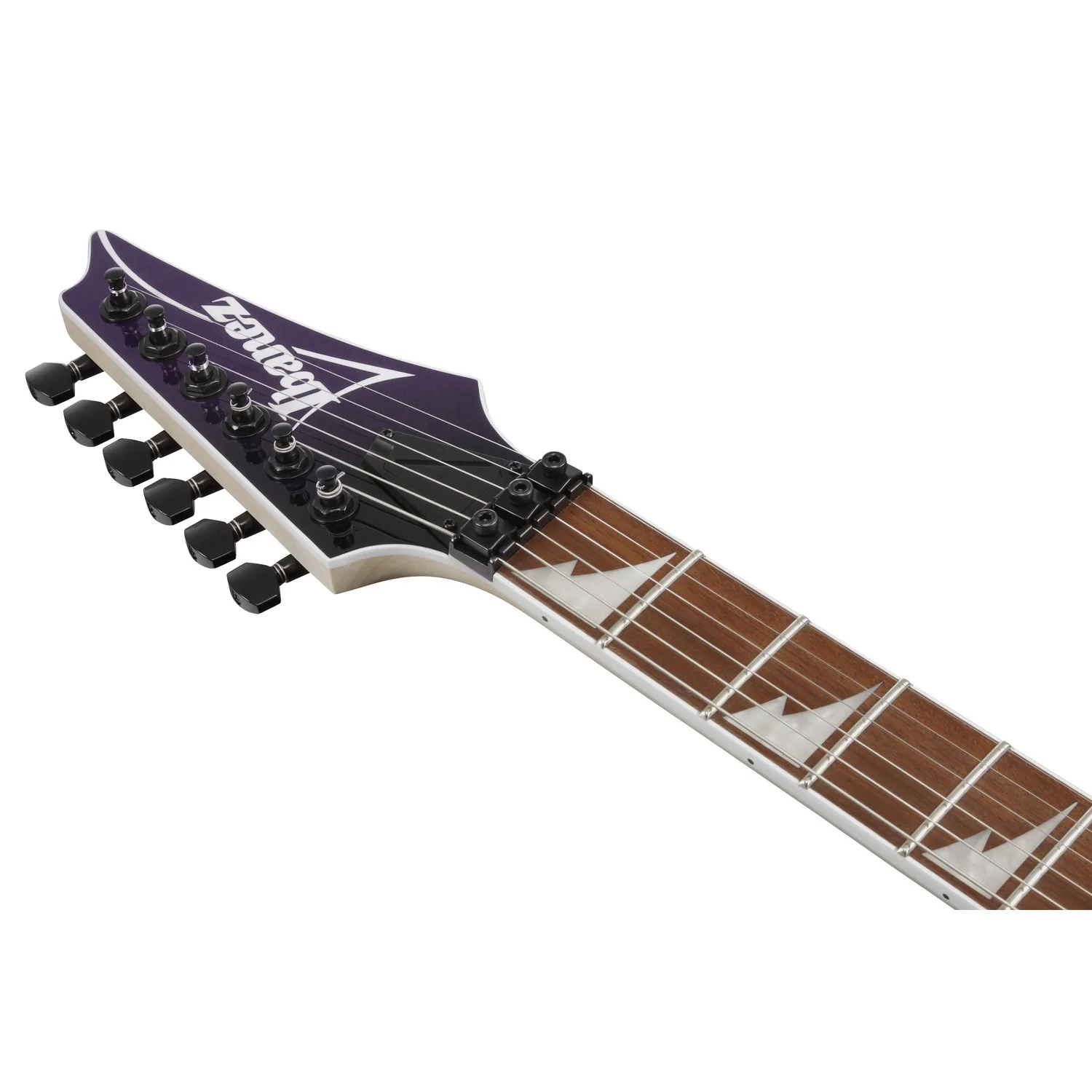

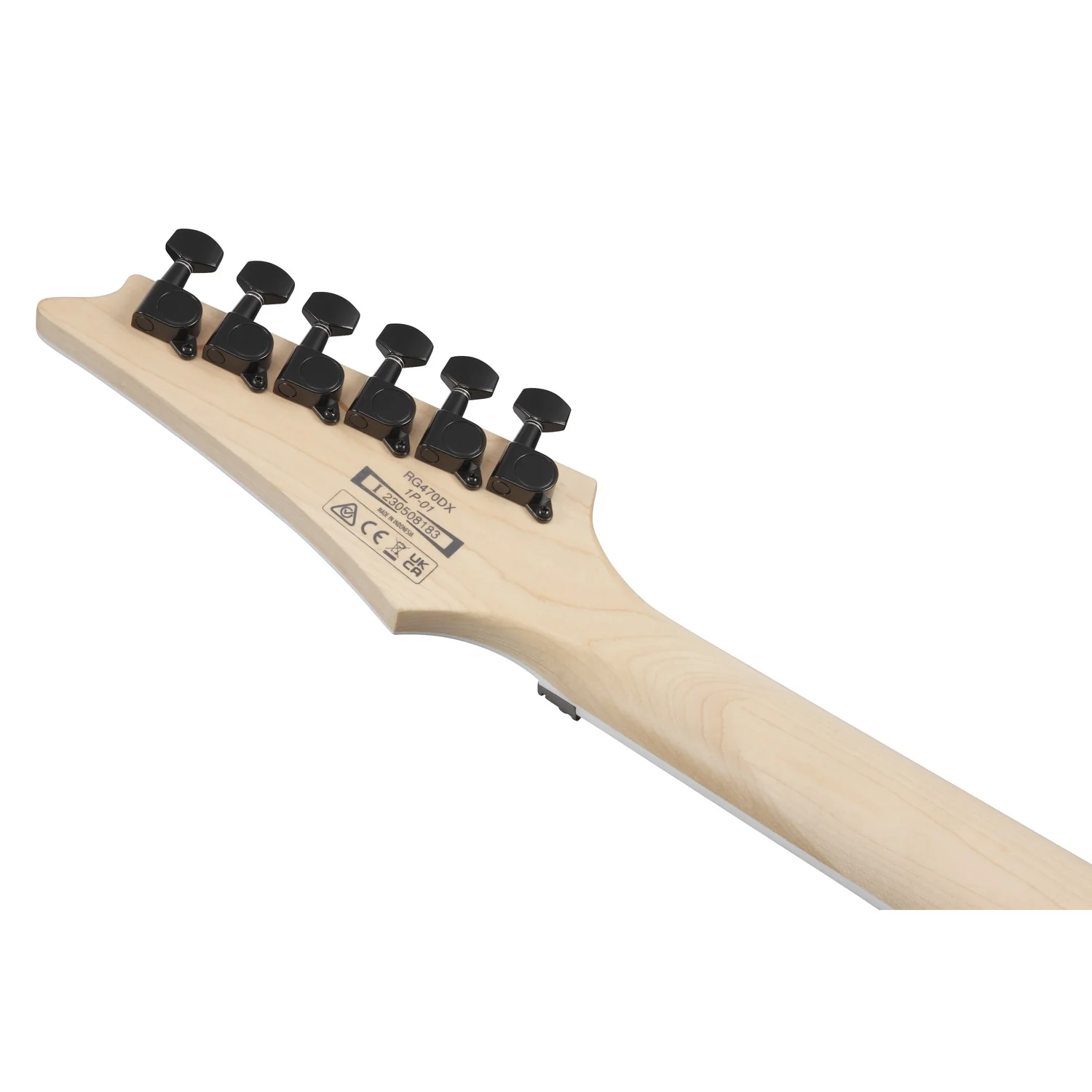

Wizard III Maple neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.

Specifications:

• neck type Wizard IIIMaple neck
• top/back/body Meranti body
• fretboard Jatoba fretboardSharktooth inlay
• fret Jumbo frets
• number of frets 24
• bridge Edge-Zero II bridge
• string space 10.8mm
• neck pickup Quantum (H) neck pickupPassive/Ceramic
• middle pickup Quantum (S) middle pickupPassive/Alnico
• bridge pickup Quantum (H) bridge pickupPassive/Ceramic
• factory tuning 1E,2B,3G,4D,5A,6E
• strings D'Addario® EXL120
• string gauge .009/.011/.016/.024/.032/.042
• nut Locking nut
• hardware color Black

NECK DIMENSIONS

• Scale : 648mm/25.5"
• a : Width 43mm at NUT
• b : Width 58mm at 24F
• c : Thickness 19mm at 1F
• d : Thickness 21mm at 12F
• Radius : 400mmR
