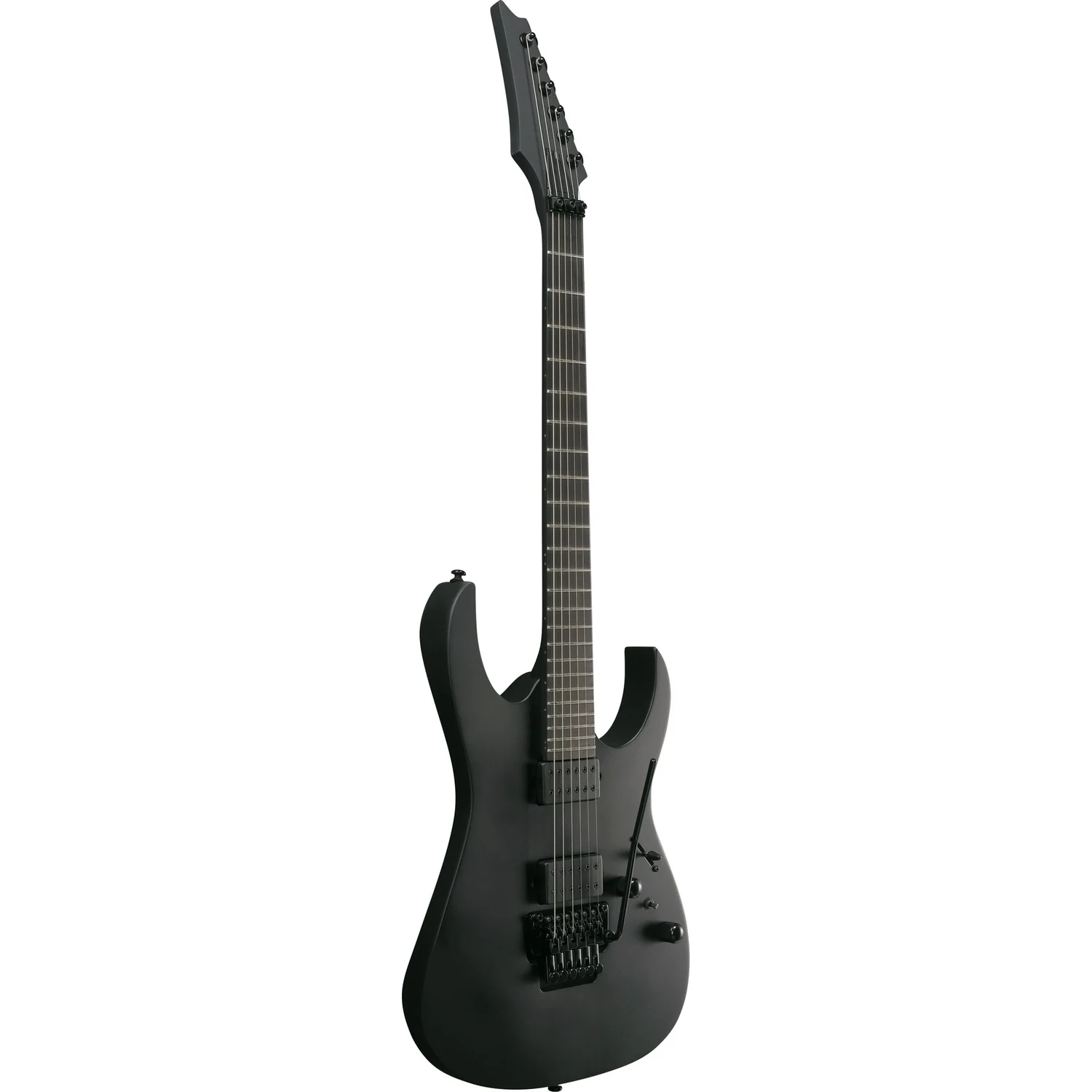

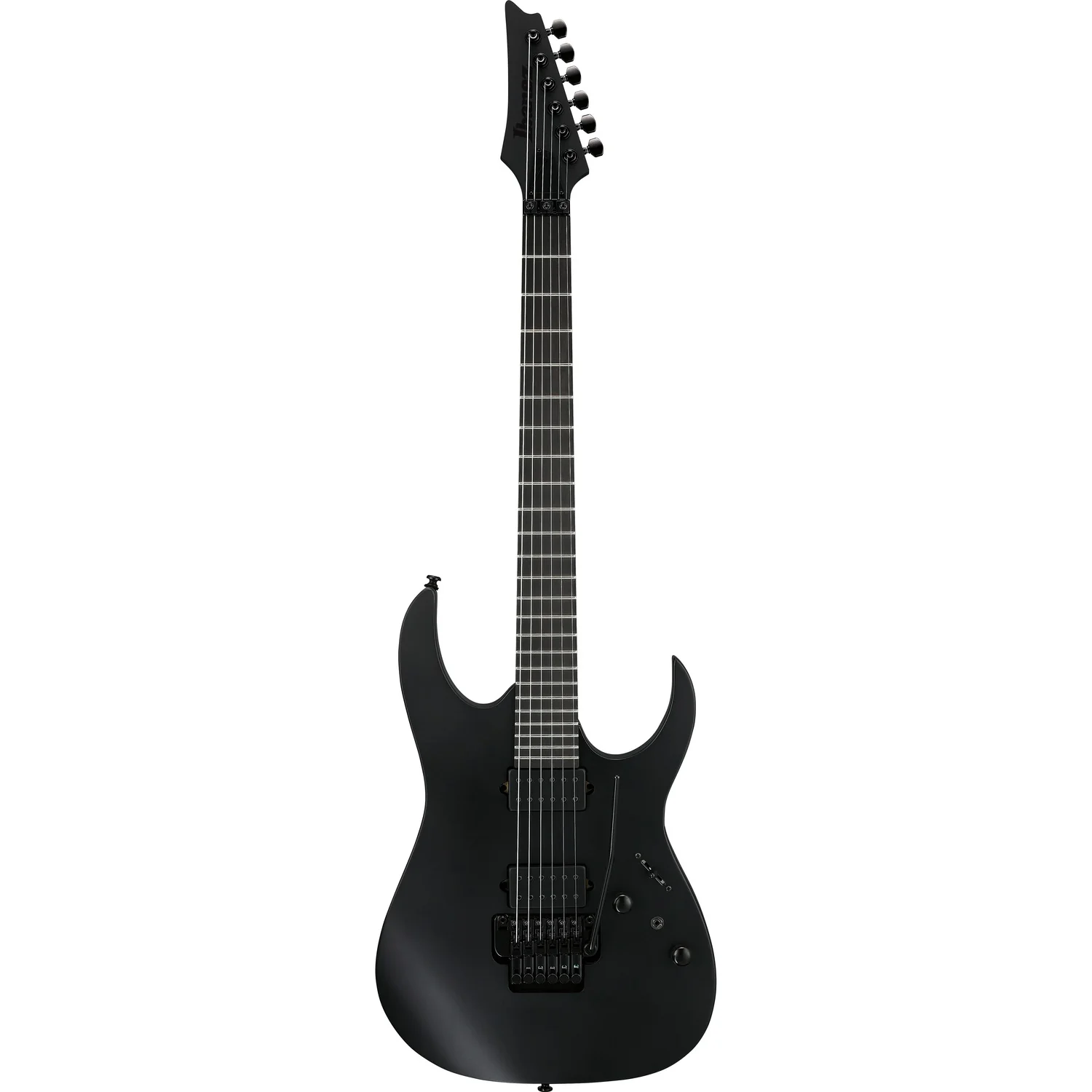

Ibanez RGRB620 RG Series Iron Label 6 String Electric Guitar Overview:

With metal and nothing but metal in mind, we modded and tweaked until we got to the heaviest-hitting metal axes we’ve ever built. For ultimate playability, we took our legendary super-thin, ultra-playable Wizard neck, and upped the ante to a Nitro Wizard – just as fast and comfortable but with added road-tested durability. Whether it's a 6, 7, 8 or 9-string, every Iron Label axe is equipped with American-made EMG or DiMarzio pickups. Purposefully Spartan, you won't find a feature here that doesn't contribute directly to a bone-rattling and skull-crushing tone.

Features:



Wizard III 5pc Maple/Walnut neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.









Jumbo frets
Jumbo frets contribute to smooth playability, especially for single-note playing.











Nyatoh body
Nyatoh used as the body wood provides a rich mid-low end.

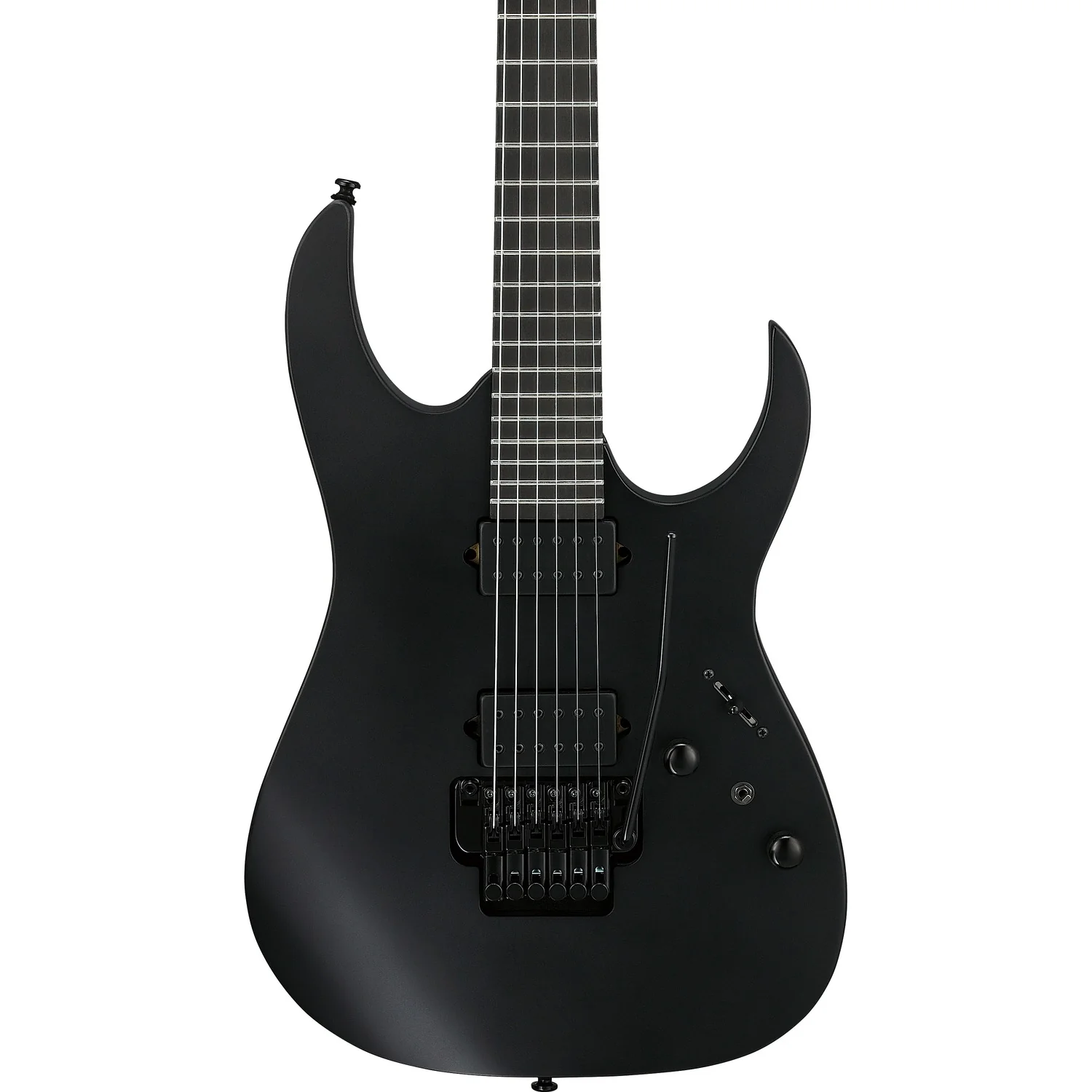

DiMarzio D Activator pickups
DiMarzio D Activator pickups have a powerful, clean, and open sound with excellent harmonic overtones and very tight low-end response.

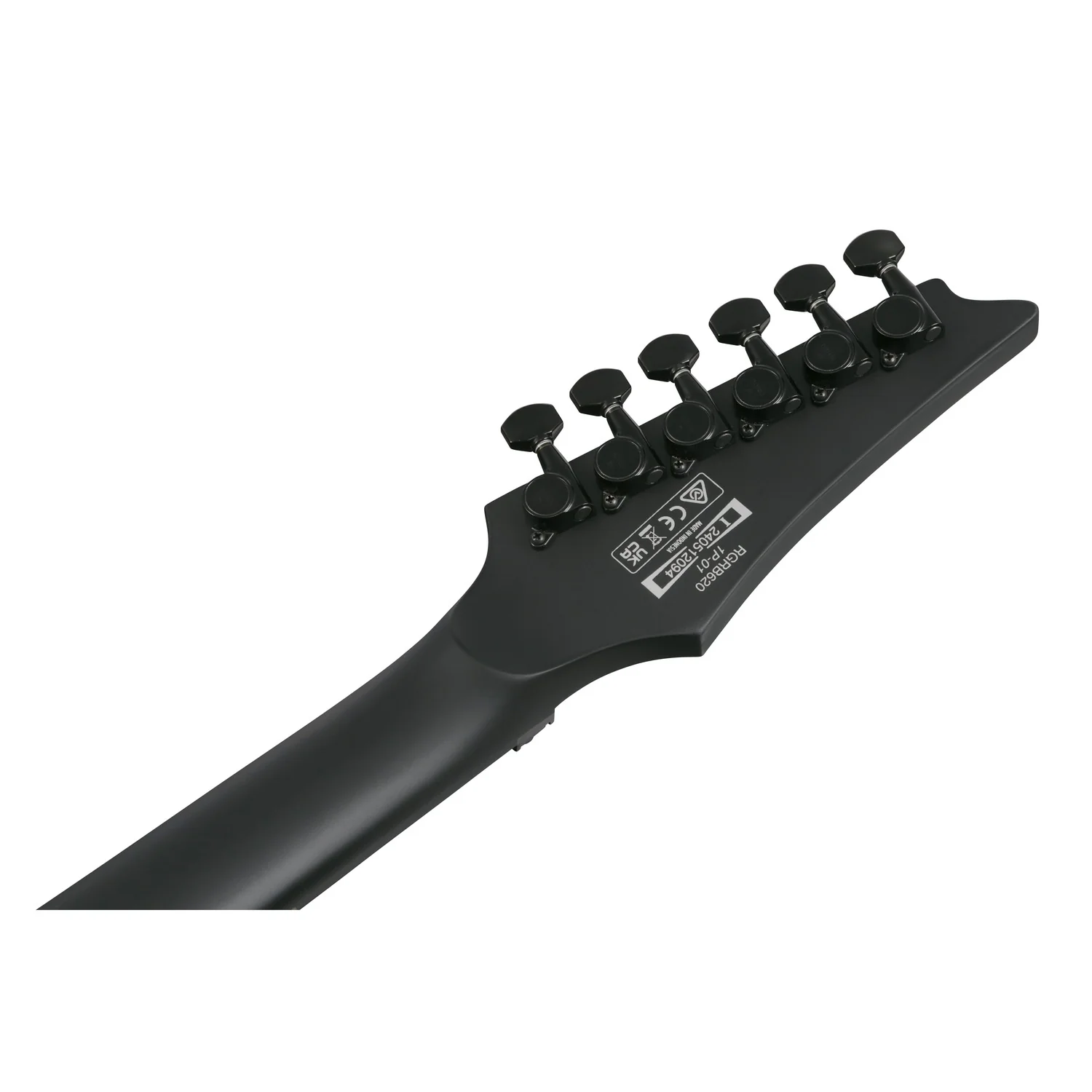

Gotoh machine heads
Gotoh machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

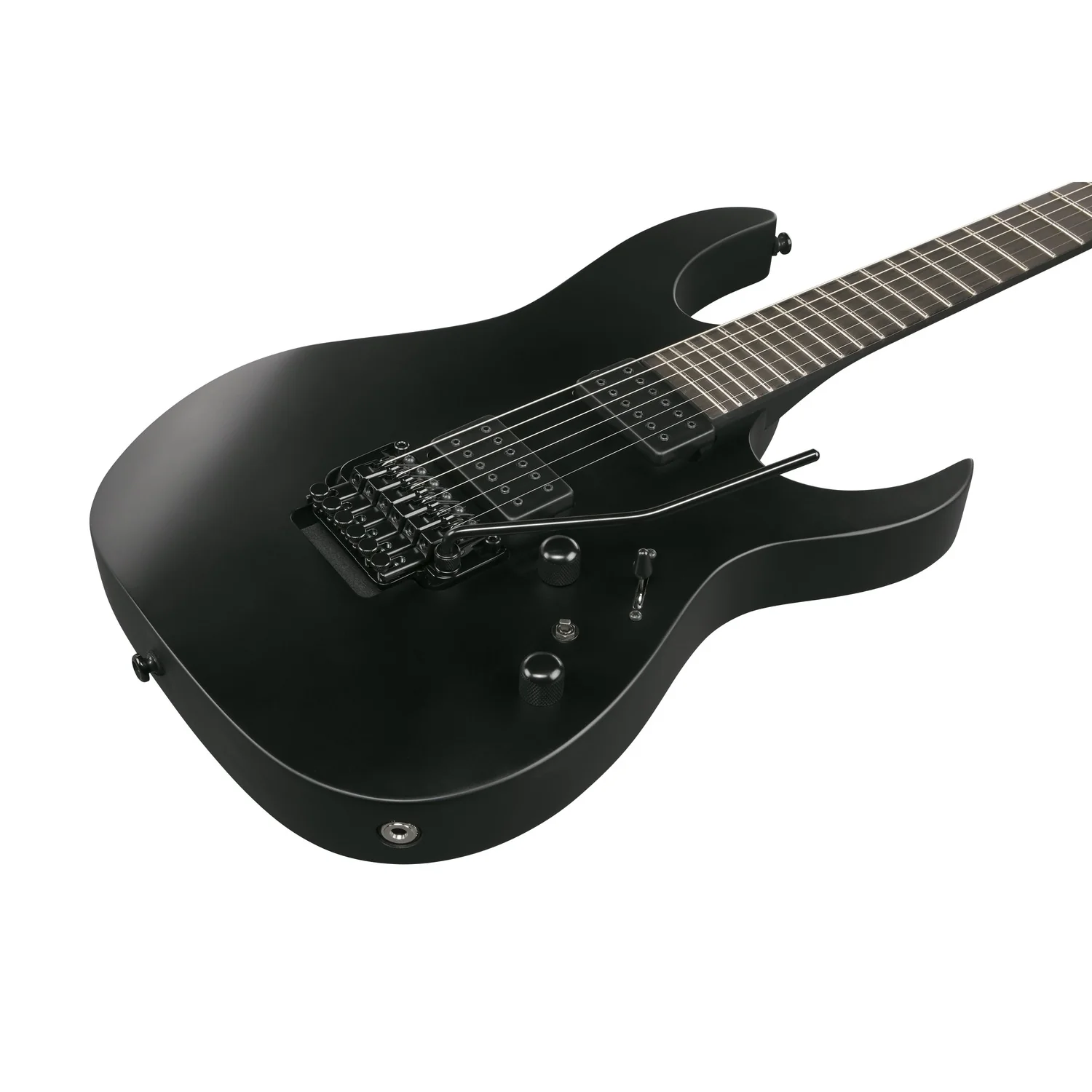

Edge-Zero II tremolo
The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.









dyna-MIX10 switching system with Alter Switch
The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.







Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.









Luminescent side dots
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.





Specifications:

• neck type: Wizard III5pc Maple/Walnut neck

• top/back/body: Nyatoh body

• fretboard: Ebony fretboard

• fret: Jumbo frets

• number of frets: 24

• bridge: Edge-Zero II bridge

• string space: 10.8mm

• neck pickup: DiMarzio D Activator (H) neck pickupPassive/Ceramic

• bridge pickup: DiMarzio D Activator (H) bridge pickupPassive/Ceramic

• factory tuning: 1E,2B,3G,4D,5A,6E

• strings: D'Addario EXL120

• string gauge: .009/.011/.016/.024/.032/.042

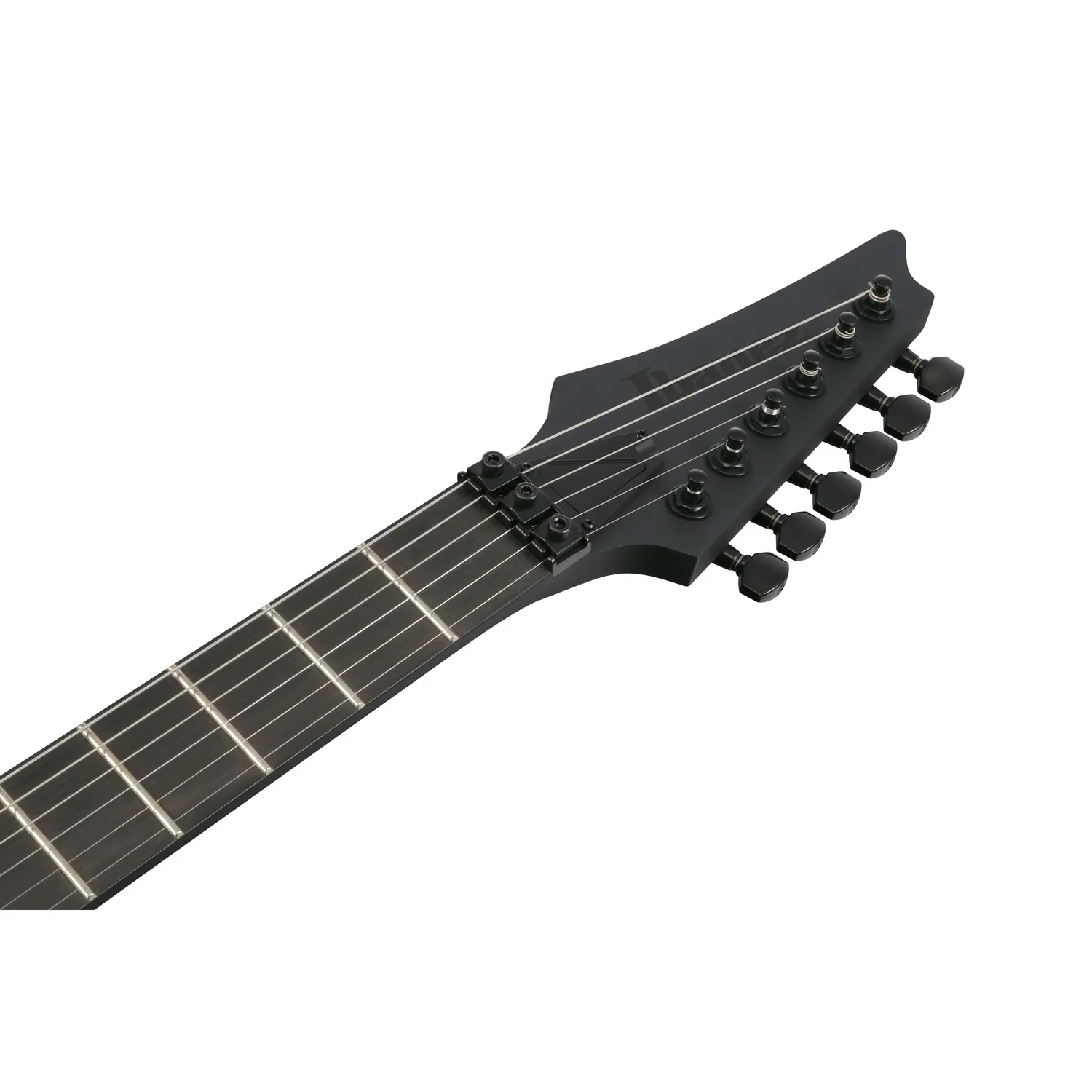

• nut: Locking nut

• hardware color: Black

NECK DIMENSIONS

• Scale : 648mm/25.5"

• a : Width: 43mm at NUT

• b : Width: 58mm at 24F

• c : Thickness: 19mm at 1F

• d : Thickness: 21mm at 12F

• Radius : 400mmR
