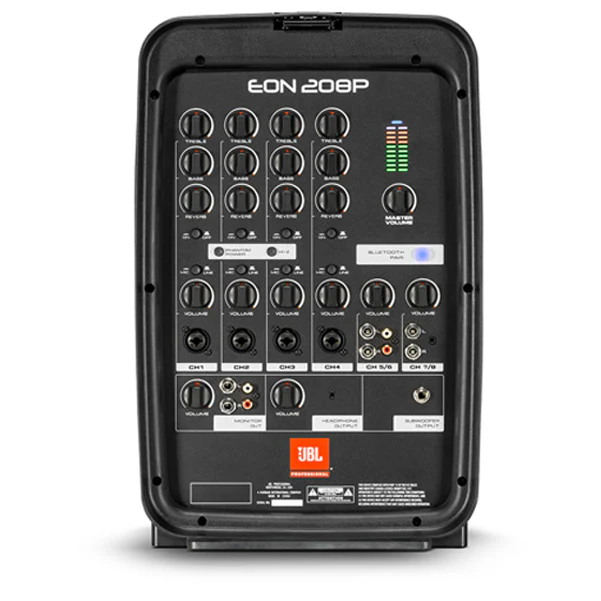

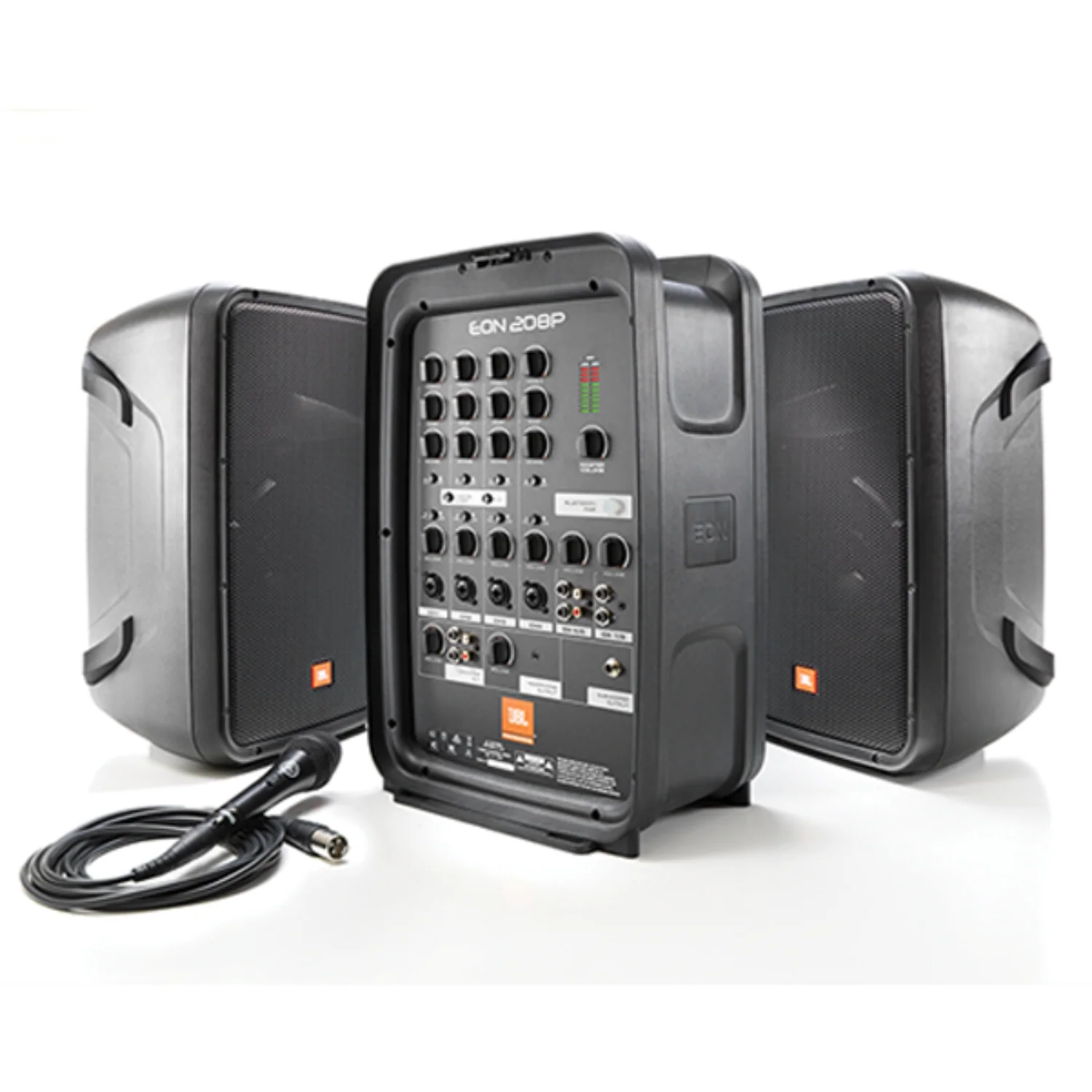

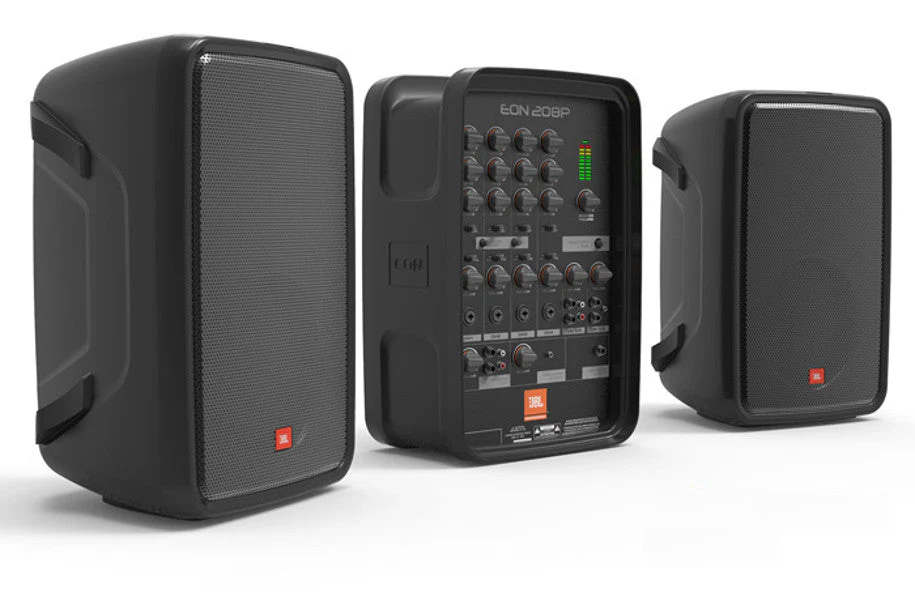

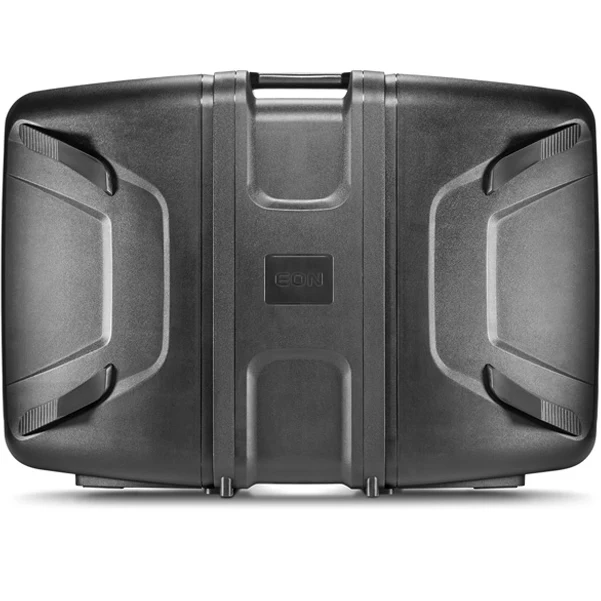

JBL EON208P 8-Channel Portable PA System with Bluetooth
JBL EON208P 8-Channel Portable PA System with Bluetooth

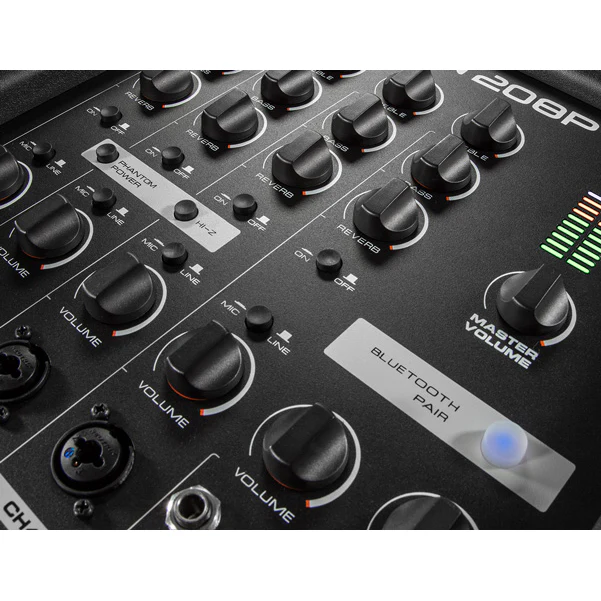

Professional-Grade Mixer

Bluetooth Streaming

Portable Design
JBL EON 208P PA System Specifications :
- Portable 2-way full-range loudspeakers with powered mixer
- Maximum SPL Output : 121 dB peak
- Frequency Range (-10 dB) : 60 Hz - 20 kHz
- Frequency Response (+/-3 dB) : 70 Hz - 18 kHz
- AC Input : 100-120 V, 220-240 V 50/60 Hz
- Amp Design : Class D
- System Power Rating : 300 W (2x 150 W stereo)
- Output Connector : 2 x 1/4" TS (unbalanced) amplifier outputs
- Channels : 1-4: XLR/1/4" jack combo connectors,
- 5-6: one pair of 1/4" balanced TRS jacks (stereo),
- one pair of RCA jacks (stereo)
- 7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack
- Phantom Power : CH1 and CH2 have phantom power control and share the same selection switch
- Hi-Z Selection : CH3 has a Hi-Z selection switch used for guitar signal input
- Mixer Output Connectors : Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo)
- Headphone Out : 3.5mm stereo jack
- Subwoofer Out : 1/4" balanced TRS jack
- Treble/Bass EQ : Per-channel high- and low-shelf filters; +/- 12dB cut and boost
- System Limiter : On-board DSP limiting
- LF Driver : 1x JBL 8" (203mm) woofer
- HF Driver : 1x 1" Neodymuim black aluminum dome tweeter
- Coverage Pattern : 100° horizontal x 60° vertical
- Crossover Frequency : 2 kHz
- Crossover Type : 2-way passive network, 2nd order filters (12dB cutoff per octave)
- Enclosure : Polypropylene
- Suspension/Mounting : 36 mm pole socket
- Handles : One on top
- Speaker Grille : Powder-coated perforated steel
- Shipping Package(HxWxD): 22.6" (575 mm) x 30.5" (775 mm) x 15.7" (400 mm)
- Net Weight : 38.8 lbs (17.6 kg).
Original: $62,499.00
-70%$62,499.00
$18,749.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
JBL EON208P 8-Channel Portable PA System with Bluetooth


Professional-Grade Mixer

Bluetooth Streaming

Portable Design
JBL EON 208P PA System Specifications :
- Portable 2-way full-range loudspeakers with powered mixer
- Maximum SPL Output : 121 dB peak
- Frequency Range (-10 dB) : 60 Hz - 20 kHz
- Frequency Response (+/-3 dB) : 70 Hz - 18 kHz
- AC Input : 100-120 V, 220-240 V 50/60 Hz
- Amp Design : Class D
- System Power Rating : 300 W (2x 150 W stereo)
- Output Connector : 2 x 1/4" TS (unbalanced) amplifier outputs
- Channels : 1-4: XLR/1/4" jack combo connectors,
- 5-6: one pair of 1/4" balanced TRS jacks (stereo),
- one pair of RCA jacks (stereo)
- 7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack
- Phantom Power : CH1 and CH2 have phantom power control and share the same selection switch
- Hi-Z Selection : CH3 has a Hi-Z selection switch used for guitar signal input
- Mixer Output Connectors : Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo)
- Headphone Out : 3.5mm stereo jack
- Subwoofer Out : 1/4" balanced TRS jack
- Treble/Bass EQ : Per-channel high- and low-shelf filters; +/- 12dB cut and boost
- System Limiter : On-board DSP limiting
- LF Driver : 1x JBL 8" (203mm) woofer
- HF Driver : 1x 1" Neodymuim black aluminum dome tweeter
- Coverage Pattern : 100° horizontal x 60° vertical
- Crossover Frequency : 2 kHz
- Crossover Type : 2-way passive network, 2nd order filters (12dB cutoff per octave)
- Enclosure : Polypropylene
- Suspension/Mounting : 36 mm pole socket
- Handles : One on top
- Speaker Grille : Powder-coated perforated steel
- Shipping Package(HxWxD): 22.6" (575 mm) x 30.5" (775 mm) x 15.7" (400 mm)
- Net Weight : 38.8 lbs (17.6 kg).
