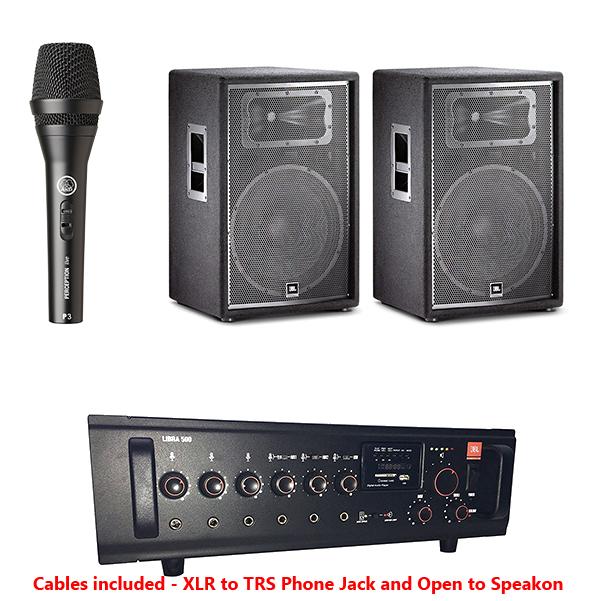

JBL EPS-2 Passive Speakers, 500W Amplifier & Microphone Package Overview:

Package Includes:

• 1 x AKG P3s Dynamic Microphone
• 2 x JRX 215 Passive PA Speaker
• 1 x LIBRA 500 Amplifier

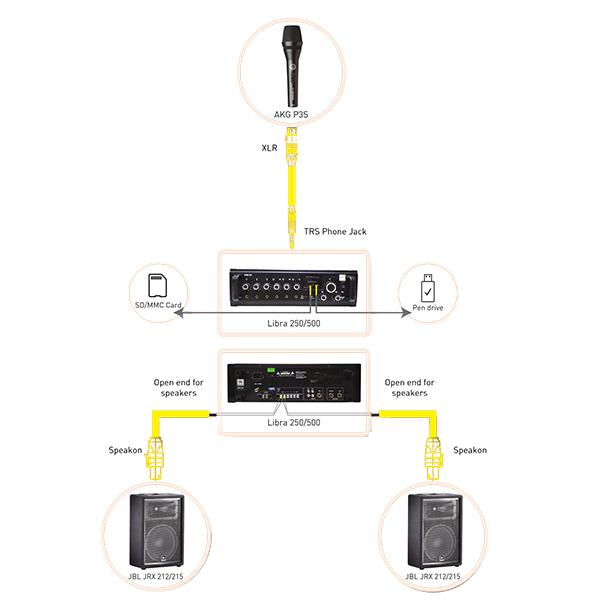

• Cables included - XLR to TRS Phone Jack and Open to Speakon

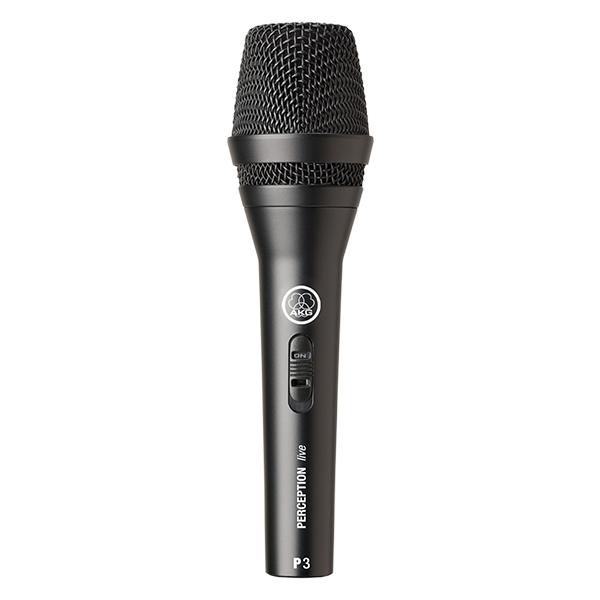

AKG Perception P3S Dynamic Microphone:
A dynamic instrument mic designed to survive the rigors of the road.The AKG P3S microphone is ideal for backing vocals, guitar, wind instruments, and for many other applications. Part of the AKG Perception Live series, the P3S mic has a rugged case and grille that make it able to handle tons of live work without fear of it breaking from common drops.

AKG Perception Live Series
For onstage performances, AKG Perception Live microphones all are equipped with indestructible metal casings, rugged spring steel microphone grilles, appealing and scratch-resistant finishes, high-maximum SPL, and powerful sound for any venue.

Features:
Rugged performance microphone designed for backing vocals and instruments
Rugged wire mesh cap with internal windscreen
Die-cast metal body
Complete with stand adapter and zip bag

Specifications:

• Polar pattern: Cardioid
• Frequency range: 40 to 20,000Hz
• Sensitivity: 2.5mV/Pa
• Max. SPL: 144dB SPL

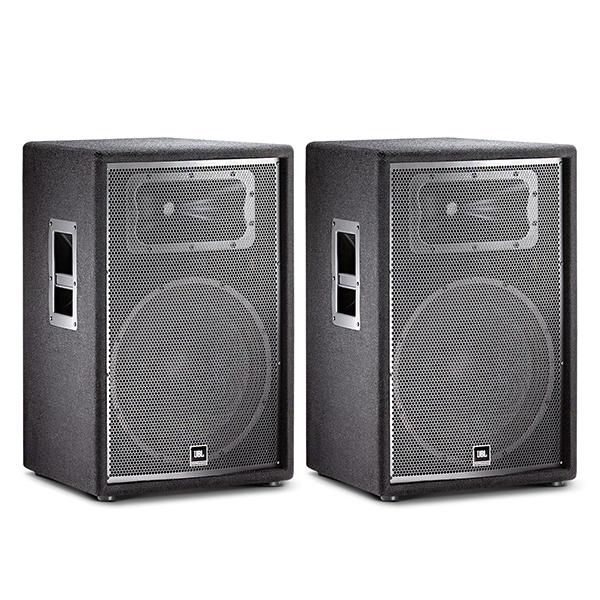

JBL JRX 215 2-way Passive PA Speaker Overview:
This trapezoidal, 15" speaker system is at home in live sound, dance music and speech reinforcement. The JRX200 series delivers the performance and prestige JBL is known for at an affordable price point.

Features:
Greater efficiency and power handling
JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.

JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver
Improves high frequency performance as well as system reliability

Advanced network topology crossover design
Shapes frequency response and delivers "coherent summation" in the crossover region

High-voltage capacitors and inductors
High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.

Progressive Transition high frequency waveguide
Provides superior coverage control, reduced distortion, and smoother frequency response

Rugged, acoustically superior enclosure
The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.

SonicGuard protection
SonicGuard protects the high frequency driver from excess power without interrupting the performance.

Durable design
Non-resonant, all-steel handles are used along with an attractive 18-gauge hexagon perforated steel grille to protect components from damage.

Dual-angle pole-mount socket
Allows the speaker to tilt 10° for more uniform audience coverage.

Specifications:

\nn

n
• General Specifications:
n
• Power Rating: 250 W / 1000W
n
• Frequency Range (-10 dB): 41 Hz - 18 kHz
n
• Frequency Response (±3 dB): 59 Hz - 13 kHz
n
• Sensitivity (@1m): 99 dB SPL (1w/1m)
n
• Nominal Impedance: 8 ohms
n
• Recommended Amplifier Power: 250 W to 500 W into 8 ohms
n
• Maximum SPL: 129 dB
n
• Nominal Dispersion: 90º x 50º
n
• Crossover Frequency: 2.2 kHz
n
• High Frequency DriverJ: BL 2414H-C , 1" exit compression driver mounted on Progressive Transition Waveguide
• Low Frequency Driver: JBL M115-8A
• Input Connectors: Neutrik Speakon NL-4 (x1); .25in TS phone jack (x1); parallel
• Dimensions:
• Height: 27.5 in (699 mm)
• Width: 18.1 in (460 mm)
• Depth: 17 in (432 mm)
• Weight: 60.5 lbs (27.4 kg)

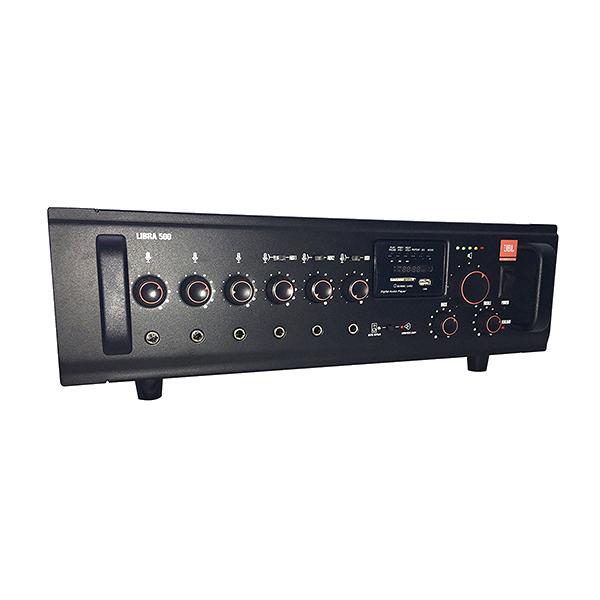

JBL Libra 500 Amplifier Overview:

Features:

• Portable Design
• Overload & low voltage protection
• Desktop design
• Extendable with its preamp/line output
• For various PA applications
• 500W
• 6*Mic, 2*Aux & 1*Line
• USB Slot
• AC & DC Power Supply
• Rated Power (at THD 10% 240 VAC,1kHz,4Ω) : 500 W
• DC Power Supply Output Power : ≥ 50% rated power
• Tone Controls (Bass) : ± 10 dB at 100 Hz
• Tone Controls: 2 x ( ≥ 16 AWG) Cables
• 4Ω/8Ω & 70/100V,Barrier Strip (with touch proof cover)
• Frequency Response : 50-15,000 Hz ± 3dB
• Output Regulation : ≤ 3 dB,no load to full load at 1kHz
• Signal to Noise ratio : ≥ 70 dB
