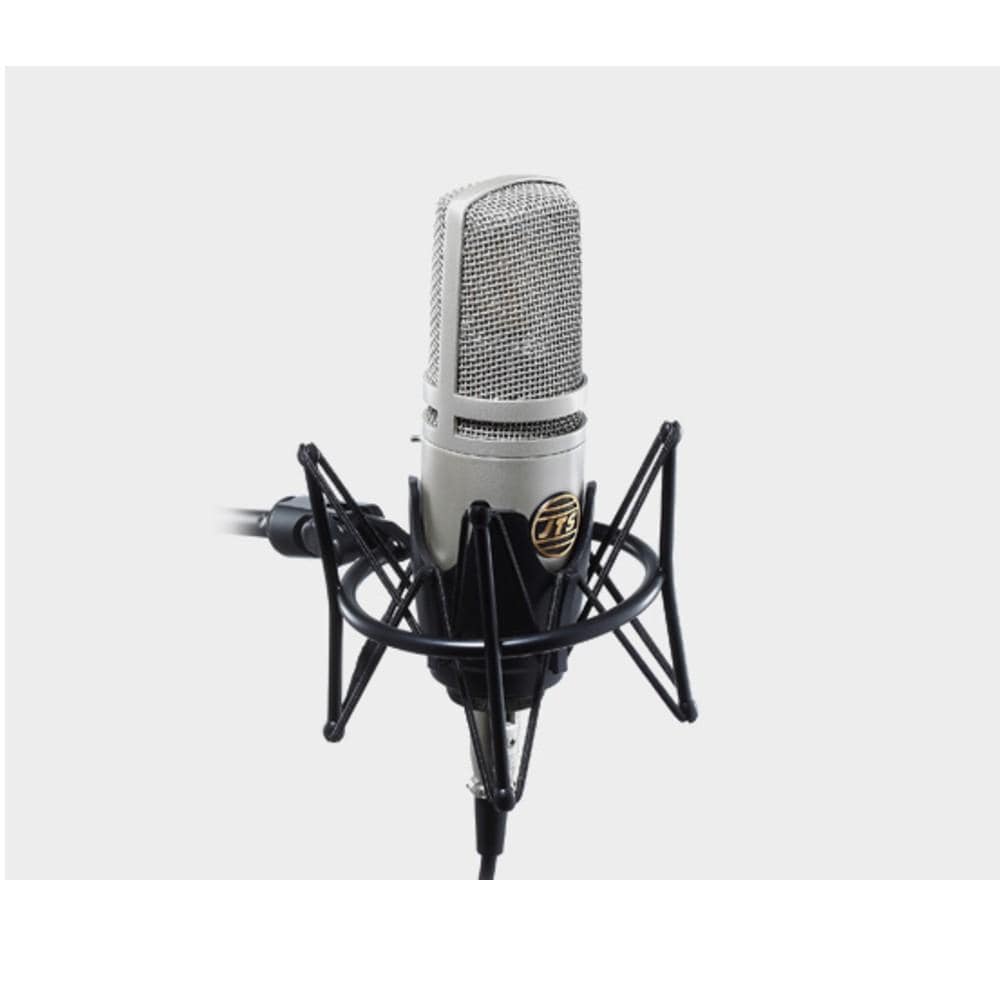

The JTS JS-1 is a studio microphone designed for use in the most demanding applications. A specially contoured 1” super thin 24K gold plated diaphragm provides superb reproduction of high sound pressure level signals at all frequencies. A switchable 10dB pad is built-in to increase the SPL capabilities. It’s precise resolution and ability to handle high sound-pressure levels makes it an excellent all-purpose microphone. Included with the JS-1 a versatile shock-mount with standard 5/8”-27 threads.

Specifications:

• Type: Large Diaphragm Condenser Mic
• Frequency Response: 20~20,000 Hz
• Sensitivity(at 1000Hz): -38 dB* (12.6mV)  0dB=1V /Pa
• Directional Pattern: Cardioid
• Attenuation Switch: 10dB
• Low Frequency Roll-off: 80Hz
• Impedance: 200 Ω
• Max. SPL For 1% T.H.D.: 132 dB
• Signal To Noise Ratio: 78dB
• Power Supply: 36-52 VDC phantom power
• Current Consumption: ≤1mA
• Output: 3Pin XLR (M) (power module)
• Net Weight: 480 grams(16.9oz)
• Dimensions(mm): Ø56mm(W)* 184mm(H)
