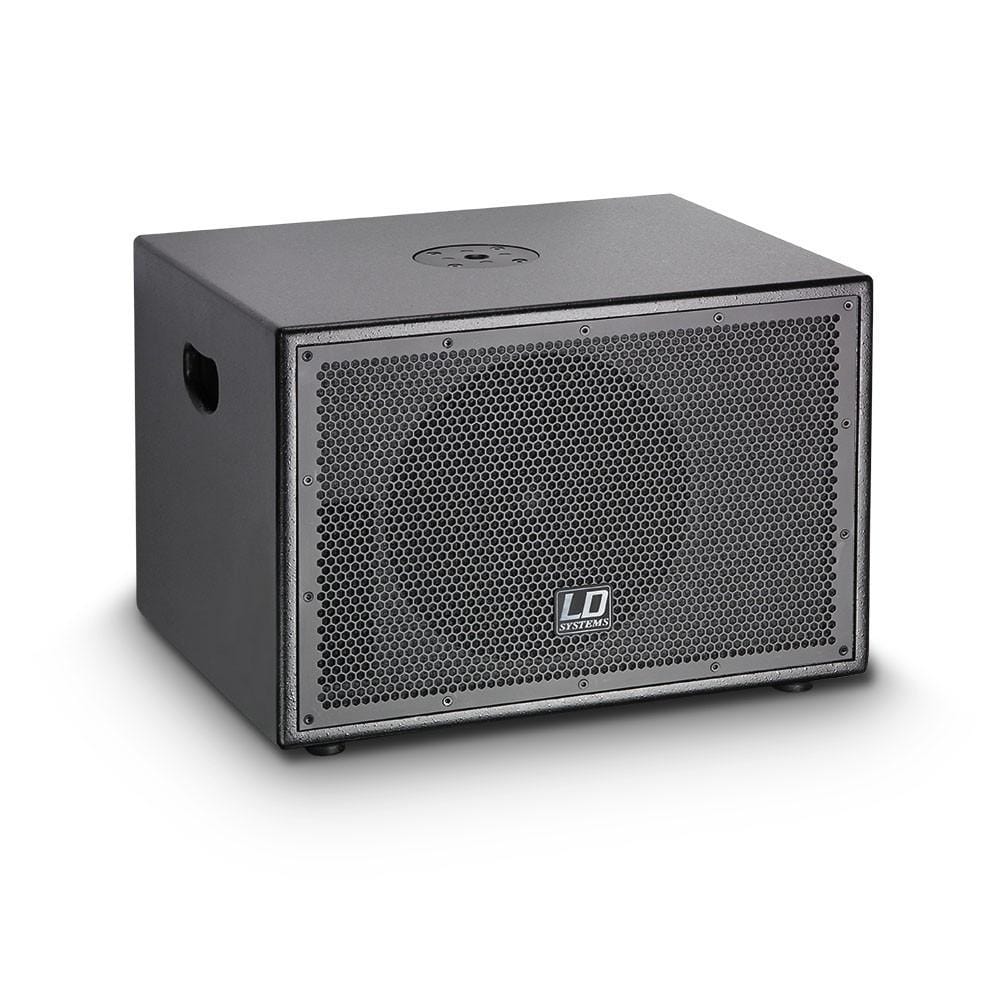

LD Systems LDSUB10A 10" Active Subwoofer Overview:

The LDSUB10A is a very compact and powerful 10" subwoofer and a genuine multitalent that can be used as an additional bass cabinet in conjunction with full-range speakers (Stinger 8" or Stinger 10") and is also suitable for permanent installations.

This subwoofer features an integrated 3-channel power amplifier (3 x 120 W RMS), thus permitting connection of additional passive full-range speakers or installation speakers such as those in the LD SAT series.

Specifications:

• Product type: Subwoofer
• Type: Installation Subwoofer
• Low/mid driver dimensions: 10 "
• Woofer size: 254 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Woofer voice coil; 2 "
• Woofer voice coil (mm): 50.8 mm
• Amplifier: Class A/B
• RMS: 360 (3 x 120) W
• Frequency response: 40 - 120 Hz
• Max. SPL (continuous): 118 dB
• Protection circuits: limiter , over voltage , short circuit
• Input sensitivity: 0.3 V RMS V

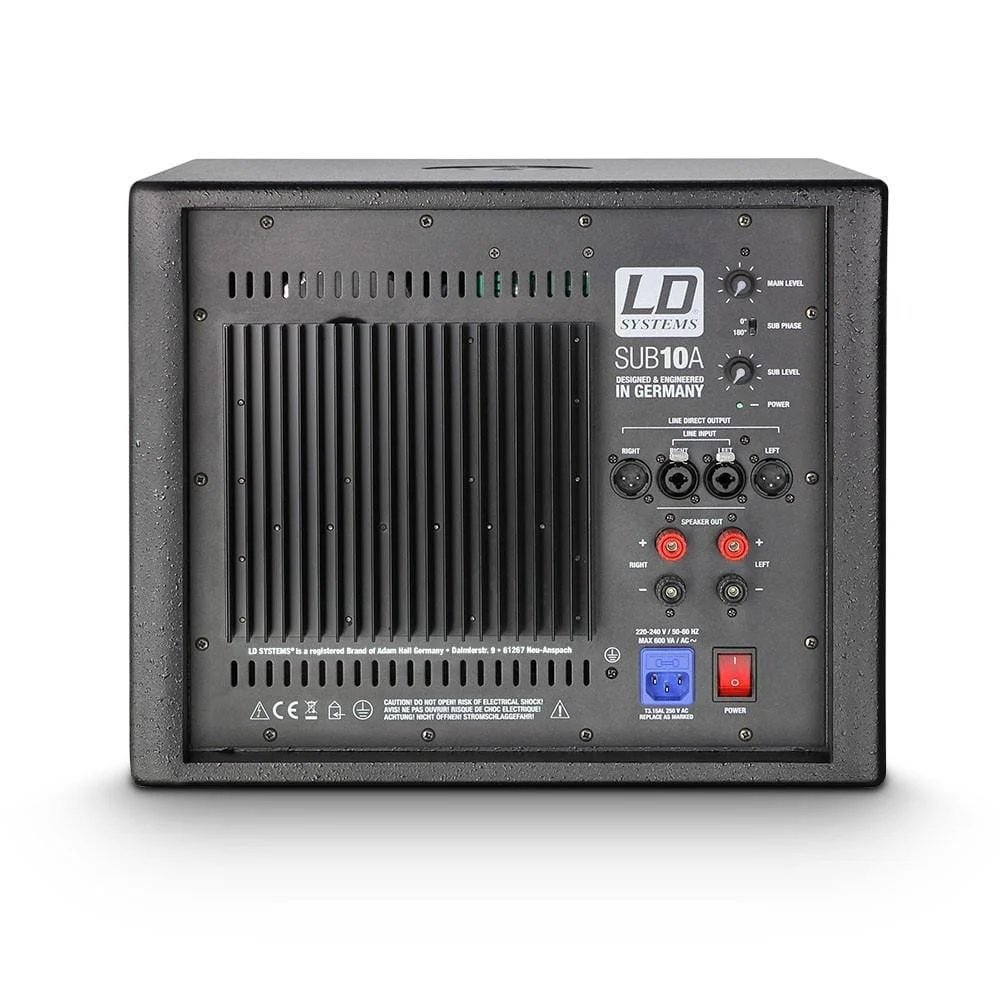

• Controls: mains switch (on/off) , Subwoofer Phase Reverse , Subwoofer Volume , volume
• Indicators: Power
• Line inputs: 2
• Line input connectors: 6.3 mm jack , XLR
• Line outputs: 2 x direct output
• Line output connectors: XLR
• Loudspeaker outputs: 2
• Speaker output connections: Terminal posts
• Operating voltage: transformer
• Operating voltage: 220 V AC - 240 V AC
• Cabinet material: 15 mm MDF
• Cabinet surface: texture paint
• Cabinet construction: Bass Reflex
• Width: 505 mm
• Height: 345 mm
• Depth: 425 mm
• Weight: 21 kg

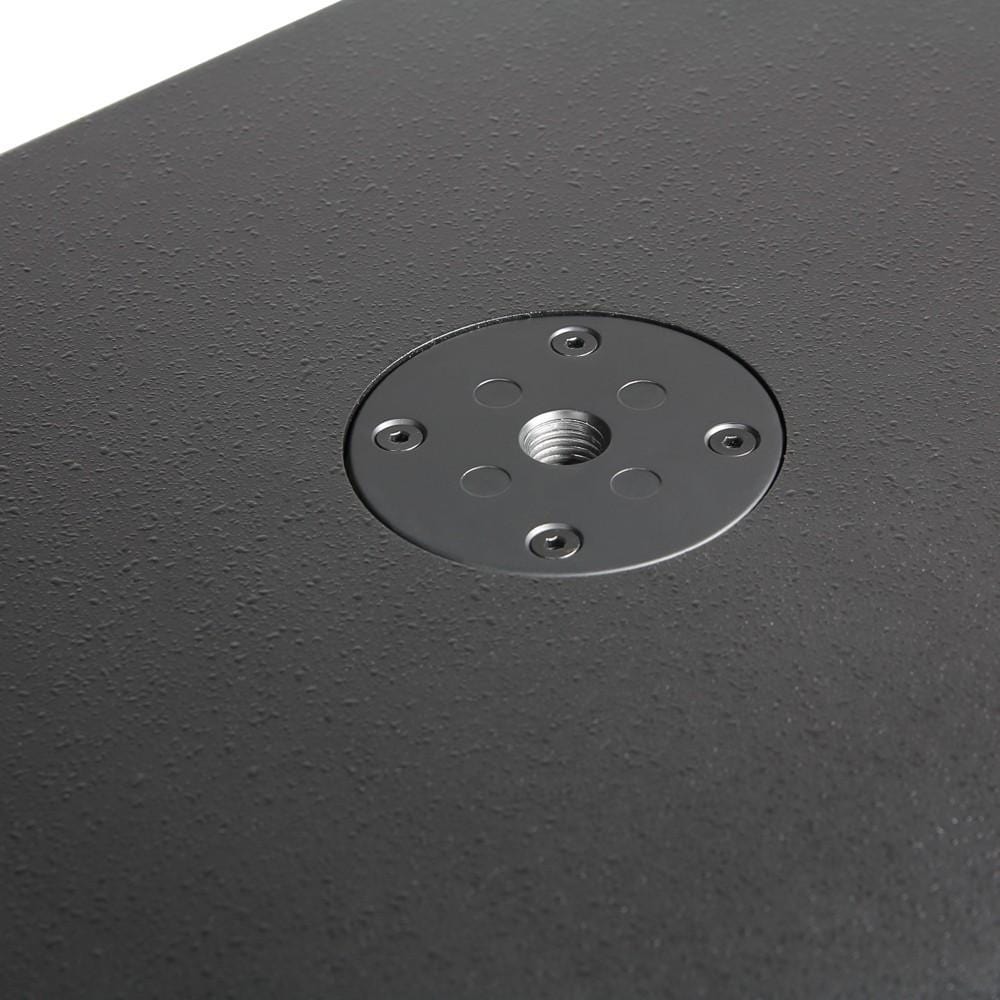

• Features: ergonomically shaped insert handles , Threaded flange M20

Made in China
