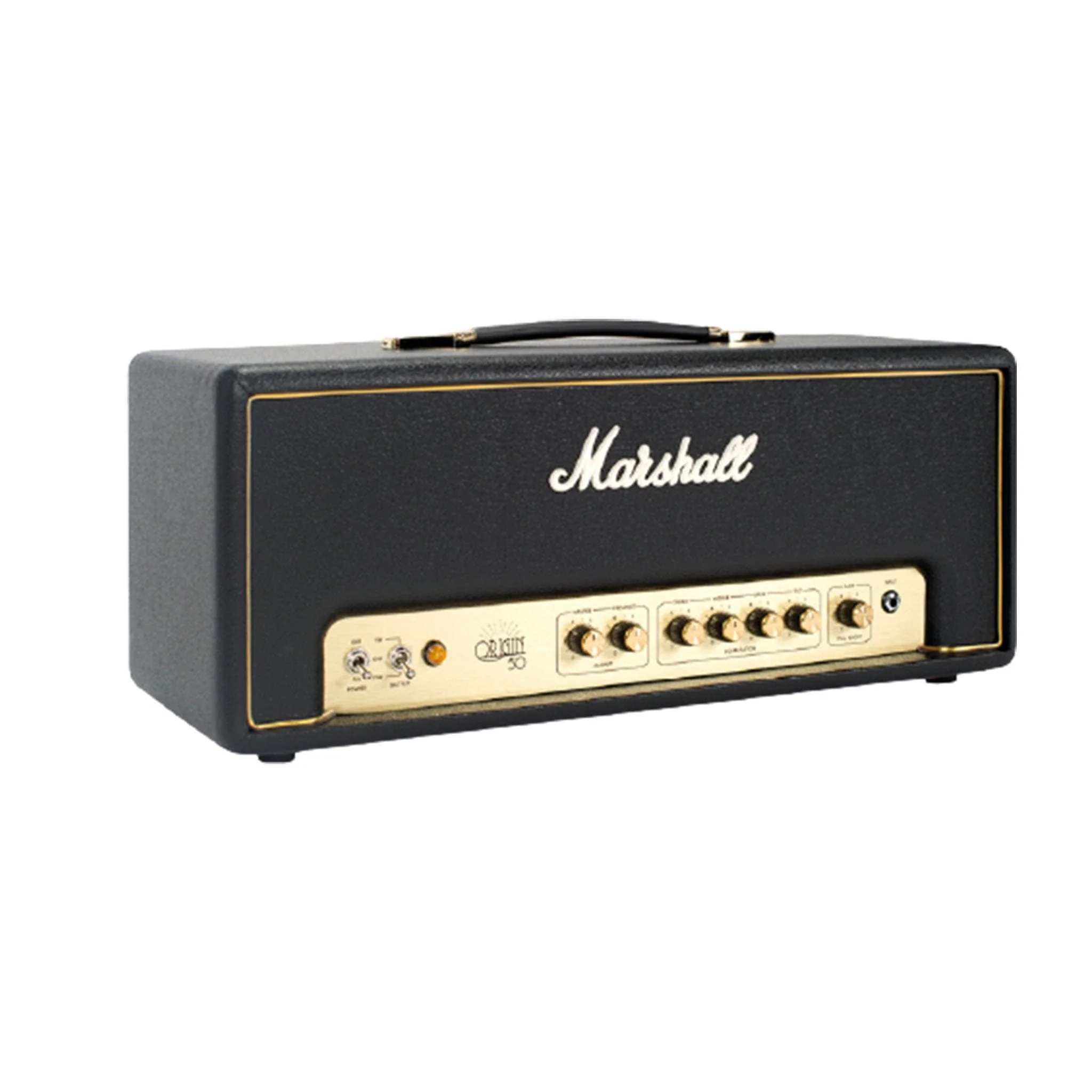

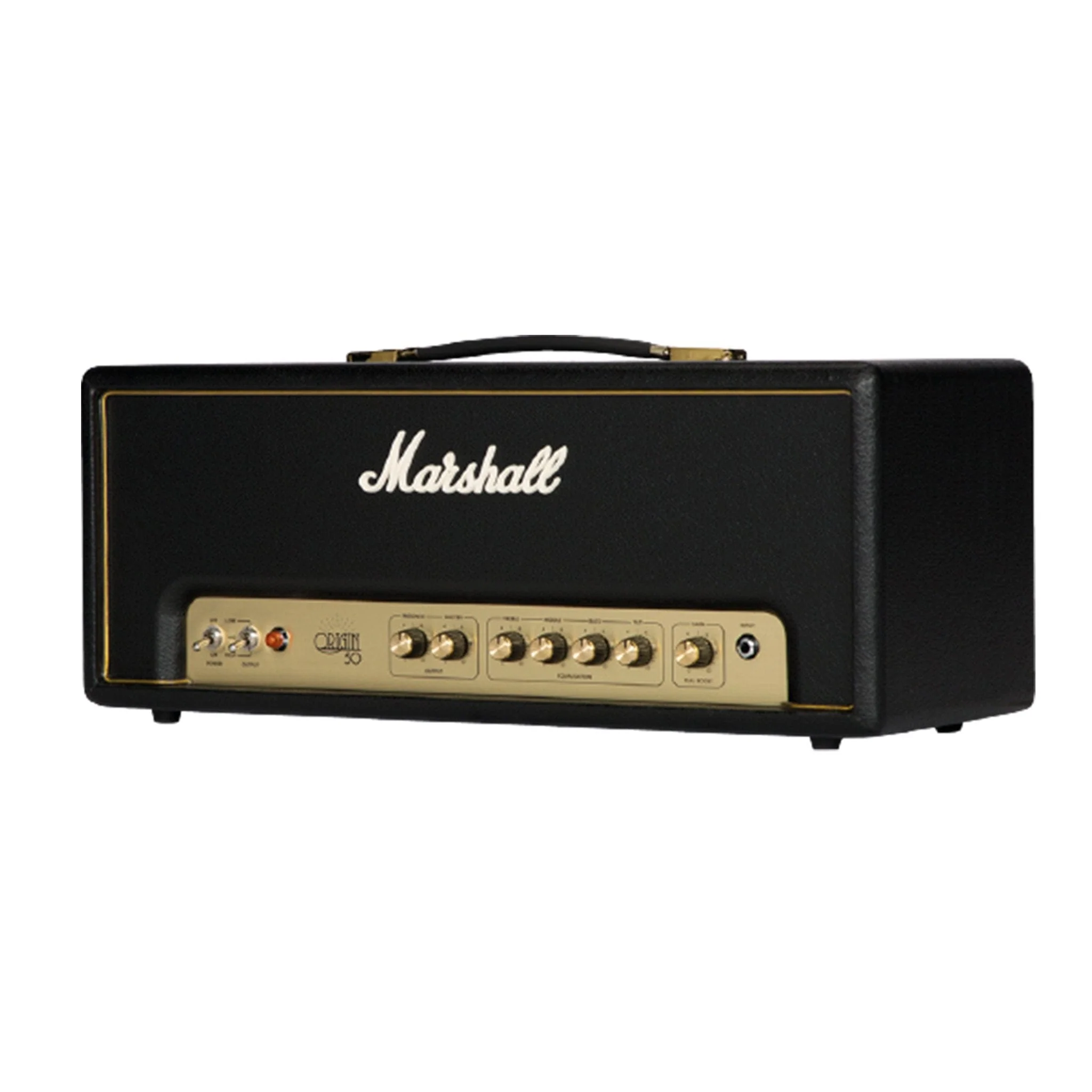

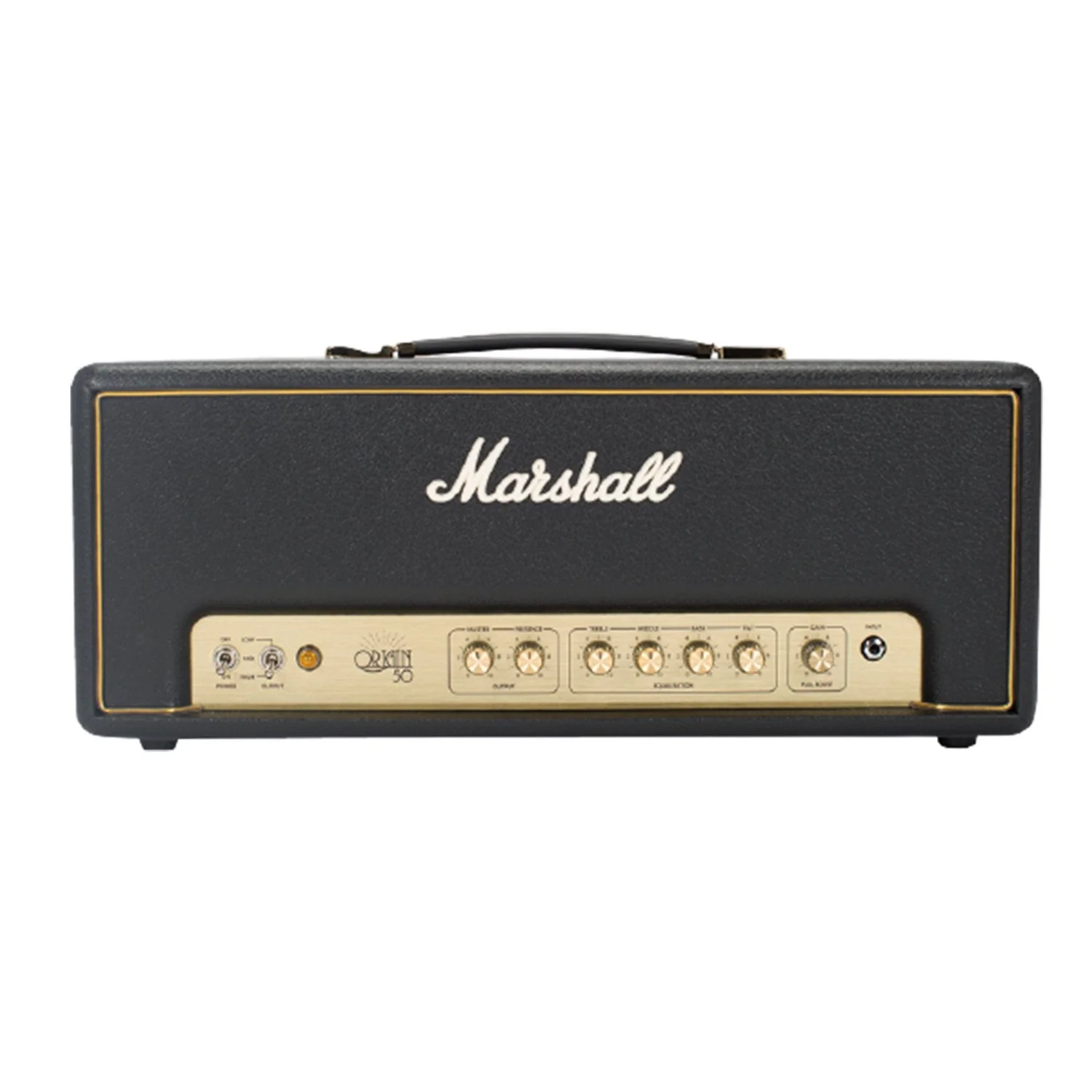

Marshall ORI50H ORIGIN 50w Valve Guitar Amplifier Head Overview:



This 50W head enables you to express your personality. The Origin50HTM delivers classic, rich and harmonic tones with a contemporary, sleek style. This all-valve amp has power reducing features making it ideal for different environments from performing on stage to recording in the studio. With a 2-way footswitch available you can turn the gain boost and the FX loop on and off.

KEY FEATURES
YOU HAVE THE POWER
To suit your playing environment, from the bedroom to the studio we have introduced new power reducing technology, PowerstemTM that allows you to have high, medium or low power modes.

ADD A LITTLE BOOST
The footswitchable gain boost feature allows you to develop your sound by adding an extra level of gain to deliver crunch to your tone.

TILT YOUR SOUND
With one channel, this amp still offers two voices, normal and high treble. By using the tilt control you can blend your sound between these two voices to access the one you prefer.

UNDERSTANDING YOUR ORIGIN
There are lots of features on the Origin so we've made some videos to help you better understand how the Origin can help shape your sound.

TECHNICAL SPECIFICATION
GENERAL

• Model: Origin50H
• Range: Origin
• Technology: Valve
• Channels: 1

ELECTRONICS

• Output wattage: High power 50W, mid power approx 10W and low power approx 5W

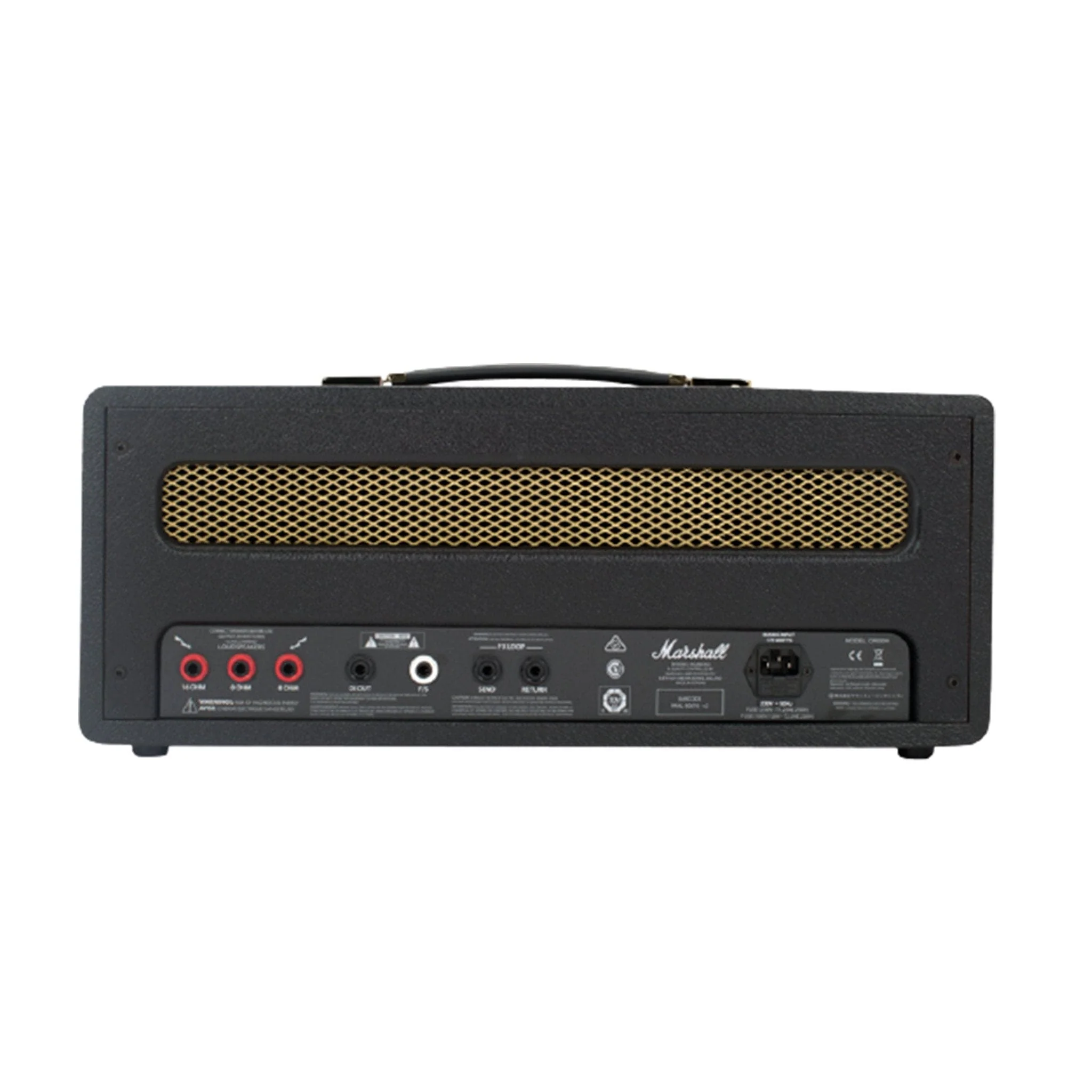

• Outputs: Speaker outputs: 3 x 1/4" jack sockets (16Ω load / 8Ω load), DI out (1/4" jack)
• Inputs: 1 x 1/4" jack instrument input, footswitch
• Controls: Gain, boost, tilt, bass, middle, treble, master, presence, powerstem
• Effects: None
• Effects loop: Yes, Series, Send/Return

VALVES

• Preamp valves: 3 x ECC83
• Power amp valves: 2 x EL34

ACCESSORIES

• Footswitch: PEDL-90016 included
• Cable: Detachable power cable included

DIMENSIONS (INCLUDING FEET AND HANDLE)

• Weight: 11.8 kg / 26 lbs
• Width: 577 mm / 22.7"
• Height: 228 mm / 9"
• Depth: 225 mm / 8.9"

Made in Vietnam
