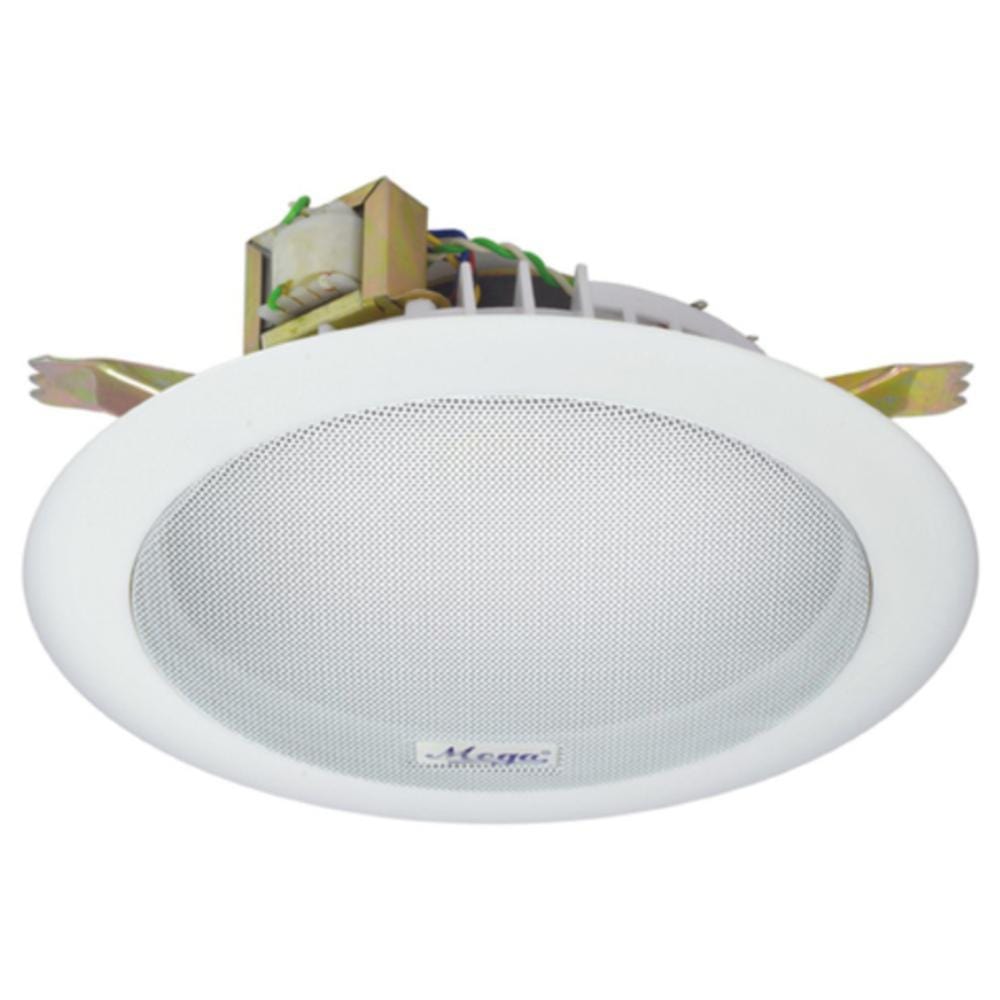

Mega CS1040T PA Ceiling Speakers Overview:

Features:

• Flush mount 15cm dynamic cone speaker.
• Easy to install with spring catch mount.
• Connectors with screw for hooking up the wires tightly.
• 100V power taps.
• Protective dust cover at rear.
• A circular template for marking a hole is accompanied with the speaker.
• A 100 V line matching transformer is mounted behind the front panel assembly and the molded plastic panel is mounted on the metal frame.
• Three wires on the line matching transformer provides selection of nominal full power, half power or quarter power radiation.
• Installation is quick and easy as the units have two built in spring loaded locking clamps that secure them into holes in the ceiling.
• The white color of the grille has been selected to be obtrusive in virtually all interiors.

Technical Specifications:

• Watts - 10 W
• Impedance - 100 V LINE
• Tappings - 1.5W 3W 6W
• Dynamic Cone Speaker - 1 X 6"
• Freq. Response - 60-15000 Hz
• Spl @ (1w/1m) - 92 dB
• Weight Kg. (approx.) - 0.700

Made in India
