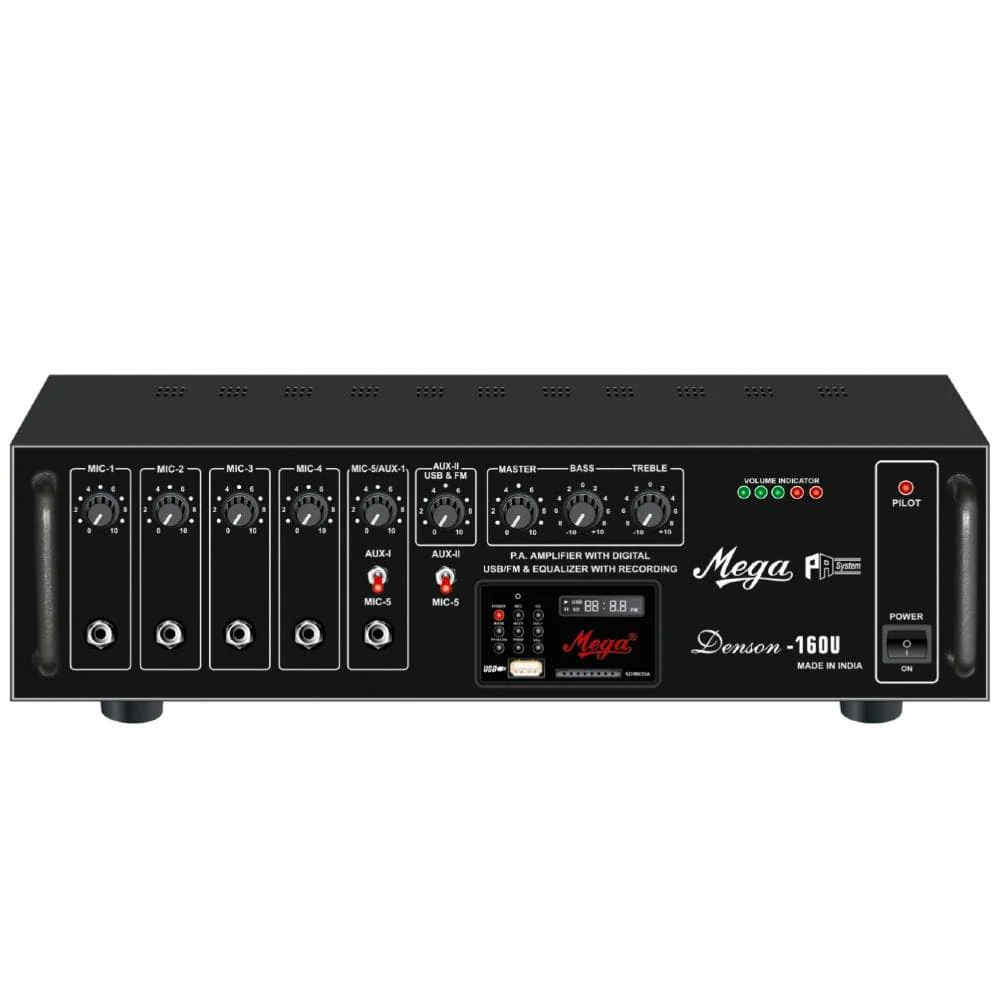

Mega Denson D-160U High Power Amplifier Overview:

Features

• Multiple inputs for 5 Mics / 2 Aux source.
• Pre amplifier out for connecting to a booster amplifier and for recording the program.
• Passive bass and treble control
• In built Bluetooth facility.
• Led Array for output level.
• External Speaker connection are provided for 4,8,16 Ohms and 70V and 100 V line.

Power Requirement

• AC: 220-240V 50/60Hz
• DC: 12V (1 x 12V Car Battery)

Power Output

• 160 W (Max.)

Specifications

• Input Channels: 5 Mic, 2 Aux, 1 USB Port, 1 SD/MMC Card Reader
• Frequency Response: 50-15000 Hz ± 3dB
• Tone Control: Bass :±10dB at 100Hz, Treble : ±10dB at 10Khz
• Pre-amp. Output: 200mV / 600 Ohms
• Output Taps For: 4 - 8-16 Ohms each zone
• Speaker Matching: 70V-100V Line
• Weight: 12.5 Kg

Made in India
