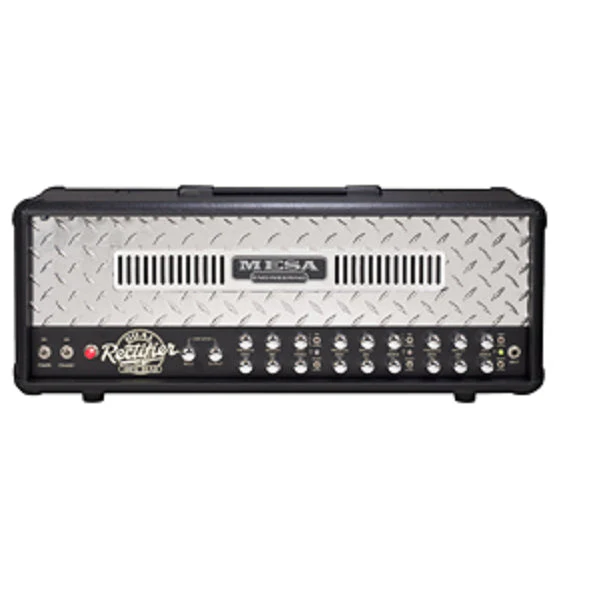

Mesa Boogie Dual Rectifier 100 Watt Electric Guitar Amplifier Head Overview:

It’s been more than 20 years, two generations of guitarists and several musical trend-cycles since the Dual Rectifier® first unleashed its crushing wall of gain on radio. In that time many have mimicked, modeled, dissected and plagiarized it, but it remains firmly planted at the center of hard-core… a Rock icon.

Mesa/Boogie Dual Rectifier Features:

• Wattage Multi-Watt 50 or 100 (Channel Assignable)
• Power Tube Type 4x Mesa 6L6 (or EL-34)
• Channels & Modes 3 Channels / 8 Modes
• Mode Voicings / Styles Ch. 1 = Clean or Pushed
  Ch. 2 = Raw, Vintage High Gain or Modern High Gain
  Ch. 3 = Raw, Vintage High Gain or Modern High Gain
• Graphic EQ / Reverb / FX / Solo FX Loop, Solo
• Footswitchable Functions Ch. 1, 2, 3, Mute, FX Loop & Solo
• Speaker(s) & Impedance n/a
• Weight 41 Lbs.
• Dimensions 10" H x 25 1/2" W x 9 7/8" D
• Available Formats Head

Mesa/Boogie Dual Rectifier Specifications:

• Amp Type Tube
• Chassis Material Aluminum
• Rectifier Type Selectable and Channel Assignable Dual Rectification (Tube or Silicon Diodes) with Patented Recto Tracking™ (Patent 7,193,458). Recto Tracking™ auto-matches the correct Rectifier compliment for the number of Power Tubes in use.

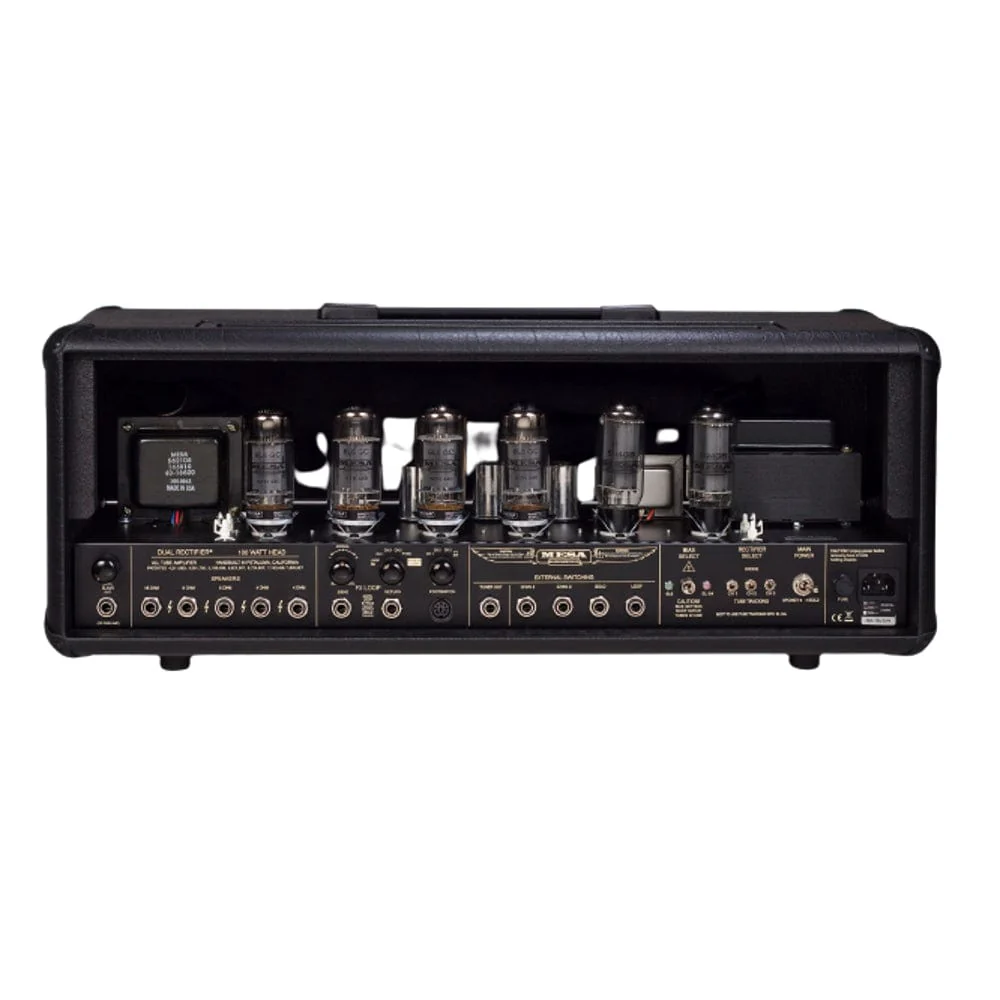

• Rectifier Tubes 2x Mesa 5U4
• Variac Power Switch Bold/Spongy Power Switch
• Preamp Tubes 5x Mesa 12AX7
• Power Amp Tubes 4x Mesa 6L6 (or EL-34)
• Bias Switch for Alternate Power Tubes Types Bias Select for 6L6 or EL-34
• Maintenance Free Fixed Bias Yes
• Wattage(s) Quick Reference 50 or 100 Watts - Channel Assignable - See Power Amp Details for more information
• Built-In Power Amp Attenuation n/a
• Power Amp Details (Class & Wattage) Class A/B Power with Mesa's patented Multi-Watt™ Channel Assignable Power Amp (Patent 7,602,927) - Provides two power options that are channel assignable via three 50/100 Watt Power Switches: Choose 2 power tubes, producing 50 Watt of small block-power or all 4 power tubes producing 100 Watts of big-block horsepower and authority.
• Convection or Fan Cooling Convection
• Number of Footswitchable Channels (or Modes) Three Channels
• Number of Style Modes Eight
• Number of Style Modes Per Channel Channel 1 = Two / Channel 2 & 3 = Three
• Types of Style Modes Per Channel Ch. 1 = Clean or Pushed
  Ch. 2 = Raw, Vintage High Gain or Modern High Gain
  Ch. 3 = Raw, Vintage High Gain or Modern High Gain
• Channel Controls Each Channel features Independent Style Mode Switch, 50/100 Multi-Watt™ Switch, Gain, Treble, Mid, Bass, Presence, Master, Assignable Dual Rectification with Recto Tracking™ (Diode or Tube - Patent 7,193,458)
• Graphic EQ and/or Contour n/a
• Reverb / Effects & Bypass Options n/a
• Effects Loop & Bypass Options Fully Buffered Series FX Loop w/Send Level Control - Footswitchable, Channel Assignable or True Bypassable - See True-Bypass Options below for more information
