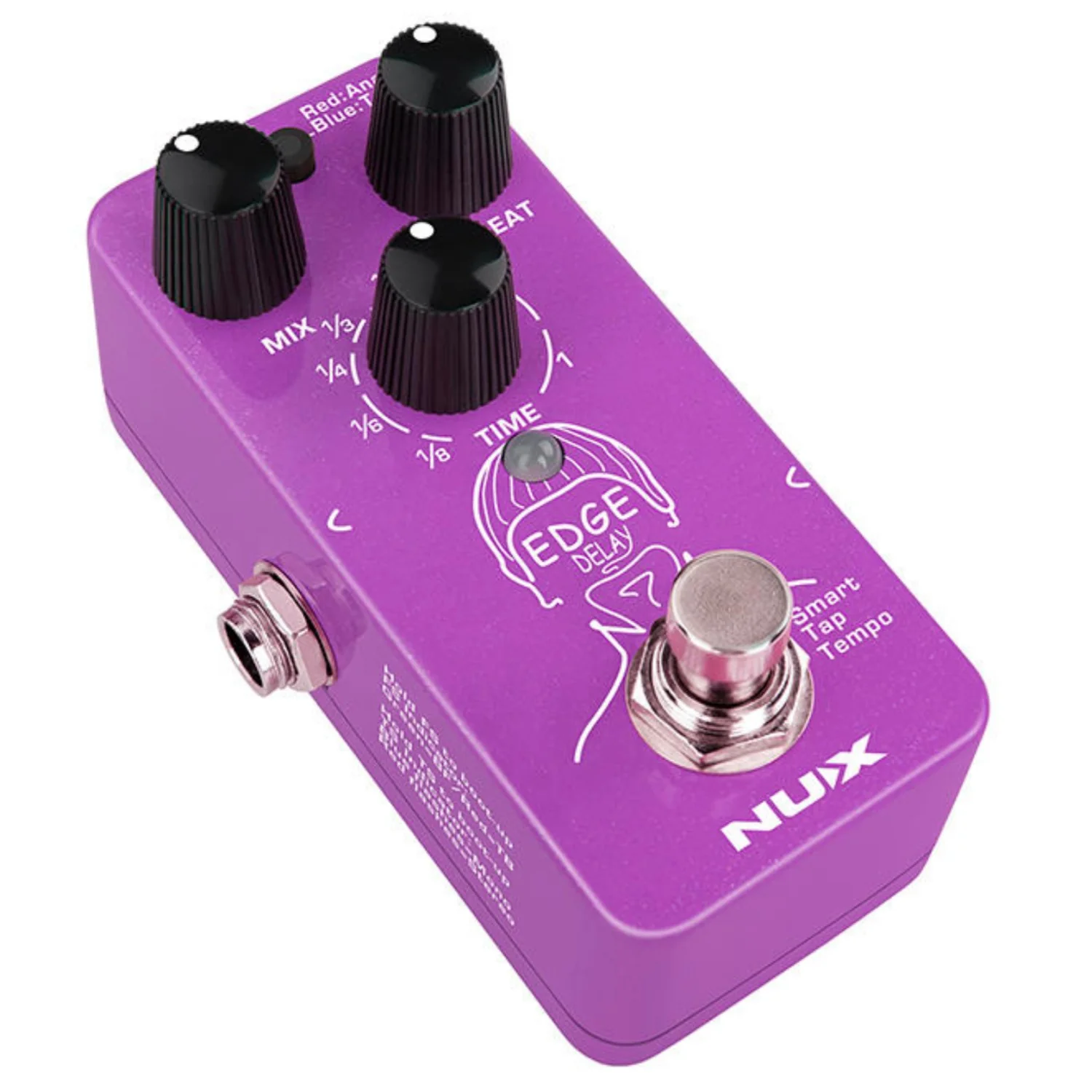

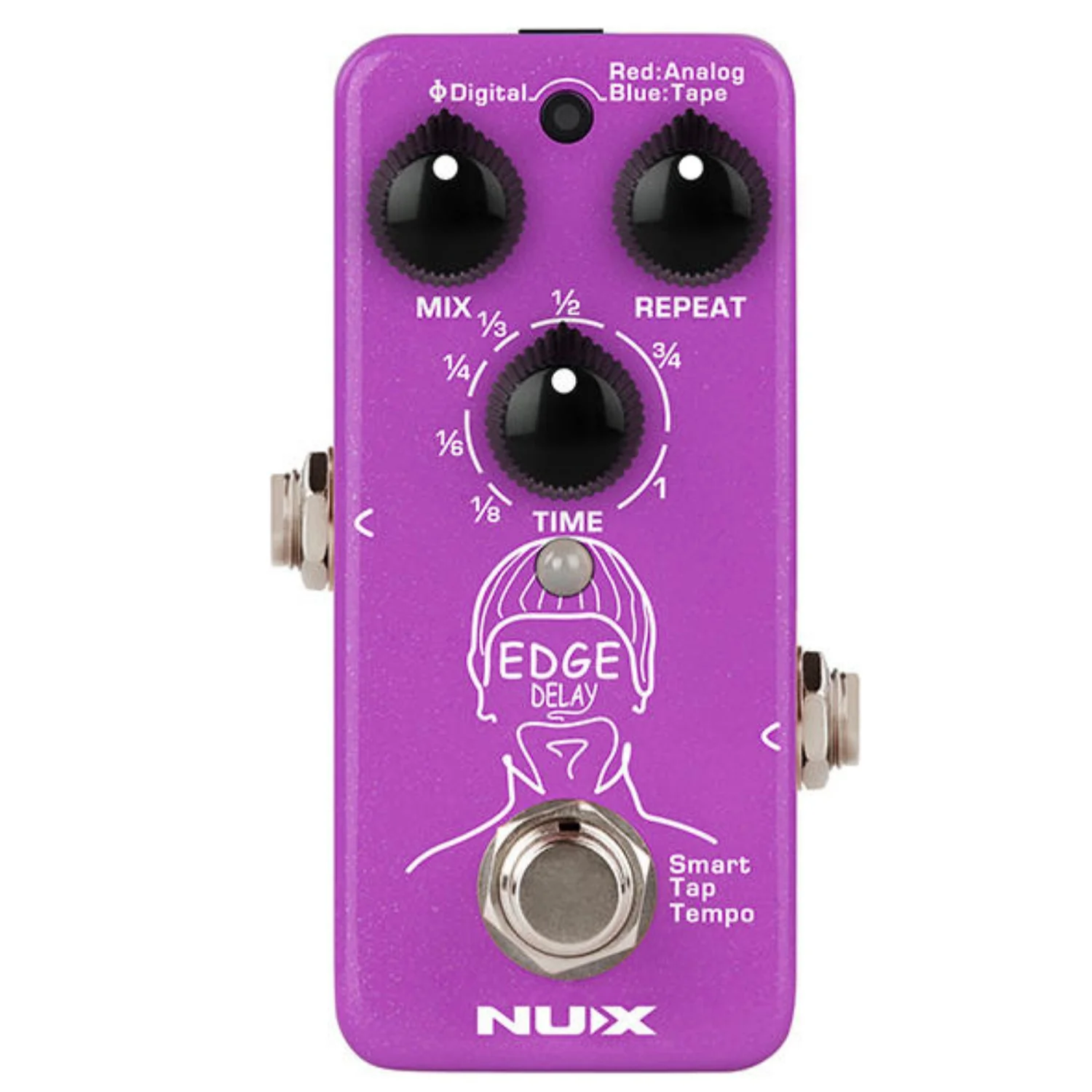

Nux NDD-3 Edge Delay Effect Pedal Overview:

The edge delay provides you with 3 unique delays, each including acurate control over its sonic character and feel. Clear, studio-quality digital delays. Saturated and fluctuating sounds of tape delay machines. Warm and fuzzy analog style repeats.

The Edge delay (NDD-3) is a mini delay pedal with 3 different delay types including ΦPhi Digital Delay, Analog Delay, and Tape Echo. You can switch delay types by pressing and holding the footswitch.

SUB-DIVISION WITH SMART TAP TEMPO

DELAY SUB-DIVISIONS WITH SMART TAP TEMPOSet the Time knob parameter to your desired sub-division, then you can engage the smart tap tempo by pressing the footswitch twice to get a dynamic sub-division tap tempo delay .

Press the footswitch once to engage/disengage the effect. Press twice, to access Smart Tap Tempo. In the meantime, the delay time is related to tap tempo and current sub-division parameter. (The FS indicator will flash as current BPM.)

Features:

• 3 delay types in a mini enclosure.

• ΦPhi Digital Delay: Musical digital delay with golden ratio 2nd repeat head.

• Analog Delay: BBD Warm sound with natural treble decay.

• Tape Echo: High-frequency saturation and low-end decay.

• Sub-division with Smart Tap Tempo. (Maximum: 1500ms)

• True-bypass or Buffer-bypass(Trails).

• Supports Stereo I/O with TRS Cable.

• Low power consumption. (less than 100mA)

• Analog dry signal for low noise and zero latency.

Specifications:

• Input Impedance：1MΩ

• Output Impedance：10kΩ

• Dynamic Range: 103 dB

• DSP Processing: 48KHz / 32-bit

• A/D D/A Sampling Rate: 48KHz / 24-bit

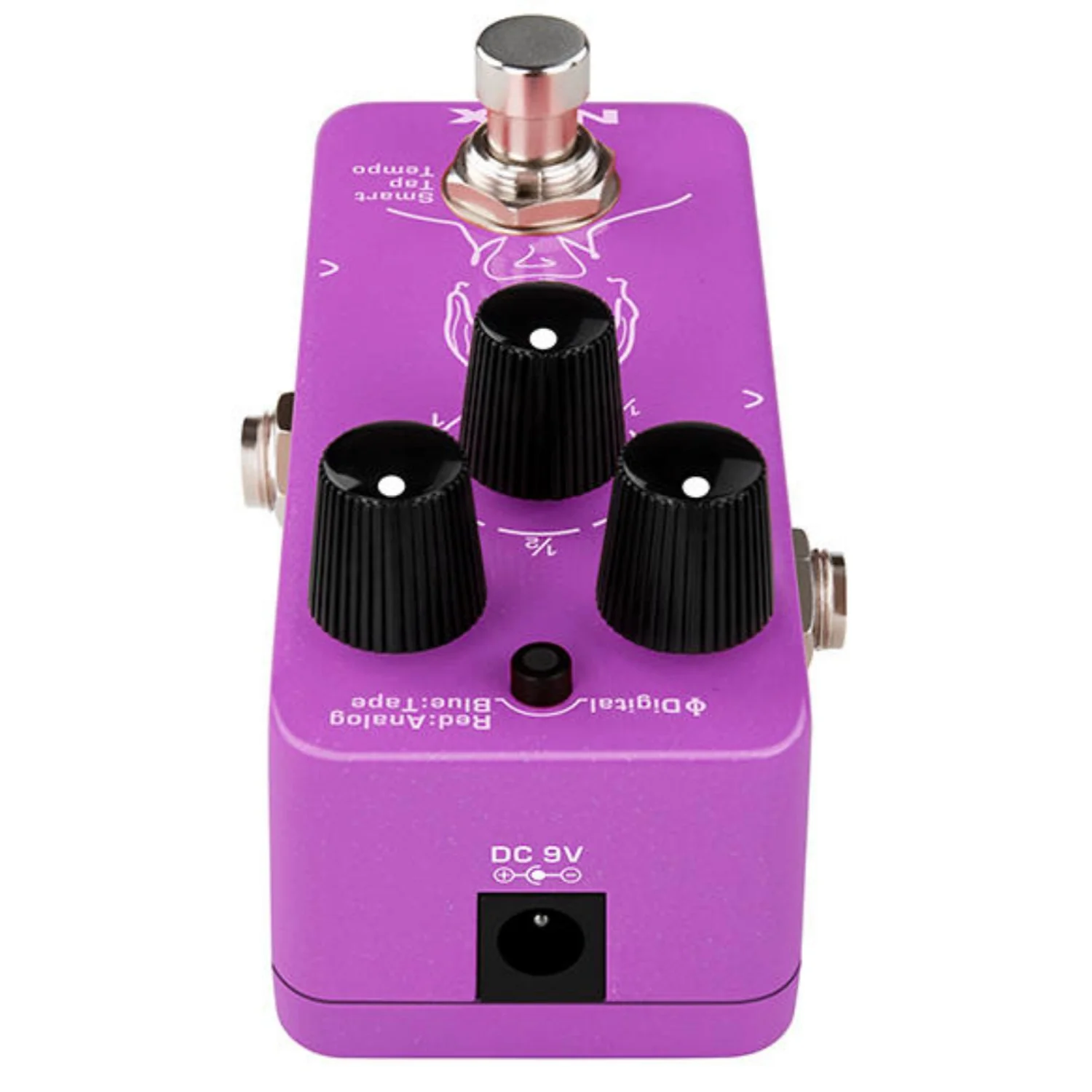

• Power：9V DC(Negative tip, Optional ACD-006A adapter)

• Current Draw：less than 100mA

• Dimensions：94(L)X51(W)X53(H)mm

• Weight：175g
