Pioneer DJMV10 Creative Style 6-Channel Professional DJ Mixer Overview:

Forge a new sound with the DJM-V10; a new breed of mixer, born of fresh thinking. It’s built to allow the most creative DJs to craft original soundscapes. This 6-channel unit – loaded with unique features – produces warm audio full of energy and presence. Take full control of your mix and get ready to create something the crowd has never heard before.

KEY FEATURES
Elite sound quality
Feel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to produce a full low-end, vibrant mids, and precise highs.

6 channels with a wide range of inputs
You’re free to create your perfect setup with 6 channels and a host of different input types.

4-BAND EQ and compressor
Take full control of your mix with the newly developed 4-band EQ. A built-in compressor enables further adjustment of the loudness of your tracks.

Effects for more creative expression
The expanded send/return section enables you to add external FX, or even combine them with built-in FX. Create unique sounds; the possibilities are nearly limitless

3-band master isolator
Effortlessly control the tone of your entire mix with the 3-band master isolator, featuring new boost/cut curves and adjustments to the crossover frequencies and other parameters. Grab the large dials and drive the crowd wild by drastically changing the sound.

Dual headphones output and booth EQ
The DJM-V10 makes back-to-back monitoring simple and comfortable. You can tweak the sound in the DJ booth just the way you like.

OTHER FEATURES

Lockable power cable
A lockable power cord is included for added reliability and to avoid accidental disconnections.

DJM-REC compatible
Record and archive your mixes via iPhone or iPad, upload your sounds to cloud services or effortlessly live-stream your sessions.

rekordbox
Make full use of rekordbox's low-latency DVS feature for intuitive, smooth scratching.

Serato DVS-ready
Use Serato DVS to control and scratch with CDJs or turntables (Serato DJ Club Kit license required, available separately).

TRAKTOR DVS-ready
Enjoy DVS control via Native Instruments’ TRAKTOR PRO 3 (available separately) . Use it to intuitively control and scratch with digital audio files stored on your computer. Find out more about the Pioneer DJ Certified program.

ShowKontrol
The DJM-V10 supports the extended PRO DJ LINK ShowKontrol protocol. This enables DJs, technical producers, LJs, and VJs to use all the key information from the DJM-V10, such as fader and knob positions, to align sound and visuals to create shows that blow audiences away.

Firmware Update Manager
You’ll be automatically notified when firmware updates become available. You can download the Firmware Update Manager

Specifications:

• Sampling Rate: 96 kHz
• Width: 437.6 mm
• Height: 107.9 mm
• Depth: 467 mm
• Weight: 11.9 kg
• A/D Converter: 32 bit
• D/A Converter: 32 bit
• S/N Ratio Line: 105 dB
• S/N Ratio Phono: 88 dB
• S/N Ratio Mic: 79 dB

Channels

• EQ: 4 band

Performance Control

• Channels: 6
• Filter:
• HPF
• LPF
• SEND
• Short Delay
• Long Delay
• Dub Echo
• Reverb
• 2 Externals (1/4-inch TS jack)
• MULTI I/O
• 1/4-inch jack
• USB (Type A)
• Beat FX
• Delay
• Echo
• Ping Pong
• Spiral
• Helix
• Reverb
• Shimmer
• Flanger
• Phaser
• Filter
• Trans
• Roll
• Pitch
• Vinyl Brake

Crossfader

• Fader Curve: 3

Mic

• Mic Connection
• XLR / 1/4-inch Combo Jack
• 1/4-inch TRS Jack

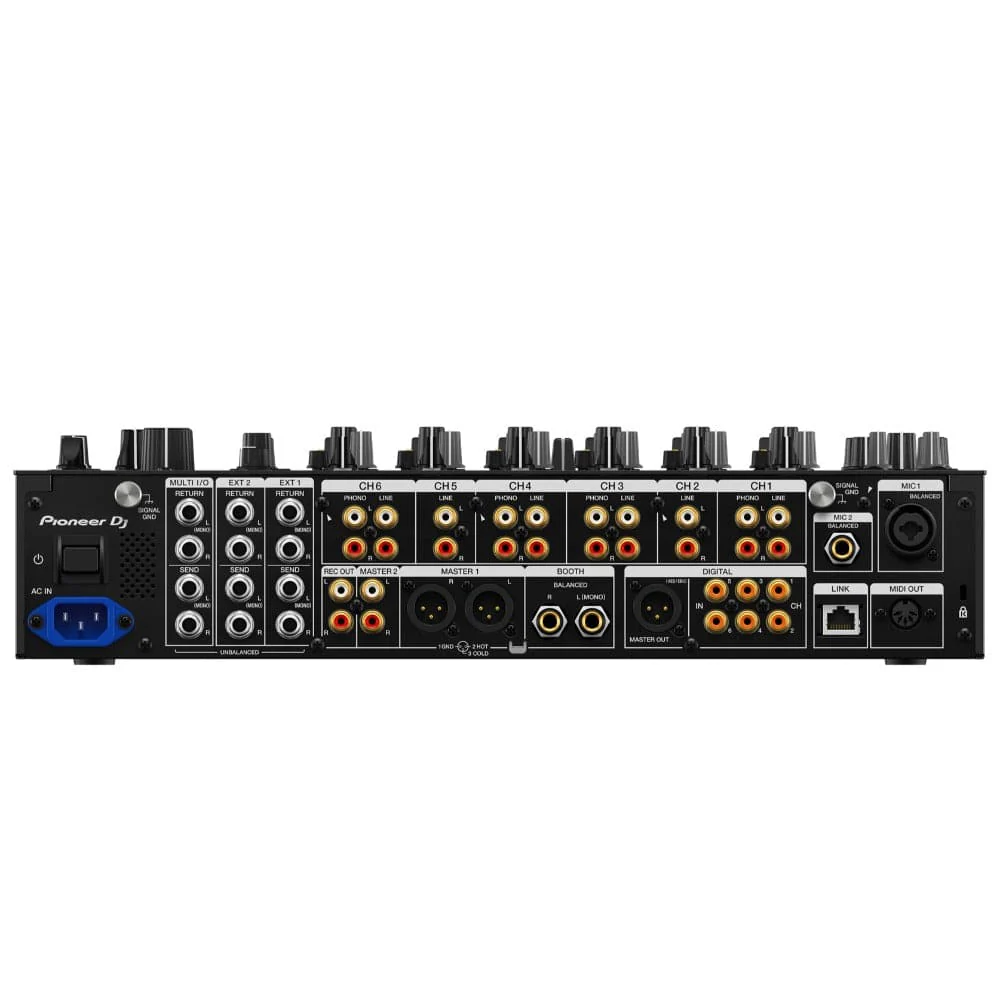

Terminals

• Inputs:
• 6 DIGITAL (Coaxial)
• 6 LINE (RCA)
• 4 PHONO (RCA)
• Send/Return
• 3 SEND (1/4-inch TS jack)
• 3 RETURN (1/4-inch TS jack)
• LAN: 1
• Outputs
• 2 MASTER (XLR, RCA)
• 1 BOOTH (1/4 inch TRS Jack)
• 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
• 1 REC OUT (RCA)
• 1 DIGITAL (AES/EBU)
• 1 MIDI (DIN)
• USB
• 2 USB B ports
• 1 USB A port
