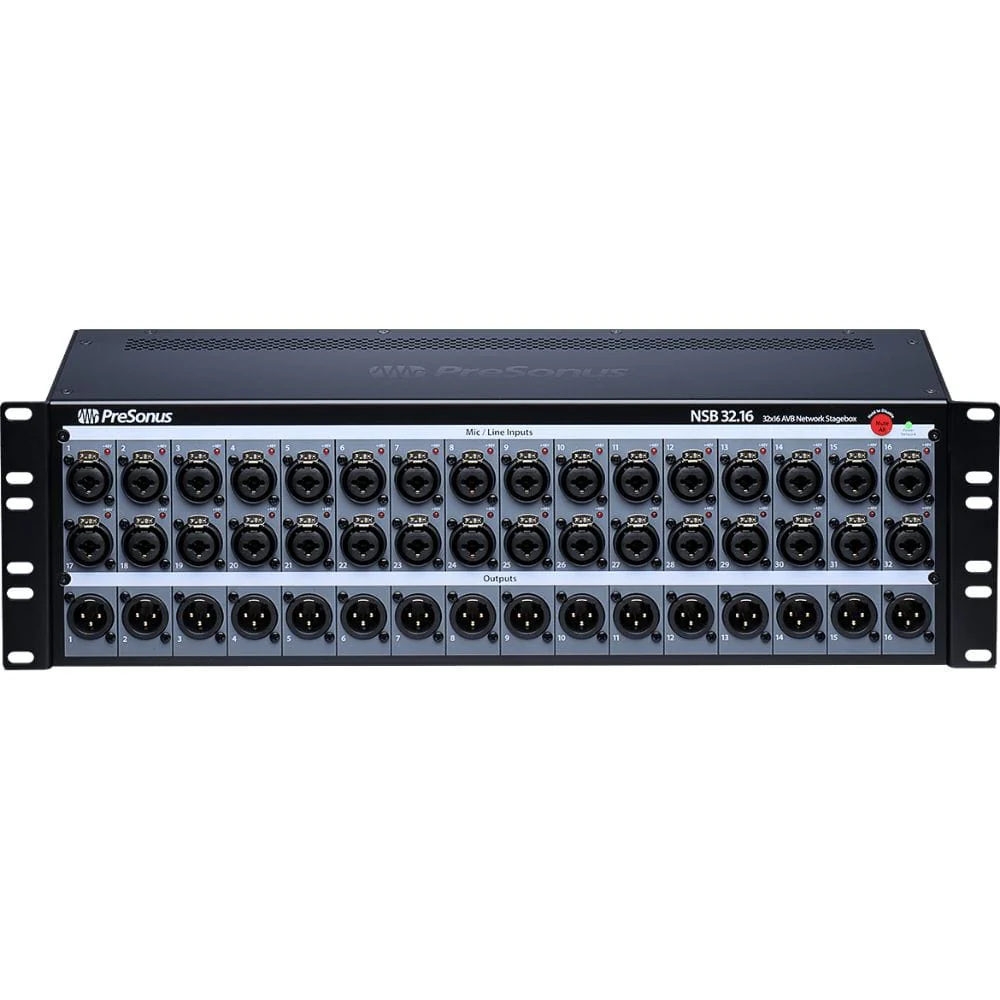

Presonus NSB 32.16 AVB 32 Channel Networked Stage Box Overview:



Features:

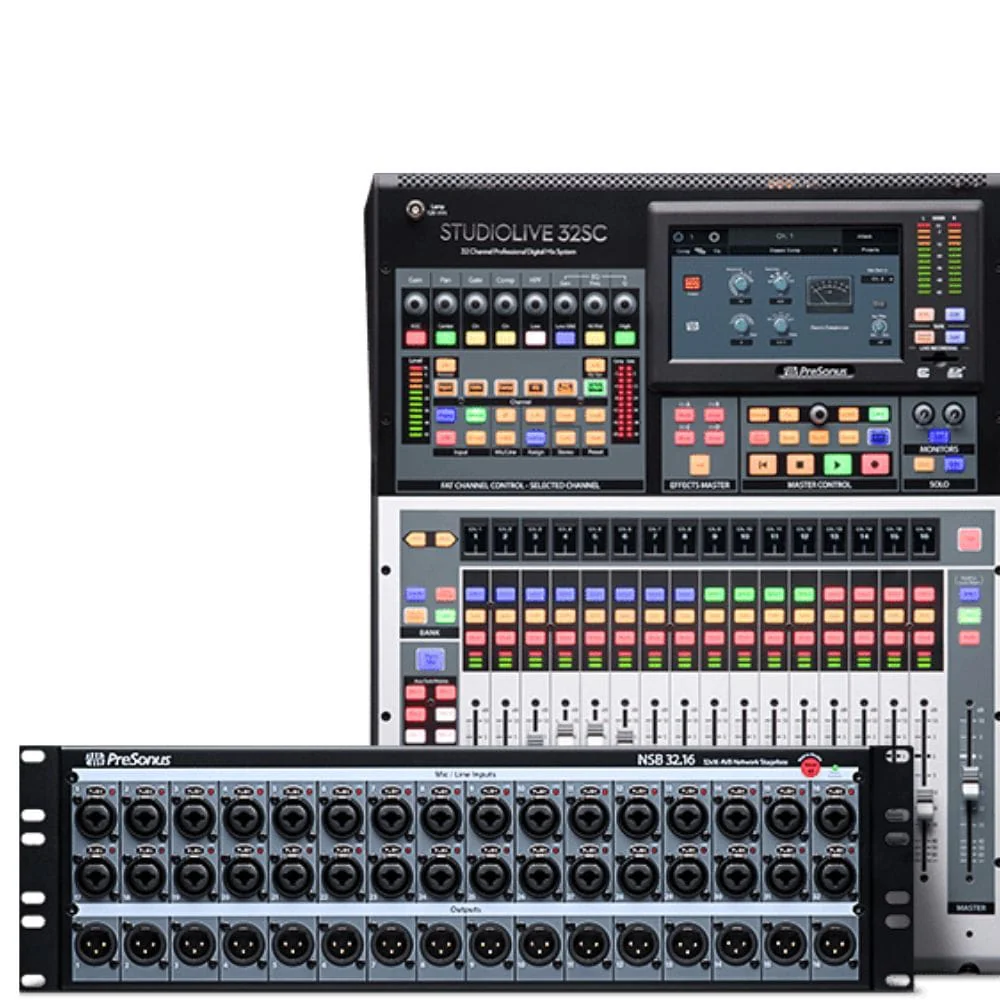

• 32x16 network stage box for StudioLive Series III console mixers
• 36 digitally controlled XMAX mic/line inputs with gain compensation for shared streams
• 16 line outputs
• Easy configuration from StudioLive Series III console mixers and UC Surface
• Built-in 2-port AVB switch with locking Ethernet connections for easy point-to-point and daisy-chain network configurations
• Rugged all-metal stage box enclosure
• Included multi-position rack ears
• Compatible with stage pockets from Ace Backstage

Specifications:

• Mi​crophone Preamplifier
• Input Type XLR Female, balanced
• Frequency Response to Main Output (at unity gain) 20-20 kHz, ±0.5 dBu
• Input Impedance 1 kΩ
• THD to Main Output <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
• S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) 94 dB
• Common Mode Rejection Ratio (1 kHz at unity gain) 65 dB
• Gain Control Range (±1 dB) 0 dB to +60 dB
• Maximum Input Level (unity gain) +12 dBu
• Phantom Power (±2 VDC) 48 VDC, switchable per channel
• Line Inputs
• Type ¼” TRS Female, balanced
• Frequency Response to Main Output (at unity gain) 20-20 kHz, ±0.5 dBu
• Input Impedance 10 kΩ
• THD to Main Output <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
• S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) 94 dB
• Maximum Input Level +18 dBu
• XLR Outputs
• Type XLR Male, balanced
• Maximum Output Level +24 dBu, ±0.5 dBu
• Output Impedance 100Ω
• Digital Audio
• ADC Dynamic Range 115 dB (A-wtd, 48 kHz)
• DAC Dynamic Range 115 dB (A-wtd, 48 kHz)
• AVB Audio Network Ports Locking XLR Ethernet
• Sampling Rate 48 kHz, 44.1 kHz
• Power
• Connector Locking IEC
• Input-Voltage Range 90 to 230 VAC (±10%)
• Physical
• Height 5.25” (133 mm)
• Width 19” (482 mm)
• Depth 5.25” (133 mm)
• Weight 10.2 lbs. (4.6 kg)
