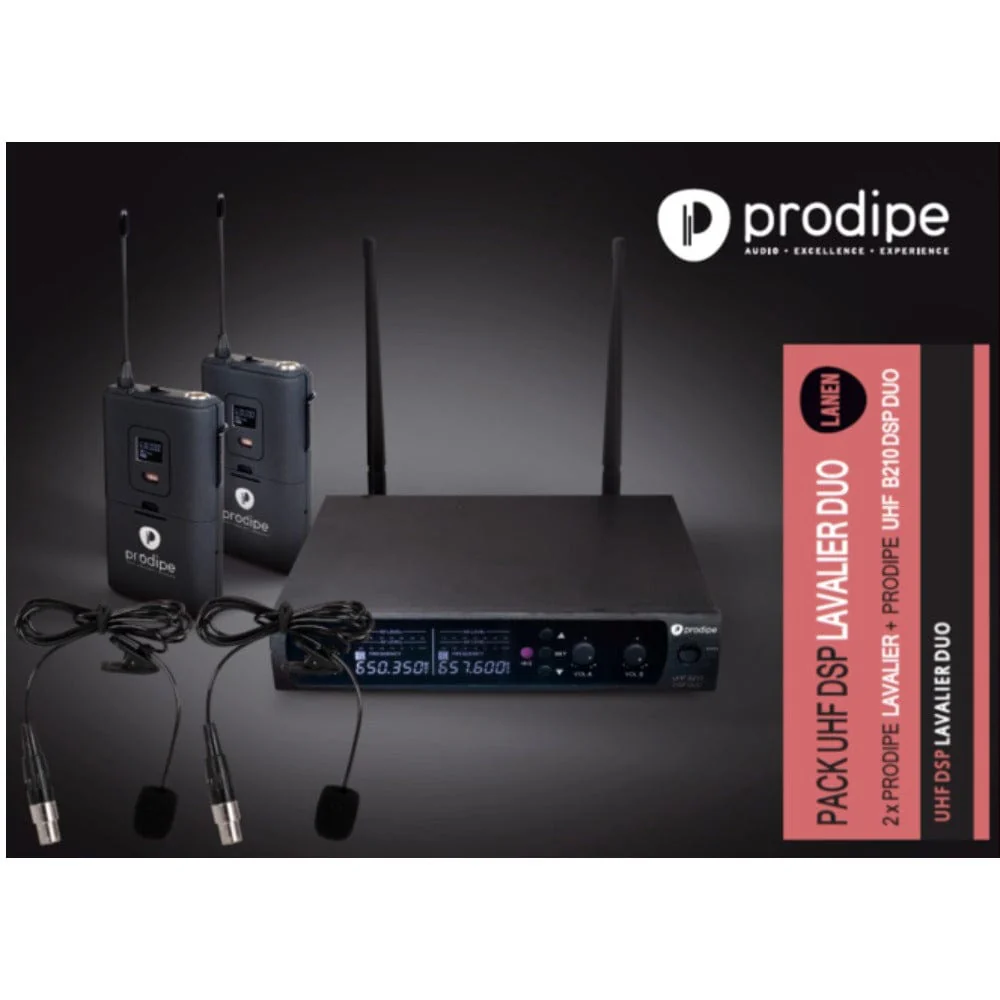

Prodipe UHF B210 DSP Lavalier Duo Wireless Microphone System Overview:

The new Prodipe UHF B210 DSP Lavalier mic is specially designed for people on the move.

Comfortable and light, it boasts a tailor-made cardioid capsule for singing and vocals.

• DSP circuit
• Automatic IR search and selection of 2 x 50 available UHF frequencies
• Mini XLR connections on the UHF B210 DSP bodypack
• 1 balanced XLR output + 1 unbalanced Jack output.
• 4 B210 DSP Duo systems can be used simultaneously

Specifications:

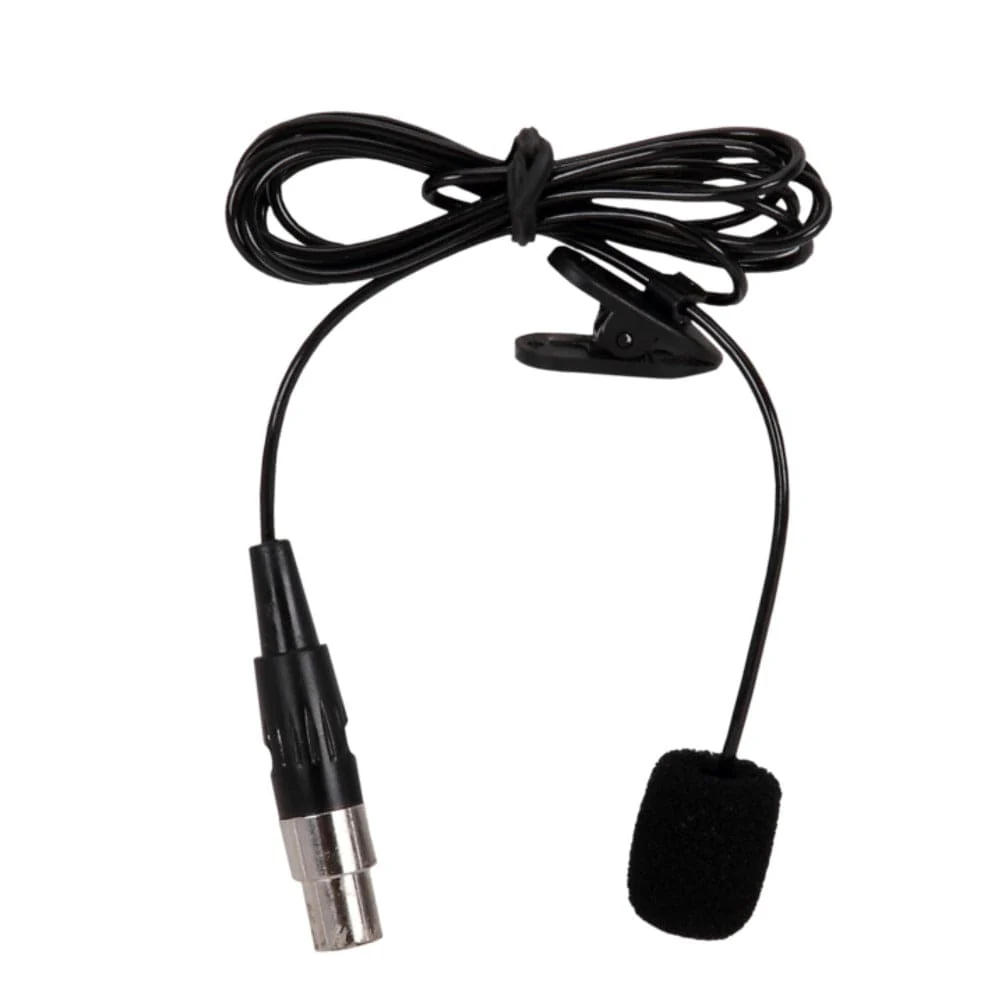

Microphone:

• Type: Small diaphragm condenser
• Directivity: Omni-directional
• Sensitivity: -37dB ±3dB (0dB=1V/Pa - 1KHz)
• Frequency response: 30Hz - 18 KHz
• Output impedance: ≤200Ω
• Cable lenght:1m

Main functions:

• Transmission type: UHF
• 630 - 668MHz (≤ 2022 version)
• 528 - 578MHz (F5 version)
• Frequencies: 2 x 50
• Dynamic range: >90dB
• Harmonic distorsion: <0.1%
• Frequency response: 30Hz - 20KHz
• Range: 60m

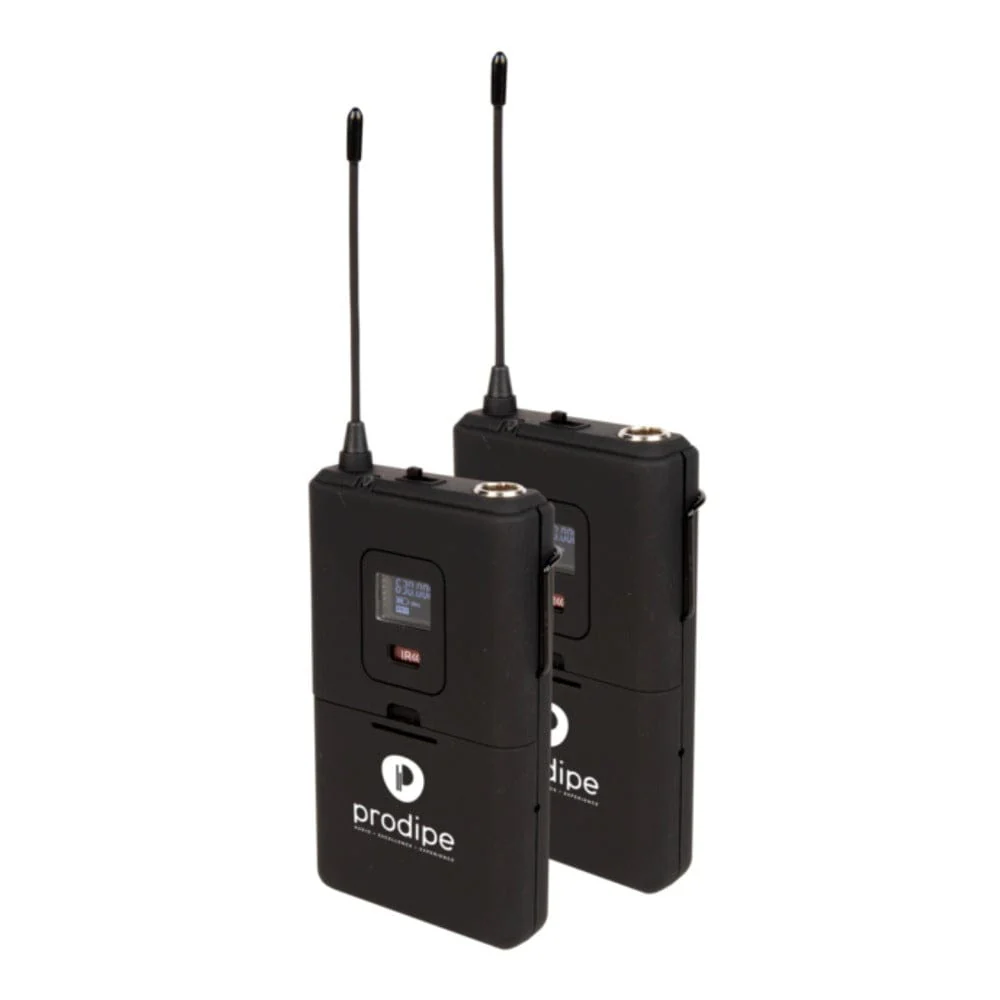

Transmitter:

• Power consumption: 10mW
• Modulation: FM
• Power source:LR6 (AA) 1.5V × 2 (battery life approx. 8h) - Batteries non included

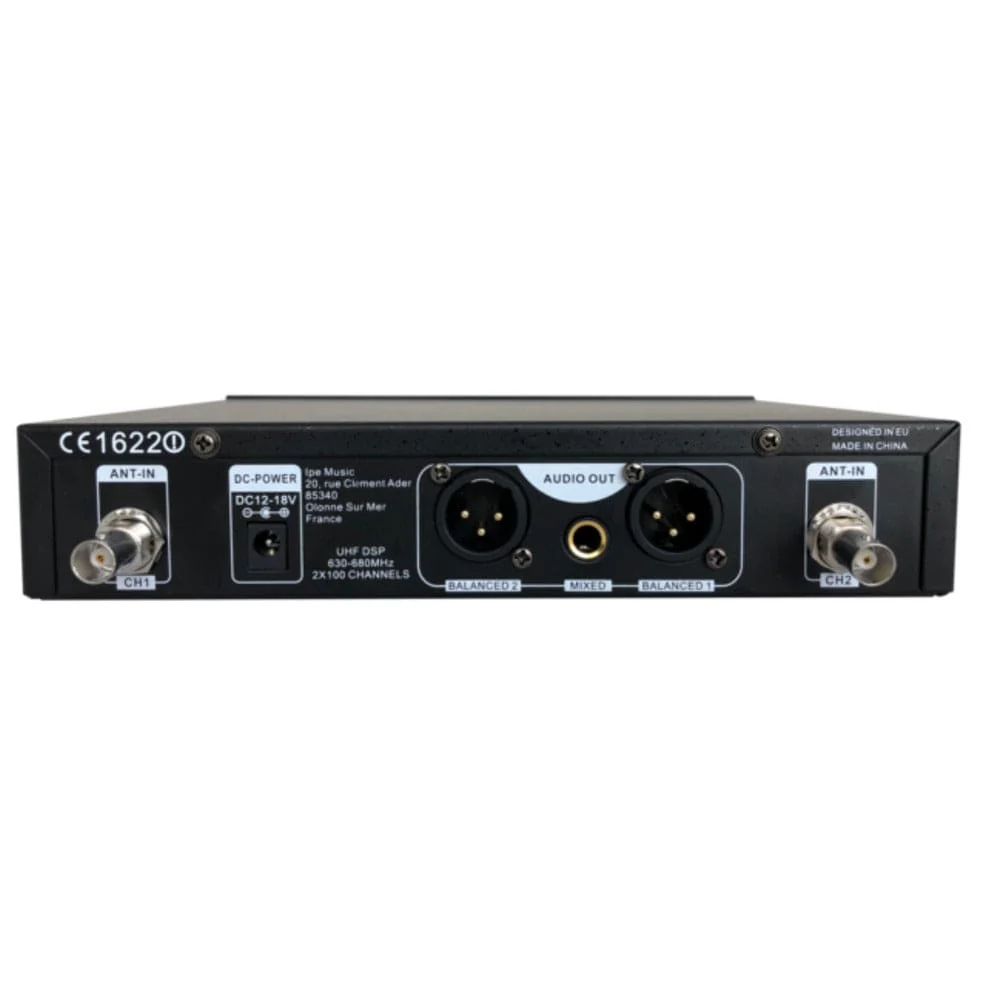

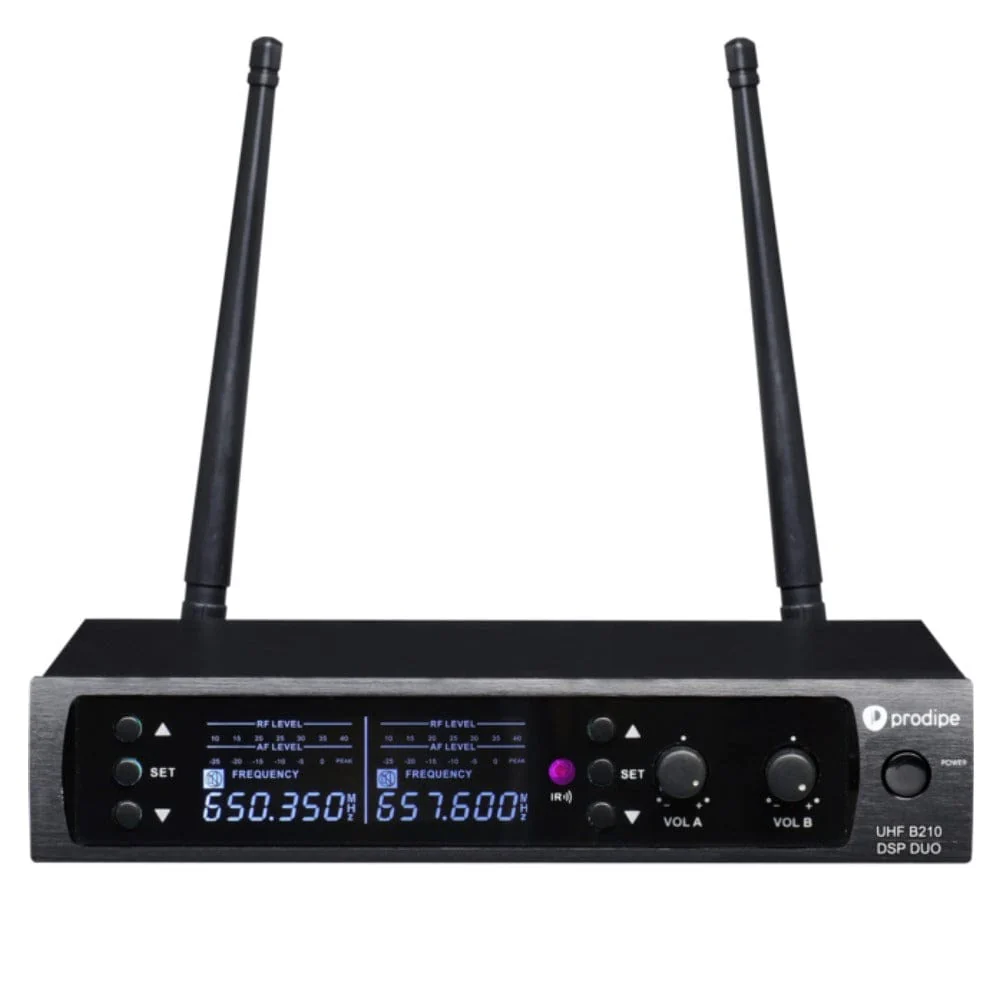

Receiver:

• Power supply: AC100~240V (50-60Hz)
• Voltage: 12V
• S/N Ratio: >96dB
• RX Sensitivity: <-94dBm
• Unbalanced audio output: 6.35mm Jack
• Balanced audio output: XLR
