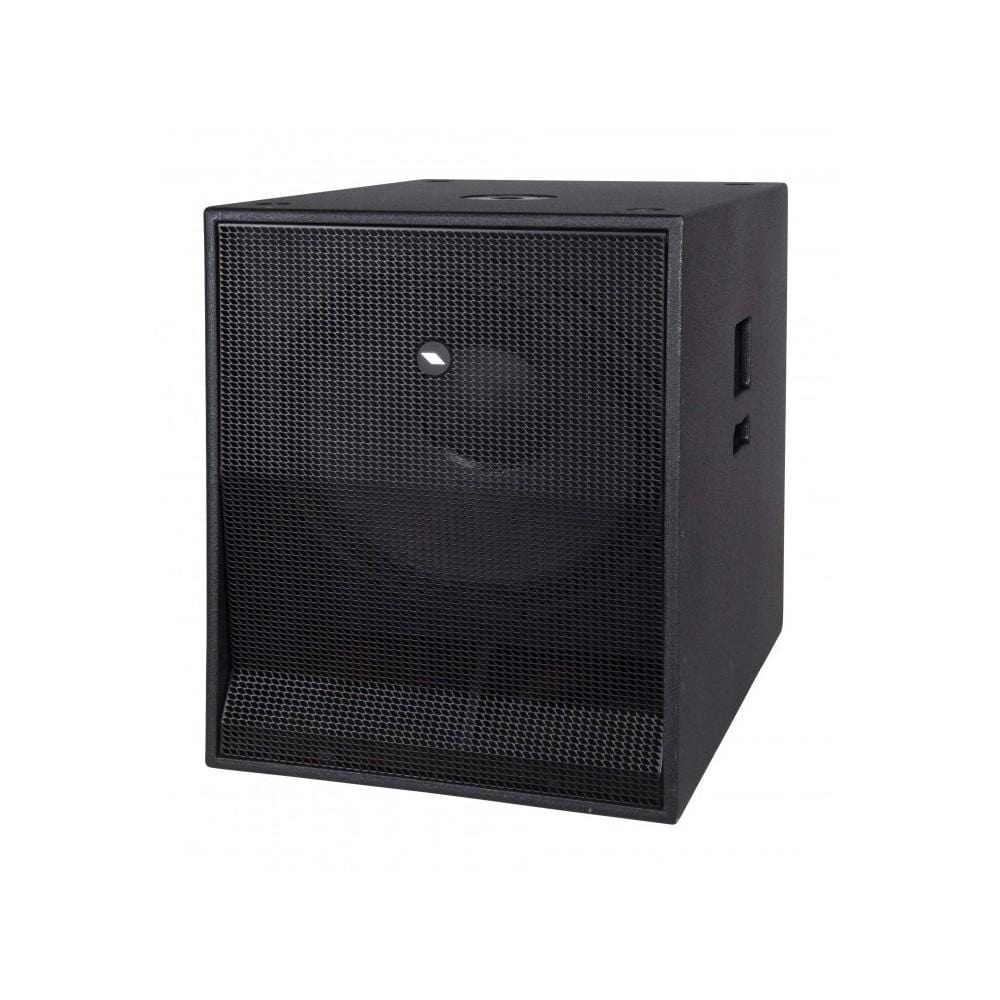

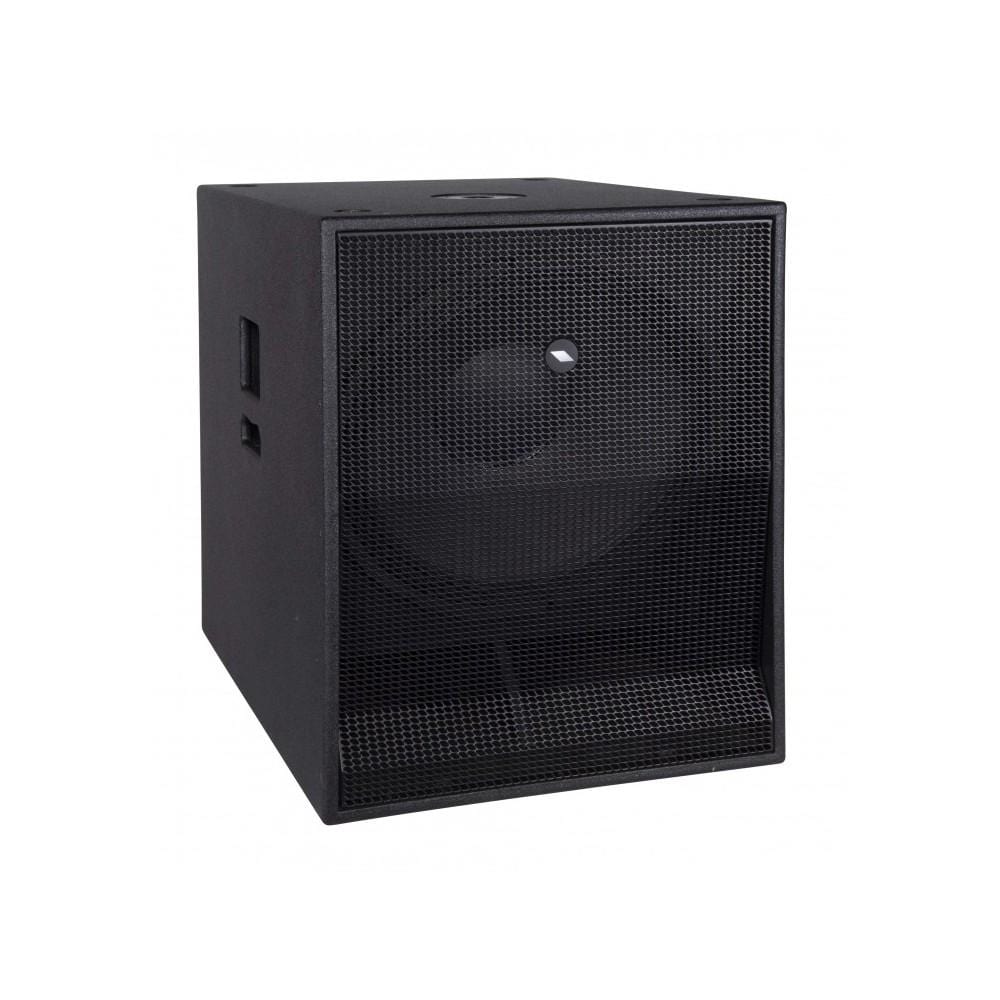

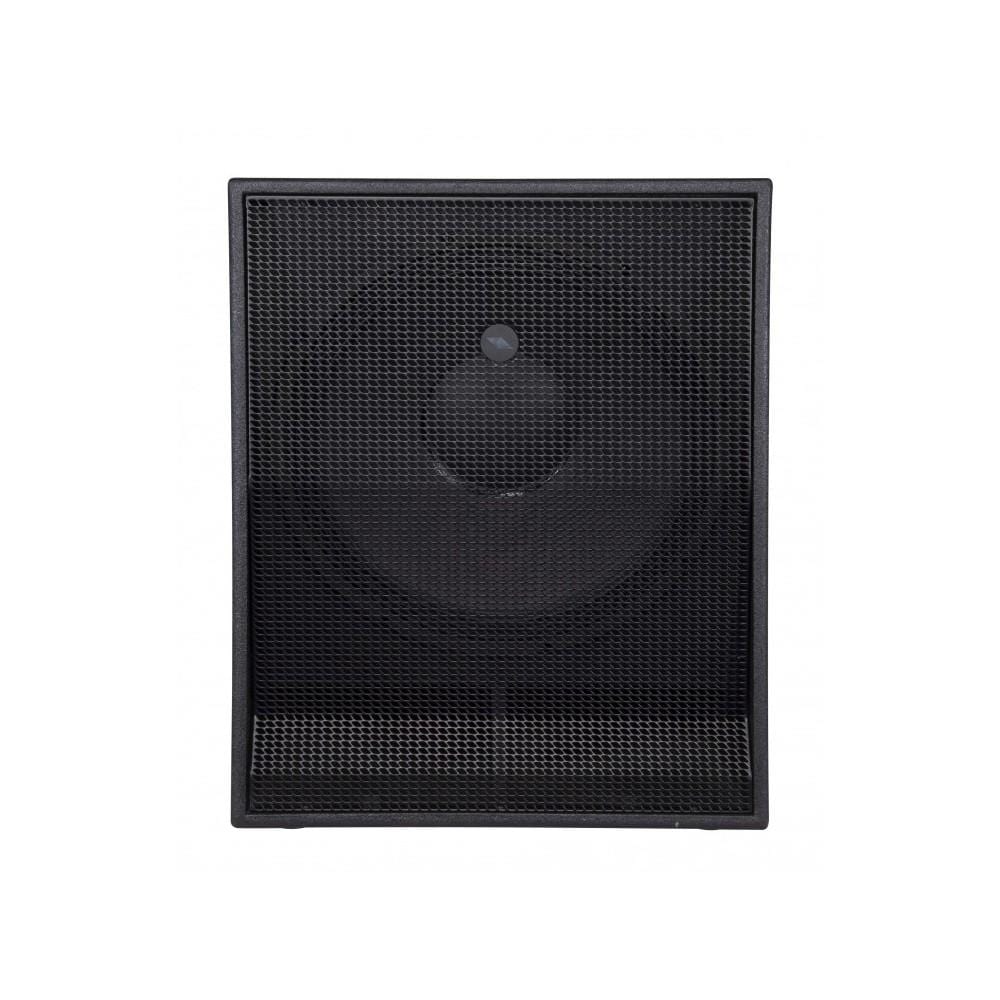

Proel S18A Active Hybrid Band Pass Subwoofer
Proel S18A Active Hybrid Band Pass Subwoofer Overview:

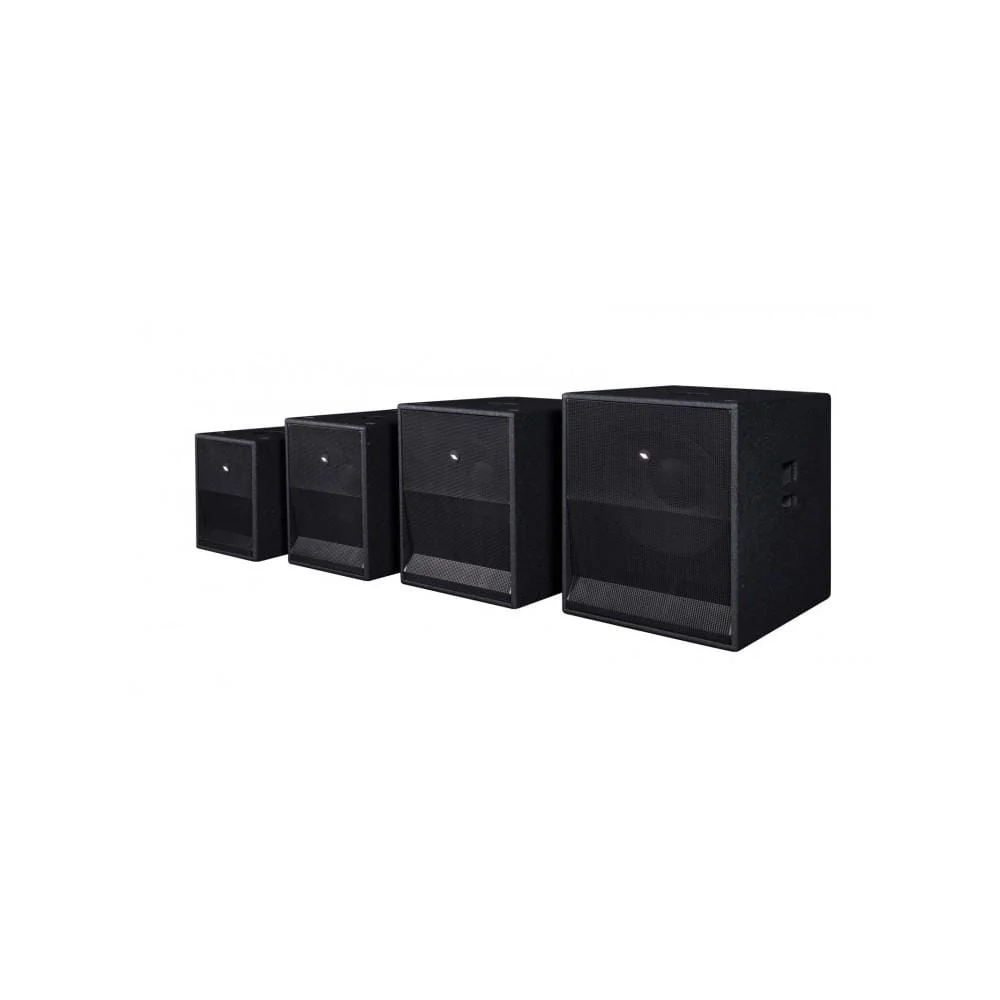

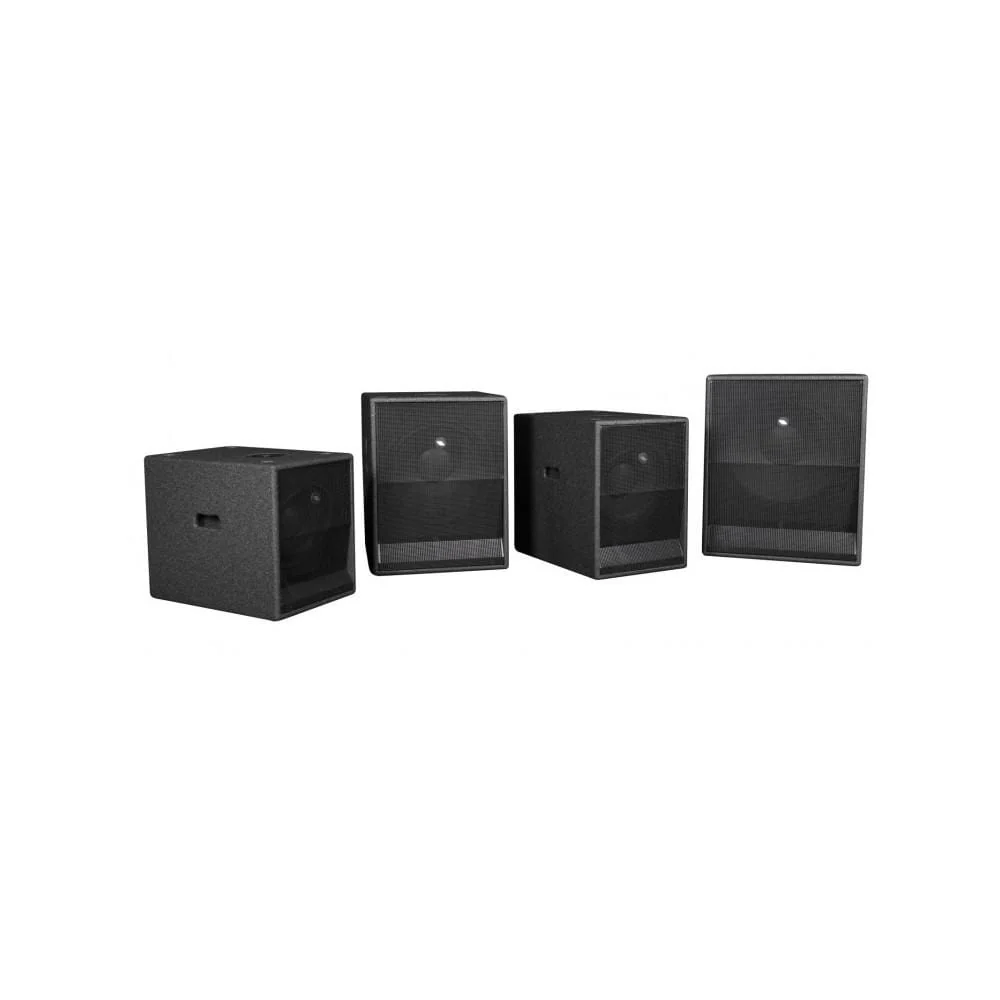

PROEL introduces the S Series, a new range of compact and powerful sub-woofers designed to complement PROEL full-range speakers. The variety of size, power and SPL offered by the four active S models provides, at an unbeatable price point, the perfect low extension solution for any speaker model available in the PROEL range.
All the S models feature high-excursion woofers in a Hybrid Band Pass configuration (HBP). This innovative design provides a higher efficiency compared to direct radiation sub-woofers and, in addition, guarantees a much better coupling of the tuning ducts with the external air, reducing the distortion and the air turbulence, for a more defined sound and deep and punchy lows.
The new CLASS D amplifier modules with SMPS (Switch Mode Power Supply) can generate a massive amount of continuous power in a compact, lightweight and reliable package. All the modules include a STEREO pre-amp section, 24dB/oct. crossover filters with selectable frequency and PHASE reverse switch.

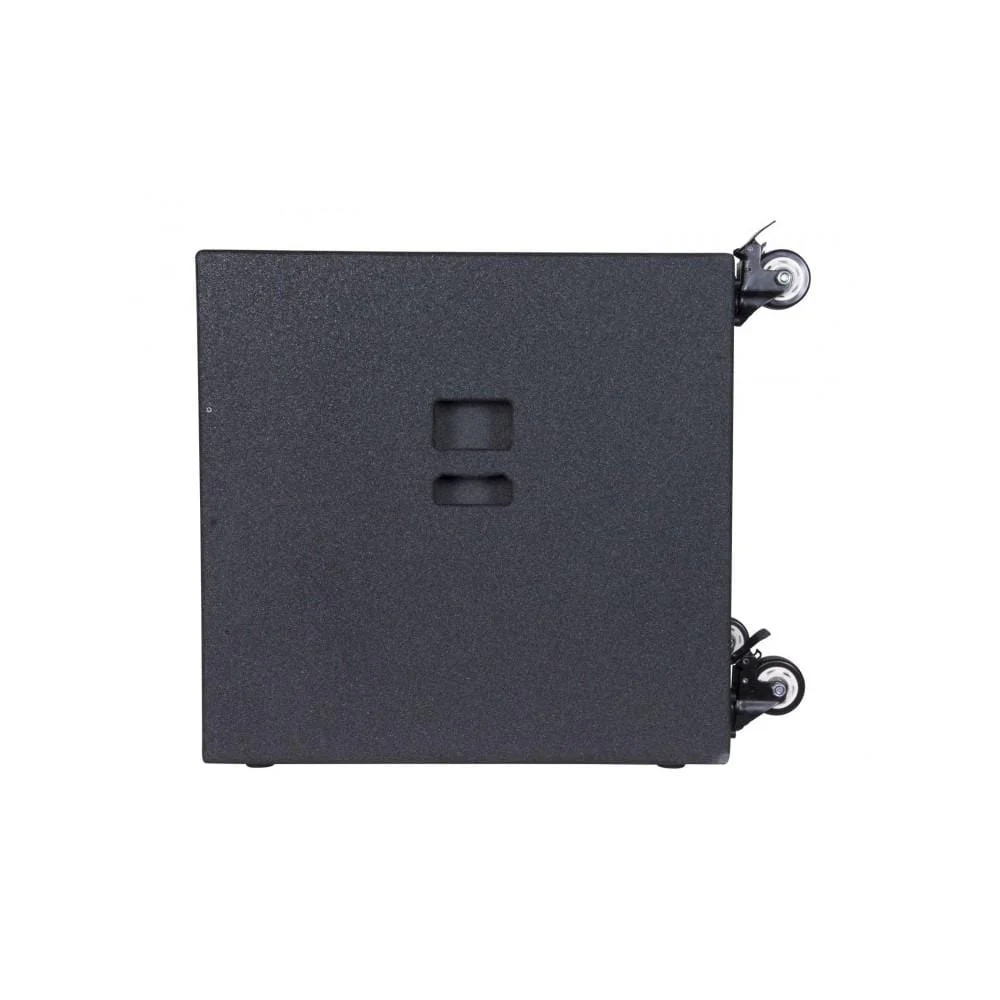

The cabinets are built with 15/18mm plywood and finished with extra-durable polyurethane paint. They feature two flush handles and four sturdy 75mm wheels for an easy transport (S15 and S18 only).
Features:
- Compact active HBP sub-woofer
- 18” woofer with 4” VC for a deep and extended response
- 1200 W peak power
- STEREO input, link and output
- SPL MAX 131 dB
- Frequency response 36 Hz - 140 Hz
Specifications:
- System type: Hybrid Band Pass subwoofer
- Loudspeaker: 18'' woofer with 4" VC
- Amplifier Continuous Power: 600 W
- Frequency Response: 36 Hz - 140 Hz
- Max SPL: 131 dB

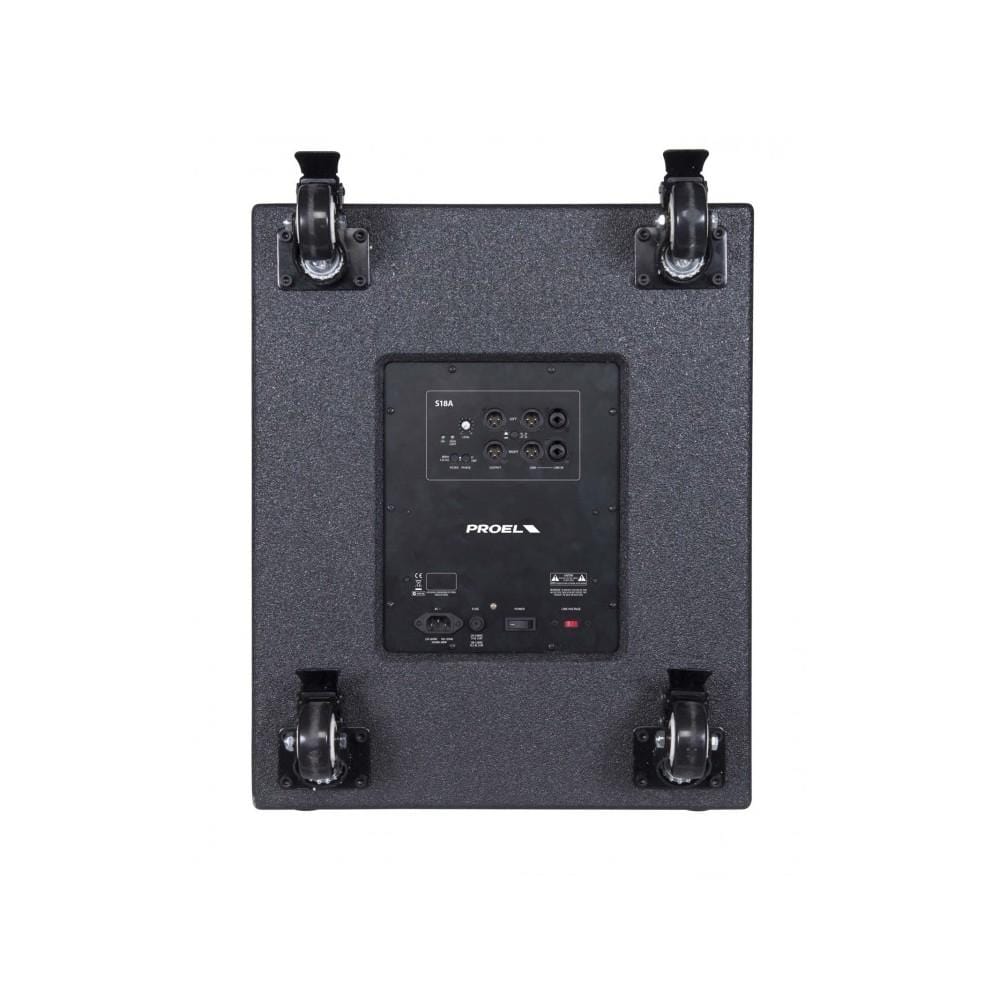

- Connectors:
- IN: 2 x NEUTRIK COMBO
- OUT: 2 x NEUTRIK XLR-M
- LINK: 2 x NEUTRIK XLR-M
- Controls:
- Volume, GND lift
- X-over Frequency, Phase
- Power Supply: 230 VAC or 120 VAC 50/60 Hz
- Weight: 36 kg (79.4 lb)
- Cabinet:
- 15/18 mm plywood
- Black anti-scratch paint
- 1.5 mm metal grille
- 2 handles
- 1 x pole socket
- 4 x 75 mm wheels
- Dimensions (W x H x D): 508x630x645 (745 with wheels) mm
Made in China
Original: $80,588.00
-70%$80,588.00
$24,176.40Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Proel S18A Active Hybrid Band Pass Subwoofer Overview:
PROEL introduces the S Series, a new range of compact and powerful sub-woofers designed to complement PROEL full-range speakers. The variety of size, power and SPL offered by the four active S models provides, at an unbeatable price point, the perfect low extension solution for any speaker model available in the PROEL range.
All the S models feature high-excursion woofers in a Hybrid Band Pass configuration (HBP). This innovative design provides a higher efficiency compared to direct radiation sub-woofers and, in addition, guarantees a much better coupling of the tuning ducts with the external air, reducing the distortion and the air turbulence, for a more defined sound and deep and punchy lows.
The new CLASS D amplifier modules with SMPS (Switch Mode Power Supply) can generate a massive amount of continuous power in a compact, lightweight and reliable package. All the modules include a STEREO pre-amp section, 24dB/oct. crossover filters with selectable frequency and PHASE reverse switch.
The cabinets are built with 15/18mm plywood and finished with extra-durable polyurethane paint. They feature two flush handles and four sturdy 75mm wheels for an easy transport (S15 and S18 only).
Features:
- Compact active HBP sub-woofer
- 18” woofer with 4” VC for a deep and extended response
- 1200 W peak power
- STEREO input, link and output
- SPL MAX 131 dB
- Frequency response 36 Hz - 140 Hz
Specifications:
- System type: Hybrid Band Pass subwoofer
- Loudspeaker: 18'' woofer with 4" VC
- Amplifier Continuous Power: 600 W
- Frequency Response: 36 Hz - 140 Hz
- Max SPL: 131 dB
- Connectors:
- IN: 2 x NEUTRIK COMBO
- OUT: 2 x NEUTRIK XLR-M
- LINK: 2 x NEUTRIK XLR-M
- Controls:
- Volume, GND lift
- X-over Frequency, Phase
- Power Supply: 230 VAC or 120 VAC 50/60 Hz
- Weight: 36 kg (79.4 lb)
- Cabinet:
- 15/18 mm plywood
- Black anti-scratch paint
- 1.5 mm metal grille
- 2 handles
- 1 x pole socket
- 4 x 75 mm wheels
- Dimensions (W x H x D): 508x630x645 (745 with wheels) mm
Made in China
