Proel WM700DH UHF PLL Handheld Wireless Microphone Overview:

WM700DH wireless microphone is a 2 channel PLL UHF variable frequency system. - 32 Khz Digital Tone Pilot. - USB Power Adapter. - 823/832 or 512/562 Mhz (WM700DHA) frequency range. - 30 meter range. - Up to 4 simultaneous freq each band. - ABS case. - 2 x Bodypack headset/lavalier transmitters

• The WM700 wireless microphone system is a PLL controlled UHF variable frequency device, which provides reliable and high quality signal transmission, thanks also to the Digital Tone Pilot.
• The WM700 wireless microphone system offers 5 different combinations with single channel receiver, dual channel receiver, handheld transmitter and bodypack transmitter with headset microphone.
• The system is available in 2 different bands with groups of 16 or 32 pre-set frequencies to be used also simultaneously.

Each configuration includes an ABS case.

• PLL –16 CH Selectable frequency Dual Channel wireless microphone system

• 32 Khz Digital Tone Pilot

• New durable Painting Finishing

• Universal USB Power Adapter

• 823 - 832 Mhz or 512 - 562 Mhz (WM700DHA) frequency range

• 30 meter/ 100 feet range

• 50 Hz -15 KHz frequency response

• 105 dB signal/ noise ratio

• 2 x Condenser headset with cardioid capsule and 2 x Lavalier

• Up to 4 frequency usable in the same location for each Frequency band.

• ABS carrying and storage case

Specifications:

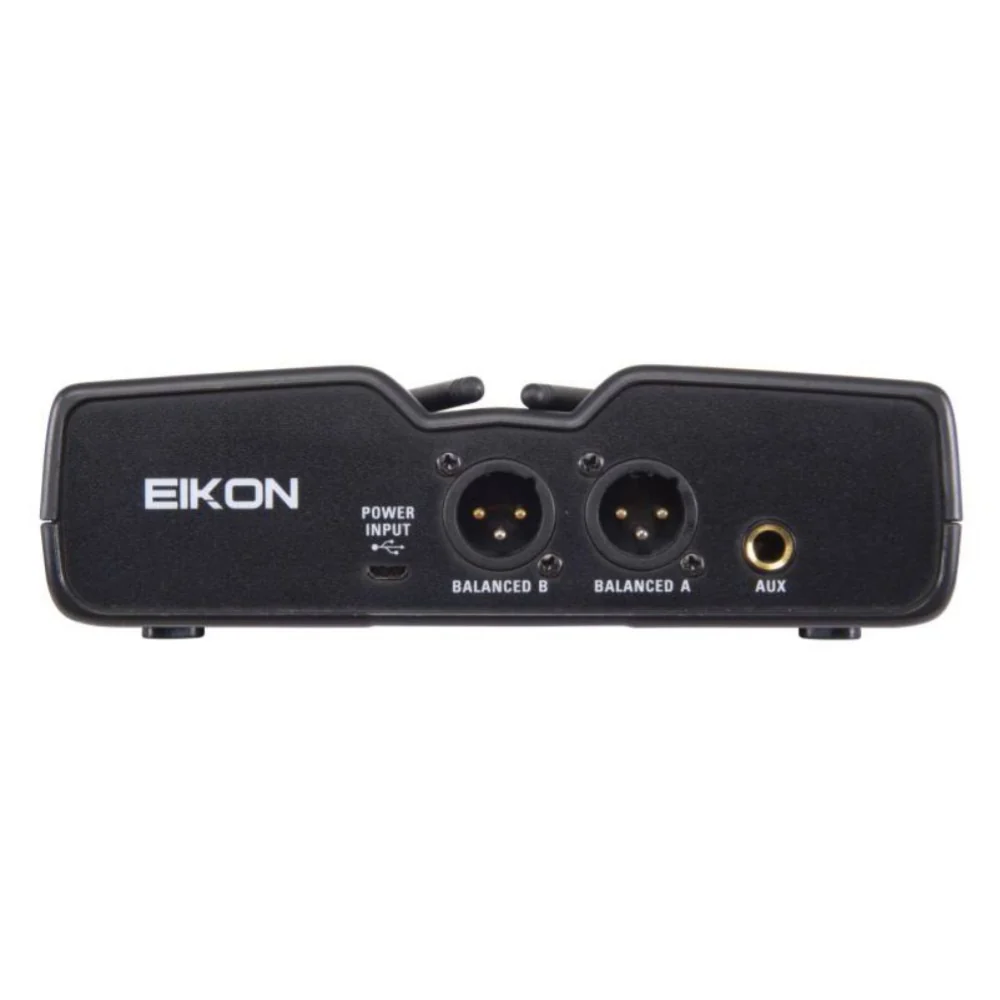

RECEIVER

• Frequency Band: UHF: 823-832 MHz or 512 - 562 Mhz (WM700DHA)

• RF Sensibility: -105 dBm

• RF Image/Spurious Rej.: >70 dB

• RF Interference Reject.: >70 dB

• RF Frequency Stability: ±0.002%

• THD Distortion: <1%

• S/N Ratio: >105 dB

• Frequency Response: 50 Hz – 15 KHz (±3 dB)

• Power Supply: 5 V DC 500 mA

• Dimensions (mm): 175 x 135 x 45


BELT-PACK TRANSMITTER

• RF Frequency Band: UHF: 823-832 MHz or 512 - 562 Mhz (WM700DHA)

• RF Power: <10 dBm

• Modulation method: FM (F3E)

• RF Max deviation: ±40 KHz

• RF Frequency Stability: ±0.002%

• Spurious Emission: under limits EN 300422

• Frequency Response: 50 Hz – 15 KHz (±3 dB)

• Included Microphones: 2

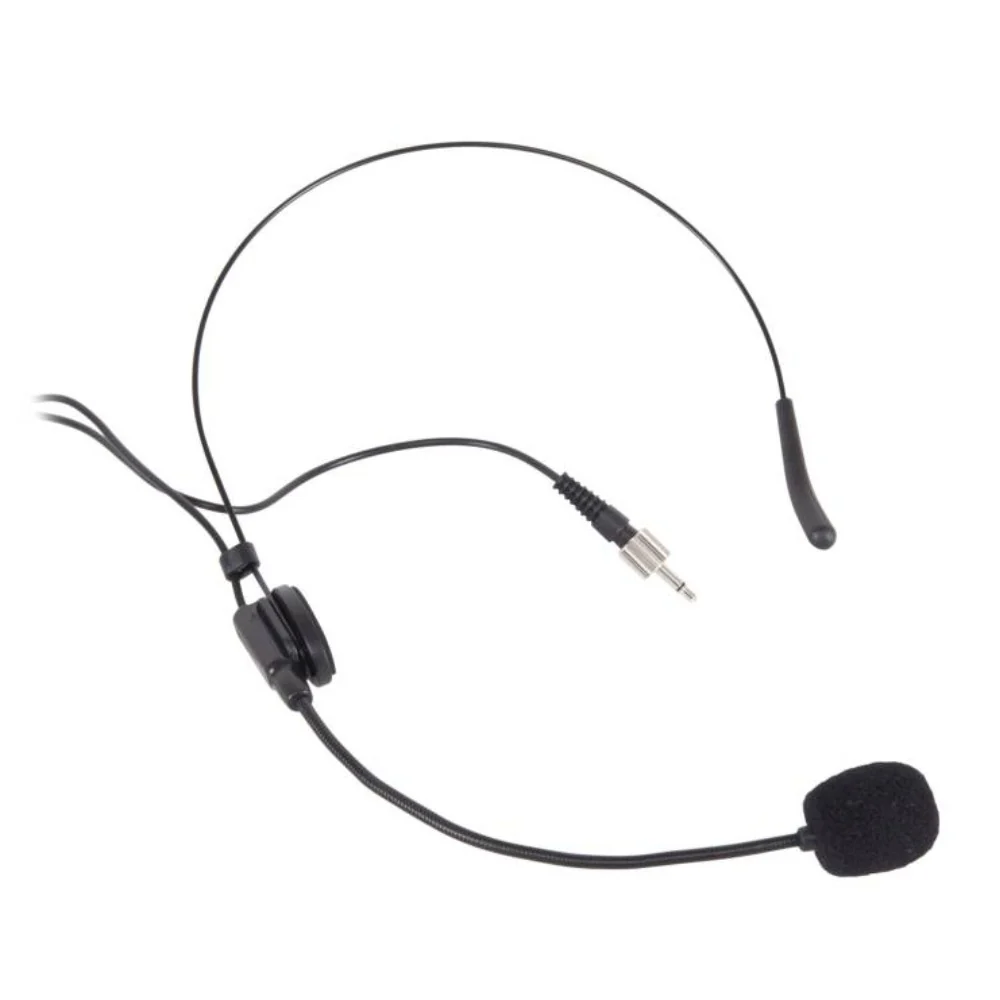

• HCM25 Headset Mic.: Cond. Cardiod

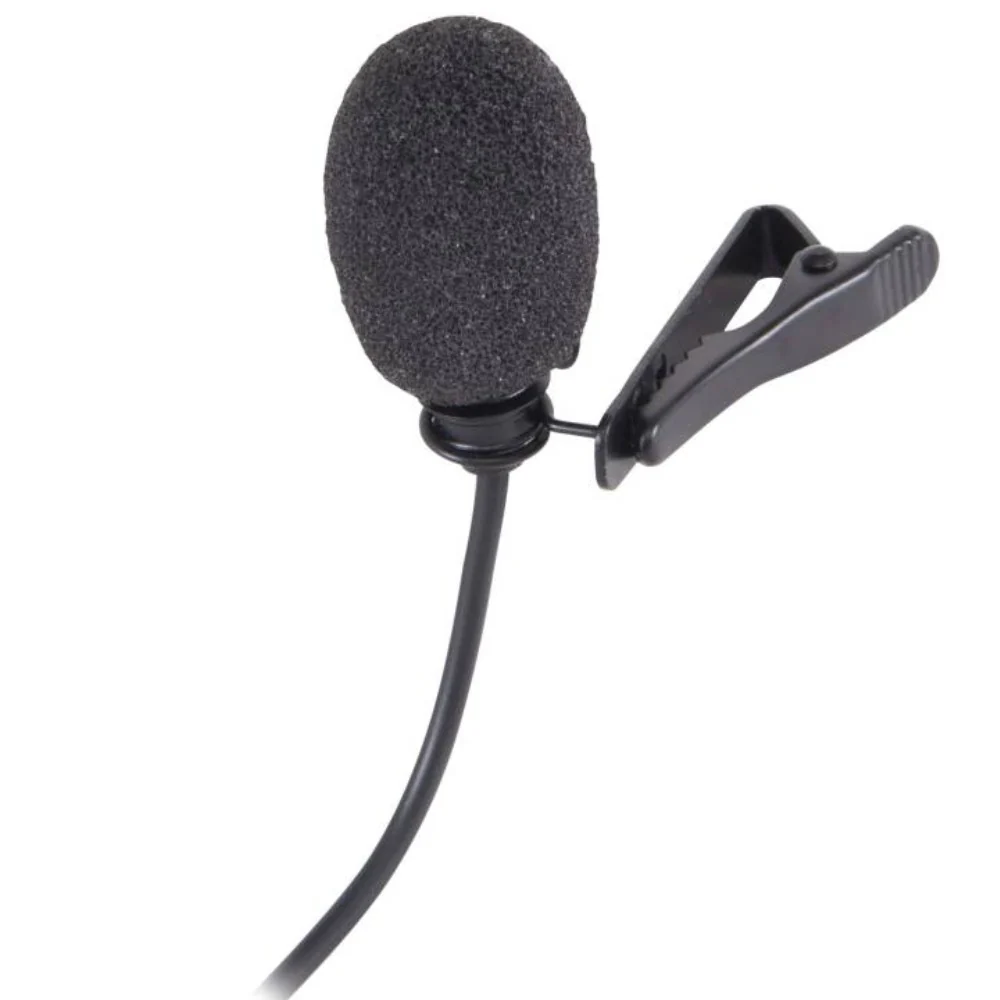

• LCH100 Lavalier Mic.: Cond. Cardiod

• Power Supply: 2x1.5V AA alkaline bat

• Dimensions (mm): 100 x 65 x 30
