QSC K10.2 10" Powered 2000 Watt Active Loudspeaker Overview:

The QSC K.2 Series represents the best-in-class loudspeaker for today’s demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.

Features:

• Best in class audio performance

• 2000 Watt Class-D amplifier module

• Intrinsic Correction™ tuning and  loudspeaker management

• Directivity Matched Transition® (DMT) design provides excellent power response and consistent performance across the listening area

• Refined, professional appearance looks great in any application

• Rugged ABS enclosure for long life and lasting durability

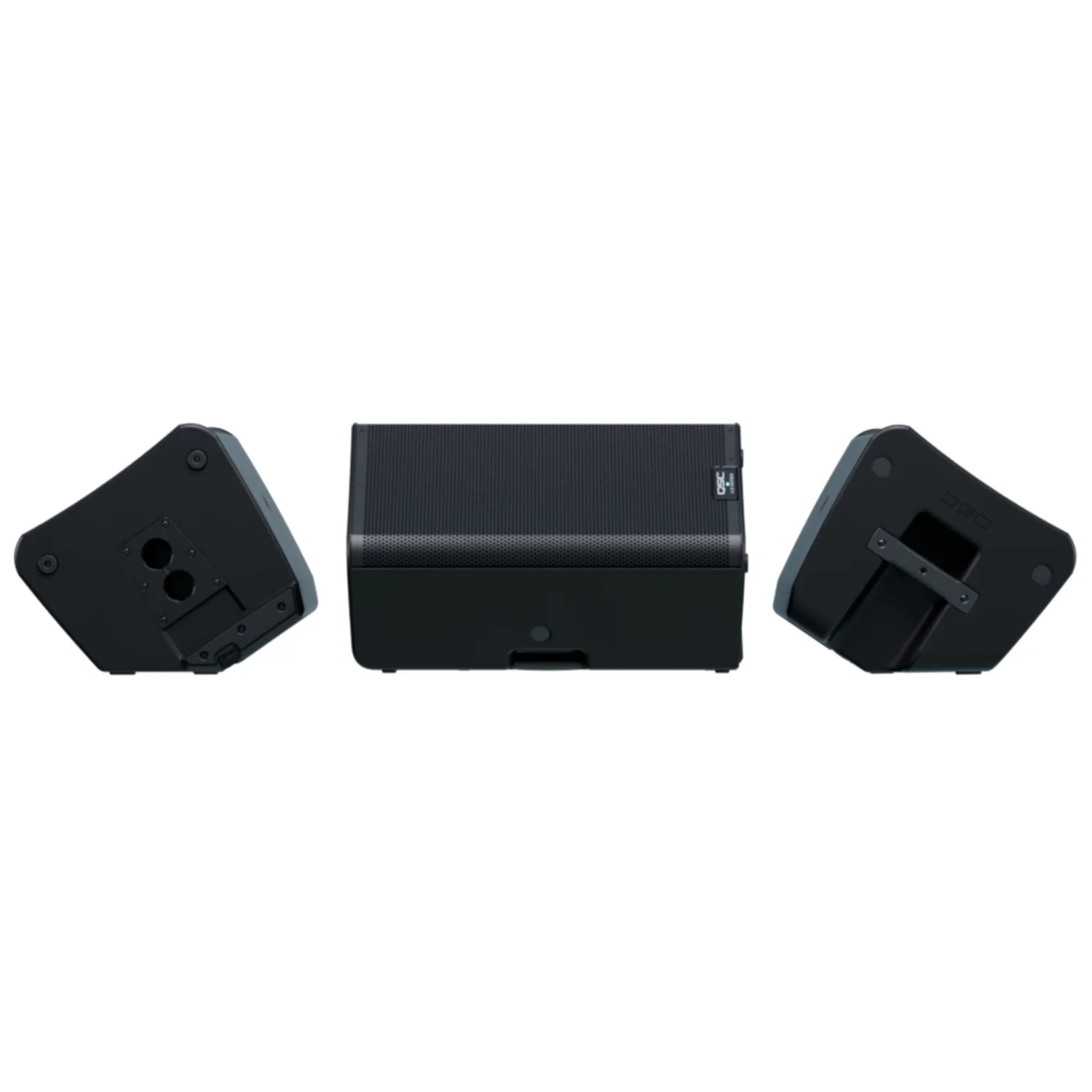

• Deployment in either main PA or floor monitor position

• Factory Presets and savable/recallable Scenes for commonly-used application

• Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour

• Dual pole cup mounts (standard and 7.5 degree down-tilt)

• M10 fittings for flown applications

• Optional security panel prevents  unauthorized tampering of controls

• Complete EASE and CAD information  available online

• 6 Year Warranty when registered within 30 days of purchase



Specifications:

• Configuration: Multi-purpose, 2-way active loudspeaker

• LF Transducer: 254 mm (10-inch), cone

• HF Transducer: 35.6 mm (1.4-inch) titanium diaphragm compression driver

• Frequency Response (-6 dB): 56 Hz - 20 kHz

• Frequency Range (-10 dB): 50 Hz - 20 kHz

• Nominal Coverage Angle: 90° Axisymmetric

• Maximum Rated SPL1: 130 dB @1 M, peak 124 dB @ 1 M, continuous
• Amplifier
  • Class D

  • Peak: 1800 W (LF), 225 W (HF)
• Cooling: Low-noise, variable speed fan

• Controls:
  • Power

  • 3 × Level

  • Rotary encoder (push)

  • 2 × selection buttons

• Indicators: Monochrome LCD Display 45 mm × 25.4 mm (1.75-inch x 1-inch)

• 2 × Power LED (front and rear)

• 3 × Input Signal LED

• Input A Mic selected LED

• Input B Hi-Z selected LED

• Limiter active LED

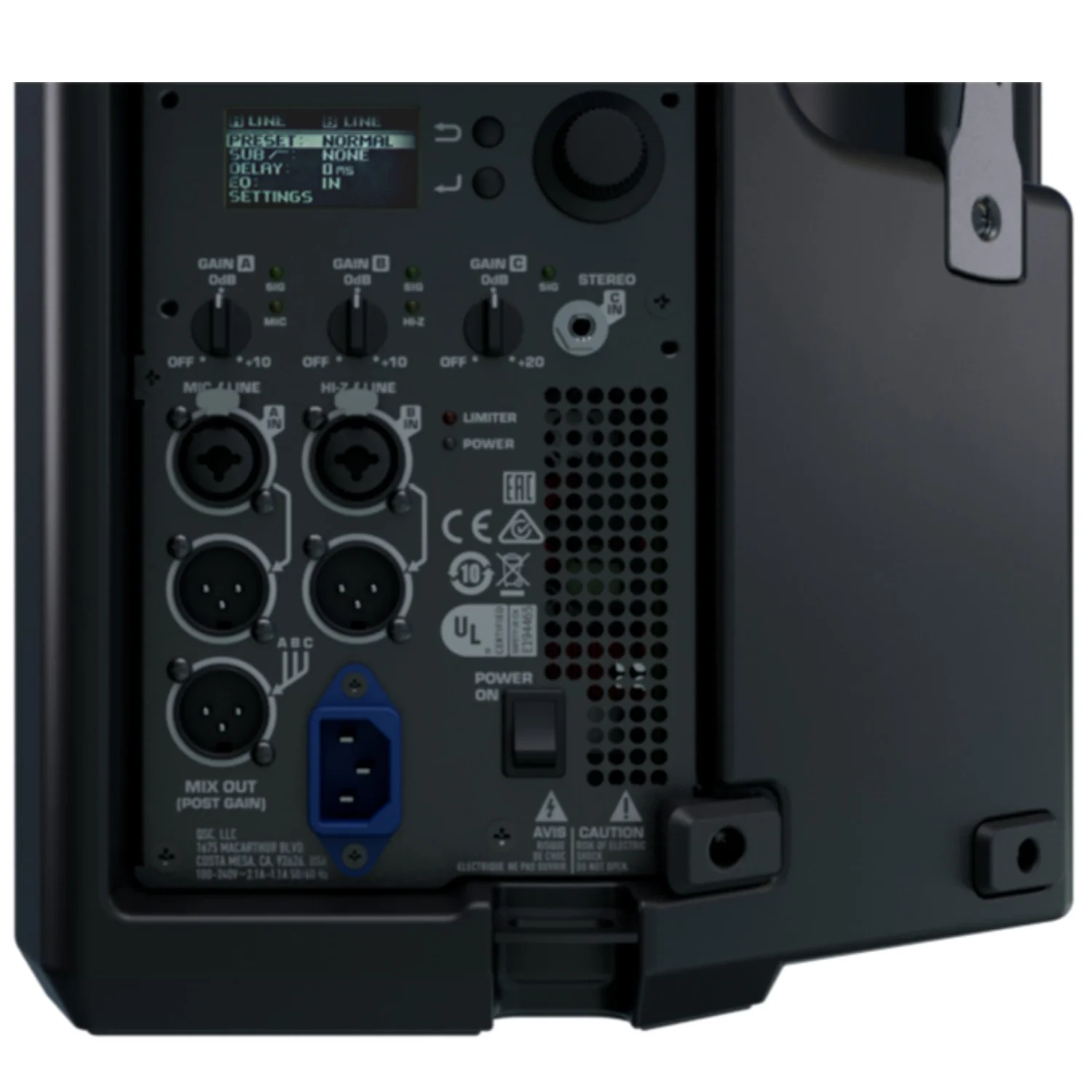

• Connectors:
  • 2 × locking XLR/F ¼⁻ᶦⁿᶜʰ combo (Mic/Line Input and Hi-Z/Line Input

  • 1 × 3.5 mm TRS (Stereo Input)

  • 2 × XLR/M (Loop-thru Output)

  • 1 × XLR/M (Mix Output)

  • 1 × locking IEC power connector

• AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz

• AC Power Consumption 1/8th Power2: 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A

• AC Power Consumption - Standby    0.2 A at any voltage
  Enclosure Details

• Enclosure: Impact Resistant ABS

• Attachment Points: 2 × M10 threaded inserts plus Pull-Back

• Color: Black (RAL 9011)

• Grille: 18 Gauge powered coated steel, internal cloth lining

• Speaker Dimensions (H×W×D): 519 × 320 × 300 mm
  20.4 × 12.6 × 11.8 in

• Carton Dimensions (H×W×D): 570 × 440 × 406 mm
  22.5 × 17.3 × 16 in

• Net Weight: 14.5 kg / 32 lb

• Shipping Weight: 17.6 kg / 38.8 lb

• Regulatory: CE, WEEE, UL, China RoHS, RoHS II, FCC Class B

• Optional Accessories: K10 Tote, K10 Outdoor Cover

• M10 Kit-C, K.2-LOC Lock Out Cove
  K10.2 Yoke
