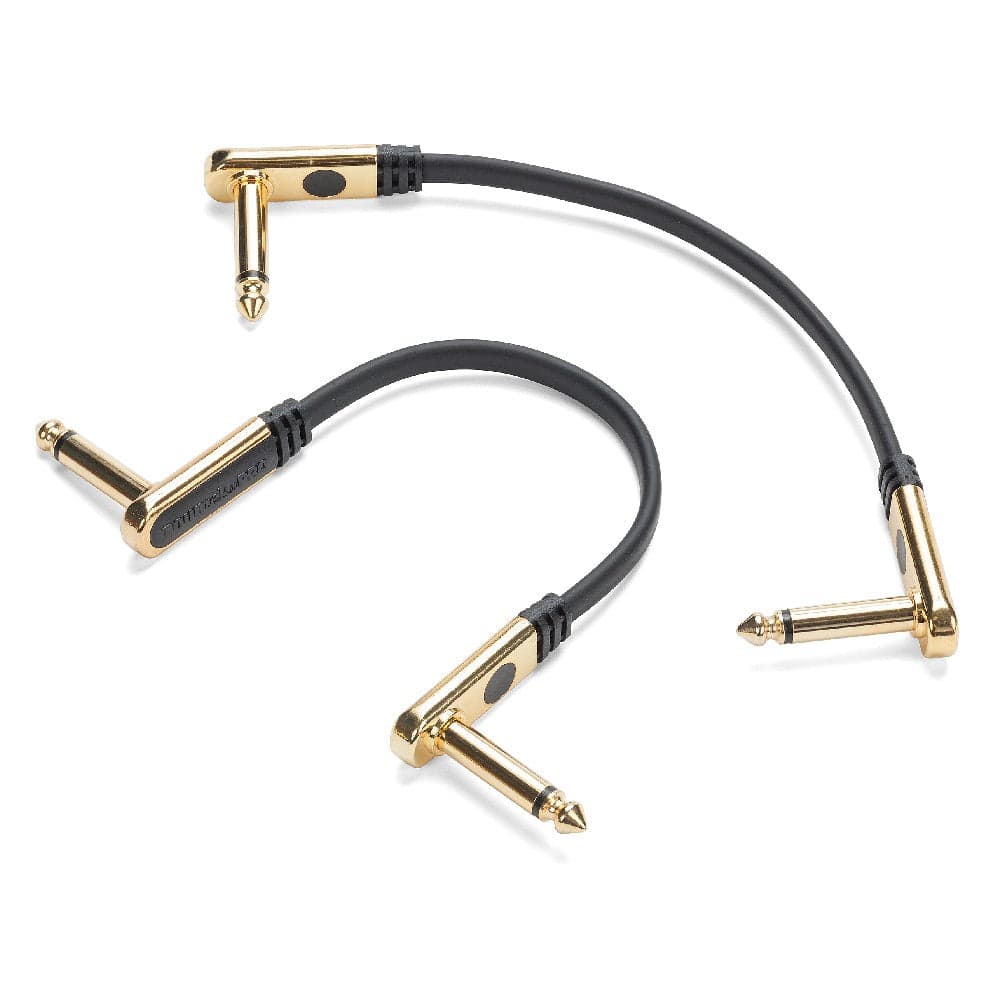

Samson Tourtek Pro 6" Flat Patch Cable Overview:

Tourtek Pro TPFAP Flat Patch Cables are designed to withstand the demands of sound engineers and touring musicians. These rugged cables features 90° 24k gold-plated connectors on both ends and 4mm thick outer diameter, perfect for connecting effects pedals, saving valuable space on pedalboards. Constructed with 99.99% OFC (Oxygen Free Copper), Tourtek Pro TPFAP low-capacitance cables deliver consistent performance while delivering an uncolored sound. Each cable features a 95% braided shield and carbon-impregnated conductive PVC insulation, offering extremely low noise and excellent rejection of RF/EMI interference.

Tourtek Pro TPFAP Flat Patch Cables are available in 6" and 1" lengths.

Specification:
Conductor

• AWG Size & Stranding:  24 AWG / 0.12x20
• Capacitance Conductor to Shield: 34.5pF/ft @1kHz
• Material:  99.99% Oxygen Free Copper

Insulation

• Material: Polyethylene
• Diameter: 2mm ±0.05mm

Braided Shield

• Material; Bare Annealed Copper
• Coverage: 95%

Jacket

• Material: PVC, Matte Finish
• Diameter: 6.5mm/4mm ±0.1mm
