Sennheiser EW D1-835S NH Wireless Cardoid Vocal System Overview :

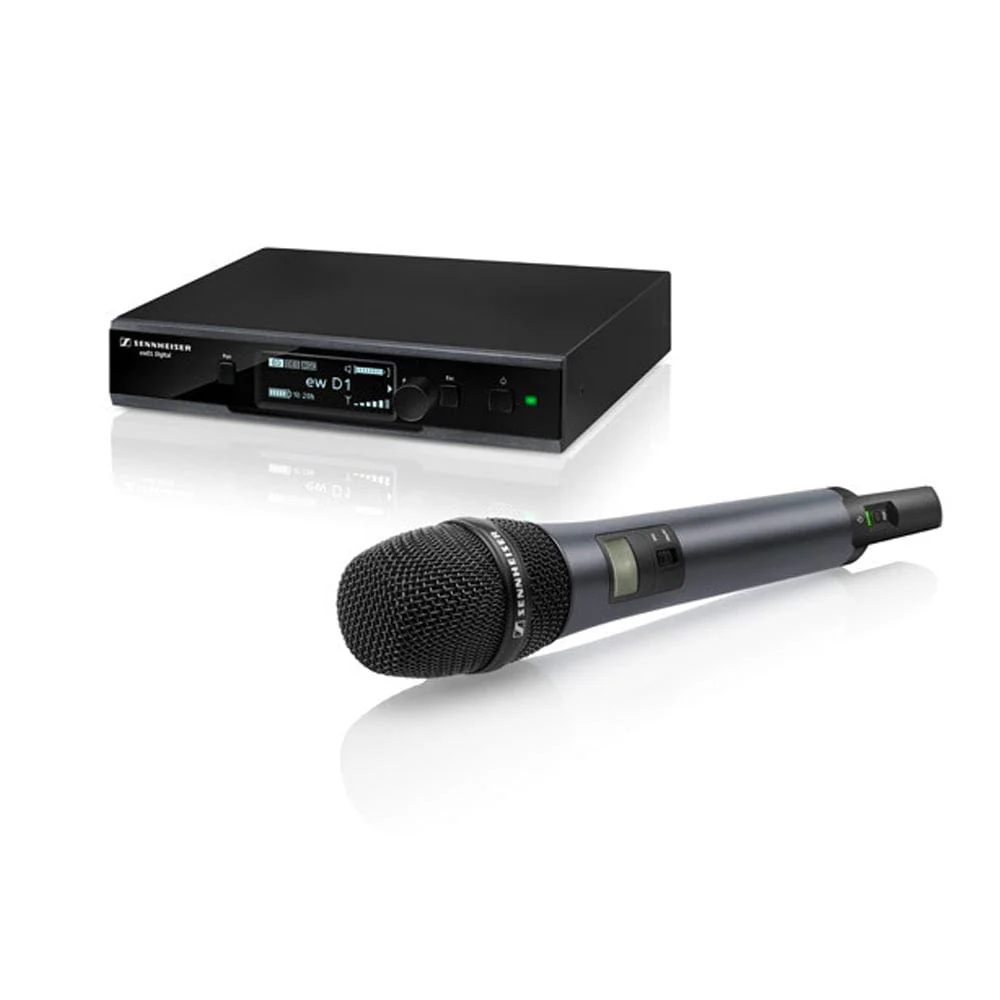

HD Live sound, highest range and the choice of various microphone heads from therenowned evolution series: with the digital D1 VOCAL SET, every singer has a systemwhose parts are perfectly attuned to one another. Intelligent channel back-up allowsco-existence with Wi-Fi and Bluetooth. The system operates in a license-free 2.4 GHz band and can be monitored via remote control iOS app. The system comes in a ruggedtransport case consisting of an EM D1 1/2 19“ rackmount receiver, an SKM D1 handheld transmitter, a microphone clamp, power supply, battery holder and 2 AA batteries.

Features :

• Choice of various microphone heads from
• the renowned evolution series
• Up to 15 compatible channels (under
• optimal conditions) in license-free 2.4 GHz
• band
• Automatic frequency management
• Prevents interference: Intelligent channel
• back-up allows co-existence with Wi-Fi &
• Bluetooth
• Audio effects: equalizer, de-esser, automatic
• gain control
• iOS app for remote control and monitoring
• of the system
• Rugged metal housing

Contents Included :

• EM D1 rackmount receiver

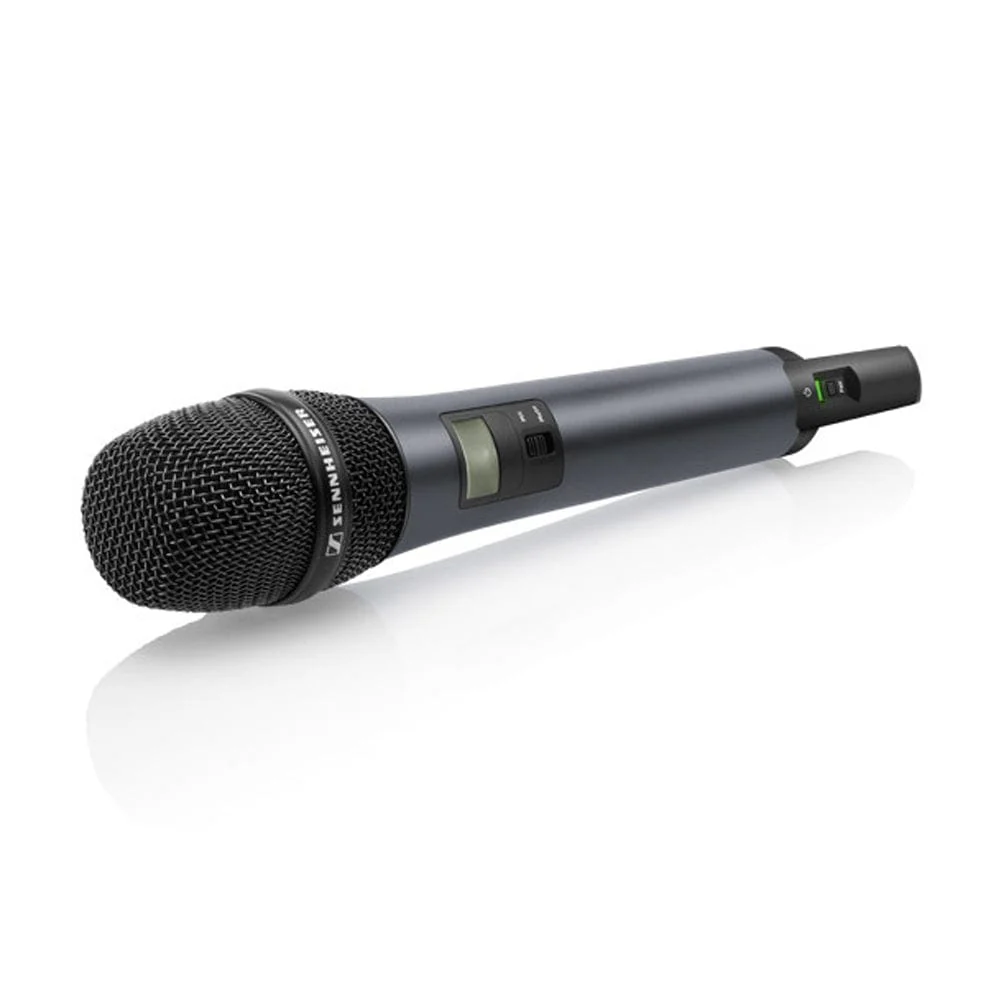

• SKM D1 handheld transmitter
• MZQ microphone clamp
• Power supply
• Battery holder
• 2 AA batteries

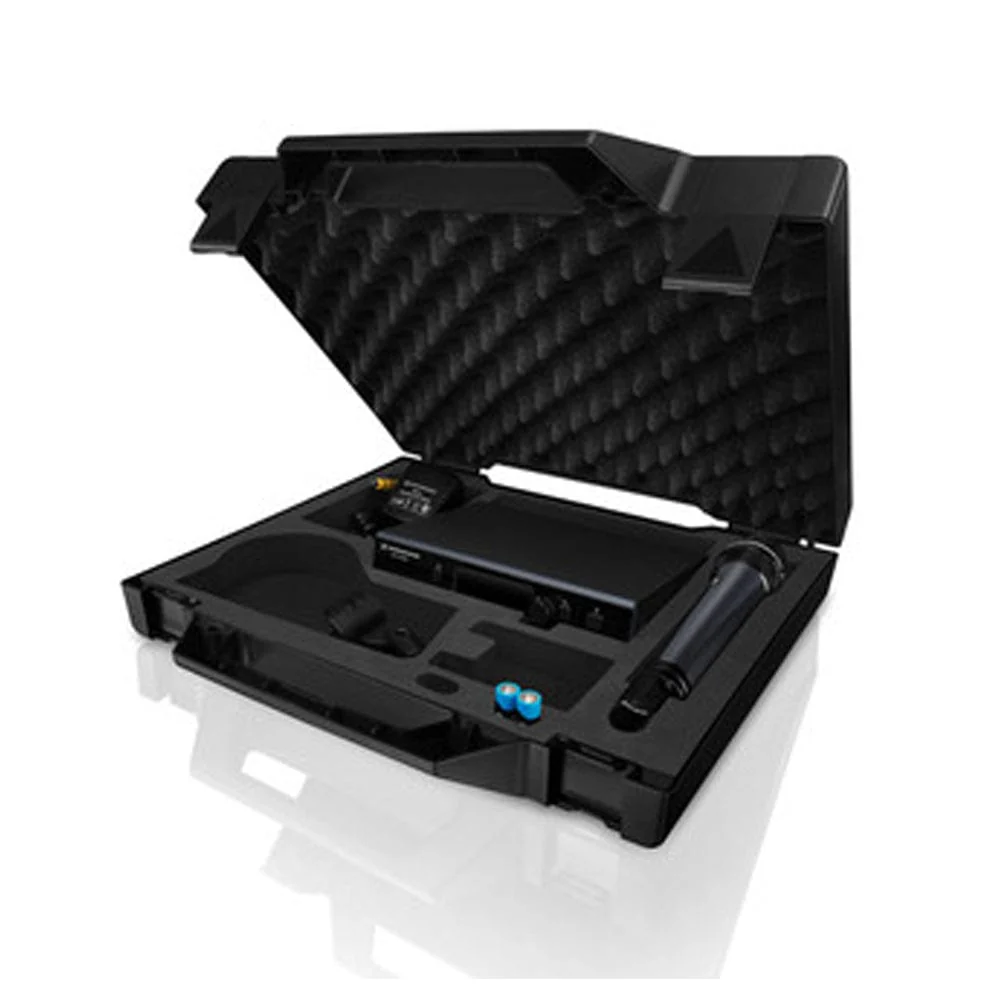

• Transport Case
• User Manual

Microphone 835-1

• MMD 835-1
• Microphone type dynamic
• Sensitivity 2.1 mV/Pa
• Pick-up pattern cardioid
• Max. SPL 154 dB SPL

Specifications :

• AF frequency response : 20-20000hz
• Dynamic Range : >135 db (A)
• THD (1khz) : typ. <0,1%
• Audio Sampling : 24 bit/48khz
• Signal-to-noise ratio : >105 db (
• A)
• RF frequency ranges : 2400 to 2483.5 mhz
• Modulation : GFSK with back channel
• Transmission method : TDMA
• Time diversity
• Frequency diversity
• Fast switching antenna diversity
• Latency : 3.9ms
• Audio Codec : APT-X Live
• Temperature ranges : Relative air humidity max 95%
• Operation : -10~c to 55~c
• Storage : -20~c to 70~c

RF Output Power :

• NH-NT : Vocal Set, e 835 switch, 100mW
• NH10 : Vocal Set, e 835 switch, 10mW

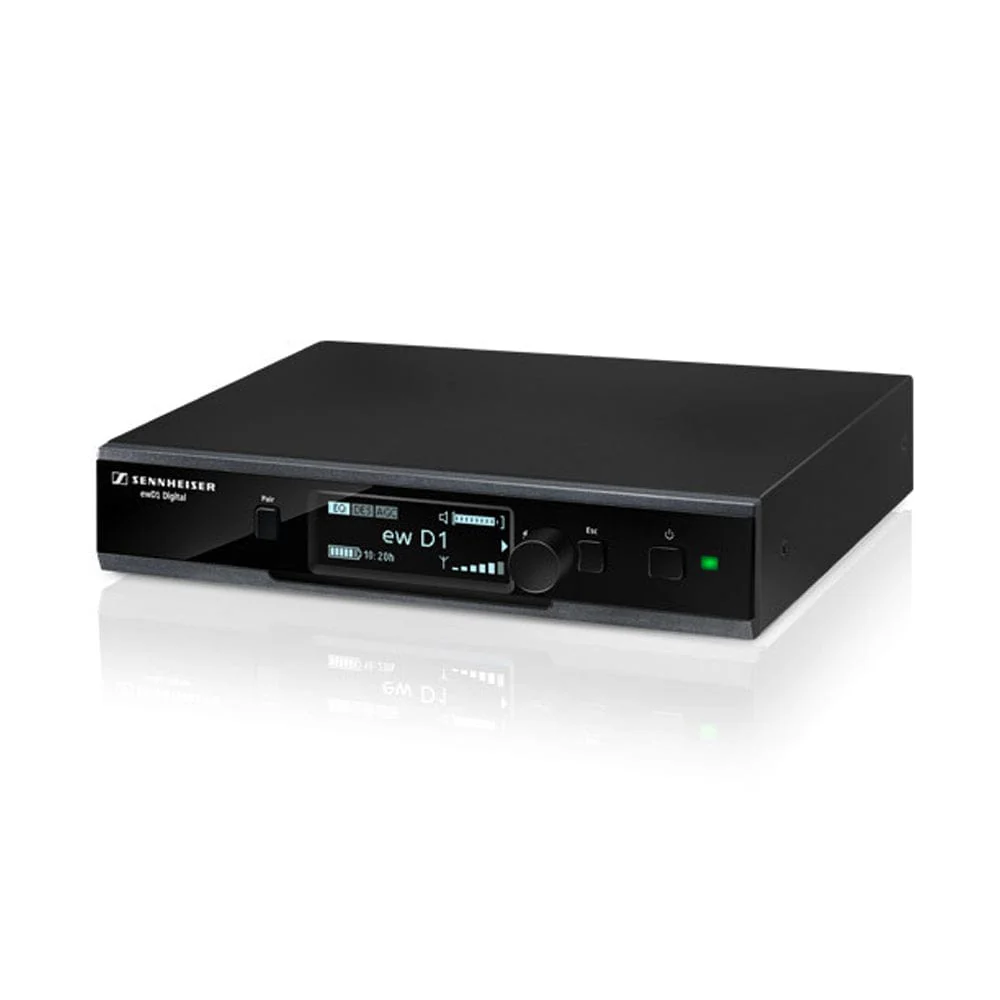

EM D1

• Weight approx : 824 g
• Audio output : Mic/line level switch –12 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
• RF output power : back channel 10 mW/100 mW (country-specific)
• Power supply : 12 V DC hollow jack
• Antenna connector : 2 x Rev-SMA
• Current consumption : 350 mA
• Low-cut filter : –3 dB at 120 Hz
• RF sensitivity : <-90 dBm
• Connection : XLR/¼" (6.3 mm) jack
• Equalizer : 7-band graphic equalizer
• Automatic gain control (AGC) : compression/expansion with automatic make-up gain function
• Display OLED
• Network socket : RJ45
• Network protocol : Media Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6

Made in Germany
