Sennheiser XSW 1-ME2 Wireless Lavalier Mic System Overview :

Inspire your audience. Easy to use all-in-one wireless system for public speakers and presenters.

Inspire your audience. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.

Features :

• Compact bodypack transmitter, unobstrusive clip-on microphone
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

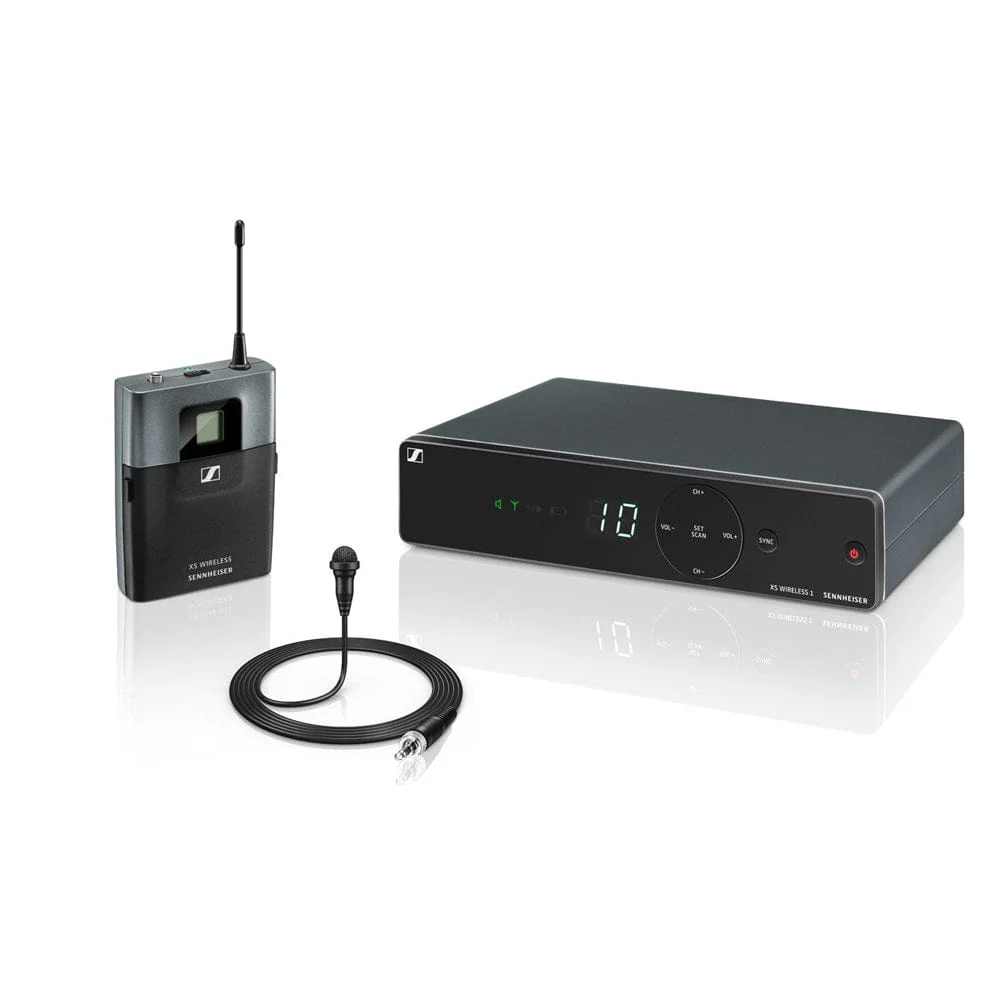

Contents Included :

• 1 receiver EM-XSW 1
• 1 lavalier microphone ME 2-2
• 1 bodypack transmitter SK-XSW
• 1 power supply NT 12-5 CW
• 2 AA batteries

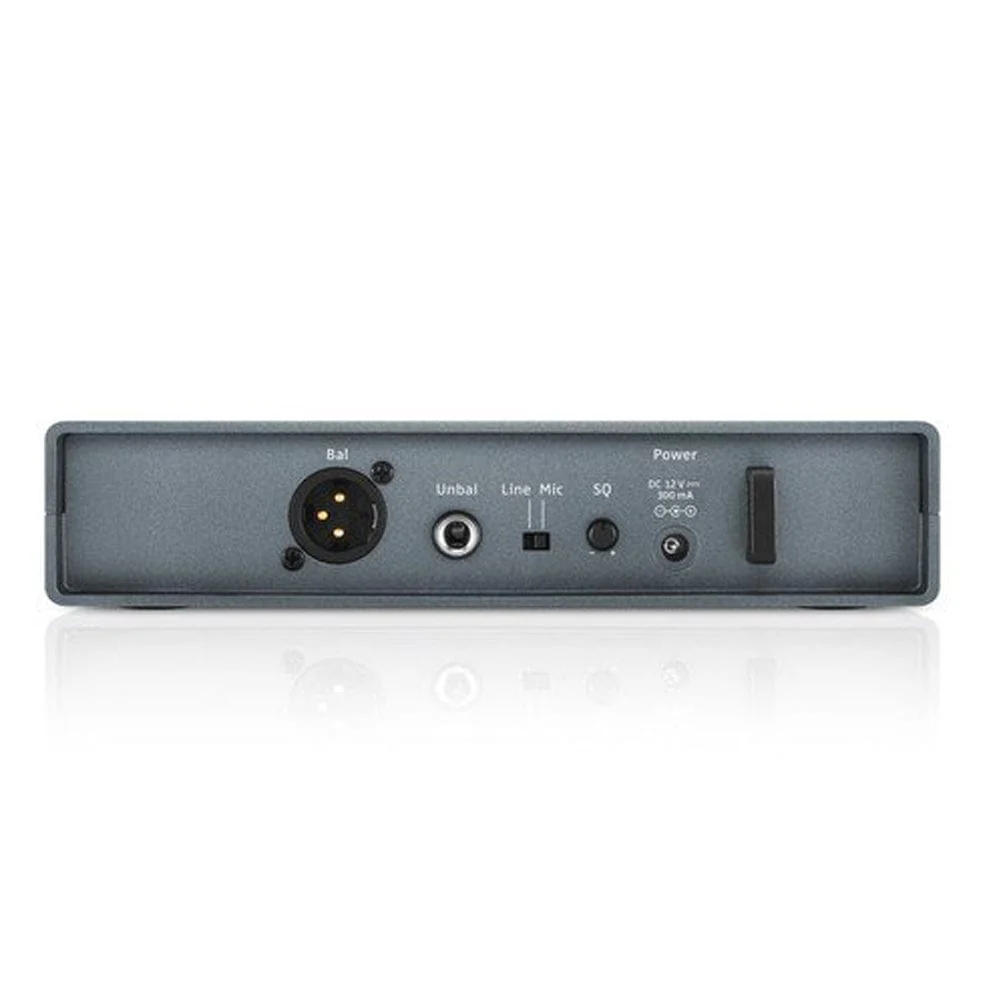

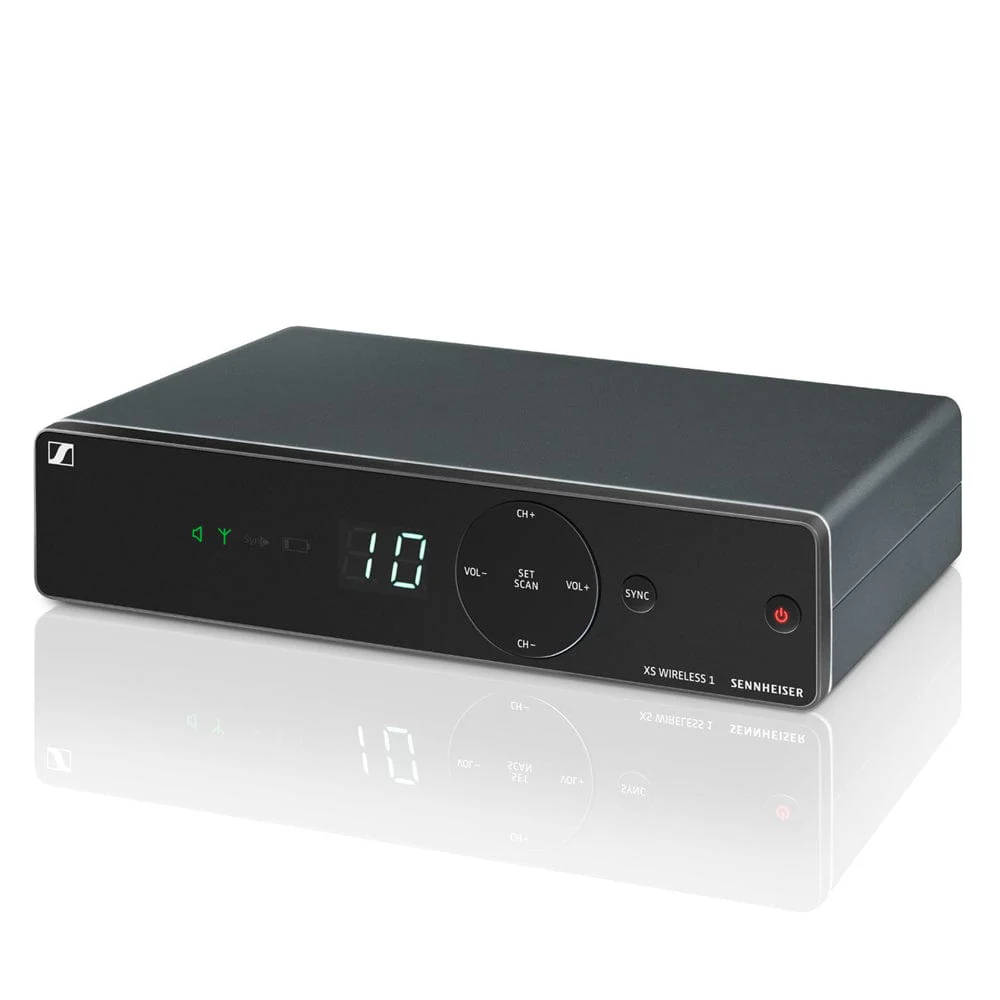

Receivers

• Dimensions approx : 200 x 42 x 127 mm
• Weight approx : 340g
• Power supply : 12 V DC nom. / 300 mA
• AF frequency response : 50 to 16,000 Hz (–3 dB)

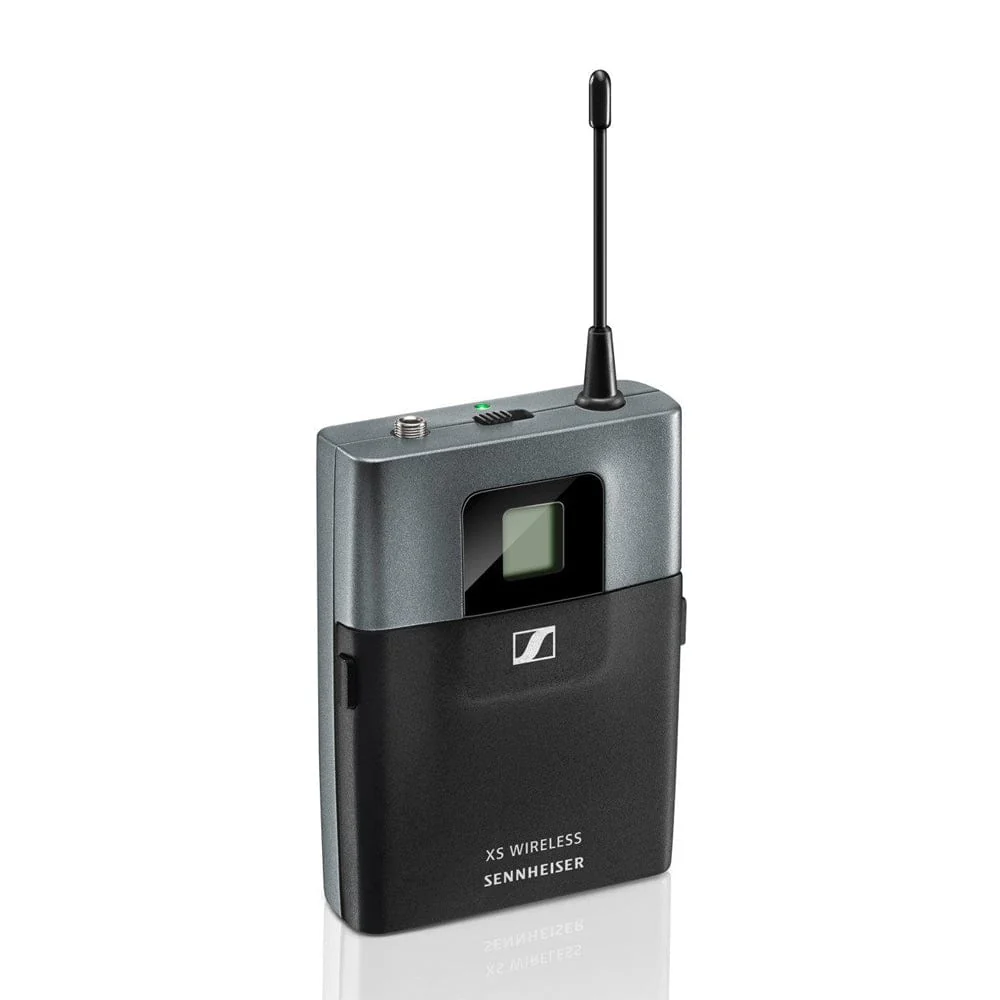

Transmitter

• Dimensions approx : 71 x 96 x 28 mm
• Weight approx : 95g
• Power supply : 2 AA size batteries, 1.5 V
• Adjustment Range Transmitter : 0 to -30 dB, adjustable in 10 dB steps

Microphone condenser

• THD, total harmonic distortion :  ≤ 0.9%
• Pick-up pattern omni-directional
• Signal-to-noise ratio :  ≥ 103 dBA
• RF output power : 10 mW
• Switching bandwidth : up to 24 MHz
• Operating time approx : 10 hrs
• Modulation : wideband FM
• Output voltage : '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced) : +12 dBu
• Housing rugged : ABS housing
• Diversity reception antenna switching diversity via internal antennas
• Frequency : 8 frequency banks, each with up to 10 factory-preset channels

Frequency range

• A : 548-572 MHz
• C : 766-790 MHz

Specifications :

• Sensitivity : < 3 μV at 52 dB(A)rms S/N
• SPL for peak deviation : 130 dB
• Squelch : adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization : 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity : 1.5 mV / Pa
• Audio adjustment range : 45 dB, adjustable in 5-dB steps
• Line / Mic level 20 dB, switchable
• Temperature Range operation : 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle : double superheterodyne

Made in Germany
