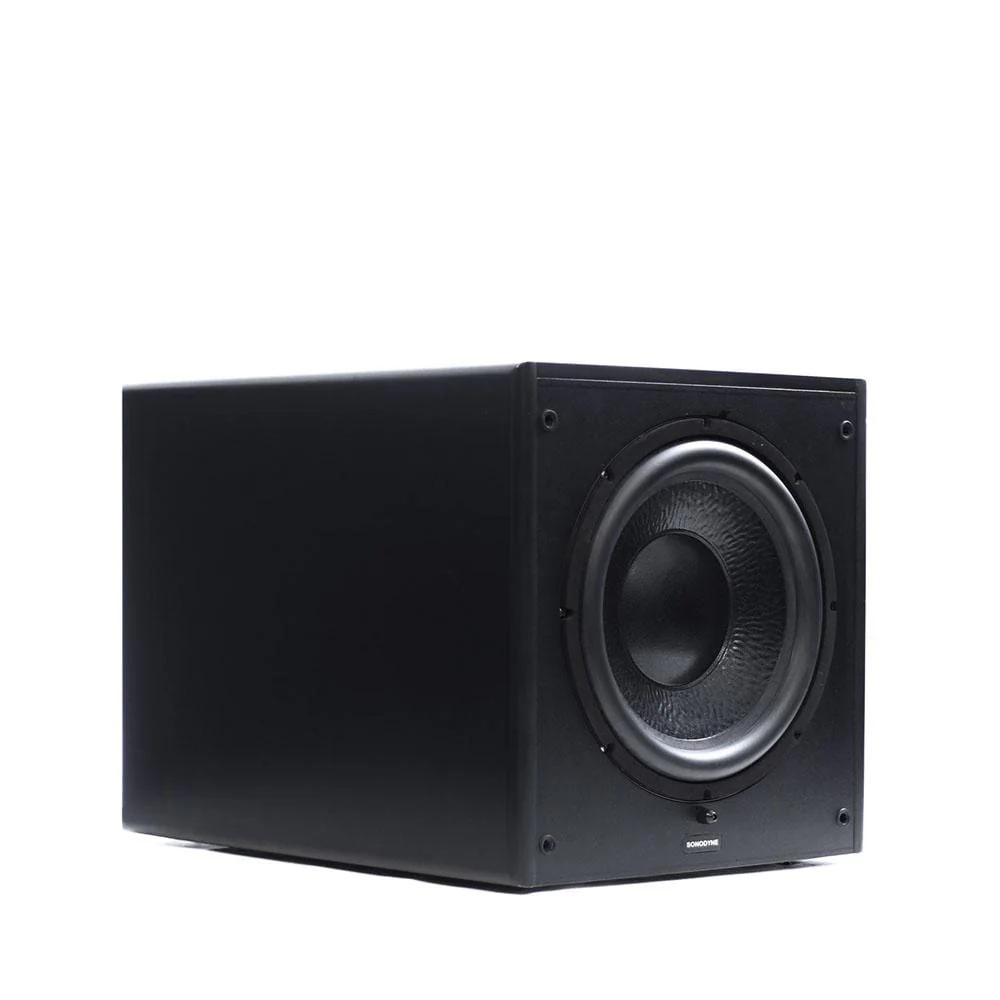

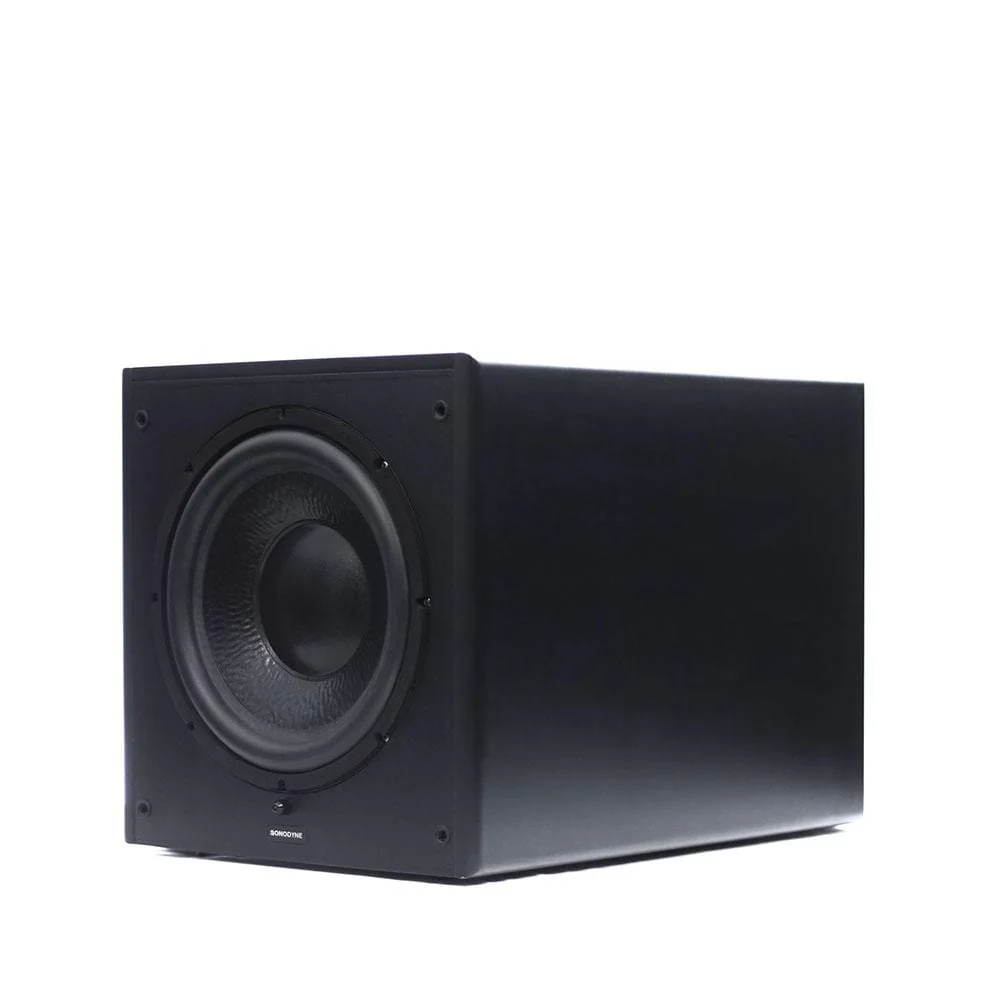

Sonodyne SLF 312 12" Powered Subwoofer Overview:

The 312 is a no nonsense 12" powered subwoofer that can be used singly or in sets for large multichannel systems

HIGHLIGHTS

• 12" transducer powered by D class amp
• 2.1 channel bass management
• Discrete phase control from 0 ~ 180 deg.
• Polarity switch
• Ground lift switch
• External (foot switch controlled) bass management

SPECIFICATIONS

• DESCRIPTION Front firing powered subwoofer, vented
• ENCLOSURE 18 mm MDF
• TRANSDUCER COMPLEMENTS 1 x 12" high- excursion subwoofer
• AMPLIFIER CLASS Class D
• AMPLIFIER POWER 300 W
• AMPLIFIER THD 0.1% at rated power
• RECOMMENDED AMPLIFIER POWER 300 W
• MAX SPL 116 dB
• FREQUENCY RESPONSE 30 Hz ~ Crossover frequency (-3 dB)
• USABLE FREQUENCY RESPONSE (-10 DB) 25 Hz
• INPUTS Left, Right and LFE, fully balanced, through XLR socket
• INPUT IMPEDANCE 22 kOhm, balanced
• INPUT LEVEL FOR FULL POWER +5 dBU (1.38V) level control at max
• OUTPUT (LINE LEVEL) Left and Right, fixed 80 Hz bypass, fully balanced, through XLR socket
• CONTROLS 1. Crossover frequency: 50 Hz ~ 150 Hz 2. Phase: 0 ~ 180 degrees 3. Gain: -60 dB to +6 dB

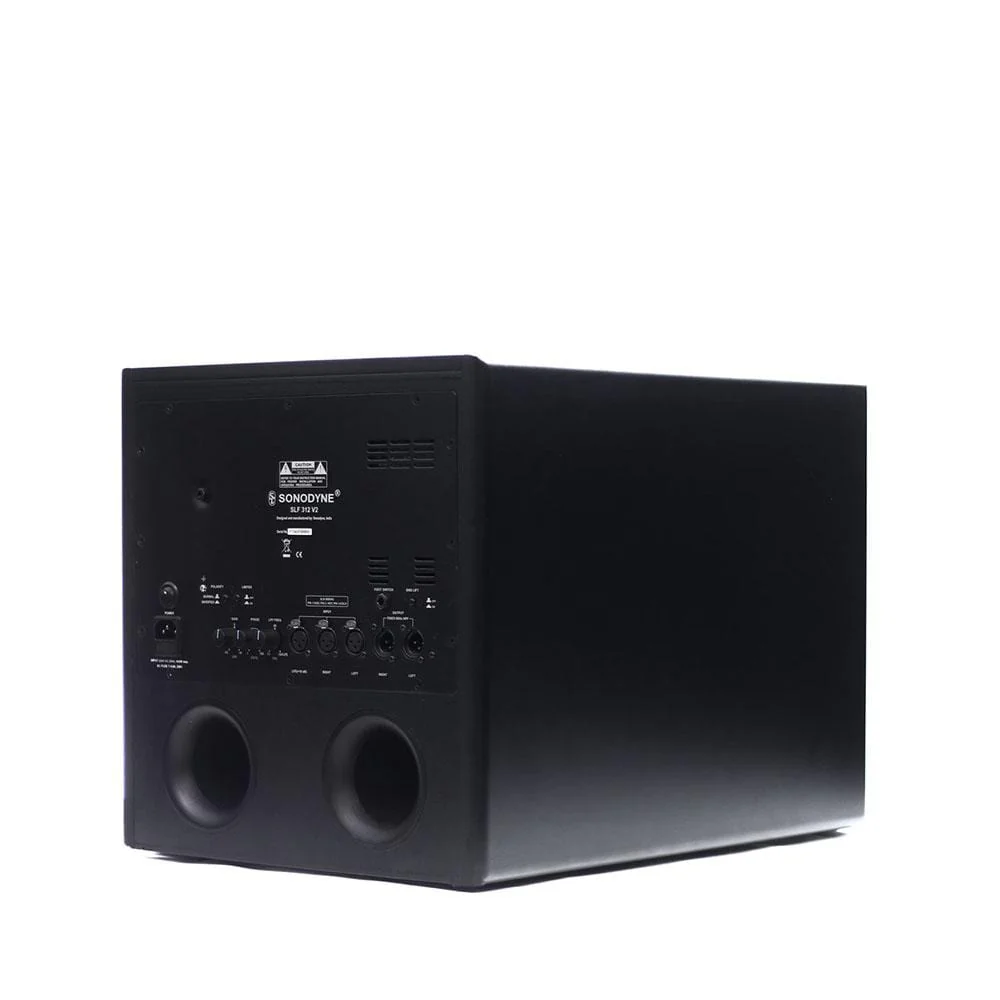

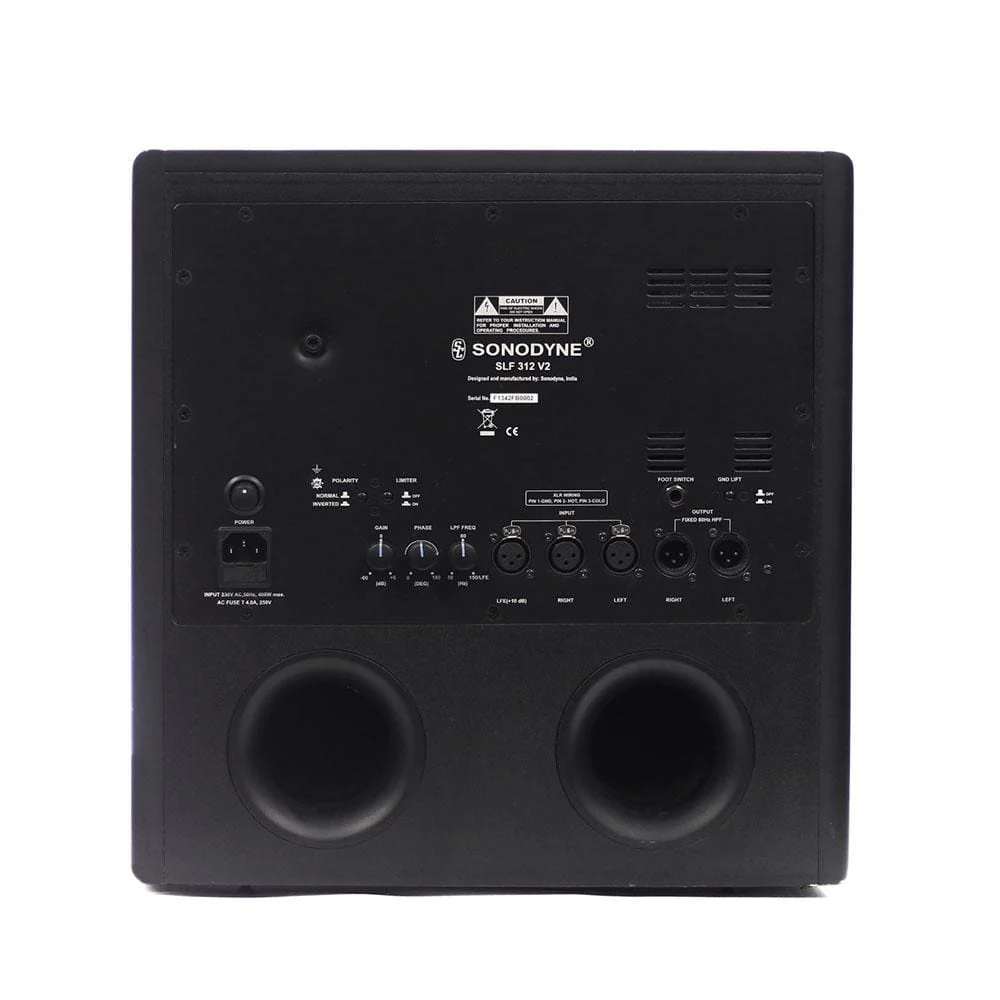

• CONTROLS - REAR Polarity, Limiter On/Off, Ground Lift switch
• PROTECTION Thermal, overload, short-circuit, DC at output
• SIGNAL TO NOISE RATIO 98 dB (A-weighted)
• FINISH Black painted
• GRILLE Black grill cloth stretched over wooden frame
• COLOURS Black
• DIMENSIONS (HXWXD) MM 402 x 398 x 555
• POWER SOURCE 230 V AC, 50 Hz, via fused IEC inlet/ 115 V optional
• POWER CONSUMPTION 380 VA max
• NET WEIGHT 29 kg

Made in India
