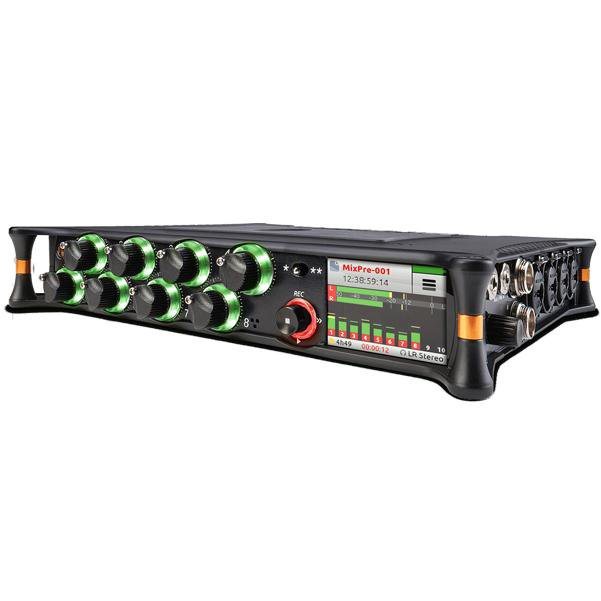

Sound Devices MixPre-10T Multichannel Audio Recorder-Mixer and USB Audio Interface
Sound Devices MixPre-10T Multichannel Audio Recorder-Mixer and USB Audio Interface Overview:
The World's Smallest 10-Input/12-Track Recorder
The MixPre-10T is the newest member of the groundbreaking MixPre Series of recorders, mixers, and USB audio interfaces. This lightweight, 10-input/12-track recorder offers world-class sound quality, flexible powering, and built-in, highly accurate timecode generator/reader – perfect for production sound mixers, field recordists and sound designers.
Exceptional Audio Quality
The MixPre-10T features eight Sound Devices' Kashmir™ microphone preamps. These high-performance, ultra-low-noise, discrete, Class-A mic preamps were handcrafted by Sound Devices. The Kashmir mic preamps feature a -130dBV noise floor, analog limiters, and new 32-bit A-to-D converters to ensure the highest quality audio recordings that far surpass those of other recorders using simple off-the-shelf, IC-based mic preamps.
Accurate Timecode Generator/Reader Plus Word Clock
As its name suggests, the MixPre-10T features a built-in, ultra-high accuracy timecode generator and reader. Even when turned off or all power is removed, the MixPre-10T continues to hold accurate timecode for hours, more than long enough even for the most extended lunch break (or break in production)!
With its multiple timecode connections, all common frame rates and timecode modes are supported as well as the ability to lock to or output word clock, ideal for synchronization in any digital audio environment.
Versatile I/O Routing

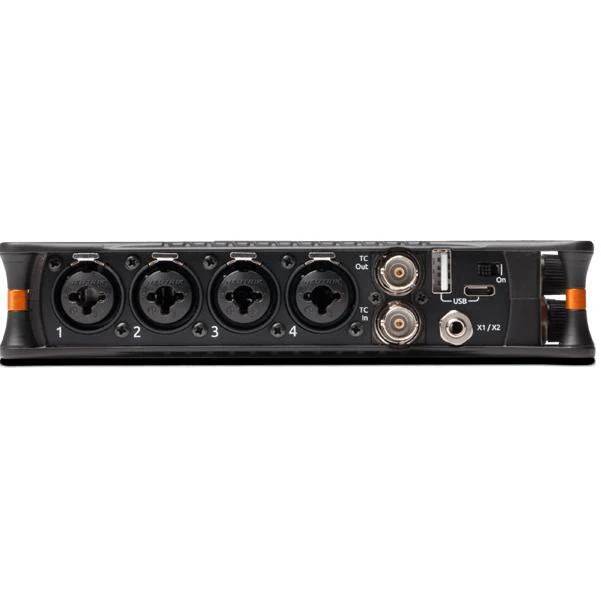

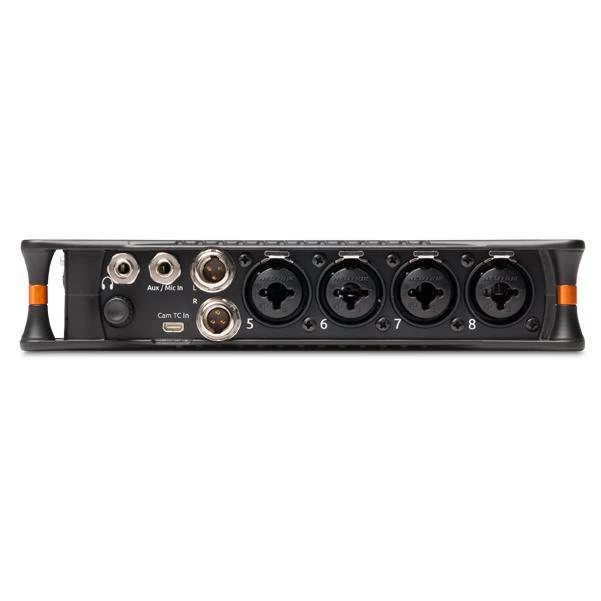

The MixPre-10T offers eight XLR/TRS combo Mic/Line level inputs, and a 3.5mm Aux/Mic input, which can also be used for 2-channel line input, camera return or timecode.
The MixPre-10T also provides comprehensive routing flexibility with its two TA3 balanced outputs and a 3.5mm Stereo output, each with routing matrix.
Flexible Powering
For the ultimate in portability and convenience, the MixPre-10T has multiple powering options. The MixPre-10T features locking 4-pin Hirose connector (10-17V) for either external battery powering or AC-powering (with optional AC adapter).
Like the MixPre-3 & MixPre-6, the MixPre-10T can also be powered from AA batteries in a convenient detachable sled of eight cells, or via an optional sled that offers powering from up to two hot-swappable Sony L-Mount Li-Ion batteries.
Auto Copy
The MixPre-10T’s auto copy feature is as easy as ABC - or what we like to call “Auto-Background Copying”. With this feature, users can record files up to 192kHz / 24-bit to an SD card, while automatically copying to a USB thumbdrive (USB A) for handoff to a client or as a backup copy.
Compact, Unintimidating Design
The size and weight of the MixPre-10T will fit any production environment. It features a responsive capacitive touch screen for incredibly simple and intuitive operation, and a bright, IPS sunlight-readable color LCD for the ultimate in convenient navigation. The MixPre-10T also provides a transport joystick for starting record or playback, and two user-programmable shortcuts allowing user customization.
Like all Sound Devices products, the MixPre-10T is extremely durable. Constructed with a die-cast aluminum chassis, it is both lightweight and incredibly robust. The ultra-compact MixPre-10T is perfect for jobs on the run.
Mixing, Metering and Monitoring
The MixPre-10T incorporates a simple mixer that offers gain control knobs, and access to panning and soloing via a simple press of the knob.
For metering, it provides easy-to-read ring LEDs with limiter activity, along with three LCD views for multitrack, mix, and USB return metering.
The MixPre also includes a 3.5mm jack for headphone monitoring with user-programmable routing presets from our custom-designed, powerful, wide-bandwidth headphone amp.
Flexible Wireless Control and Workflow
The MixPre features integrated Bluetooth Smart® for easy wireless connection, control and metering via the free Sound Devices Wingman app on iOS and Android devices.
Intuitive Operation
Like its MixPre Series predecessors, the MixPre-10T’s user-friendly, touch-screen navigation features three modes of operation: Basic, Advanced, and Custom. Basic mode has been designed to allow a user to start recording right out of the box, and is intended for stereo recording applications, such as interviews and music recordings.
Advanced and Custom mode offer more experienced audio users access to multi-channel recording and advanced settings such as metering, routing, timecode, mic pre gain, stereo and M/S channel linking, channel phase invert, input/output delay, headphone presets, and more.
Powerful USB Audio Interface
The versatile MixPre-10T makes an excellent USB audio interface featuring 12 channels in and 4 channels out from a computer at up to 96k sample rate. The Mixpre-10T also features the unique ability to record to an SD card while simultaneously audio streaming via USB.
Specifications:
Frequency Response
10Hz to 80kHz +/- 0.5dB re 1kHz @ 192kHz sample rate
THD + Noise
0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in)
ADC
32 bit precision; 120dB dynamic range min (A-weighted, gain=10dB, fader=0dB)
Equivalent Input Noise
-130dBV (-128dBu) max (A-weighting, gain=76dB, 150 ohm source impedance)
Inputs
Mic: XLR active-balanced; 4k input Z
Line: XLR active-balanced; 4k input Z
Aux/Mic in: 3.5mm TRS, 2-channel unbalanced; 100k input Z
Line: ¼-inch TRS active-balanced; 4k input Z
USB Audio: 4 channels
All inputs fully RF-filtered and overload protected.
Gain
Mic input: +6dB to +76dB
Line input: -20dB to +30dB
Fader: -inf to +20dB
Headphone: -inf to +20dB
Total, Mic-to-recording (max): +96dB
Aux In (Mic): Gain = +10dB to +40dB
Aux In (Line): Gain = -10dB to +20dB
Total Aux Gain including Fader (Mic-to-recording): +60dB
Maximum Input Level
Mic XLR: +14dBu (limiters on or off)
Line XLR/¼-inch: +28dBu (limiters on or off)
Aux In (Mic): -10dBu
Aux In (Line): +10dBu
Low Cut Filters
40Hz to 160Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital.
Microphone Powering
Mic XLRs: 48V via 6.8k resistors, 10mA each
Mic 3.5mm: 3V @ 3k source Z
Limiters
Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital.
DAC feeding Stereo Out, Headphone Out
32 bit precision; 115dB dynamic range (A-weighted)
L/R Out
TA3 2-channel balanced, 1.1K max output impedance, +7.8dBu max output level
X1/X2 Out
3.5mm TRS stereo unbalanced, 500 ohm output impedance, +7.8dBu max output level
Headphones Out
3.5mm TRS stereo unbalanced, for use with any impedance headphones
USB
Audio Interface (USB-C): 12-in/4-out; 44.1 to 96 kHz; 16/24-bit; Class-compliant USB 2.0 high speed or ASIO driver (supplied via download)
Mass Storage (USB-C): USB 2.0 high speed
Keyboard (USB-A): Text entry and control
Thumbdrive (USB-A): Manual or auto-copy to drive
Maximum Record Tracks
12 Tracks: Stereo mix + 10 ISOs
Sampling Frequency
44.1 kHz
47.952 kHz
48 kHz
48.048 kHz
96 kHz
192 kHz
Bit Depth
16, 24
Recording Storage
Type: SD, SDXC, SDHC Card (USB thumbdrive, copy only)
Max Storage Size: 512 GB (SDXC)
Card format: FAT32 (32GB or less) or exFAT (>32GB)
File Types
WAV (Broadcast Wave File Format) with embedded timecode stamp and metadata
Timecode Modes
Free Run
Time of Day (file stamped w/current ToD)
Rec Run
Ext LTC (file stamped w/incoming LTC on BNC or Aux 3.5mm)
Camera TC (file stamped w/incoming TC from cameras that output TC)
Timecode Frame Rates:
Auto-detects (fps): 23.98 (same as 23.976)
24
25
29.97DF
29.97ND
30
30DF
Sync Source
Internal, Word Clock, Ext LTC
BNC In (TC In)
Switchable between Timecode (default) or Word Clock Input
Timecode: 20k ohm impedance, 0.3 V - 3.0 V p-p (–17 dBu - +3 dBu)
Word Clock: 10k ohm impedance, 1.5V p-p
BNC Out (TC Out)
Switchable between Timecode (default) or Word Clock Output
Timecode: 1k ohm impedance, 3.0V p-p (+12 dBu)
Word Clock: 75 ohm impedance, 5V p-p
Remote Control
Bluetooth Smart: Wireless control using Wingman app
HDMI (micro): Auto-record start/stop trigger from cameras that output record flag over HDMI
Timecode: Auto-record start/stop trigger via Aux In timecode
Touch Screen
320x256; 1.6-inch, color, sunlight-viewable IPS LCD
Power
AA Batteries: 8x AA sled (included). NiMH recommended
L-Mount: Optional sled for 2x (hot-swappable) Li-ion batteries
AC Adapter: XL-WPH3: Universal, 45 W in-line AC-to-DC power supply Hirose 4-pin DC plug, with detachable IEC power cord. 100-240, 50/60Hz
Environmental
Operating: -20°C to 60°C, 0 to 90% relative humidity; (non-condensing)
Storage: -40°C to 85°C
Dimensions and Weight
Dimensions: 36 mm x 206 mm x 175 mm (H x W x D); 1.375” x 8.125” x 6.875”
Weight: 0.91 kg; 32.1 oz. (unpackaged, without batteries)
In The Box:
MixPre-10T
MX-8AA Battery Sled (batteries not included)
