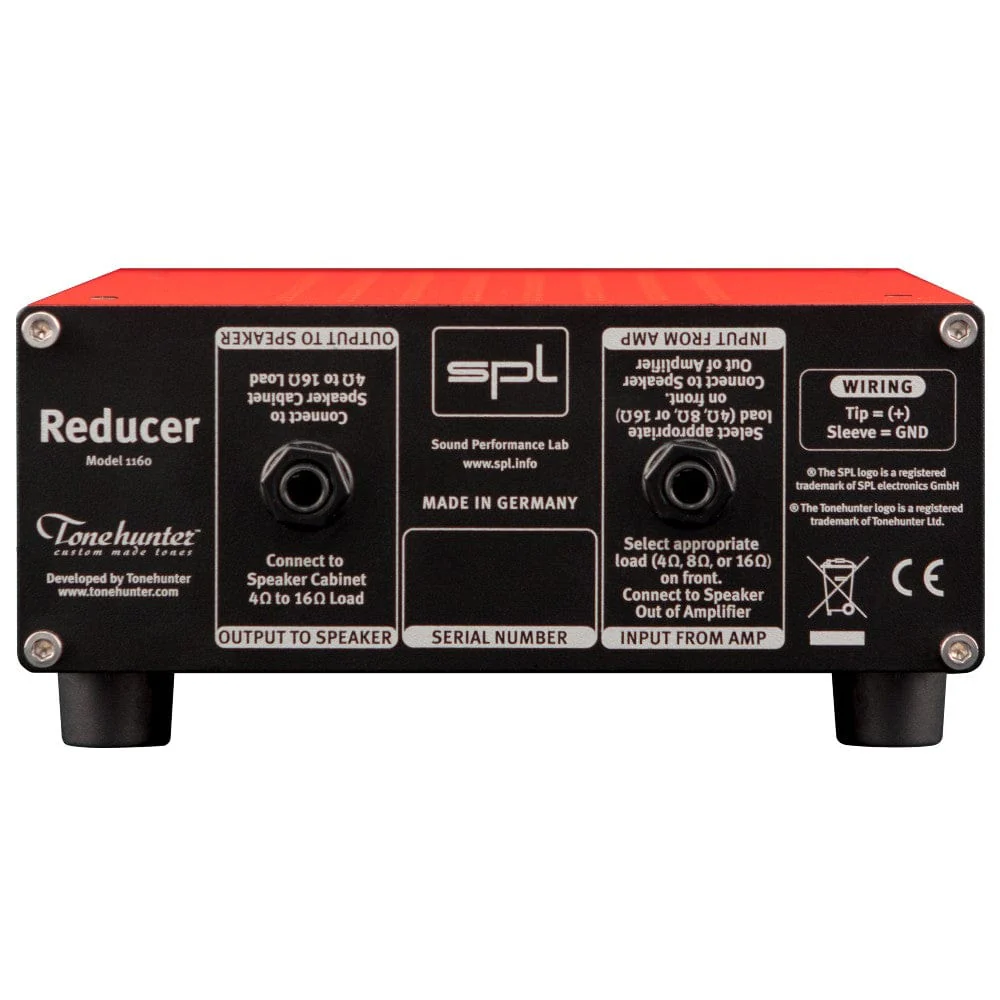

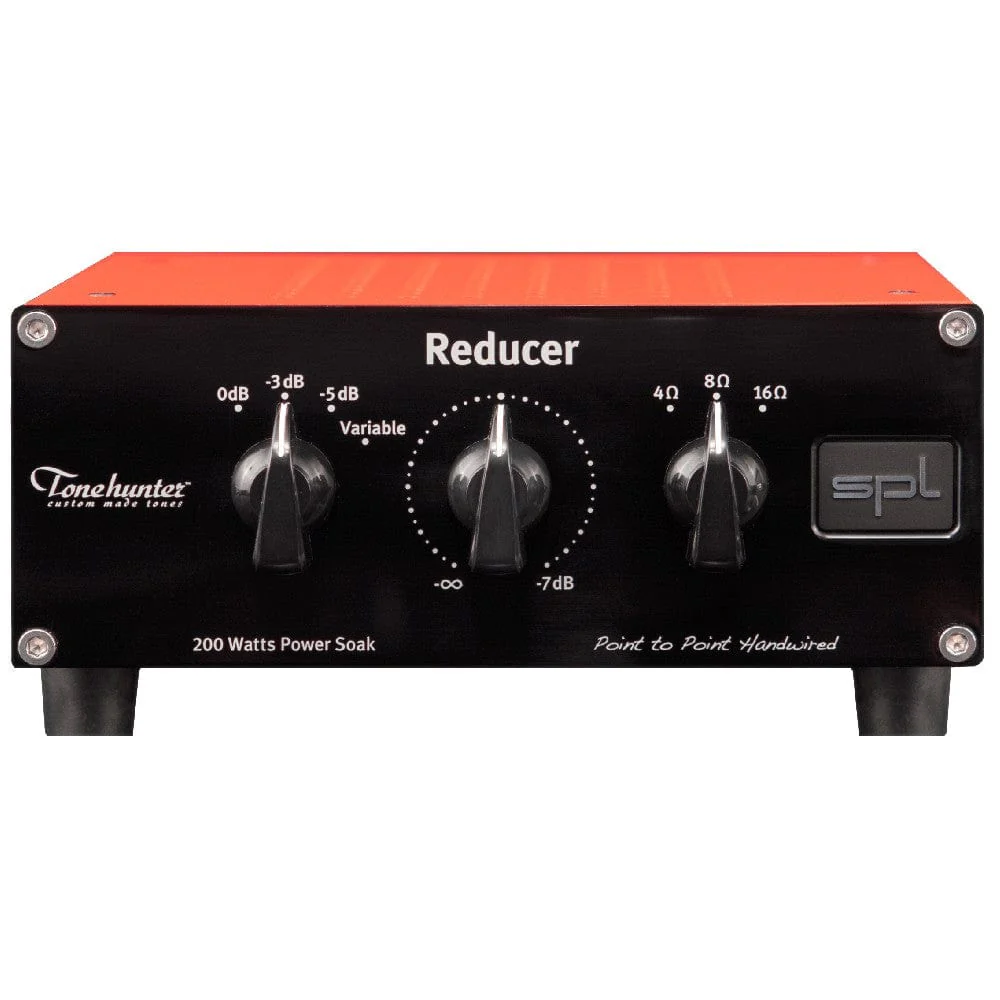

SPL Reducer 200 Watt Power Soak Overview:

The Reducer reduces the output power of guitar or bass amplifiers. Enjoy the rich tube sound and full power amp distortion of your favorite amp even at room volume.

Reduction
The reducer is connected between the amplifier (head) and the loudspeaker. Here it converts the electrical energy of the amplifier into heat and transmits a reduced power to the loudspeaker. The art here is that the power reduction does not affect the sound, so play quietly with the original sound.

The desired reduction is first switchable, in steps of 3 dB and then 5 dB.

In the last switch position “Variable”, a load potentiometer is used to continuously reduce the level reduction from -7 dB to almost complete fade-out.

Impedances
The reducer can be connected to amplifiers (heads) with all common impedances.

Available are 4 Ω, 8 Ω or 16 Ω.

Specifications:

Inputs & Outputs; 1/4" (6,35mm) TS-Jack (unbalanced)

• Load impedances, selectable: 4 Ω, 8 Ω, 16 Ω
• Maximum input power (4 Ω, RMS): 90 W
• Maximum input power (4 Ω, Peak): 120 W
• Maximum input power (8 Ω, RMS): 200 W
• Maximum input power (8 Ω, Peak): 260 W
• Maximum input power (16 Ω, RMS): 160 W
• Maximum input power (16 Ω, Peak): 180 W

Dimensions & Weight

• W x H x D (Width x Height w/ feet x Depth):
• 179 x 85 x 190 mm
• 7.05 x 3.35 x 7.48 inch
• Unit weight:
• 1.85 kg
• 4.08 lbs
• Shipping weight (incl. packaging):
• 2.65 kg
• 5.84 lbs

Made in Germany
