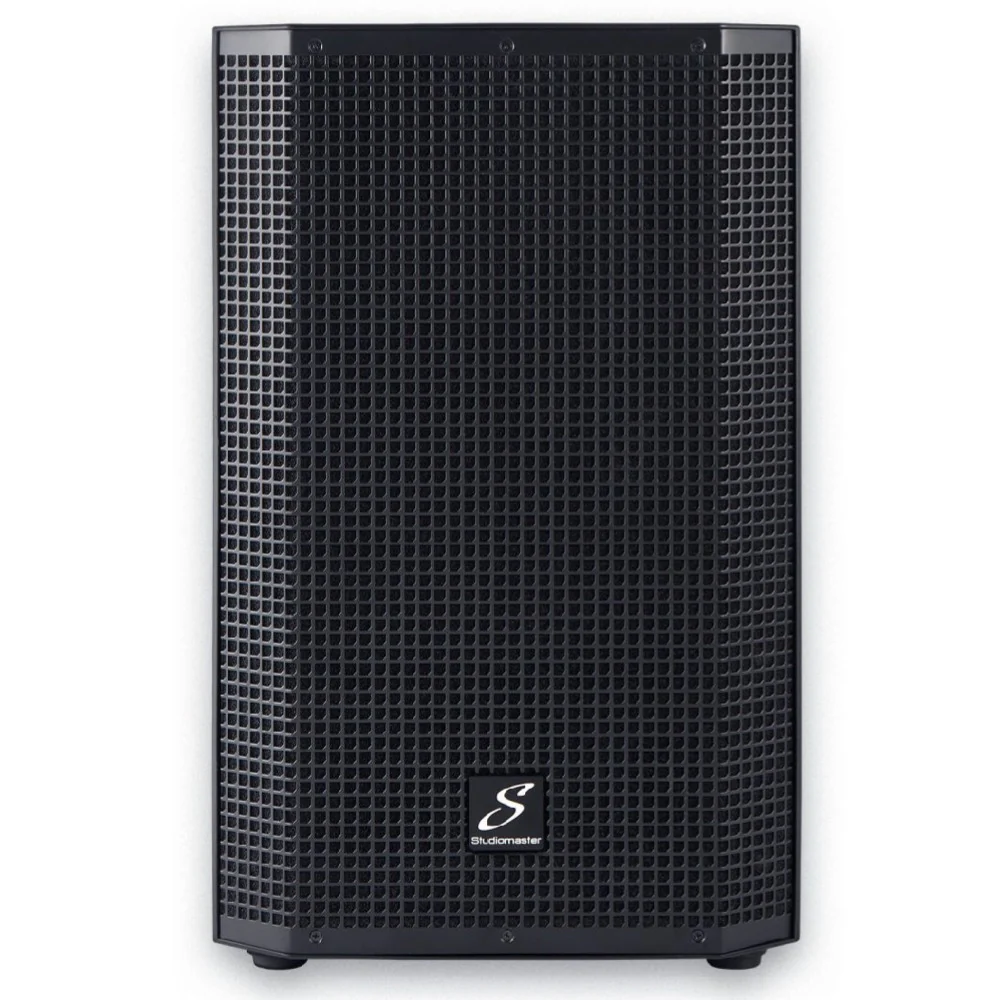

Studiomaster Vortex V10A Active Hf/Mf Non-Water Proof Line Array Enclosure Overview:

• Cabinet Type – 10″ 2-way coaxial active

• Max Spl – 124dB

• Amp Peak – 1400w

• Max Pgm – 700w

• Amp Rms – 350w (300+50)

• Weight (Net) – 12.5kg

• Freq Response – 55Hz-20kHz

• Input Sensitivity – 0dBu

• Coverage(h x v) – 80 x 80 degree

• LF Driver – 10″ / 50mm VC

• HF Driver – 34mm VC / 1″ throat

• Crossover Frequency – 2.2kHz

• 24bit DSP – Mode select, 3 band EQ, delay, volume

• Dsp Modes – Music, live, dj, speech, monitor

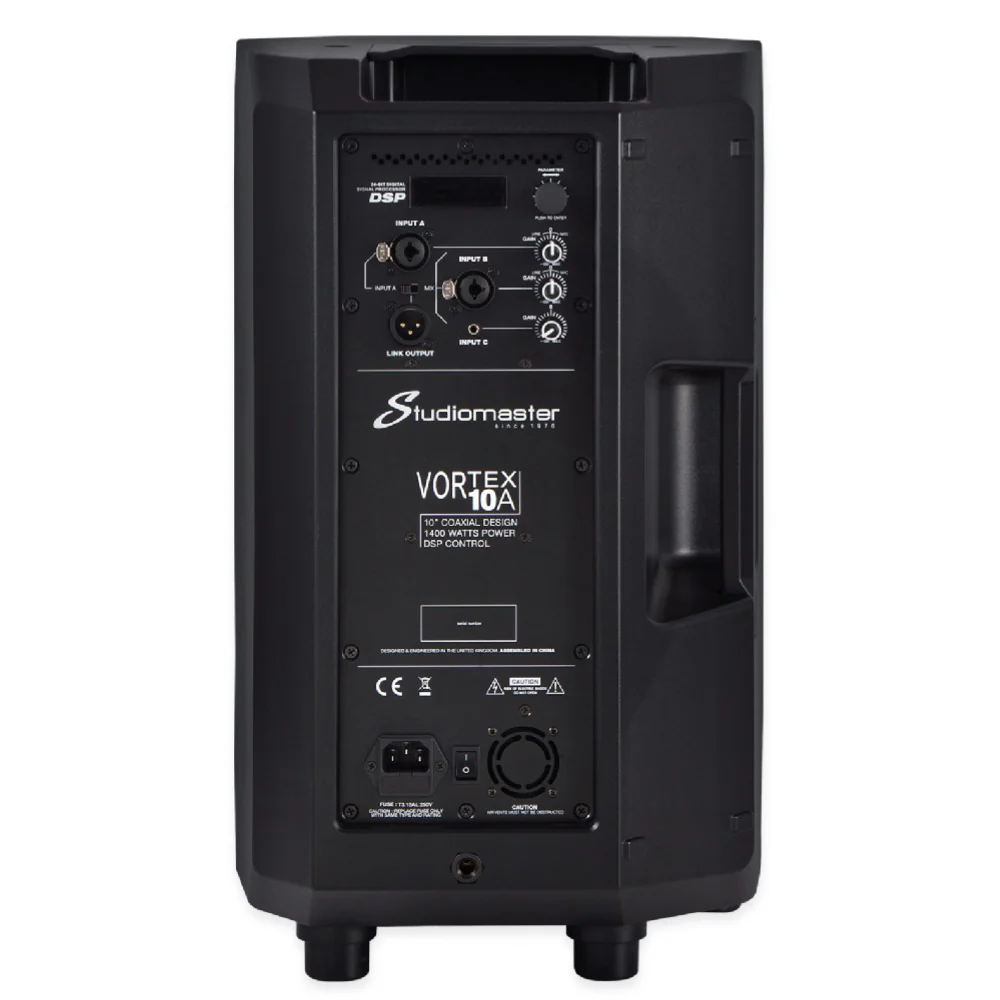

• Connection – 2x XLR/JACK input, 1x 3.5mm, XLR output

• Connectivity –  BLUETOOTH playback

• Mounting –  Dual top-hat, 5x M10 flying points

• Dimensions (W/H/D) – 310 / 515 / 280mm
