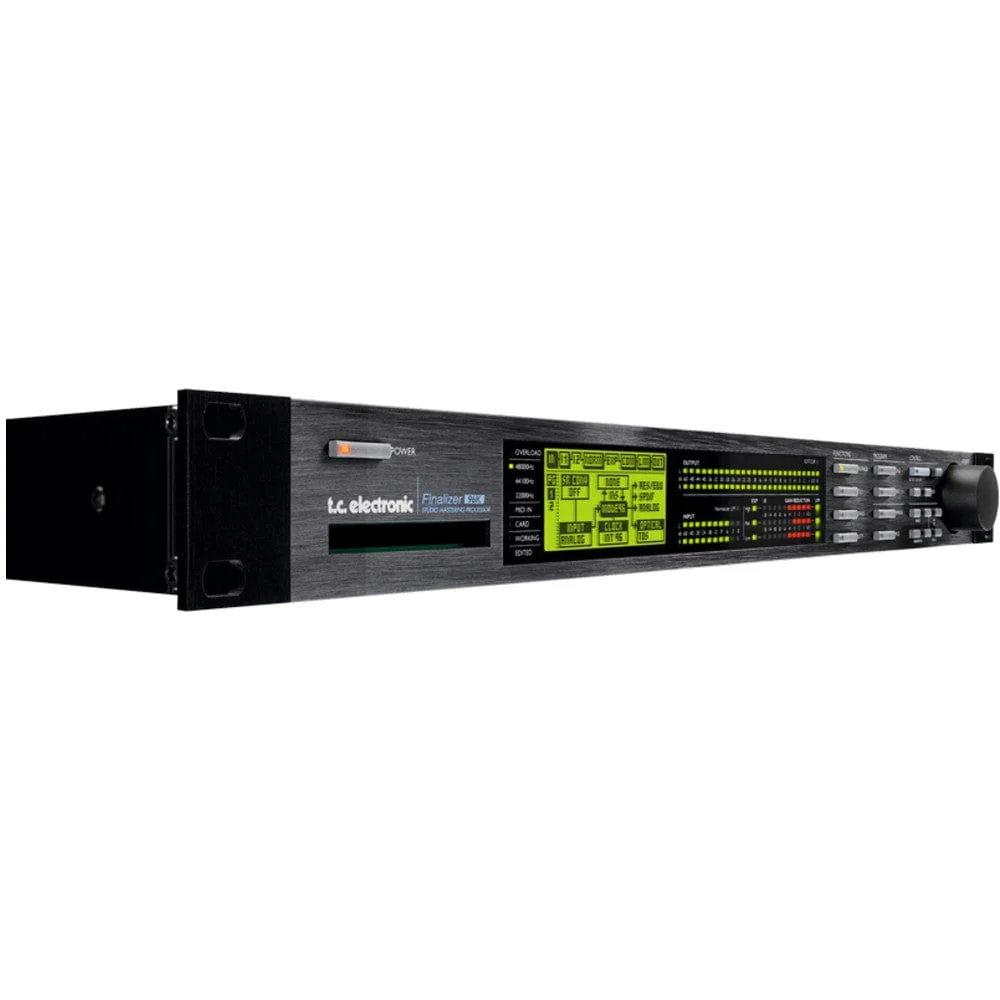

T.C. Electronic Finalizer 96K Studio Mastering Dynamic Processor
T.C. Electronic Finalizer 96K Studio Mastering Dynamic Processor Overview:
Studio & Post production FINALIZER 96K
FINALIZER 96K builds on our multi-award-winning mastering technology and delivers an unprecedented level of clarity, warmth and punch to your mix. 96 kHz internal and external processing truly puts the world of professional mastering within reach of every studio - large or small.
FINALIZER 96K builds on our multi-award-winning mastering technology and delivers an unprecedented level of clarity, warmth and punch to your mix. 96 kHz internal and external processing truly puts the world of professional mastering within reach of every studio - large or small.
In short, FINALIZER 96K dramatically enhances your material, creating that “radio ready” sound that was previously unattainable outside a professional mastering house.
• Punch - Add a Touch of Magic to Your Production. Make it Stand Out from the Crowd.
• Clarity - 96 kHz Internal and External Processing. No Compromises Allowed.
• Versatility - More than Multi-band Compression. A Complete Range of Mastering Tools.
• Clarity - 96 kHz Internal and External Processing. No Compromises Allowed.
• Versatility - More than Multi-band Compression. A Complete Range of Mastering Tools.
True 24 Bit / 96 kHz
We have equipped FINALIZER 96K with true 24bit resolution A/D and D/A converters, capable of translating AES/EBU, S/PDIF and Tos input to the Finalizer’s internal or external rate. You also get full Up- and Down Sampling, and you can set the Sample Rate Conversion rate to 32, 44.1, 48, 88.2 or 96kHz.
We have equipped FINALIZER 96K with true 24bit resolution A/D and D/A converters, capable of translating AES/EBU, S/PDIF and Tos input to the Finalizer’s internal or external rate. You also get full Up- and Down Sampling, and you can set the Sample Rate Conversion rate to 32, 44.1, 48, 88.2 or 96kHz.
The ADAT interface enables you to choose 2 ADAT channels and direct them to other ADAT channels. This enables you to bounce tracks while processing the sound with the Finalizer’s unique features. Finalize your mix and turn it into a masterpiece.
Simple Versatility
FINALIZER 96K gives you all the features you need to add the finishing touch of magic to your mix. The multi-band processor will make your mix sound punchier and crispier, allowing you to easily turn your demo tapes into mastered recordings.
FINALIZER 96K gives you all the features you need to add the finishing touch of magic to your mix. The multi-band processor will make your mix sound punchier and crispier, allowing you to easily turn your demo tapes into mastered recordings.
If you have a particular external device that you want to add to the arsenal of mastering tools, you can simply insert it via either the analog inputs or digitally via AES/EBU, S/PDIF or Tos-link. Likewise, you can also insert internal effects - for instance if you want to refine the overall EQ before compressing the signal.
Analyze This!
FINALIZER 96K comes with a wide range of extremely useful analyzing functions: Phase Correlation Meter, Level Flow Meter, Peak Hold Meter and Digital I/O Status. Even a Calibration Tone Generator is included with FINALIZER 96K.
FINALIZER 96K comes with a wide range of extremely useful analyzing functions: Phase Correlation Meter, Level Flow Meter, Peak Hold Meter and Digital I/O Status. Even a Calibration Tone Generator is included with FINALIZER 96K.
Make your mastering decisions on monitoring and serious analyzing!
Wizardry
The successful Wizard function is naturally a part of FINALIZER 96K, and it will immediately calculate an optimal setting for your material, making mastering easy.
The successful Wizard function is naturally a part of FINALIZER 96K, and it will immediately calculate an optimal setting for your material, making mastering easy.
However, if you prefer total control, you can also delve in to the tiny details with more than 90 parameters.
Do the Dither
Dithering is very important when you interface digitally. The output resolution of FINALIZER 96K is 24bit, but you can Dither from 8-22bits.
Dithering is very important when you interface digitally. The output resolution of FINALIZER 96K is 24bit, but you can Dither from 8-22bits.
If your signal is in Stereo, Uncorrelated Dither is the best choice, if it is in Mono, Correlated Dither will be the most unobtrusive, and if your signal is unfocused, Inverse
Dither may be your best choice.
Recall
The Recall page takes you step by step through a carefully selected list of 30 presets suitable for any type of source material. There are presets for Classical, Rock, Commercials, Jazz, Techno, Live etc. In other words, you will be certain to find a preset suited for your production.
The Recall page takes you step by step through a carefully selected list of 30 presets suitable for any type of source material. There are presets for Classical, Rock, Commercials, Jazz, Techno, Live etc. In other words, you will be certain to find a preset suited for your production.
Wizard
When you want to create your own special preset, call up the Wizard. Just answer four basic questions about your source material and the type of processing you require and the Wizard will optimize your material fast and easy. You’ll find your favorites as you go along, and you can store them as individual presets within FINALIZE 96K.
When you want to create your own special preset, call up the Wizard. Just answer four basic questions about your source material and the type of processing you require and the Wizard will optimize your material fast and easy. You’ll find your favorites as you go along, and you can store them as individual presets within FINALIZE 96K.
Features:
- Heavyweight studio mastering processor?with a complete range of mastering tools?adds?extra polish to your sound
- State-of-the-art?96 kHz internal and external processing gives you exceptional sound clarity
- Exceptional set of versatile mastering tools on board, including 5-band parametric EQ, compressor, limiter, expander and normalizer
- High-quality 24-bit A/D and D/A converters ensure optimal analog-to-digital conversion
- Unlimited up
- - and downsampling with 32, 44.1, 48, 88.2, or 96 kHz sample rate conversion settings
- ADAT interface and S/PDIF*, AES/EBU, and TOSLink* digital I/O?s let you interface with virtually any digital piece of equipment
- Versatile setup lets you add an external device to the arsenal of mastering tools through the analog or digital inputs
- Range of extremely useful analyzing functions like a phase correlation meter, a level flow meter, a peak hold meter and more
- Wizard function helps you find the optimal settings for your material, with detailed parameter fine-tuning still available if desired
- 8-bit to 22-bit dithering available to help you maintain the highest resolution at the digital outputs
- Includes 30 factory presets and has space to store 128 user presets
- M/S encoder and decoder lets you convert a mid / side signal to left / right or vice versa
Specifications:
Digital Inputs and Outputs
Digital Inputs and Outputs
Connectors
XLR (AES/EBU), RCA Phono (S/PDIF), Optical (Tos-link, ADAT)
XLR (AES/EBU), RCA Phono (S/PDIF), Optical (Tos-link, ADAT)
Formats
AES/EBU (24 bit), S/PDIF (24 bit), EIAJ CP-340, IEC 958, EIAJ Optical (Tos-link), ADAT Lite pipe
AES/EBU (24 bit), S/PDIF (24 bit), EIAJ CP-340, IEC 958, EIAJ Optical (Tos-link), ADAT Lite pipe
Output Dither
HPF/TPDF dither 8-24 bit, mono, stereo, inverted
HPF/TPDF dither 8-24 bit, mono, stereo, inverted
Word Clock Input
RCA Phono, 75 ohm, 0.6 to 10 Vpp
RCA Phono, 75 ohm, 0.6 to 10 Vpp
Sample Rates
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Processing Delay
0.2 ms @ 48 kHz, 0.1 ms @ 96 kHz
0.2 ms @ 48 kHz, 0.1 ms @ 96 kHz
Frequency Response DIO
DC to 23.9 kHz ± 0.01 dB @ 48 kHz DC to 47.9 kHz ± 0.01 dB @ 96 kHz
DC to 23.9 kHz ± 0.01 dB @ 48 kHz DC to 47.9 kHz ± 0.01 dB @ 96 kHz
Compressor THD+N
-130 dB (0.00003%) @ 10 dB Compression, 20 Hz-20 kHz
-130 dB (0.00003%) @ 10 dB Compression, 20 Hz-20 kHz
Sample Rate Conversion Type
Asynchronous
Asynchronous
Dynamic Range
130 dB
130 dB
THD+N
-106 dB 44.1 to 48 kHz @ 1 kHz, -2 dBFS
-106 dB 44.1 to 48 kHz @ 1 kHz, -2 dBFS
Input Rate Range
31 kHz to 49 kHz
31 kHz to 49 kHz
Analog Inputs
Connectors
XLR balanced (pin 2 hot)
XLR balanced (pin 2 hot)
Impedance
20 Kohm
20 Kohm
Max.Input Level
+22 dBu (balanced)
+22 dBu (balanced)
Sensitivity
@ 12 dB headroom: -22 dBu to +10 dBu
@ 12 dB headroom: -22 dBu to +10 dBu
A to D Conversion
24 bit (6.144 MHz delta sigma @ 48/96 kHz)
24 bit (6.144 MHz delta sigma @ 48/96 kHz)
A to D Delay
0.8 ms @ 48 kHz, 0.4 ms @ 96 kHz
0.8 ms @ 48 kHz, 0.4 ms @ 96 kHz
Dynamic Range
>103 dB (unweighted, BW=22 kHz), >106 dB(A)
>103 dB (unweighted, BW=22 kHz), >106 dB(A)
THD
-95 dB (0,0018 %) @ 1 kHz, -6 dBFS (FS @ +16 dBu)
-95 dB (0,0018 %) @ 1 kHz, -6 dBFS (FS @ +16 dBu)
Frequency Response
10 Hz to 20 kHz: +0/-0.2 dB @ 48 kHz 10 Hz to 45 kHz: +0/-1 dB @ 96 kHz
10 Hz to 20 kHz: +0/-0.2 dB @ 48 kHz 10 Hz to 45 kHz: +0/-1 dB @ 96 kHz
Crosstalk
<-60 dB, 10 Hz to 20 kHz, typical -90 dB @ 1 kHz
<-60 dB, 10 Hz to 20 kHz, typical -90 dB @ 1 kHz
Analog Outputs
Connectors
XLR balanced (pin 2 hot)
XLR balanced (pin 2 hot)
Impedance
100 ohm (active transformer)
100 ohm (active transformer)
Max. Output Level
+22 dBu (balanced)
+22 dBu (balanced)
Full Scale Output Range
-10 dBu to +22 dBu
-10 dBu to +22 dBu
D to A Conversion
24 bit (6.144 MHz delta sigma @ 48/96 kHz)
24 bit (6.144 MHz delta sigma @ 48/96 kHz)
D to A Delay
0.57 ms @ 48 kHz 0.28 ms @ 96 kHz>100
0.57 ms @ 48 kHz 0.28 ms @ 96 kHz>100
Dynamic Range
100 dB (unweighted, BW=22KHz), >104 dB(A)
100 dB (unweighted, BW=22KHz), >104 dB(A)
THD
-82 dB (0.008 %) @ 1 kHz -6 dBFS (FS @ +16 dBu)
-82 dB (0.008 %) @ 1 kHz -6 dBFS (FS @ +16 dBu)
Frequency Response
10 Hz to 20 kHz +0/-0.5 dB @ 48 kHz 10 Hz to 45 kHz +0/-3 dB @ 96 kHz
10 Hz to 20 kHz +0/-0.5 dB @ 48 kHz 10 Hz to 45 kHz +0/-3 dB @ 96 kHz
Crosstalk
<-60 dB, 10 Hz to 20 kHz typical -90 dB @ 1 kHz
<-60 dB, 10 Hz to 20 kHz typical -90 dB @ 1 kHz
EMC
Complies with
EN 55103-1, EN 55103-2, Class B of FCC rules/part 15, Class B of CISPR 22
EN 55103-1, EN 55103-2, Class B of FCC rules/part 15, Class B of CISPR 22
Safety
Certified to: IEC 65, EN 60065, UL 1419 and CSA E65
Certified to: IEC 65, EN 60065, UL 1419 and CSA E65
Environment
Operating Temperature: 32° F to 122° F (0° C to 50° C)
Storage Temperature: -22° F to 167° F (-30° C to 70° C)
Humidity: Max. 90 % non-condensing
Operating Temperature: 32° F to 122° F (0° C to 50° C)
Storage Temperature: -22° F to 167° F (-30° C to 70° C)
Humidity: Max. 90 % non-condensing
PCMCIA Interface
Connector: PC Card, 68 pin type 1 cards
Standards: PCMCIA 2.0, JEIDA 4.0
Card Format: Supports up to 2 MB SRAM
Connector: PC Card, 68 pin type 1 cards
Standards: PCMCIA 2.0, JEIDA 4.0
Card Format: Supports up to 2 MB SRAM
Control Interface
MIDI: In/Out/Thru: 5 Pin DIN
GPI, Pedal, Fader: ¼" phone jack
MIDI: In/Out/Thru: 5 Pin DIN
GPI, Pedal, Fader: ¼" phone jack
General
Finish: Anodized aluminum front, Plated and painted steel chassis
Dimensions: 56 x 128 dot graphic LCD-display 19" x 1.75" x 8.2 (483 x 44 x 208)
Weight: 5.2 lb. (2.35 kg)
Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
Power Consumption<20 W
Backup Battery Life >10 years
Finish: Anodized aluminum front, Plated and painted steel chassis
Dimensions: 56 x 128 dot graphic LCD-display 19" x 1.75" x 8.2 (483 x 44 x 208)
Weight: 5.2 lb. (2.35 kg)
Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
Power Consumption<20 W
Backup Battery Life >10 years
Made in Denmark
