BP-6AA OVERVIEW
Battery Pack for TASCAM Products

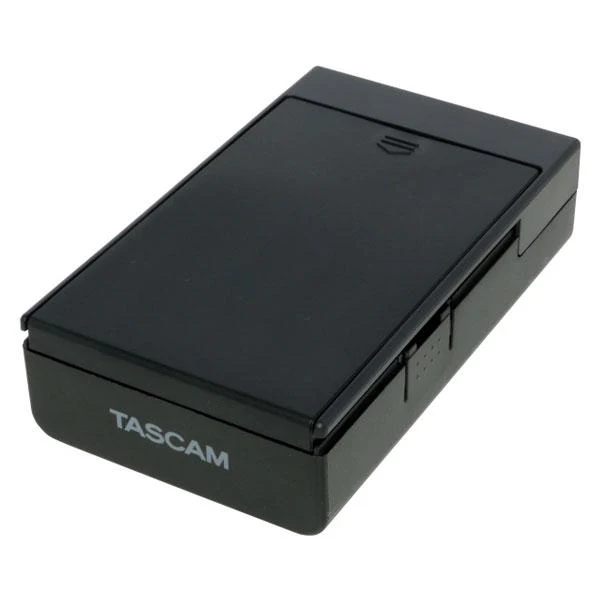

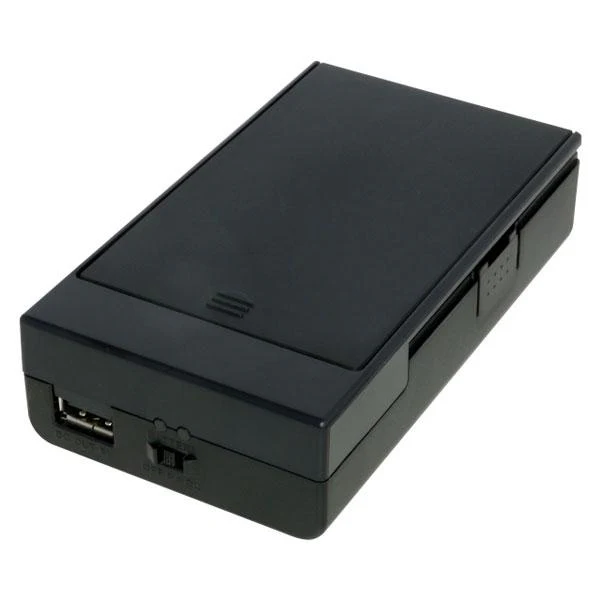

The BP-6AA is an external battery pack for TASCAM handheld recorders. It mounts to the bottom of your handheld recorder using a tripod screw and powers the handheld recorder through the USB cable. Since the BP-6AA itself also has a tripod connector, it can be mounted to a desktop stand.

Features:

• The BP-6AA battery pack increases DR-40’s already-impressive 17.5 hour battery life to over 50 hours of recording.
• External battery pack with six AA batteries
• ON / OFF switch
• USB output connector (power only)
• Powered by USB to adapter cable (included) or USB cable (included with recorder)
• Battery pod slides out of tripod attachment
• Mounts to the handheld equipment’s tripod connector
• Compatible models: US-2x2, DR-22WL, DR-44WL*, DR-60D,DR-60DMKII, DR-70D,  DR-40, DR-05, DR-07MKII, DR-100, DR-100MKII, DR-2d, DR-07, GT-R1, DR-08, DP-004, DP-008

Specifications
Battery Type : AA alkaline batteries, or AA Ni-MH batteries
Output : DC 5V（4 pin USB Type A）

Dimensions :
Main Body (w x h x d) : 2.60 x 4.49 x 1.14 (inch) / 66 × 114 ×29 (mm)
Attachment (w x h x d) : 2.80 x 3.17 x 0.61 (inch) / 71 × 80.5 × 15.5 (mm)

Weight :
Main Body : 3.60 oz / 102g （Excludes batteries）
Attachment : 1.27 oz / 34g （Includes washer and screw）

Operating Temperature : 32 - 104º F / 0 ～ 40º C
Accessories : USB to DC Jack cable

Made in China
