Tascam LM-8ST Analog Mixer Overview:

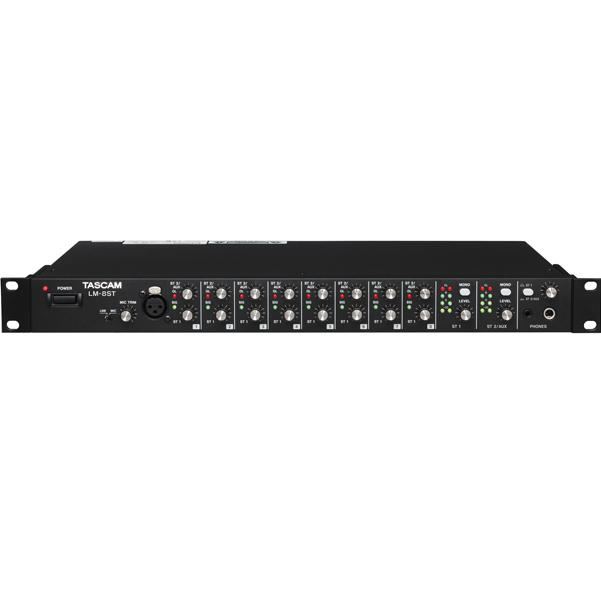

The TASCAM LM-8ST is a 1-space rackmountable line mixer for installation, studio submixing, keyboardists or anyone looking for a great-sounding mix. Eight pairs of balanced 1/4" TRS inputs - switchable from +4 or -10dB - can be bussed to a pair of XLR balanced outputs, labeled ST1 and ST2/AUX. Pre or post-fader bussing is available for the alternate buss, and master output level controls and metering keep signals under control. A microphone input is also provided for announcements or performance.

Packed with high-quality audio components, the TASCAM LM-8ST is perfect for any live performance or installation.

Features:
\n

\n
• 8 stereo channel / 4-buss line mixer
\n
• (8) stereo 1/4" TRS balanced inputs with -10/+4dB switch
• 1U rack mountable
• Mic input with trim control on front panel
• 2-segment LED meter per channel
• ST1 and ST2/AUX level control per channel
• ST1 and ST2/AUX master level controls
• Each channel switchable to ST2 (pre fader) or AUX (post) output
• 1/4" and 1/8" stereo headphone outputs
• XLR balanced ouptuts for ST1 and ST2/AUX
• Stereo balanced buss output/input for cascade
• Ground lift switch and terminal

Applications:

• Boardroom
• Conference room
• Health club
• Restaurant
• House of worship
• Keyboard mixer
• Effects return submixer
• One-man performance stage mixer

Specifications:

• Audio inputs and outputs
• Microphone input
• Connector: XLR-3-31 (pin 2 hot)
• Input impedance: 2.4kΩ
• Nominal input level: -58 dBu (1 mV) – 12dBu
• (195 mV)
• Maximum input level: +10 dBu (2.45 Vrms)
• Stereo Inputs
• Connectors: 1/4” TRS balanced phono jack
• Input impedance: 16kΩ
• Nominal input level: +4 dBu (1.23 Vrms)
• Maximum input level: +24 dBu (12.3 Vrms)

• Master Buss Input
• Connectors: 1/4” TRS balanced phono jack
• Input impedance: 16kΩ
• Nominal input level: +4 dBu (1.23 Vrms)
• Maximum input level: +24 dBu (12.3 Vrms)

• ST1 and ST2 / Aux Outputs
• Connector: XLR-3-31 (pin 2 hot)
• Input impedance: 94Ω
• Nominal output level: +4 dBu (1.23 Vrms)
• Maximum output level: +24 dBu (12.3 Vrms)

• Connector: RCA pin jacks
• Input impedance: 200Ω
• Nominal output level: -10 dBV (0.3 Vrms)
• Maximum output level: +10 dBV (3.16 Vrms)

• Buss Output
• Connectors: 1/4” TRS balanced phono jack

• Output impedance: 94Ω
• Nominal output level: +4 dBu (1.23 Vrms)
• Maximum output level: +24 dBu (12.3 Vrms)

• Phones Output
• Connectors: 1/4” TRS stereo phono jack and 3.5mm (1/8”) stereo mini jack
• Maximum output level: 250mW + 250mW (32Ω)

• Audio performance
• Frequency response: 20 Hz–50 kHz ±3 dB (Phones outputs)
• 10 Hz–100 kHz, ±3 dB (Each Buss output)
• S/N ratio: 80 dB or more (Phones outputs, AWTD, 20kHz LPF)
• 80 dB or more (Each Buss output, A-WTD, 20kHz LPF)
• THD: 0.07% or less (Phones outputs,100mW+100mW (32Ω), 20Hz HPF and 20kHz LPF 0.03% or less (Each Buss output, 20Hz HPFand 20kHz LPF)
• Channel separation: 50 dB or more (Phones outputs,within a channel, A-WTD, 20kHz LPF,1kHz nominal input, 32Ω termination)
• 70dB or more (Each Buss output, A-WTD, 20kHz LPF, 1kHz nominal input, 600Ω termination)
• Crosstalk: 65dB or more (Each Buss output, AWTD, 20kHz LPF, 1kHz nominal input, 600Ω termination)

• General / Power supply
• AC: 120-240V, 50-60 Hz
• Power consumption: 15 W
• Dimensions (W x H x D): 19” x 1.73” x 11” (482 x 44 x 280mm)
• Weight: 8.4 lbs. (3.8 kg)

Made in China
