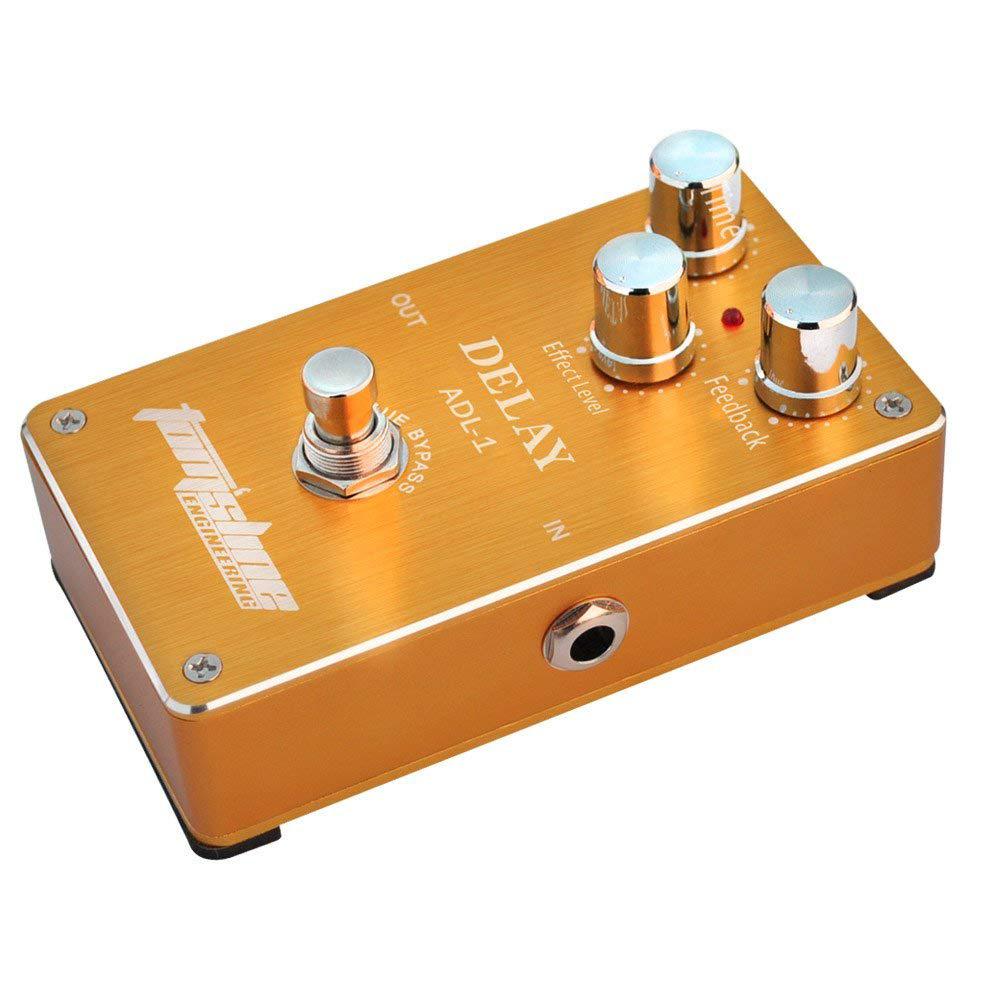

Tomsline ADL-1 Delay Electric Guitar Effects Pedal Overview :

Features :

• Allows wide range of delay time from 50ms to 400ms.
• Built-in digital integrated circuit.
• True bypass design, minimize tone loss and get more control of your pedal.
• 3 adjustable knobs: Time, Feedback, Level
• Aluminum alloy housing, sturdy and durable.

• Time knob: Adjust the delay time(50ms to 400ms). Turning this knob clockwise increases the delay time, and counterclockwise decreases it.
• Feedback knob: Decide how many times the delay sound is to be repeated. Turning this knob clockwise increases the number of repetition of delay sound, and turning this knob fully counterclockwise produces single delay sound.
• Effect Level knob: Control the output level of the delay sound.
• Durable jacks and foot switch.
• Designed with on / off LED, instructs effects status.
• Powered by a 9V AC power adapter or 9V battery(neither included).
• Specifications:
• Delay time: 50ms-400ms
• Max input level: 1.5vrms
• Max output level: 1.5vrms
• Input impedance: 100 kohm
• Output impedance: 150 ohm
• Output noise voltage: -90dBV
• Recommended load impedance: 10 kohm
• Power supply: DC 9V battery or AC adapter (neither included)
• Current draw: 23 mA (DC 9V)
• Product size: 11.5 * 6.5 * 5cm / 4.5 * 2.6 * 2in
• Product weight: 248g / 8.7oz
• Package List:
• 1 * Delay Pedal
• 1 * User Manual (English & Chinese)

Made in China
