Vault IKON 49 USB MIDI Controller Overview:

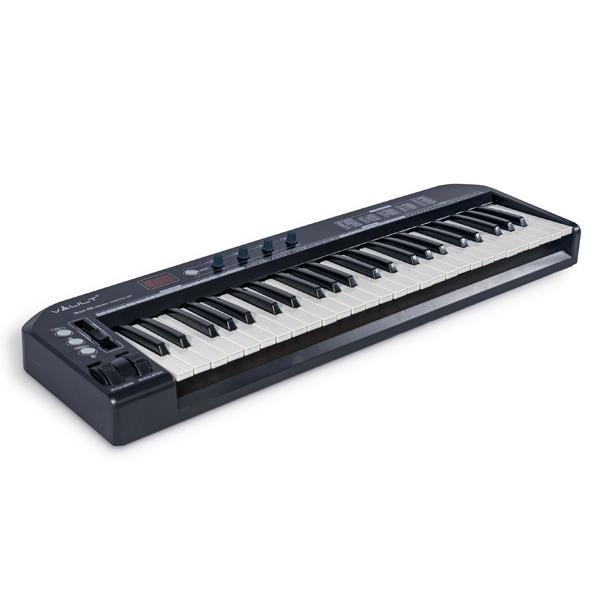

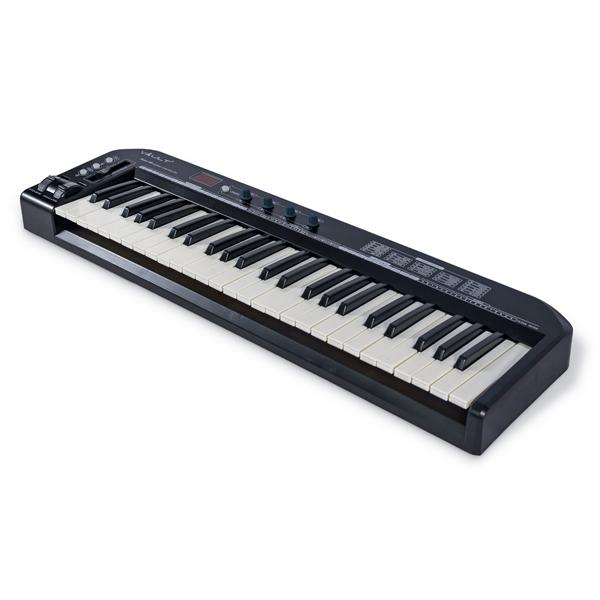

Vault IKON 49 USB MIDI Controller gives you the ultimate music production control you need for home studio and mobile applications. An ultra-portable design, the IKON 49 features a 49-key mini keyboard, a full-featured control surface and additional programmable functions for advanced playability and customization. With USB bus power and plug-and-play operation, At an affordable price range the IKON 49 makes it easy to express your most dynamic musical ideas, On the move.

Dynamic Keyboard Design
The Vault IKON 49 features 25 touch-sensetive keyboard providing musicians an fast responsive platform with a smooth playing style. The velocity sensetive keys capture the perfect dynamics of the musician. With 49 keys the smaller size gives perfect pitch range for playing and ultimate mobility.

Dedicated Pitch Bend And Modulation Wheel
The Vault IKON 49 comes equipped with one Pitch bend and one Modulation jog wheel which offers precise control over the effects. It's Dedicated Octave wheel expands the keyboard to a full 4-Octaves. giving you tons of musical expression and modulations on your fingertips.

Pedal Input
The Vault IKON 49 Features one dedicated pedal input which is compatible with switch and sustain pedals, Giving you a wide range of possibilities according to your playing style.

Custom Assignable Control Surface
The IKON 49 offers 4 custom assignable knobs on the control surface. The 4 Knobs are distributed to an independent channel and are programmable to your DAW to 8 functions. Custom programming gives you the control over your software, Sturdy design and and smooth functioning makes it easy to use.

Features:

• Multi Functional 49 Key controller keyboard
• 1 x Assignable pedal interface compatible with switch pedal and continuous pedal.
• 1 x Assignable slider
• Pitch Bend Wheel and Modulation Wheel
• 2 x Assignable data buttons (Data +/-)
• 1 x Edit button, switch play and edit status
• 1 x Dial function group switching button
• 4 x Assignable dials, which can accomplish two groups of functions (R1~R4 and R5~R8) with each dial distributed to an independent channel.
• 1 x MIDI OUT
• USB interface, adaptable to USB 1.1. Power supply by USB and DC 9V
• Compatible with Win 10/8/7/XP/Vista and Mac OSX, driver free.
• Compatible with major audio and sequencer software



Specifications:

Keyboard: 49 Keys, C1-C5,

Function:

• MIDI Data: Program Select, Bank Select, Sequencer Control, MTC, Controller Change, GM, GS, XG System Reset, etc
• Controllable Parameters: Transpose, Octave, MIDI Transmit Channel, Velocity Curve Adjust, Keyboard Split Point, etc

Panel & Indicator:

• 4 x Assignable Dials
• 1 x Dial Group Function Shift Button (incl. 2 Indicators.)
• 2 x Assignable Data +/- Buttons (incl. 2 Indicators.)
• 1 x Edit Button (incl. 1 Indicator.)

Display: 8 Segments, 3 Digits LED

Input & Output:

• 1 x MIDI Out
• 1 x USB Port
• 2 x Pedal Inputs
• 1 x DC Input
• 1 x Power Switch

Power Supply: 9V DC, USB Power

Includes:

• 1 x Vault Ikon 49 MIDI Controller
• 1 x USB cable
• 1 x User Manual CD
• Click Here to download the user manual

Made in China
