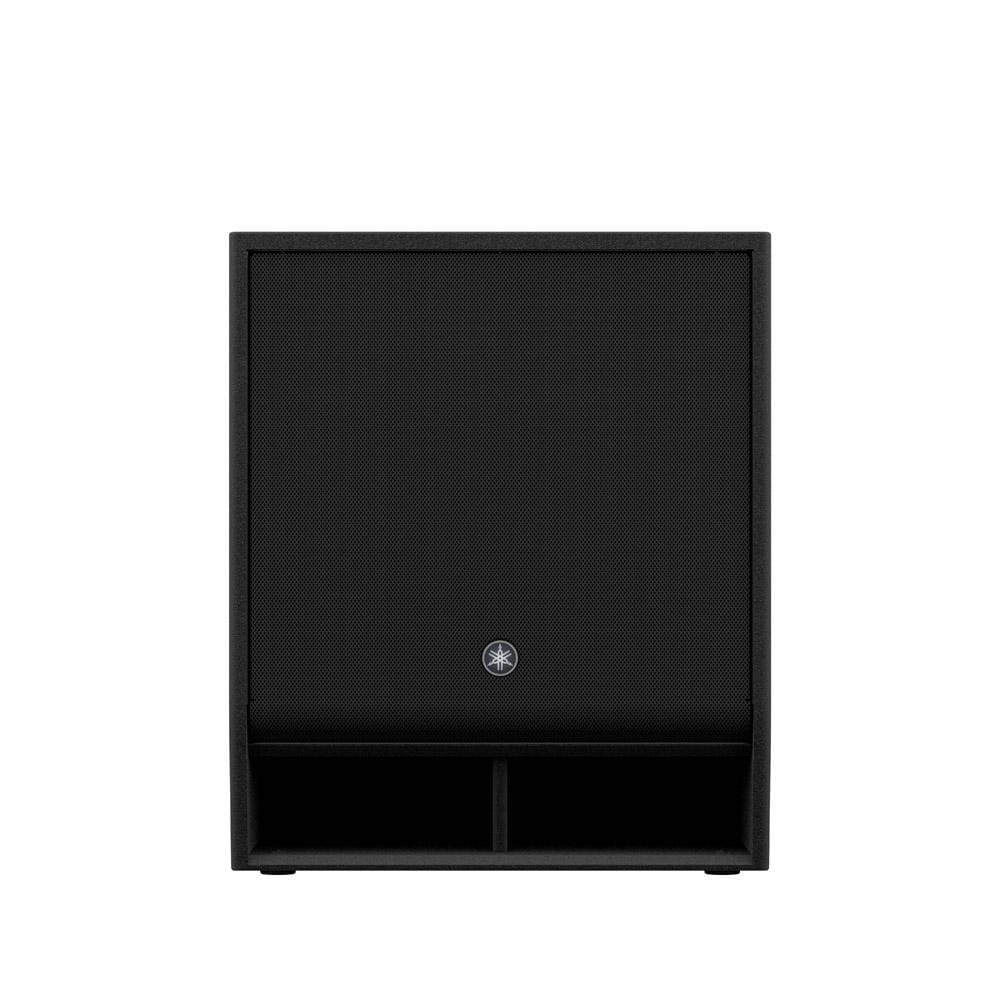

Yamaha DXS18XLF 18 Inch Powered Subwoofer

Perfectly suited for use with DZR full-range speakers, the DXS18XLF is a powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136dB SPL with superb clarity and power.

Features :

• Powered 18” subwoofer with 4” Voice Coil
• Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today’s sound engineering demands
• High power 1600W Class-D amplifier module
• 96kHz DSP for true high-definition sound with super low latency
• Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
• Equipped with D-XSUB processing and cardioid mode capability
• Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
• Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)

Specifications :

• Speaker Type : Powered Subwoofer Bass-Reflex
• Freq. Range : 30Hz - 150Hz
• Components LF : 18 inch Cone,4 inch Voice Coil,Ferrite Magnet
• Sampling Frequency : 96kHz and FIR Filter
• A/D D/A Converters : 96kHz A/D D/A
• Maximum Output Levels : 136dB SPL *`
• Power Rating : 1600W *2
• Continuous : 1230 W

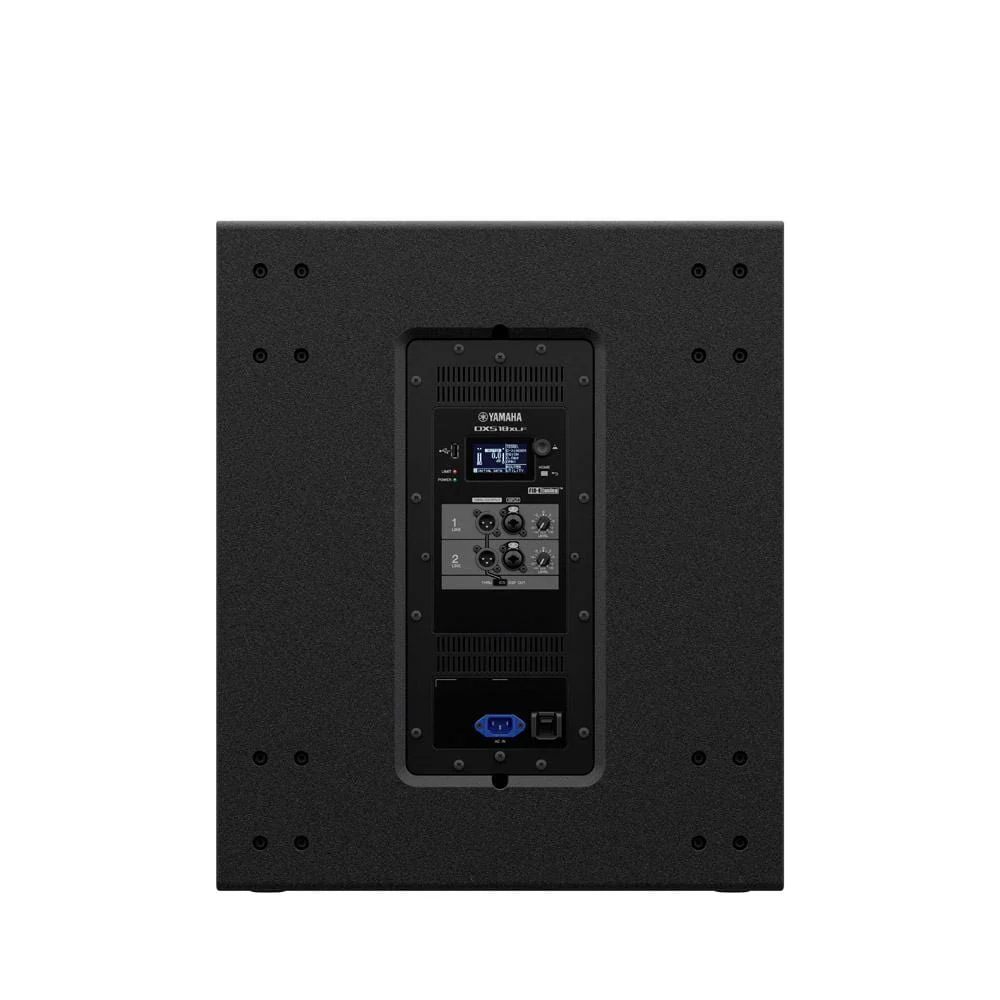

• I/O Connectors : Analog In:Combo x 2,Line Level (MAX +24dBu),Input Impedance 20k
• Analog OUT: XLR3-32 x2, Ch 1/2: Thru or dsp Out
• Amp Class : Class-D
• Cooling : Fan Cooling,Variable Speeds
• Power Consumption : 40W , 180 W
• Handle : Aluminium Die-Cast,Side x 2

Dimensions :

• W : 550mm
• H : 657mm
• D : 700mm
• Weight : 40 kg
• Options : Cover:SPCVR-DXS15X, Caster: SPW-1
• Other : Enclosure Material Finish,Color : Plywood Durable Polyurea Painting
