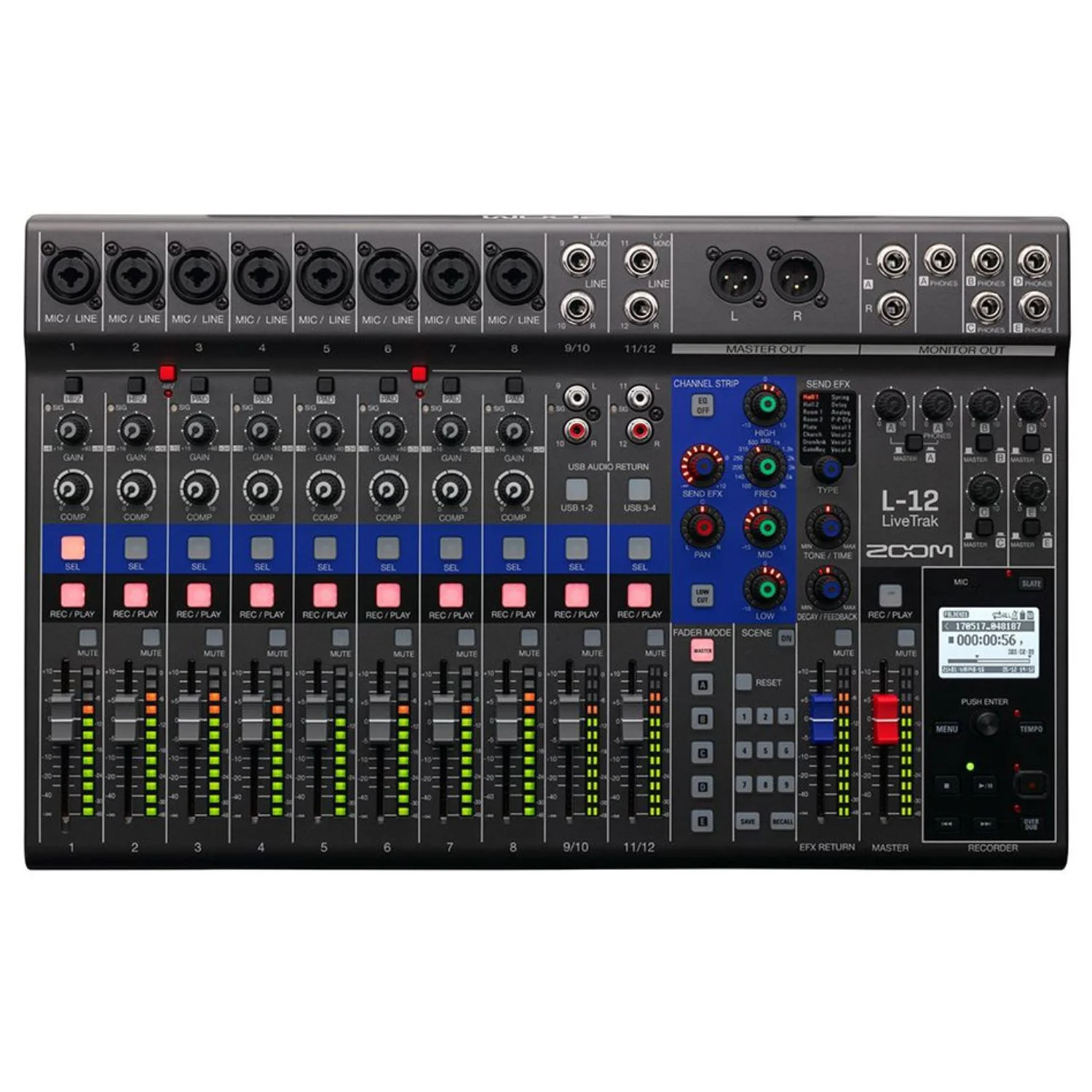

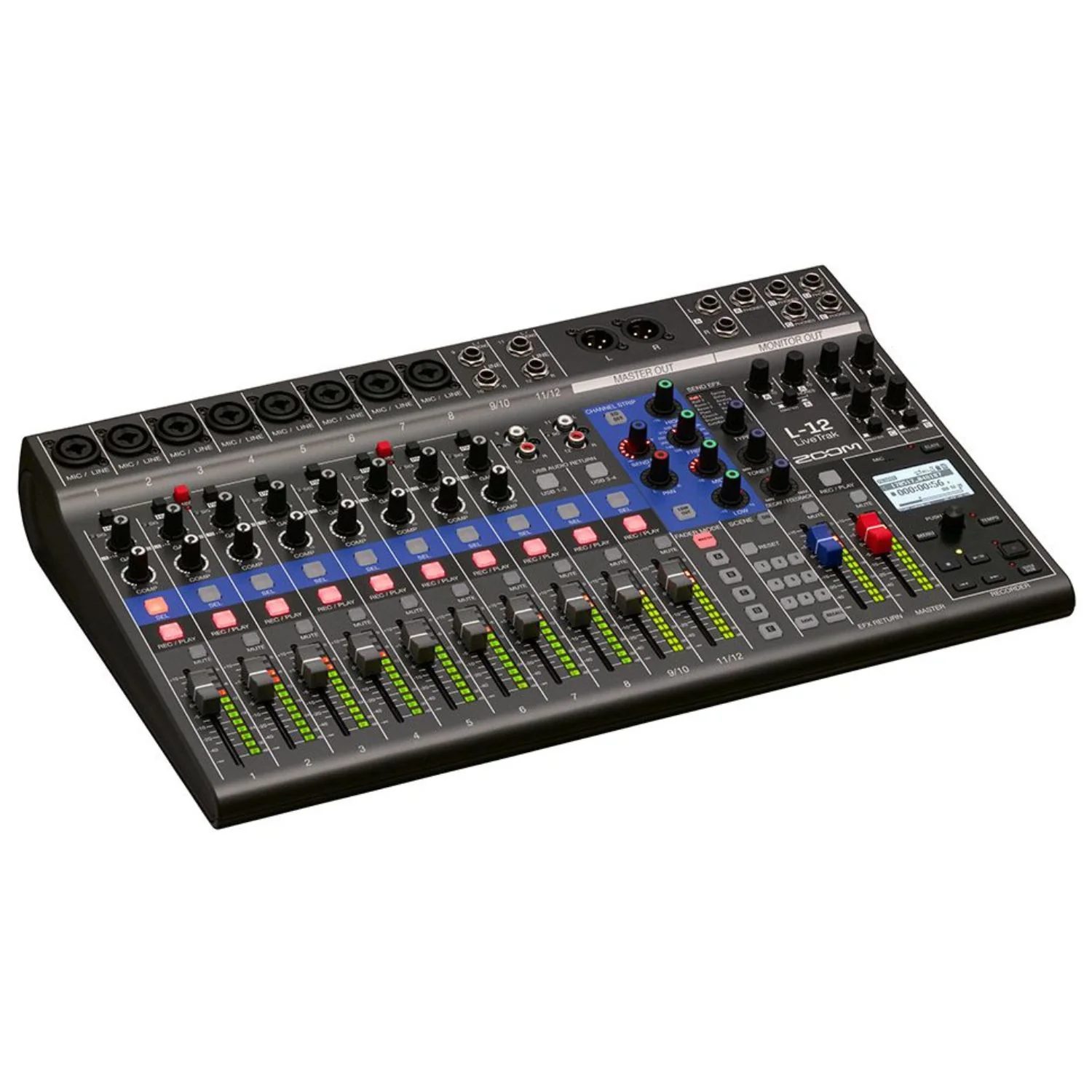

Zoom LiveTrak L‑12 12-Channel Digital Mixer Overview:

Mix, Record, Monitor, Playback, and Remix
With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphone mixes.

Effortless Live Mixing
LiveTrak’s 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.

Record Everything, Remix Anywhere
LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW for further mixing and editing.

*Effects, EQ, overdub, audio interface, ​fader modes A-E, and channels 13-14 (stereo mix) are not available in 96 kHz.

Five Custom Monitoring Mixes
Each of LiveTrak’s five monitor outputs provides a unique mix, so every performer can create and save a mix that’s tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.

USB Connectivity for Your DAW
LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.(*Apple Lightning to USB Camera Adapter required.)

What’s Under the Hood?
Our Best Mic Preamps Yet
At -128 dBu EIN with +60 dB maximum input gain, LiveTrak is equipped with the quietest and most advanced preamps we’ve ever made. Just wait until you hear how incredible it sounds.

High-Definition Sample Rates
The L-12 supports sample rates up to 96 kHz when recording to an SD card, allowing you to record in high definition. In Audio Interface mode, the L-12 can record up to 48 kHz to a computer and an SD card simultaneously.

Convenient Auto Recording
Record automatically by adjusting the L-12’s customizable audio input commands. Set it to start when the master fader detects a certain dB level, or use a guitar chord or snare hit to start the track. You can capture data up to two seconds before recording starts, in case a performance begins ahead of time.

Versatile Operation Modes
The L-12 is equipped with several operation modes. Audio Interface mode lets you route inputs and outputs to any DAW.

With USB Host mode, transfer projects and audio files to a connected USB flash drive. In Card Reader mode, the L-12 acts as an SD card reader, allowing you to transfer audio files to and from your computer.

Features:

• 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
• 14-track simultaneous recording, 12-track playback
• 14-in/4-out USB audio interface connectivity
• 5 powered headphone outputs, each with a customizable and saveable mix
• Add backing/click tracks from your computer to your live mix and recording
• RCA and TS line inputs
• 48V phantom power (channels 1-4 and 5-8)
• Hi-Z connectivity (channels 1 and 2)
• 26 dB pad (channels 3-8)
• Built-in compression control (Channels 1-8)
• Digital level meters -48 dB to -0 dB
• Master mute button
• Low-cut control
• Stereo panning
• Master and Monitor Outputs A-E
• Scene saving function, up to 9 scenes saved at a time
• 16 built-in delay and reverb effects with adjustable parameters
• Built-in slate mic
• Class-compliant mode (for iOS compatibility)
• SD card input
• Built-in metronome
• Automatic recording starting/stopping capability
• Project protection
• Import/export projects with USB 2.0 host port
• Latency adjustment for A-to-D conversion
• Compatible functions for ZOOM FS01 footswitch

Box Contents:

• AC adapter (AD-19)
• USB 2.0 cable
• Quick Guide

Specifications:
NUMBER OF INPUT AND OUTPUT CHANNELS

• Inputs:
• Mono (MIC/LINE): 8
• Stereo (LINE): 2

Outputs:

• MASTER OUT: 1
• MONITOR OUT: 5

INPUTS

• Mono (MIC/LINE):
• Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)

Input gain

• PAD OFF: +16 - +60 dB
• PAD ON: −10 – +34 dB
• Hi-Z ON: +6 - +50 dB

Input impedance

• XLR: 3 kΩ
• TRS: 10kΩ/1 MΩ (when Hi-Z ON)

Maximum input level

• PAD OFF: 0 dBu (at 0 dBFS)
• PAD ON: +26 dBu (at dBFS)

Phantom Power: +48 V

Stereo (LINE):

• Type: TS phone/RCA pin (unbalanced) jacks
• Maximum input level +10 dBu

OUTPUTS

• MASTER OUT:
• Type: XLR jacks (balanced)
• Maximum output level: +14.5 dBu
• Output impedance: 100 Ω

MONITOR OUT A (TRS):

• Type: TRS phone jacks (balanced)
• Maximum output Level: +14.5 dBu
• Output impedance: 100 Ω

MONITOR OUT A-E (PHONES):

• Type: Standard Stereo phone jacks
• Maximum output level: 42 mW + 42 mW at 60 Ω
• Output impedance: 100 Ω

BUSES

• MASTER: 1
• MONITOR: 5
• SEND EFX: 1

CHANNEL STRIP

• COMP:
• LOW CUT:
• 75 Hz, 12 dB/OCT

EQ:

• HIGH: 10 kHz, ± 15 dB, shelving
• MID: 100 Hz-8 kHz, ±15 dB, peaking
• LOW: 100 Hz, ± 15 dB, shelving

LEVEL METERS

• Level segments: 12

SEND EFFECTS

• Effects:
• 16 types:
• Hall 1 & 2 (reverb)
• Room 1 & 2(reverb)
• Plate (reverb)
• Church (reverb)
• DrumAmb (reverb)
• GateRev (reverb)
• Spring (reverb)
• Delay (delay)
• Analog (delay)
• P-P Dly (delay)
• Vocal 1-4 (delay + reverb)

RECORDER

• Maximum simultaneous recording tracks:
• 14 at 44.1/48 kHz (12 channel + stereo mix)
• 12 at 96 kHz

• Maximum simultaneous playback tracks: 12
• Recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
• Recording media: 16 MB-2 GB SD cards, 4 GB-32 GB SDHC cards, 64 GB-512 GB SDXC cards

AUDIO INTERFACE

• 44.1/48 kHz:
• Recording: 14 channels
• Playback: 4 channels

• Bit depth: 24-bit
• Interface: USB 2.0

SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE
Windows:

• OS： Windows 7 SP1 or later / 8.1 / 10 (32bit/64bit)
• CPU: Intel Core i3 or faster*
• USB: USB 3.0/USB 2.0**
• * Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
• ** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.

Mac:

• OS： Mac OS X 10.10 / 10.11 / 10.12 / 10.13
• CPU: Intel Core i3 or faster
• USB: USB 3.0/USB 2.0*
• * Operation is not guaranteed when used with USB hubs or expansion cards.

iPhone/iPad:

• OS： iOS 8 / 9 / 10
• * Apple Lightning-to-USB Camera Adapter required.

CARD READER

• Class:
• Mass storage
• USB 2.0 High Speed

USB HOST

• Class:
• USB 2.0 High Speed

SAMPLING RATE

• Sampling rate: 44.1/48/96 kHz

FREQUENCY CHARACTERISTICS

• 44.1 kHz: -1.0 dB: 20 Hz - 20 kHz
• 96 kHz: -3.0 dB: 20 Hz - 40 kHz

EQUIVALENT INPUT NOISE

• Actual measurements: -128 dB EIN (IHF-A) with +60 dB/150 Ω input

• Display: LCD with backlight (128x64 resolution)
• Power supply: ZOOM AD-19 AC adapter (DC12 V/2 A)
• Power consumption: 17W maximum
• External dimensions: 445 mm (W) x 282 mm (D) x 70.5 mm (H) (17.5” (W) x 11.1” (D) x 2.78” (H))
• Weight (main unit only): 2.53 kg / 5.58 lbs
