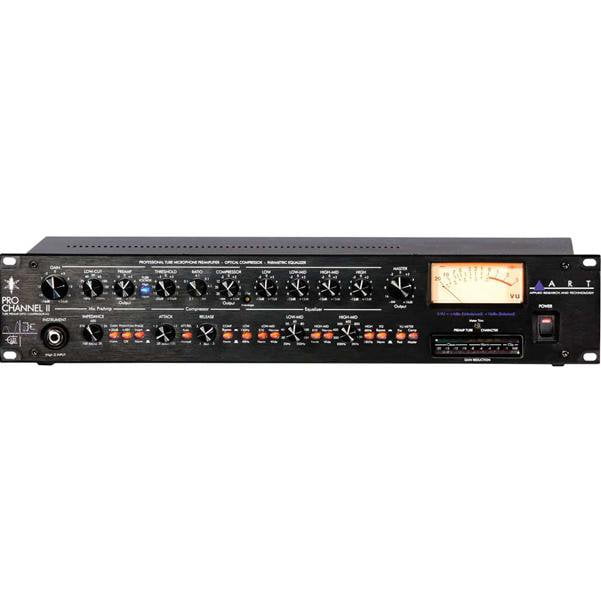

ART ProChannel II Channel Strip Overview:

The ART Pro Channel II uses second-generation discrete Class-A microphone preamp to provide clean quiet gain while maintaining incredible transparency. A powerful dynamics processor subtly controls transients and noise of the most demanding sources.

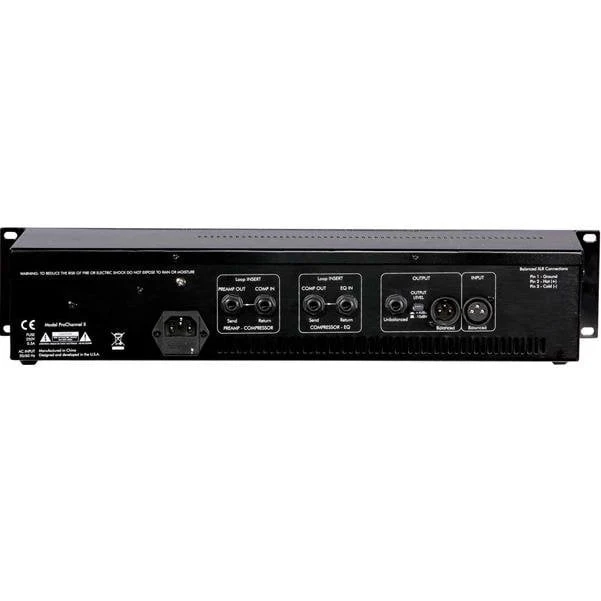

The ART Pro Channel II's semi-parametric EQ offers wide tune-ability and can be patched before OR after the dynamics processor. Separate rear-mounted insert points allow patching in external signal processing gear immediately after the Mic preamp and before the EQ and dynamics processor. Both analog and LED meters provide a detailed indication of audio levels.

Features:

• Fully Featured discrete class "A" Tube Microphone Preamplifier
• 1/4" High Z input on the front panel
• Selectable plate Voltage
• Smooth musical sounding Optical Compressor
• Separate Attack and Release controls
• Auto/Manual Attack/Release switch
• Parametric EQ
• Large VU and LED meters
• Multi section clip monitor LED
• Selectable Source switches for VU signal monitoring of any section of the unit
• Two insert loops
• +4/-10 dB switch for optimal signal output levels
• Toroidal power transformer for low noise

Specifications:

• Input Impedance
• Mic: 150 to 3.4K Ohms, variable
• Instrument : 2.5M Ohms
• Preamp Insert: 7.5K Ohms
• Output Impedance
• Balanced Output: 600 Ohms balanced
• Unbalanced Output: 300 Ohms
• Insert Outputs: 300 Ohms
• Frequency Response
• Analog In to Analog Out: 12 Hz to 100 KHz +0, -1 dB
• THD
• 1 KHz : < .015% typical
• 20 to 20 KHz: < .033% typical
• Equivalent Input Noise
• Mic/Line: -128 dBu, Input shorted, Max gain, “A” weighted
• Instrument: -109 dBu, Input shorted, Max gain, “A” weighted
• Maximum Input Level
• Mic: +18 dBu balanced
• Instrument: +15 dBu
• Maximum Gain
• Mic: 70 dB (XLR to balanced output)
• Instrument: 64 dB (1/4” to balanced output)
• Maximum Output level
• Balanced: ..+24 dBu
• Unbalanced: +20 dBu
• Output Level At Meter 0 VU: +4 dBu/-10dBV
• Preamp
• Microphone Gain: 0 dB to +56 dB
• Instrument Gain: +3 dB to +50 dB
• Low Cut Filter: 10 - 250 Hz, 1-pole, 6 dB/Octave
• EQ
• Boost/Cut: .+12 dB on each band
• Low Freq. Tuning: 40 / 120 Hz Selectable
• MID 1 Freq. Tuning: 20 Hz to 2 KHz continuously variable
• MID 2 Freq. Tuning: 200 Hz to 20 KHz continuously variable
• High Freq. Tuning: 6 KHz / 18 KHz Selectable
• Compressor/Limiter
• Attack Time: 250 uSec. to 100 mSec.
• Release Time: 100 mSec to 3 Sec.
• Compression Ratio: 2:1 to 30:1
• Dimensions: 3.50” H x 19.0” W x 9.17” D
• Weight: .11 lbs.
